Double Fury Amber & Green LED Sleeper Bunk Light Kit

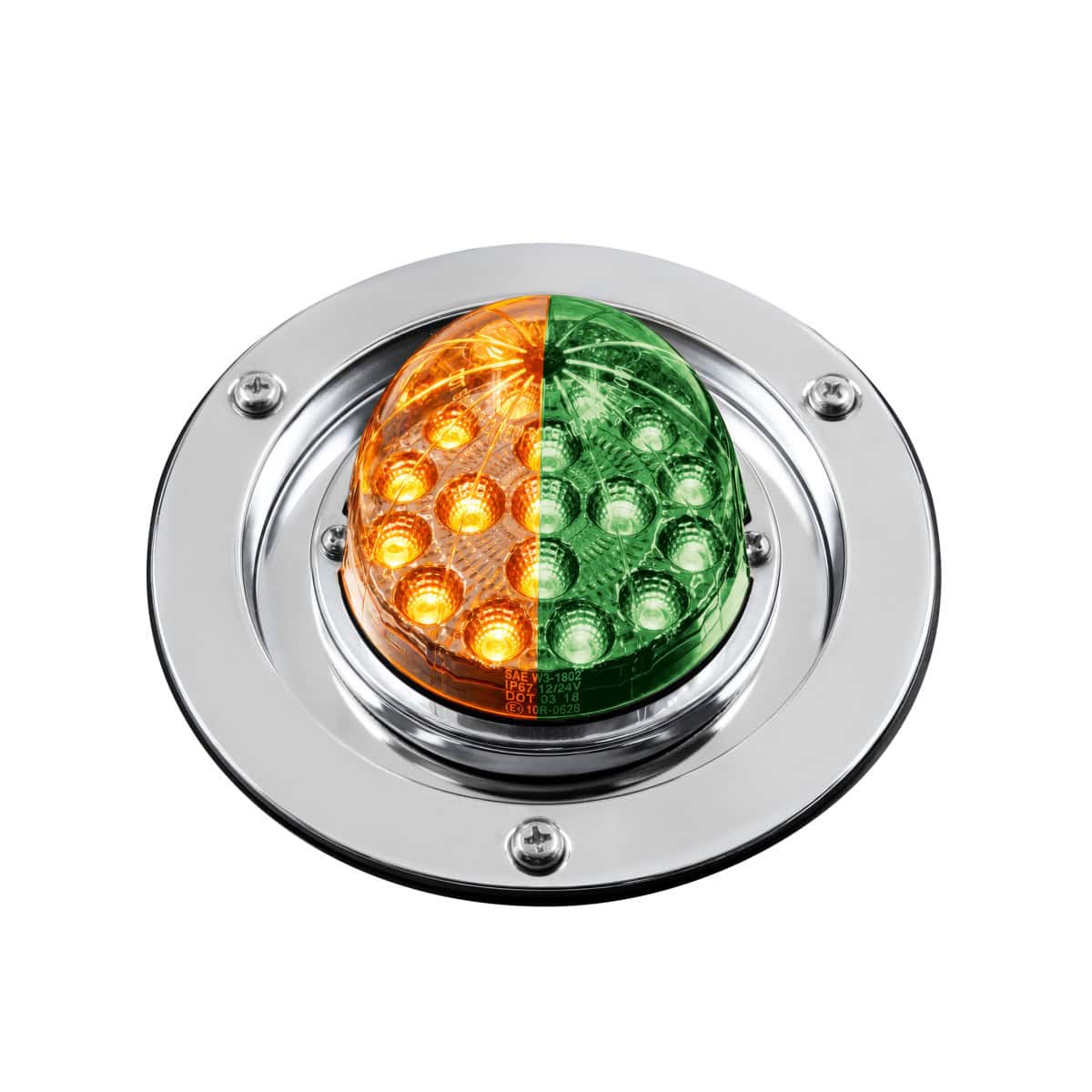

This Double Fury watermelon light kit features 17 LEDs in a dual-colour design. Amber primary lighting offers low and high functions, while the green secondary lighting is designated for auxiliary use only.
Primary Amber and Auxiliary Green Lighting
Separate wire leads control the primary amber low and high functions and the secondary green auxiliary function. This allows each lighting function to connect to its corresponding circuit.
Polished 304 Stainless Steel Bezel

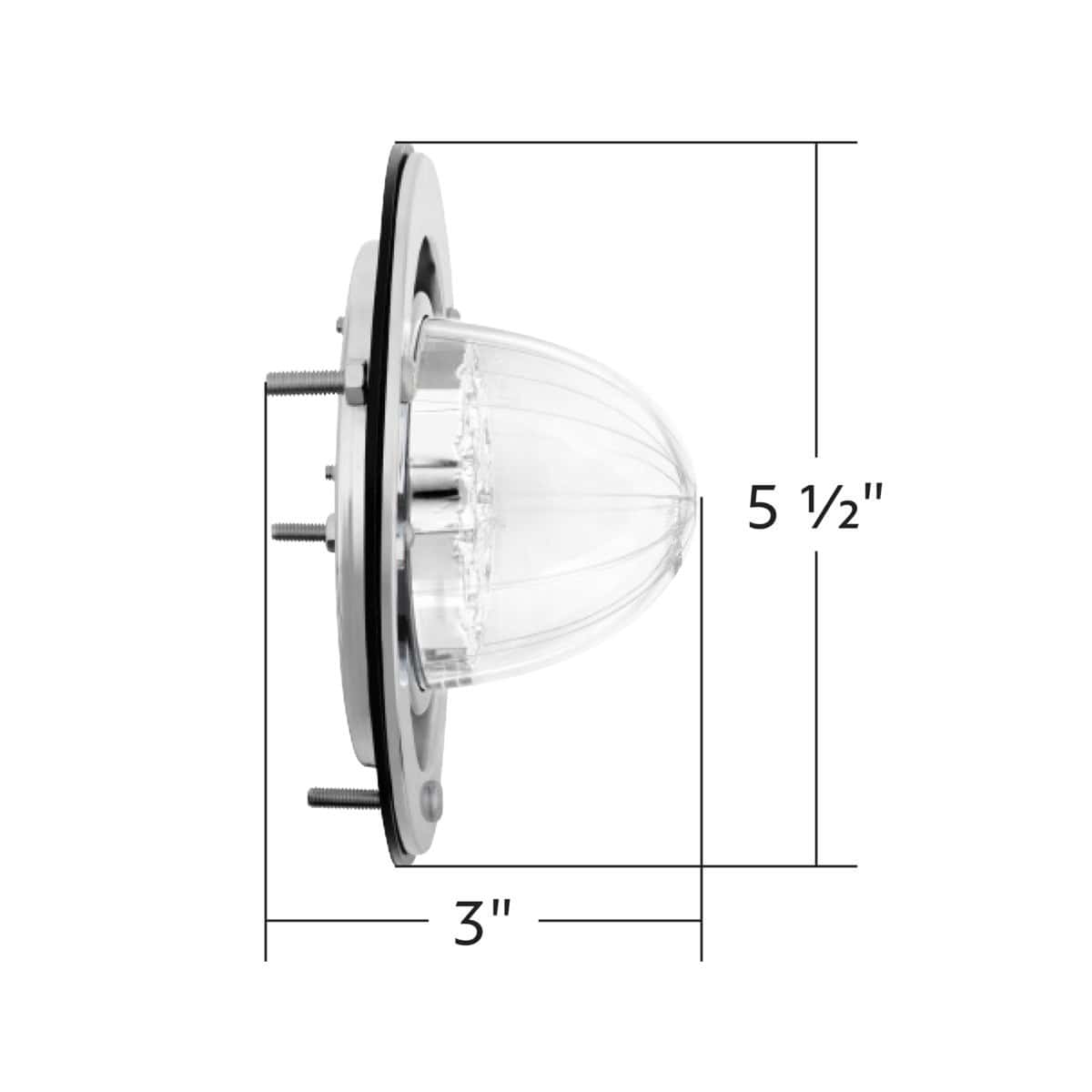

The kit includes a polished 304 stainless steel bezel and foam gasket. Confirm the mounting dimensions and available clearance for your sleeper bunk installation before ordering.
Sealed 12V DC Electronics
The electronics are completely sealed to resist corrosion and moisture. The supplied specifications list 12V DC operation and an IP67 water resistance rating.
Colour-Coded Wiring with Bullet Plugs
The four wire leads feature overmolded male bullet plugs. The supplied wiring colour code is:
- White: Ground
- Black: Primary amber low function
- Red: Primary amber high function
- Yellow: Secondary green auxiliary function
Confirm mating connector compatibility and circuit requirements before installation.
Product Details
- Product type: Watermelon sleeper bunk light kit
- Series: Double Fury
- LED count: 17
- Primary LED colour: Amber

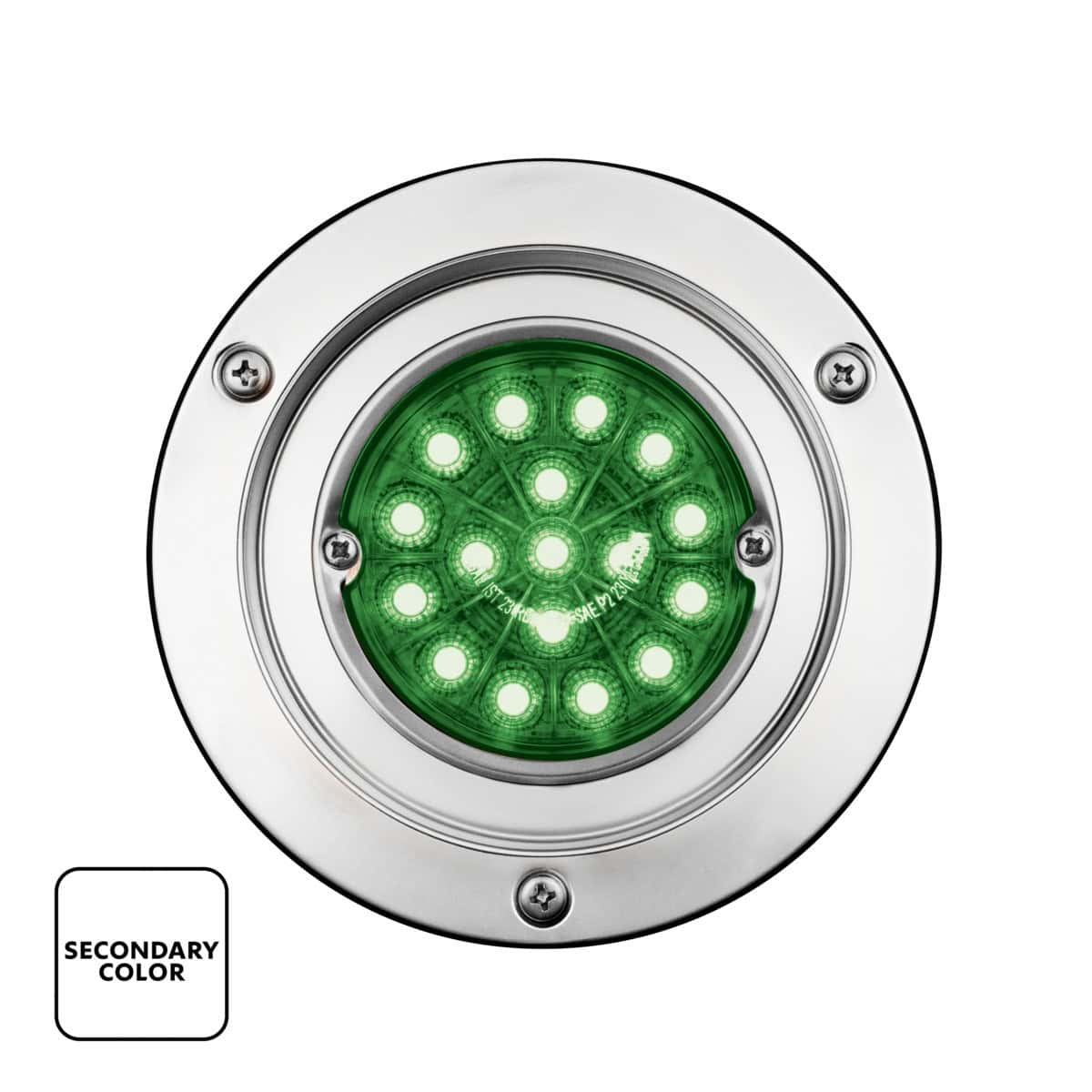

- Secondary LED colour: Green, auxiliary use only
- Primary functions: Low and high
- Bezel: Polished 304 stainless steel
- Gasket: Foam, included
- Operating voltage: 12V DC
- Wiring: Four leads with overmolded male bullet plugs
- Water resistance: IP67
- Listed compliance: DOT/SAE, FMVSS 108; secondary colour designated for auxiliary use only
- Warranty: 3 years
FAQs
What colours does this light kit provide?
The kit provides amber primary lighting and green secondary auxiliary lighting.
What does dual function mean?
The primary amber lighting has separate low and high functions. The green auxiliary lighting uses a separate wire lead.
What is the green lighting intended for?
The secondary green lighting is designated for auxiliary use only. The supplied compliance listing does not establish approval for green as a required vehicle lighting function.
What comes with the kit?
The supplied description identifies the light, a polished 304 stainless steel bezel and a foam gasket. The number of light assemblies per kit was not provided.
How is the light wired?
White is ground, black controls amber low, red controls amber high, and yellow controls green auxiliary lighting. Each lead features an overmolded male bullet plug.
What voltage does it use?
The light operates on 12V DC.
What is the water resistance rating?
The supplied specifications list an IP67 water resistance rating.
What warranty is included?
The product includes a 3-year warranty.
