Product Overview
This Double Fury mini watermelon light features two independently controlled LED circuits:
-
Primary LED: Red – DOT/SAE compliant for rear clearance/marker use
-

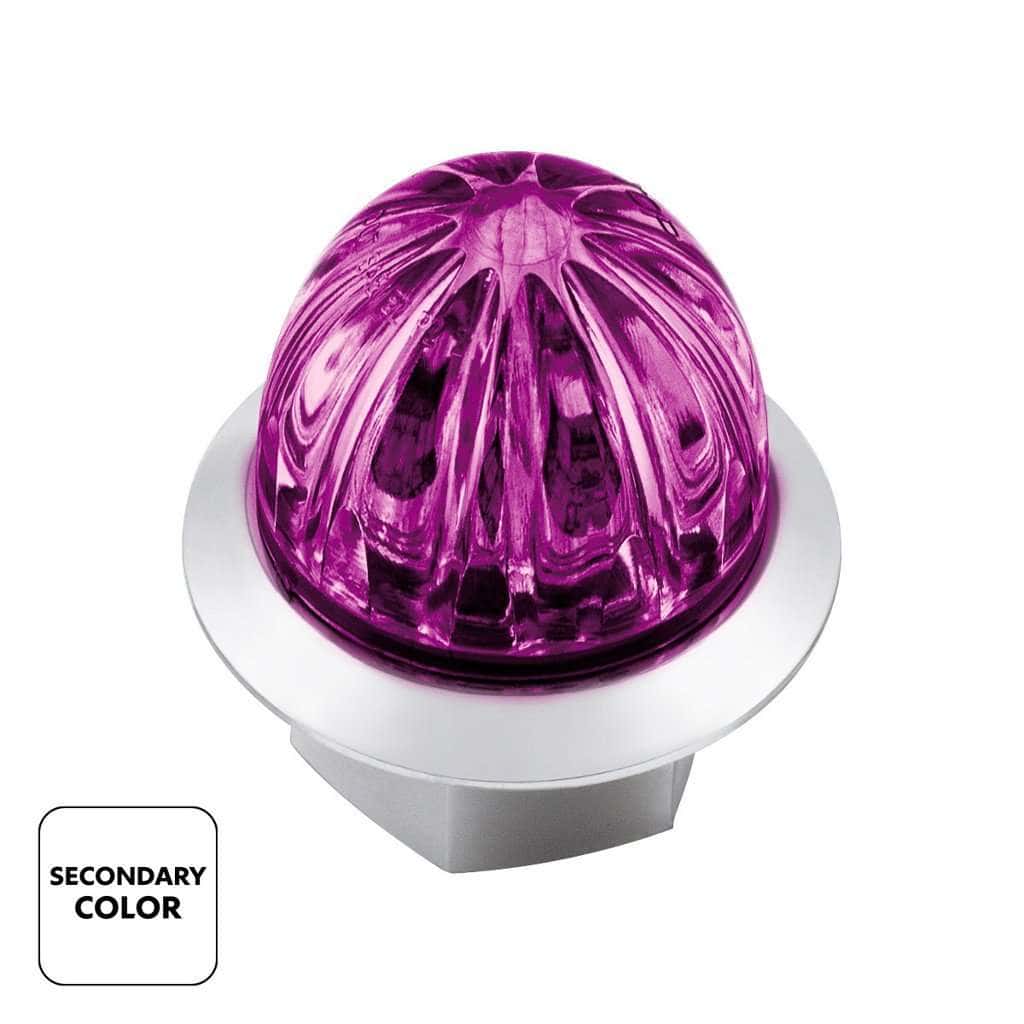

Secondary LED: Purple – Activates separately and overrides the primary when powered
When both circuits receive power, the secondary purple LED overrides the primary red LED, giving you:
-
Custom lighting control
-
Show-ready dual-color effects
-
Accent lighting capability
-
Auxiliary/off-road activation
⚠️ The secondary purple LED is intended for auxiliary or off-road use only. Confirm local regulations before installation on public-road vehicles.
Key Features & Benefits
Four Dual-Color High-Output LEDs
Bright, energy-efficient LEDs deliver strong visibility in both primary and secondary circuits.

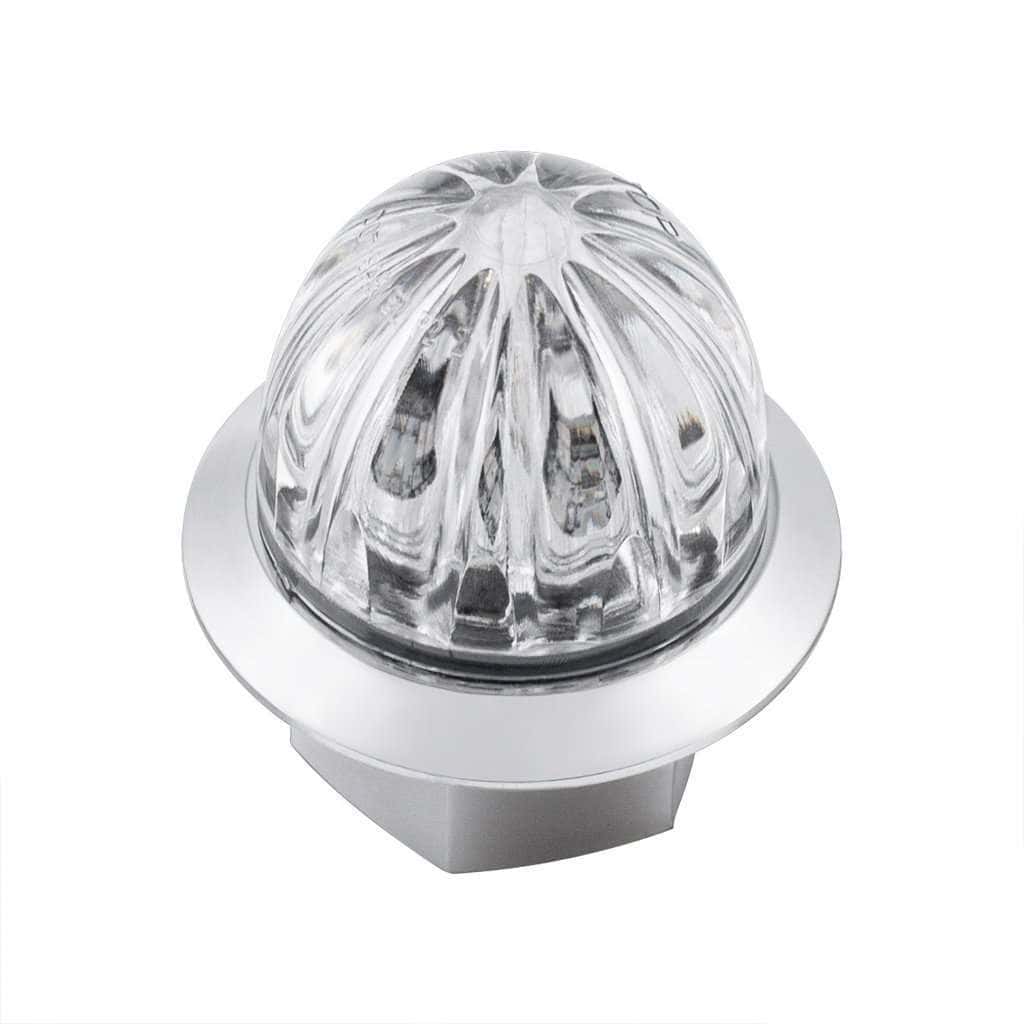

Clear Injection-Molded Polycarbonate Lens
Impact-resistant lens maintains clarity while enhancing LED output.
Chrome Plastic Bezel
Provides a polished, finished look that complements chrome and stainless trim.
Epoxy-Sealed Housing
Fully sealed to protect against:
-
Water intrusion
-
Dust
-
Salt exposure
-
Heavy vibration
IP67 Rated
Engineered to withstand demanding road and weather conditions.
Secondary Override Control
Independent secondary circuit (yellow wire) allows custom switching and flexible wiring configurations.
Performance / Compatibility / Use-Case
The 1-1/8″ lens diameter provides greater visual presence and wider light dispersion compared to compact 3/4″ minis.
Ideal for:
-
Sleeper panel lighting rows
-
Trailer perimeter lighting
-
Rear cab installations
-
Livestock and utility trailers
-
Custom show trucks
The clear lens maximizes brightness while maintaining a clean appearance when off.
This 1-1/8″ Watermelon Double Fury clearance light is ideal for:
-
Semi trucks and big rigs
-
Commercial trailers
-
Utility trailers
-
RVs and buses
-
Custom and show builds
Primary red LED meets DOT/SAE FMVSS 108 standards for rear clearance/marker use when installed properly. Secondary purple LED is for auxiliary/off-road or custom applications only.
Installation / Fitment / Technical Details
Brand: United Pacific Industries
Item Number: 39238
LED Count: 4 Dual-Color LEDs

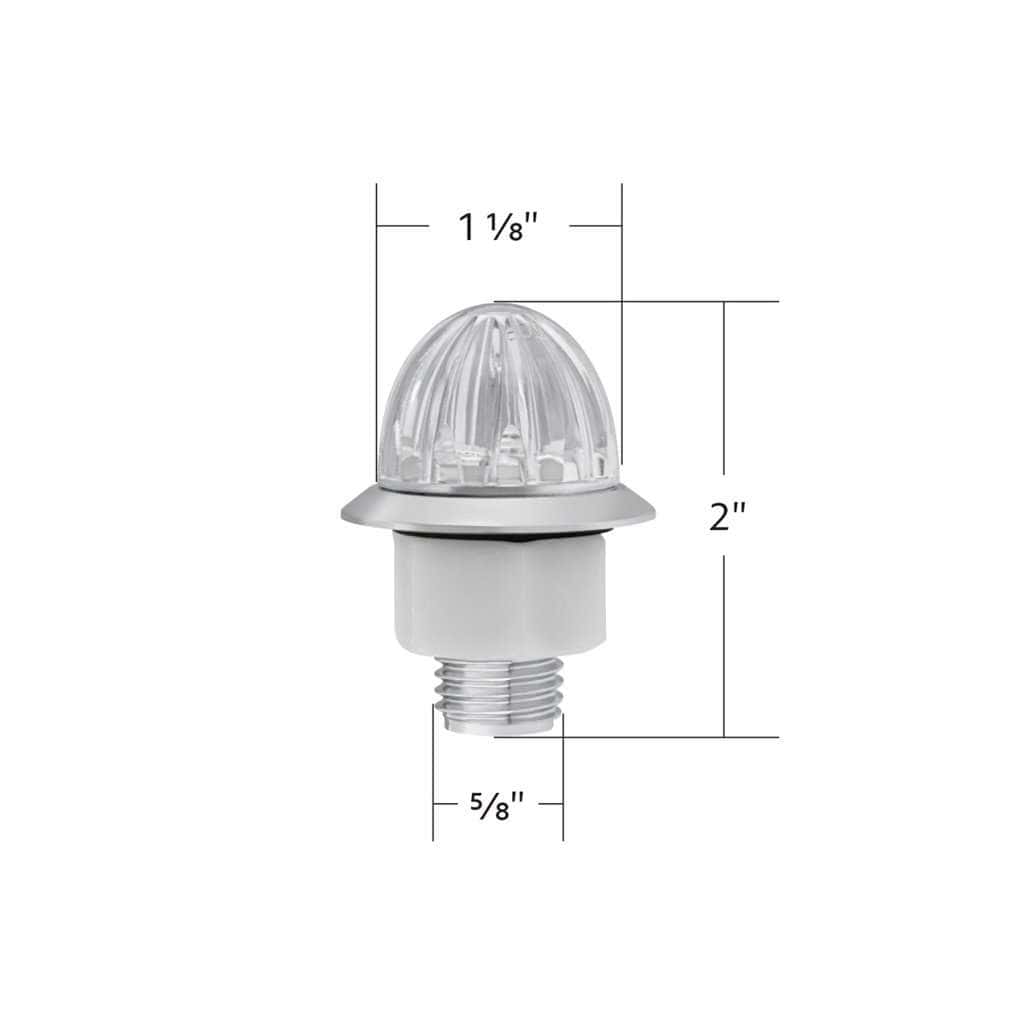

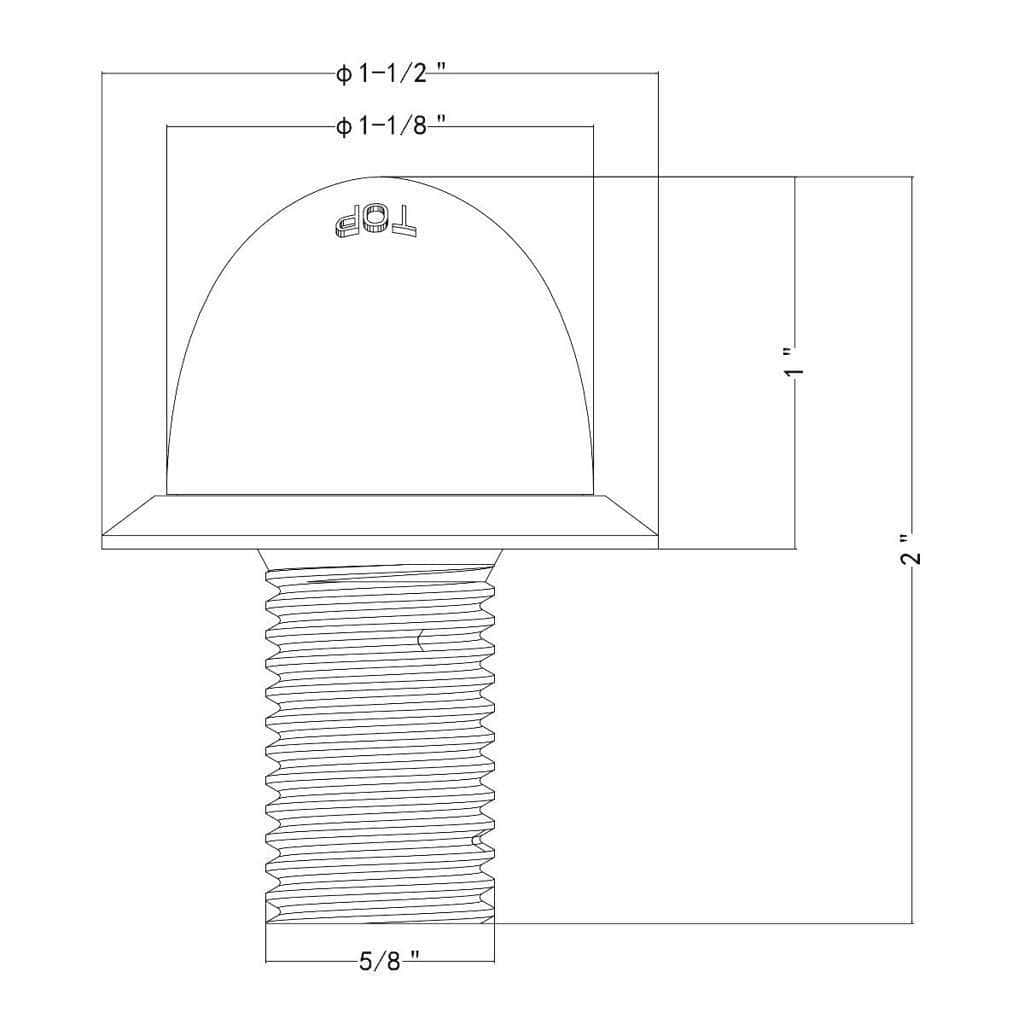

Lens Diameter: 1-1/8″
Mounting Hole Required: 3/4″ Diameter
Voltage: 12V DC
Water Rating: IP67
Compliance: DOT / SAE, FMVSS 108 (Primary Only)

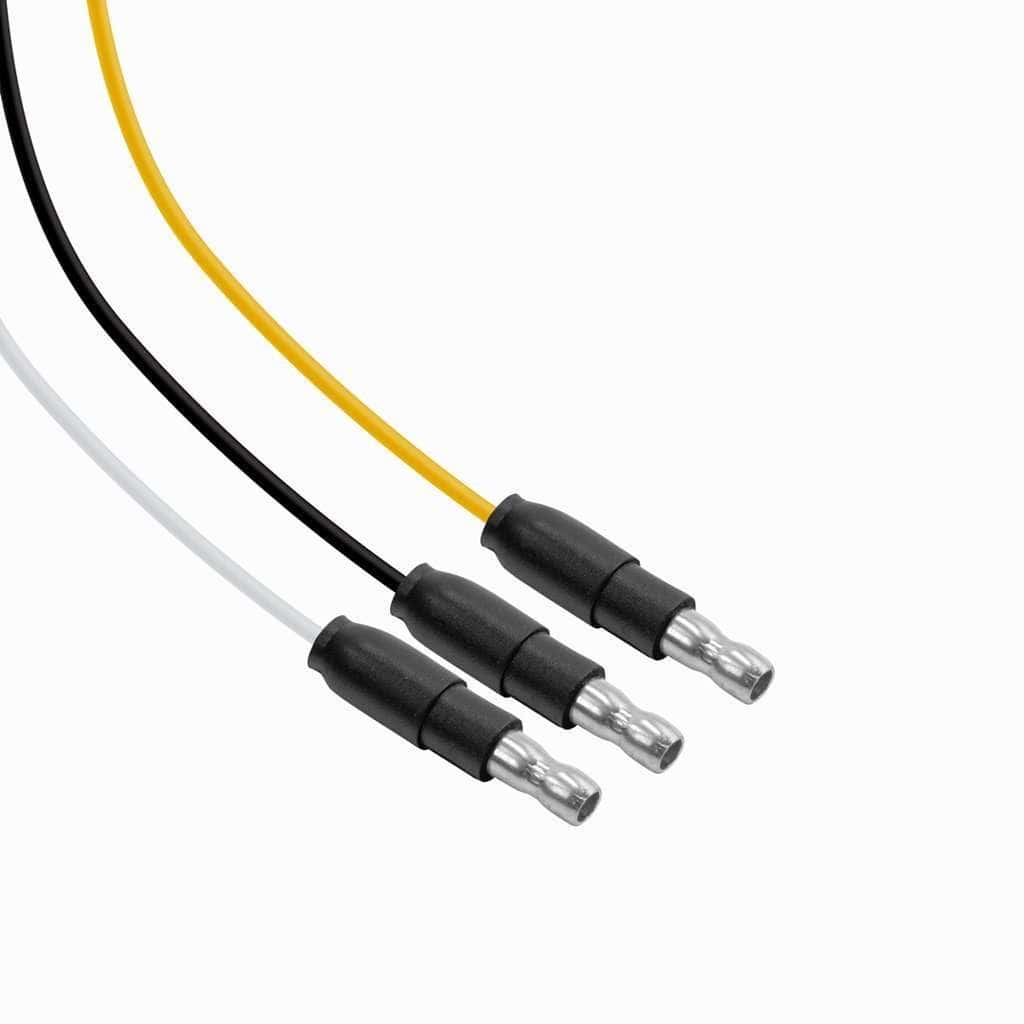

3-Wire Hookup (Male Bullet Plugs)
-
White = Ground (-)
-
Black = Primary (+) – Red LED
-
Yellow = Secondary (+) – Purple LED
Build Quality / Warranty
-
Injection-molded polycarbonate lens
-
Chrome plastic bezel
-
Epoxy-sealed electronics
-
Stud-mount installation with nylon nut
-
Designed for vibration-heavy commercial environments
This is a performance clearance light built for real-world trucking and serious custom builds.
Warranty: 3-year manufacturer warranty.
What’s Included
-
(1) 4 LED 1-1/8″ Watermelon Double Fury Light – Red & Purple LED
-
Chrome plastic bezel
-
Nylon mounting nut
-
Threaded mounting stud
Frequently Asked Questions
What does “Double Fury” mean?
Double Fury refers to the dual-color LED configuration with independent primary and secondary circuits. The secondary LED overrides the primary when activated.
Is the purple LED street legal?
No. The purple LED is generally intended for auxiliary or off-road use. The red primary LED meets DOT/SAE requirements for rear clearance lighting.
Does this require a 1-1/8″ mounting hole?
No. The lens measures 1-1/8″, but installation requires a 3/4″ mounting hole.
Is this light waterproof?
Yes. It is rated IP67 and features epoxy-sealed electronics to resist moisture intrusion.
Can I wire the purple LED to a separate switch?
Yes. The yellow wire allows independent control of the secondary LED for custom switch setups.
Bold Dual-Color Impact. Classic Watermelon Style.
The 4 LED 1-1/8″ Watermelon Double Fury Light – Red & Purple delivers standout styling, flexible wiring control, and dependable durability in a larger clearance light format. Perfect for drivers who want compliance, customization, and maximum visual presence.
