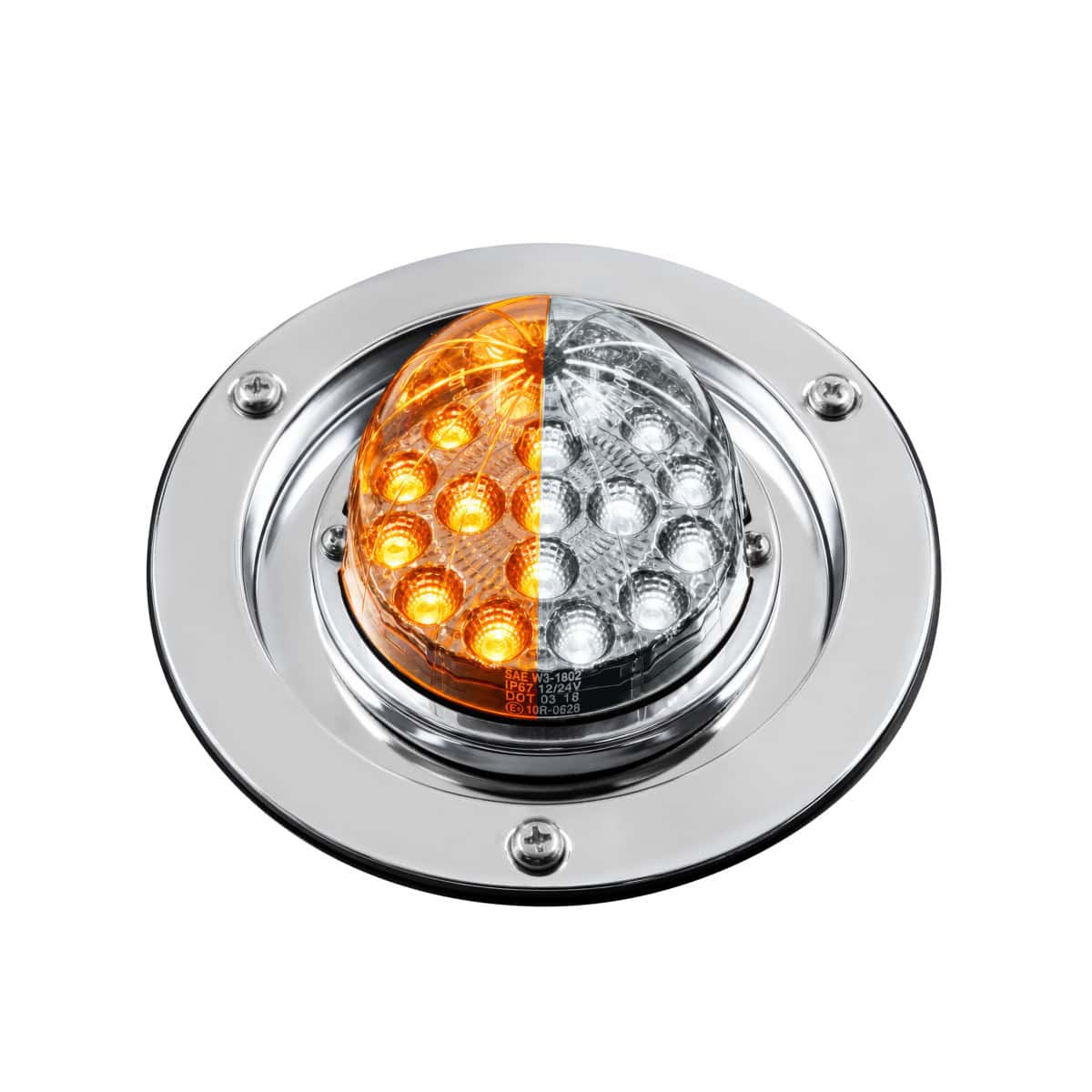

Double Fury Amber & White LED Sleeper Bunk Light Kit
This Double Fury watermelon light kit features 17 LEDs in a dual-colour design. The primary amber lighting offers low and high functions, while the secondary white lighting is designated for auxiliary use only.
Primary Amber and Auxiliary White Lighting
Separate wire leads control the amber low, amber high and white auxiliary functions. Each lighting function has its own control lead for connection to the appropriate circuit.
Polished 304 Stainless Steel Bezel
The kit includes a polished 304 stainless steel bezel and foam gasket. Confirm the mounting dimensions and available clearance for your sleeper bunk installation before ordering.
Sealed 12V DC Electronics
The electronics are completely sealed to resist corrosion and moisture. The supplied specifications list 12V DC operation and an IP67 water resistance rating.
Colour-Coded Wiring with Bullet Plugs
Four wire leads feature overmolded male bullet plugs. The supplied wiring colour code is:
- White: Ground
- Black: Primary amber low function
- Red: Primary amber high function
- Yellow: Secondary white auxiliary function
The white wire is ground; the yellow wire controls the white auxiliary LEDs. Confirm mating connector compatibility and circuit requirements before installation.
Product Details
- Product type: Watermelon sleeper bunk light kit
- Series: Double Fury
- LED count: 17
- Primary LED colour: Amber

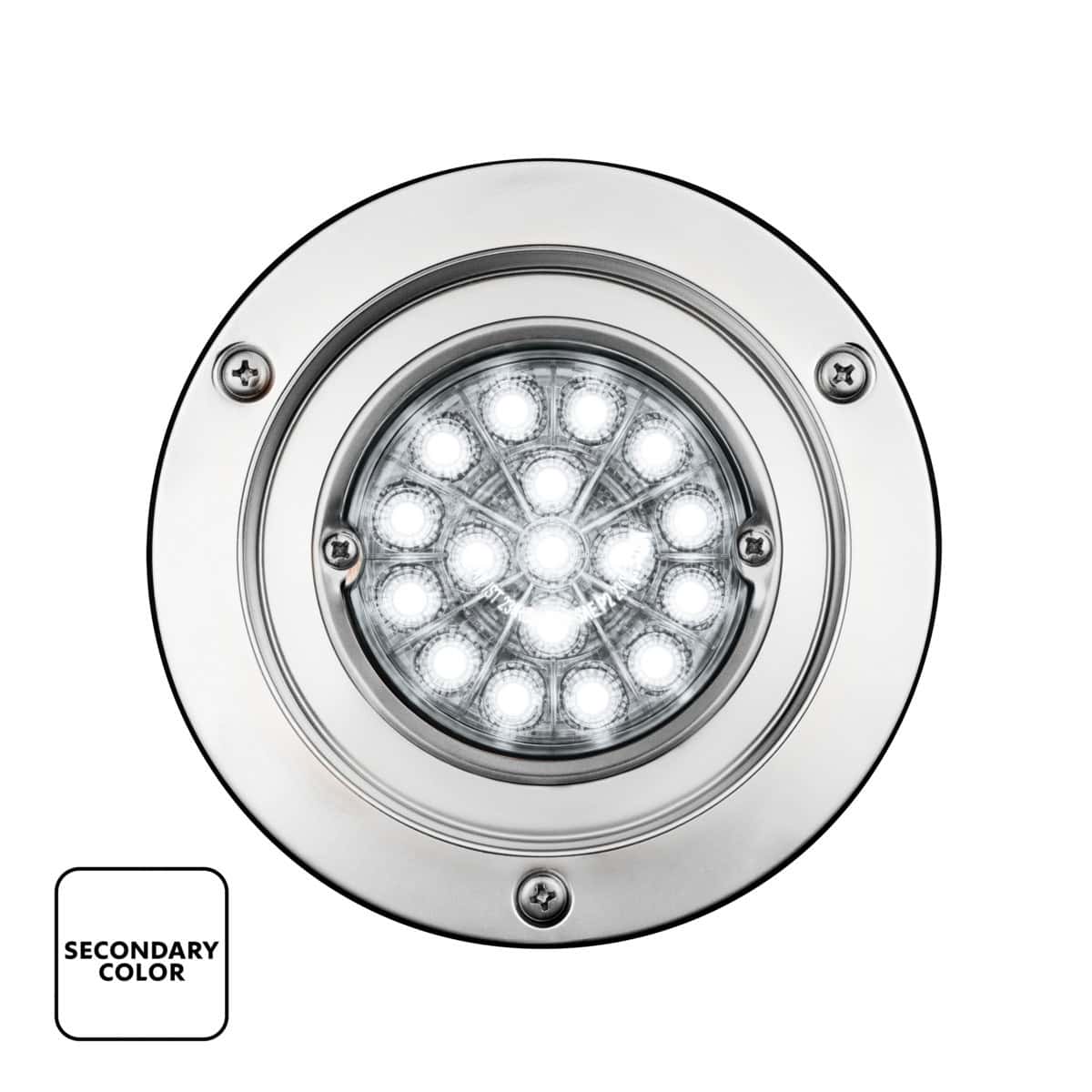

- Secondary LED colour: White, auxiliary use only
- Primary functions: Low and high
- Bezel: Polished 304 stainless steel
- Gasket: Foam, included
- Operating voltage: 12V DC
- Wiring: Four leads with overmolded male bullet plugs
- Water resistance: IP67
- Listed compliance: DOT/SAE, FMVSS 108; secondary colour designated for auxiliary use only
- Warranty: 3 years
FAQs
What colours does this light kit provide?
The kit provides amber primary lighting and white secondary auxiliary lighting.
What does dual function mean?
The primary amber lighting has separate low and high functions. The white auxiliary lighting uses a separate wire lead.
Can the white LEDs be used as reverse lights?
Reverse light use is not specified. The supplied information designates the secondary white LEDs for auxiliary use only.
What comes with the kit?
The supplied description identifies the light, a polished 304 stainless steel bezel and a foam gasket. The number of light assemblies per kit was not provided.
Which wire controls the white LEDs?
The yellow wire controls the secondary white LEDs. White is ground, black controls amber low, and red controls amber high.
What voltage does it use?
The light operates on 12V DC.
What is the water resistance rating?
The supplied specifications list an IP67 water resistance rating.
What warranty is included?
The product includes a 3-year warranty.
