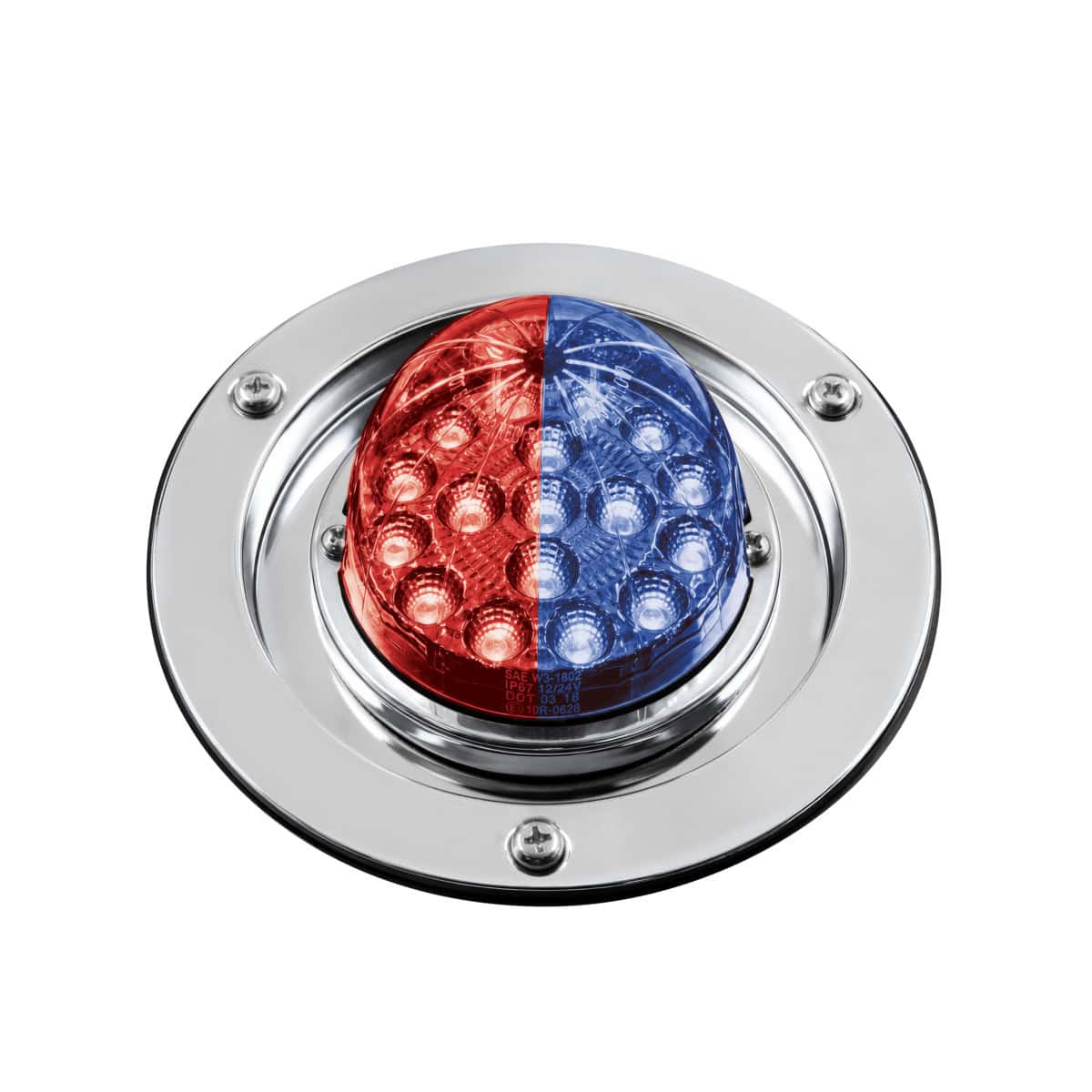

Double Fury Red & Blue LED Sleeper Bunk Light Kit
This Double Fury watermelon light kit features 17 LEDs in a dual-colour design. The primary red lighting offers low and high functions, while the secondary blue lighting is designated for auxiliary use only.
Primary Red and Auxiliary Blue Lighting
Separate wire leads control the red low, red high and blue auxiliary functions. Each function has a dedicated control lead for connection to the appropriate circuit.
Polished 304 Stainless Steel Bezel
The kit includes a polished 304 stainless steel bezel and foam gasket. Confirm the mounting dimensions and available clearance for your sleeper bunk installation before ordering.
Sealed 12V DC Electronics
The electronics are completely sealed to resist corrosion and moisture. The supplied specifications list 12V DC operation and an IP67 water resistance rating.
Colour-Coded Wiring with Bullet Plugs
Four wire leads feature overmolded male bullet plugs. The supplied wiring colour code is:
- White: Ground
- Black: Primary red low function
- Red: Primary red high function
- Yellow: Secondary blue auxiliary function
Confirm mating connector compatibility and circuit requirements before installation.
Product Details
- Product type: Watermelon sleeper bunk light kit
- Series: Double Fury
- LED count: 17
- Primary LED colour: Red
- Secondary LED colour: Blue, auxiliary use only
- Primary functions: Low and high
- Bezel: Polished 304 stainless steel
- Gasket: Foam, included
- Operating voltage: 12V DC
- Wiring: Four leads with overmolded male bullet plugs
- Water resistance: IP67
- Listed compliance: DOT/SAE, FMVSS 108; secondary colour designated for auxiliary use only
- Warranty: 3 years
FAQs
What colours does this light kit provide?
The kit provides red primary lighting and blue secondary auxiliary lighting.
What does dual function mean?
The primary red lighting has separate low and high functions. The blue auxiliary lighting uses a separate wire lead.
Are the red low and high functions tail and brake lights?
Tail and brake light functions were not specified. The supplied information identifies primary red low and high functions; confirm the approved application before wiring.
What is the blue lighting intended for?
The secondary blue lighting is designated for auxiliary use only. The supplied compliance listing does not establish approval for blue as a required vehicle lighting function.
What comes with the kit?
The supplied description identifies the light, a polished 304 stainless steel bezel and a foam gasket. The number of light assemblies per kit was not provided.
How is the light wired?
White is ground, black controls red low, red controls red high, and yellow controls blue auxiliary lighting. The leads feature overmolded male bullet plugs.
What voltage and water resistance rating are listed?
The light operates on 12V DC and has a listed IP67 water resistance rating.
What warranty is included?
The product includes a 3-year warranty.
