A clean White finish for the rear of your F-150
FORM FL0046 · 2015–2023 Ford F-150 · Pair
Update the two license-plate lamps with complete LED housings. The 6000K Cool White output gives the plate area a crisp appearance, while clear lenses and direct-fit connections keep the installation straightforward.
Built for the original lamp openings
- Ford F-150 model years 2015 through 2023, including the 2021, 2022 and 2023 trucks covered by our lighting hub.
- Replaces the original left and right license-plate light housings.
- Check the mounting openings and connectors if the rear bumper or plate-light wiring has been changed.
One Clear-lens, Cool White configuration is offered. There is no colour or output-tier choice to make on this listing.
Replace the housing as well as the light source
Integrated LEDs

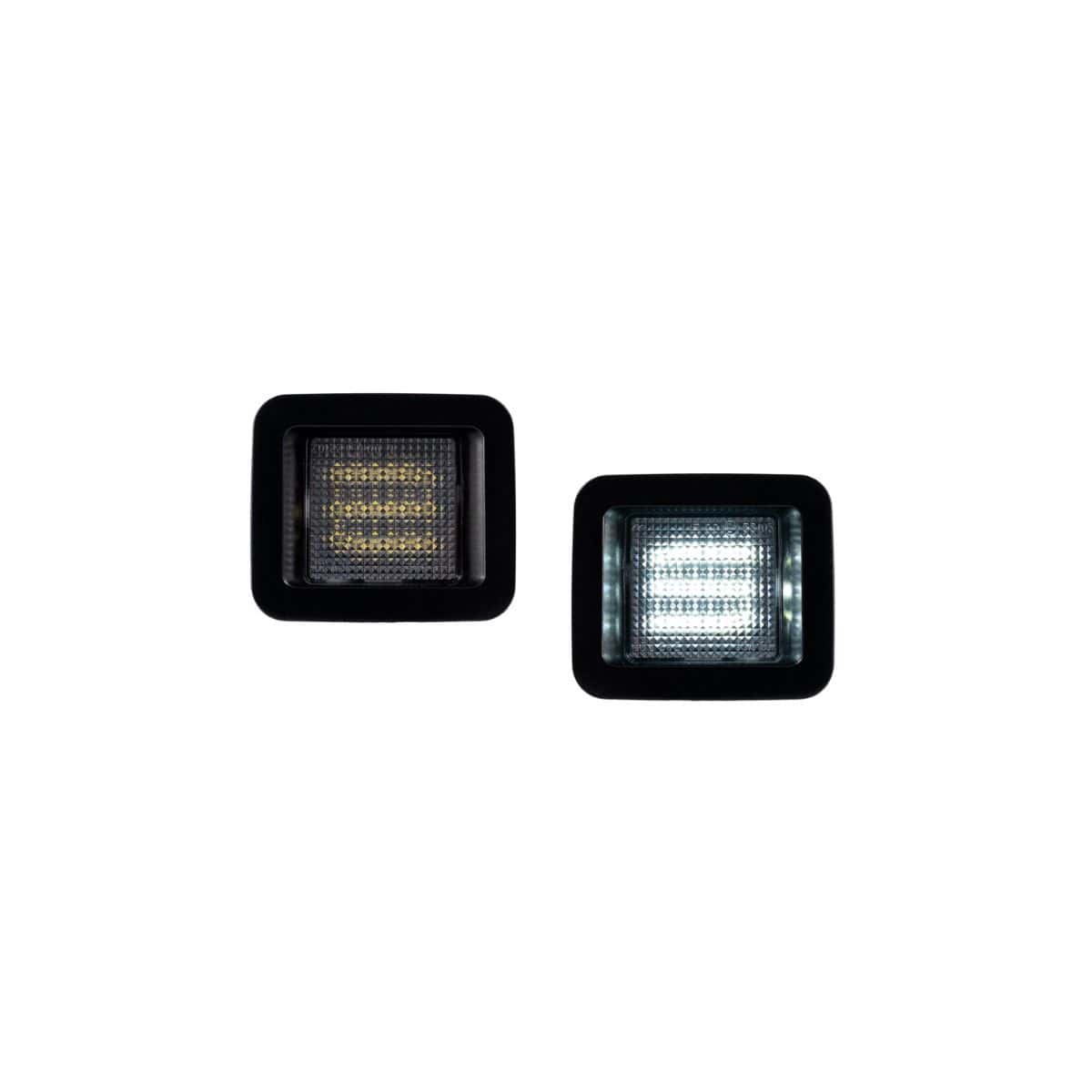

Each replacement brings its own LED board, optics and lens. This package is a pair of complete lamps, not a pair of loose replacement bulbs.
Built for the bumper location

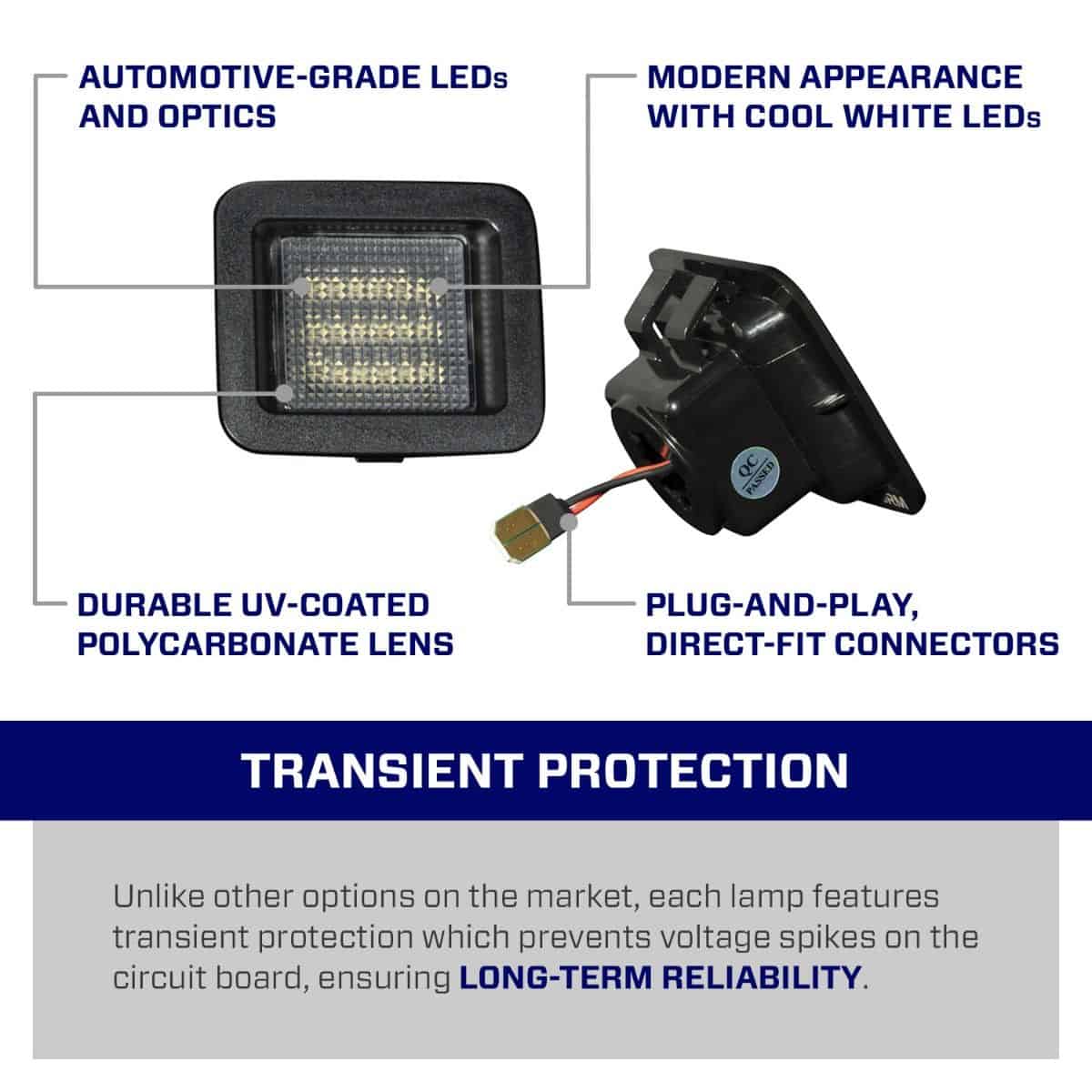

UV-coated polycarbonate lenses and IP67-rated housings protect the assemblies. Built-in transient protection addresses voltage spikes at the circuit board.
A short job with a plastic trim tool
Release the original housing, expose and remove its bulb, then connect and test the new assembly before snapping it into place. FORM lists a typical installation time of 5–10 minutes and no modification for the supported factory arrangement.
If an LED does not illuminate during the test, the manufacturer instructs you to disconnect it, reverse the plug orientation and test again.
See the clips, connection and refitting steps
Our guide includes all seven original instructional photographs, with full-size links for the small details.
Package and specifications
- Part number
- FL0046
- Included
- Two complete LED license-plate lights: left and right
- Main light
- 6000K Cool White
- Lens
- Clear, UV-coated polycarbonate
- Connection
- Factory-size plug-and-play connection
- Ingress rating
- IP67
- Manufacturer warranty
- Two years, subject to FORM warranty terms
Before you order
Is one purchase enough for both sides?
Yes. FL0046 is supplied as a left-and-right pair.
Do I need separate LED bulbs?
No. The light sources are integrated into the supplied replacement housings.
Will this fit a modified rear bumper?
The product is designed for the factory F-150 lamp openings and connections. Confirm an aftermarket bumper retains those features before ordering.
What warranty applies?
FORM supports these assemblies with its two-year manufacturer warranty. This FORM product is not covered by the separate lifetime lamp wording used on some Diode Dynamics products. Contact BTS for help with a warranty concern.
