BTS installation guide · FL0057 · 2016–2023 Tacoma

Install FORM license-plate lights on your Tacoma

FORM includes FL0057 in this general plate-lamp procedure. Its photographs show a manufacturer reference installation, not a claim that every bumper has the same clip position. Identify your original lamp notch, clips and socket before removal.

Before you start

Confirm the correct lamp part number and original equipment. Work with the vehicle parked securely and the lamps off during removal. Keep removed clips and screws together.

  • Plastic trim-removal tool

1. Release the original housing

Ease a plastic trim tool between the original lamp housing and bumper. Use the housing notch, where present, to locate a retention-clip area and guide your pressure.

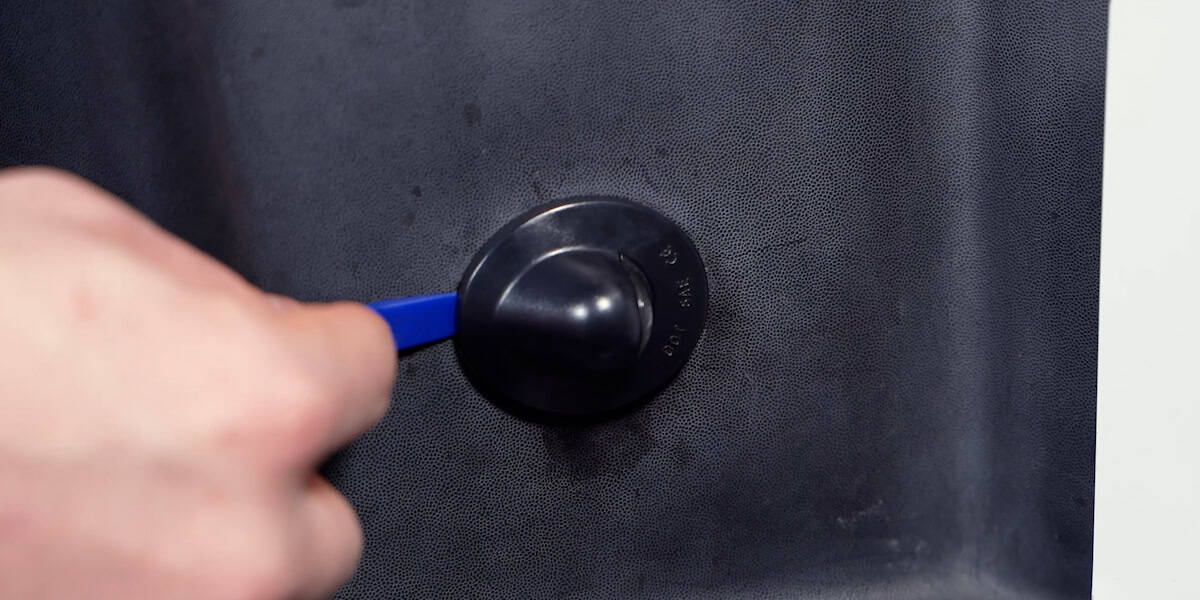

Use a plastic trim tool at the lamp-housing edge; manufacturer reference vehicle.
Use a plastic trim tool at the lamp-housing edge; manufacturer reference vehicle. View full size

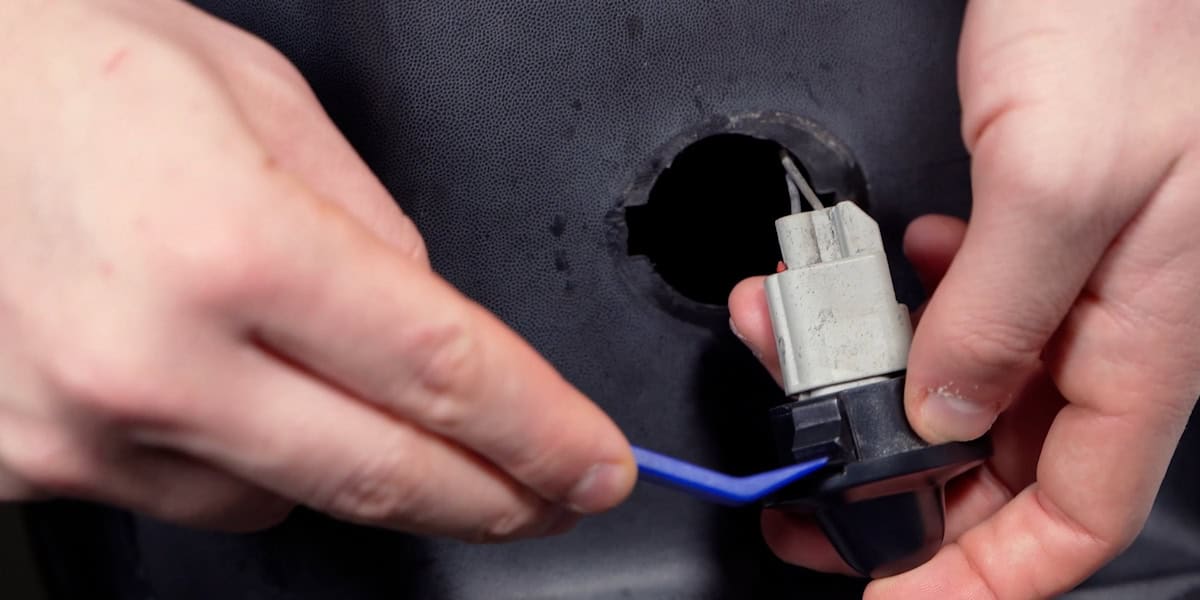

Release the housing carefully at its retention area.
Release the housing carefully at its retention area. View full size

2. Remove the socket from the housing

Twist and withdraw the original socket from the housing to expose the bulb. Keep the socket and wiring supported.

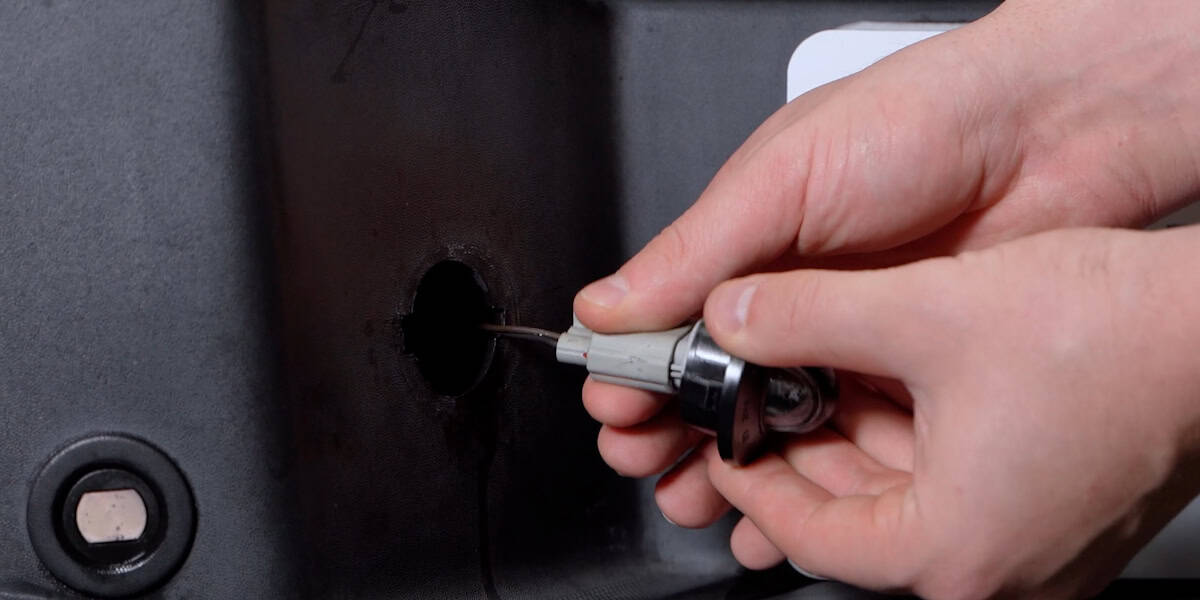

Twist the original socket out of the housing.
Twist the original socket out of the housing. View full size

3. Connect the new LED lamp and test

Remove the original bulb, connect the new lamp and check operation. If it does not illuminate, FORM instructs unplugging the lamp, reversing its plug orientation and testing again. Do not force an incompatible connector.

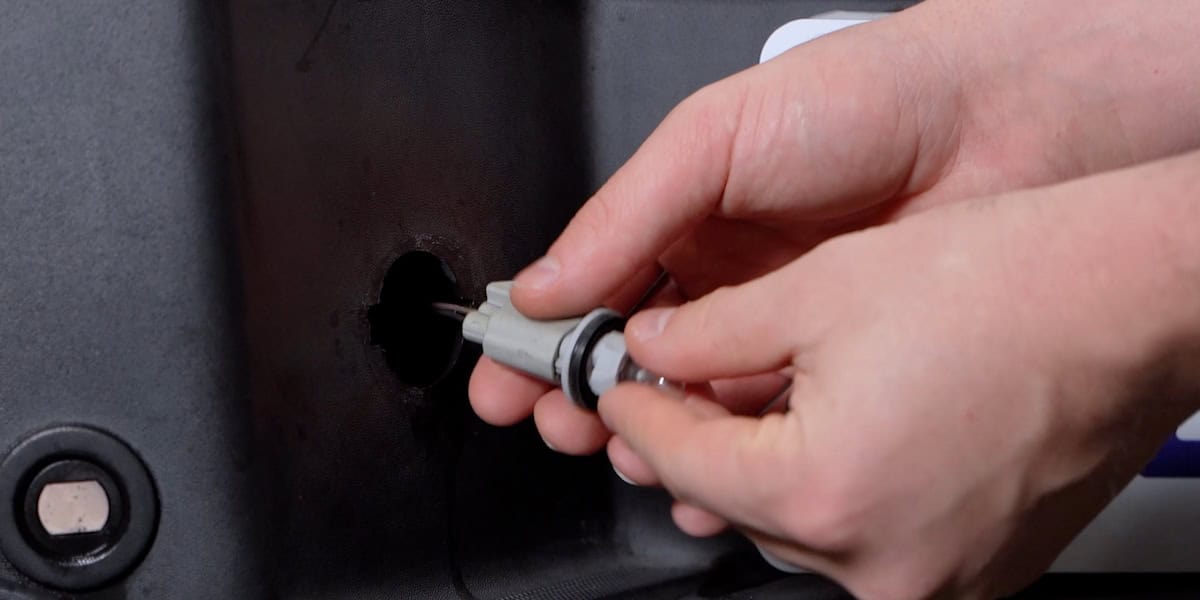

Remove the original bulb.
Remove the original bulb. View full size

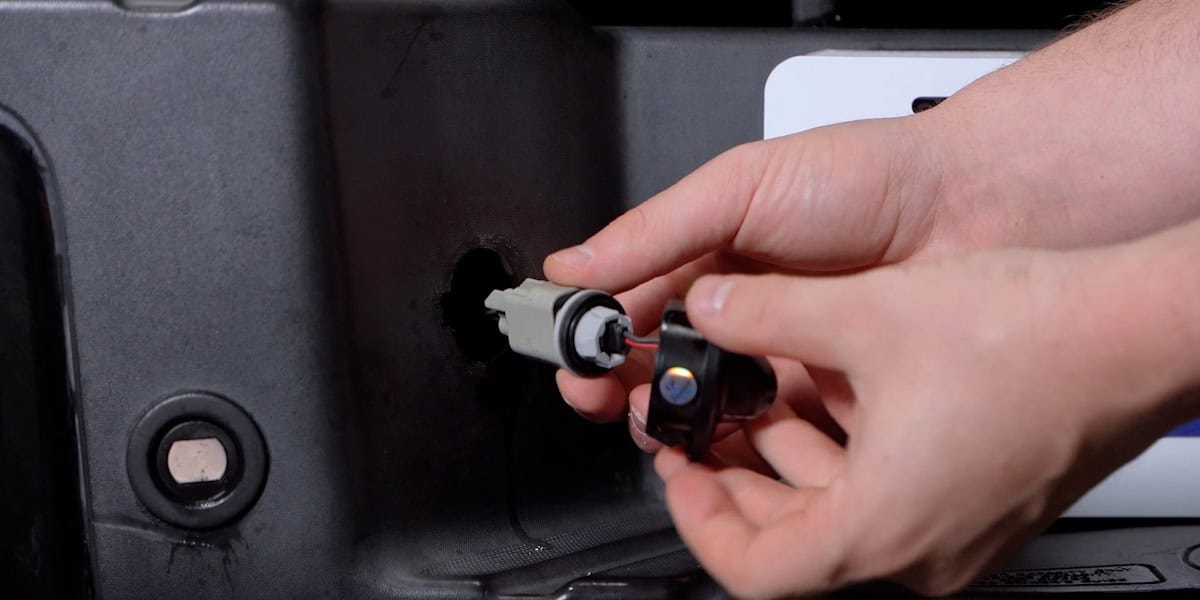

Connect the replacement LED lamp to the original socket.
Connect the replacement LED lamp to the original socket. View full size

4. Seat the new housing

Snap the replacement lamp into the original mounting opening and check the retention clips. Repeat on the other side, then check both lamps illuminate.

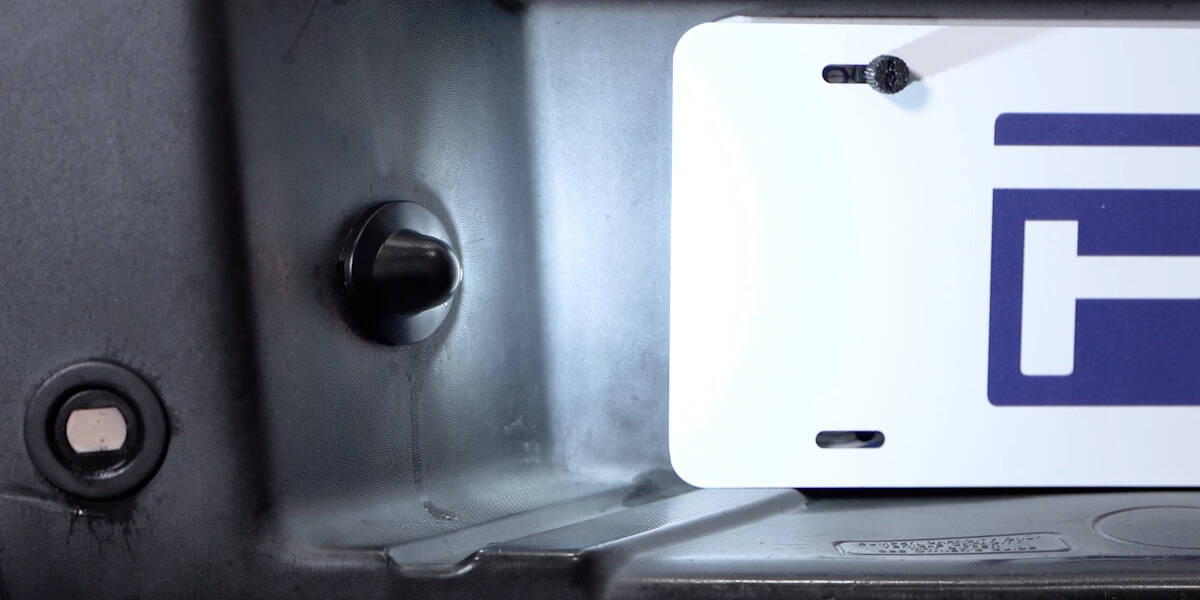

Replacement lamp seated and illuminated.
Replacement lamp seated and illuminated. View full size

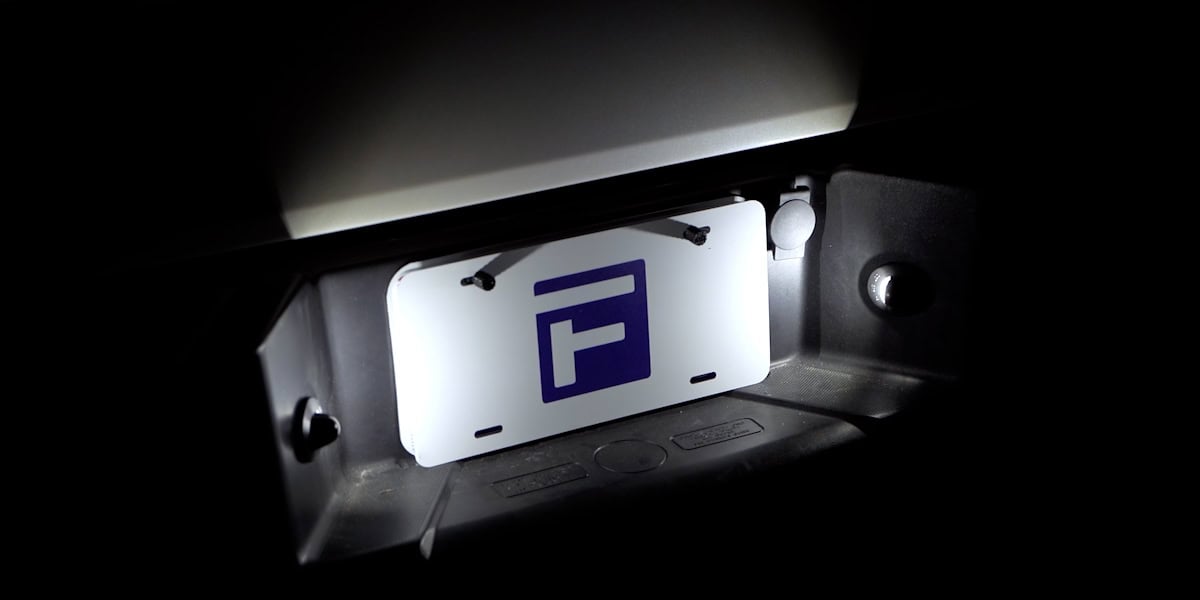

Completed manufacturer reference installation; repeat for the opposite side.
Completed manufacturer reference installation; repeat for the opposite side. View full size

Manufacturer installation video

Manufacturer multi-vehicle procedure, including FL0057; the demonstrated bumper is a reference example.

Watch on YouTube

Finish with an operation check

Check both lamps before discarding the original parts. If the connector, retention points or operation differ from the supplied instructions, stop and contact BTS with a photo of the original assembly.
