Install FORM FL0029 mirror lights

For 2014–2024 Toyota 4Runner and 2013–2018 RAV4 with original factory mirror lamps.

Before you start

Use the supplied plastic trim tool and a Phillips screwdriver. Check that the mirrors have the original lamps and connections. Support the mirror glass as you release it, keeping any attached wires free of strain.

The manufacturer demonstrates these steps on other vehicle housings. The pictures show the connection and handling method, not the exact 4Runner clip layout. Inspect your original retention points and follow the vehicle service procedure where fasteners differ.

1. Release the mirror glass

Carefully release one side of the glass, then work around the remaining clips. Keep the glass supported; unclip its connections if needed for safe access rather than leaving it hanging by the wires.

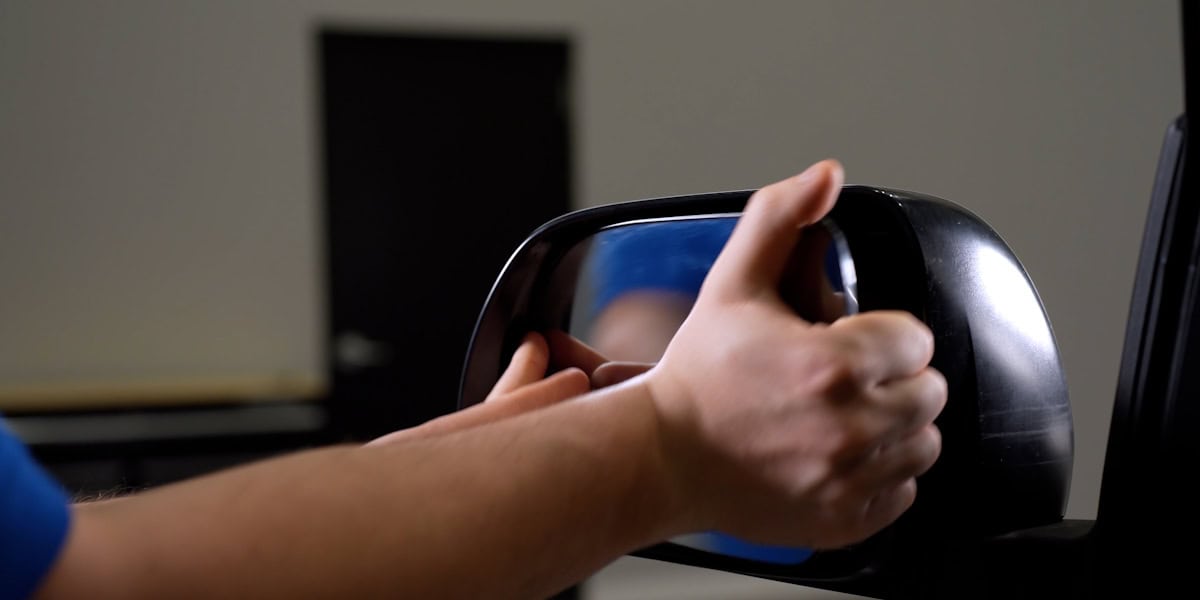

FORM method example: unclip the mirror glass carefully to access the housing.
FORM method example: unclip the mirror glass carefully to access the housing. View full size

2. Release the mirror cap

The manufacturer marks the example’s retaining tabs in red. Free the outer tab while applying gentle pressure to the cap, then work around the remaining tabs.

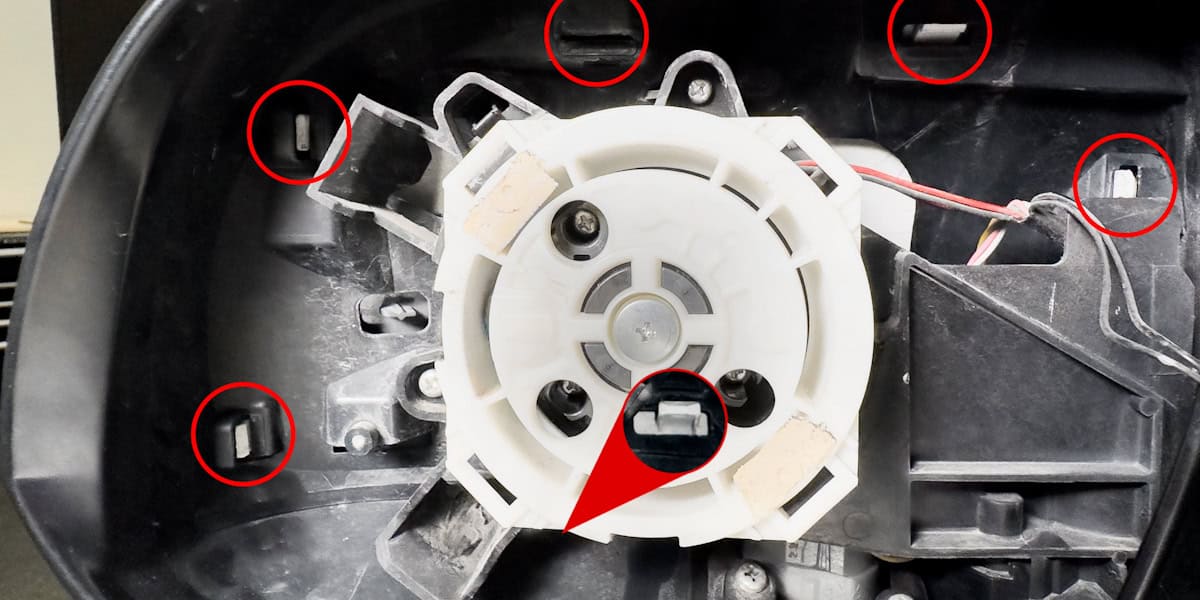

The manufacturer marks mirror-cap retaining clips in red on this example.
The manufacturer marks mirror-cap retaining clips in red on this example. View full size

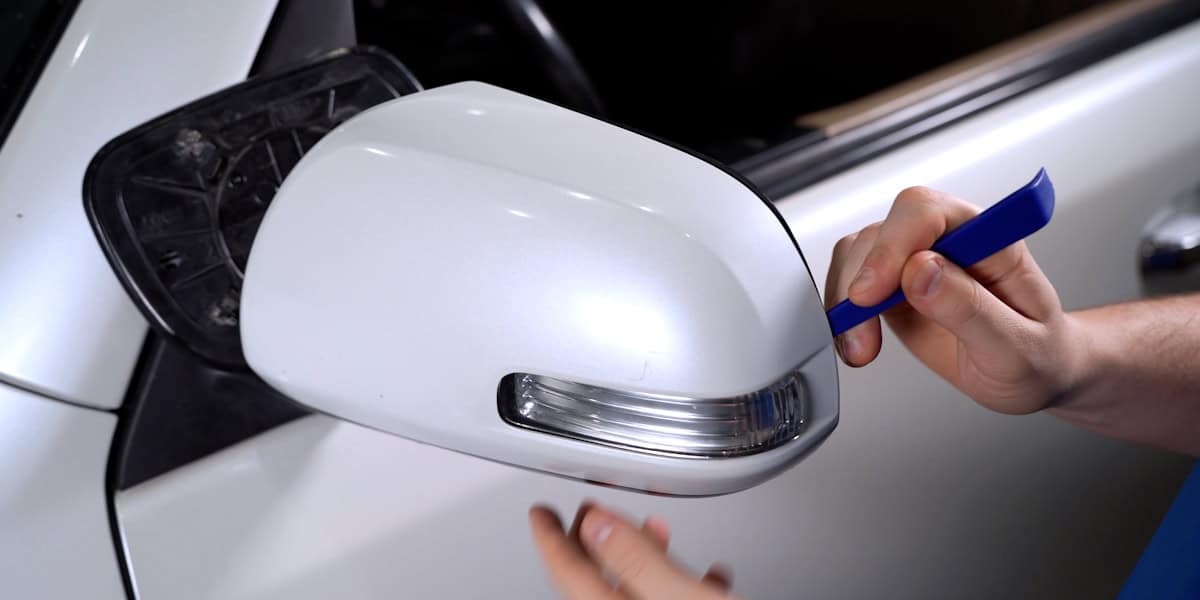

Method example: release the mirror cap after freeing its clips.
Method example: release the mirror cap after freeing its clips. View full size

3. Remove the original mirror lamp

Remove the two Phillips screws shown in the example and release the lamp trim. Press the connector’s retaining tab before unplugging the original lamp.

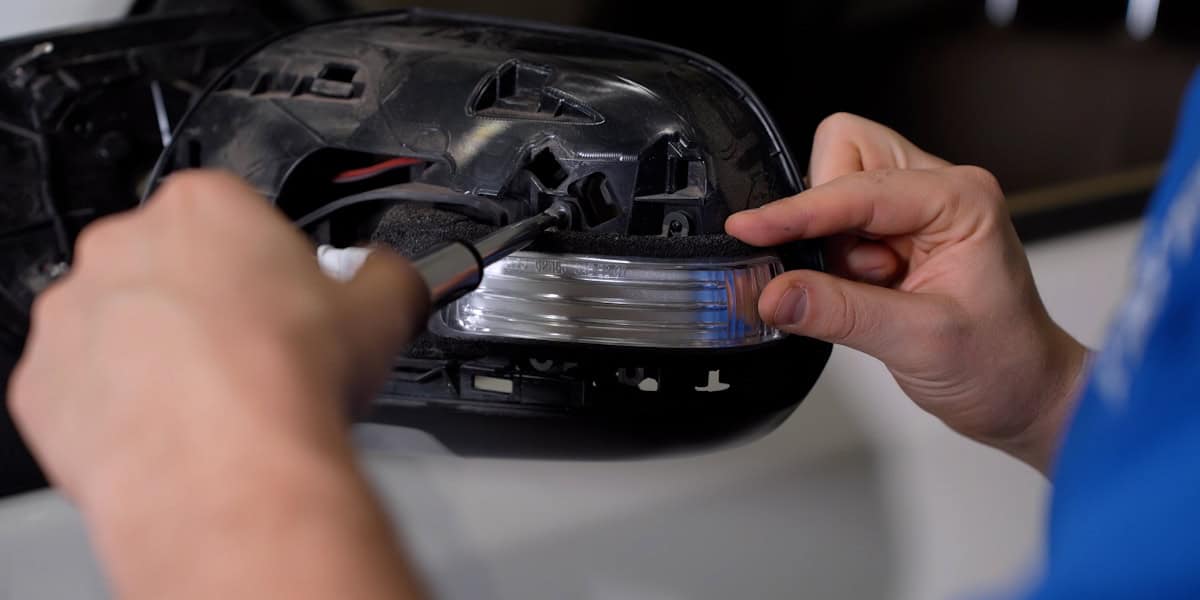

Method example: remove the screws securing the lamp trim.
Method example: remove the screws securing the lamp trim. View full size

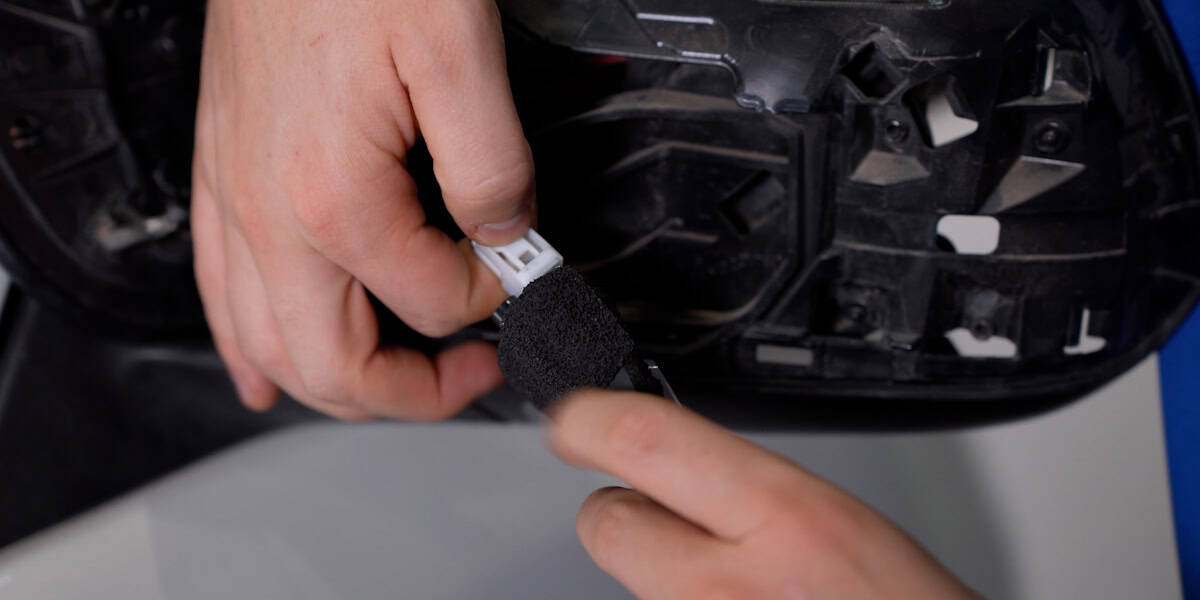

Method example: press the connector tab before unplugging the original lamp.
Method example: press the connector tab before unplugging the original lamp. View full size

4. Connect and test the new lamp

Connect the new lamp to the original harness and test the turn signal. Position it at the original mounting points and reinstall the removed fasteners.

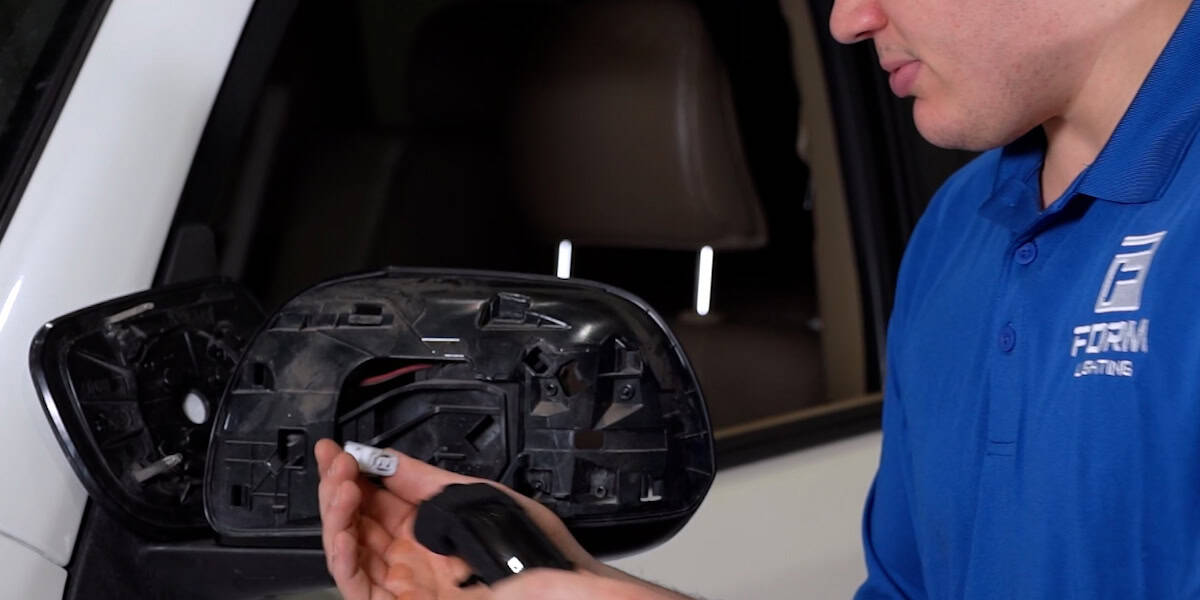

Method example: connect the new mirror lamp to the original harness.
Method example: connect the new mirror lamp to the original harness. View full size

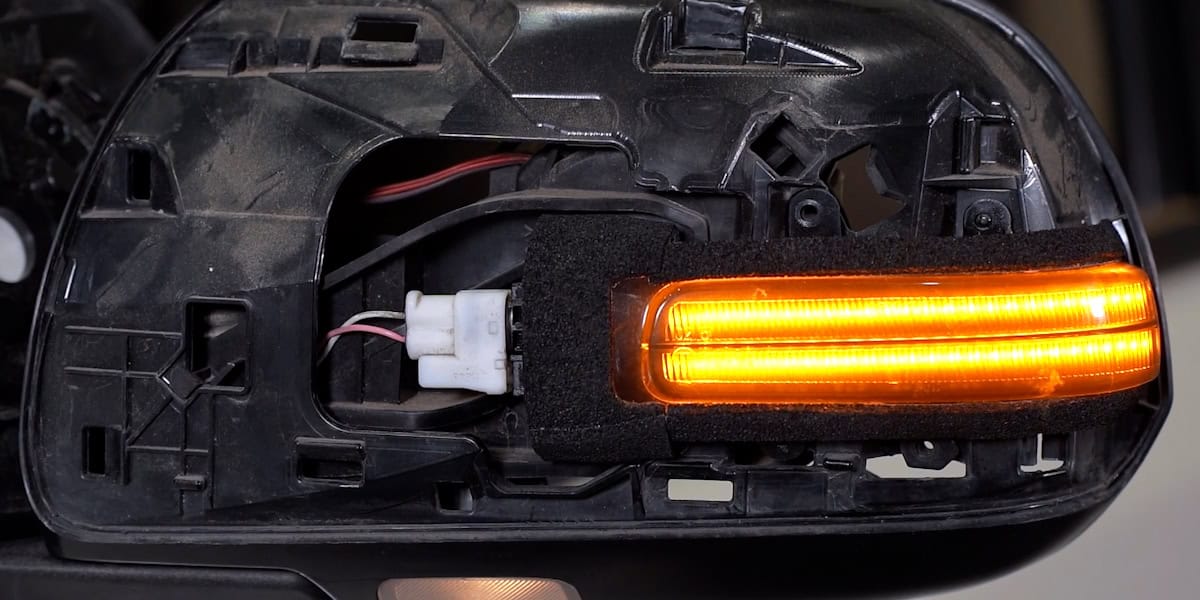

Test the amber turn signal before refitting the mirror cover.
Test the amber turn signal before refitting the mirror cover. View full size

5. Reassemble and check both sides

Refit the cap and mirror glass by reversing the removal steps. Make sure the clips are seated and the wiring is clear, then test both turn signals and mirror adjustment.

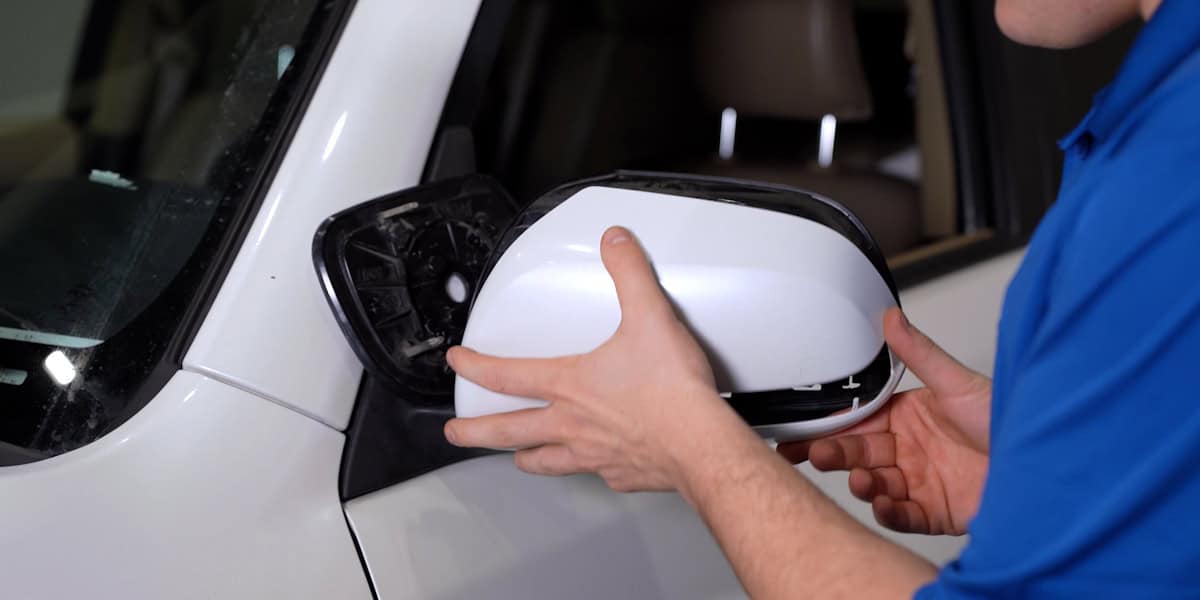

Method example: refit the mirror cap once the lamp has been tested.
Method example: refit the mirror cap once the lamp has been tested. View full size
