Product Overview
Amber/red dual-color watermelon lights are common—but most rely on plastic lenses and multi-diode boards that produce flat light output and muddy color transitions. Red in particular often suffers from dark centers, uneven spread, or weak saturation.
The Glass is Class Duo Gen 2 was engineered to eliminate those compromises.
By pairing a real tempered-glass star lens with the AlphaFit Duo bulb’s dual-bank LED architecture, this system produces long, sharply defined beam lines with zero center dark void. Amber provides a traditional marker look, while red delivers a bold, unmistakable secondary that instantly commands attention.
This is precision optics, not a generic dual-color light.
Key Features & Benefits
Amber Primary / Red Secondary Dual-Color Output
The AlphaFit Duo bulb features two dedicated LED chip banks per side, one amber and one red.
-
Amber for marker or clearance lighting
-
Red for show, accent, or rear-facing visibility
When both color wires receive power, red automatically overrides amber, ensuring clean switching with no flicker or color blending.
AlphaFit Duo 23-Watt LED Bulb – Gen 2 Platform
At the heart of the system is the 23W AlphaFit Duo bulb, purpose-built for Glass is Class optics.
-
Single-function per color (no dim/high cycling)
-
Full-power output on both colors
-
Extremely small emission surface area for complete beam fill
Unlike the original hand-assembled Duo bulbs, the Gen 2 AlphaFit Duo is machine-manufactured with tight tolerances and strict QC, delivering superior consistency and long-term reliability.
Advanced Cooling & Moisture Management
The Gen 2 Duo uses the same proven thermal system as the Gen 2 single-color AlphaFit:
-
Oversized anodized aluminum body
-
Internal active cooling fan
-
Passive heat-sink structure directly beneath the LED chips
This hybrid design actively pulls heat away from the LEDs while creating positive internal pressure, allowing condensation to vent out naturally instead of being trapped inside the lamp.
Real Tempered-Glass Star Lens
Plastic lenses scatter light and dull red output. Glass preserves it.
The Glass is Class tempered star lens:
-
Produces long, crisp beam lines
-
Preserves deep red color saturation
-
Resists yellowing, scratching, and heat distortion
The result is a beam pattern that looks sharp, aggressive, and unmistakably premium.
Simple 3-Wire Control – No Mandatory 3-Way Switch
The AlphaFit Duo uses a simple 3-wire configuration:
-
Ground
-
Primary color (amber)
-
Secondary color (red)
You can:
-
Run amber on marker lights and trigger red separately
-
Use a 3-way switch if desired
-
Or wire red as a full-time override
Some competitor systems require a 3-way switch. The Glass is Class Duo does not.
Performance / Compatibility / Use-Case
The Amber/Red Duo Gen 2 is ideal for:
-
Show trucks wanting a traditional amber look with a bold red accent
-
Custom builds where red lighting is used for rear or display emphasis
-
Interior, exterior, or under-glow style installations
Thanks to the tight LED chip spacing and small emission surface area, the Duo Gen 2 produces a uniform, fully filled beam with no center dead spot, outperforming common 17- and 19-diode dual-revolution designs.

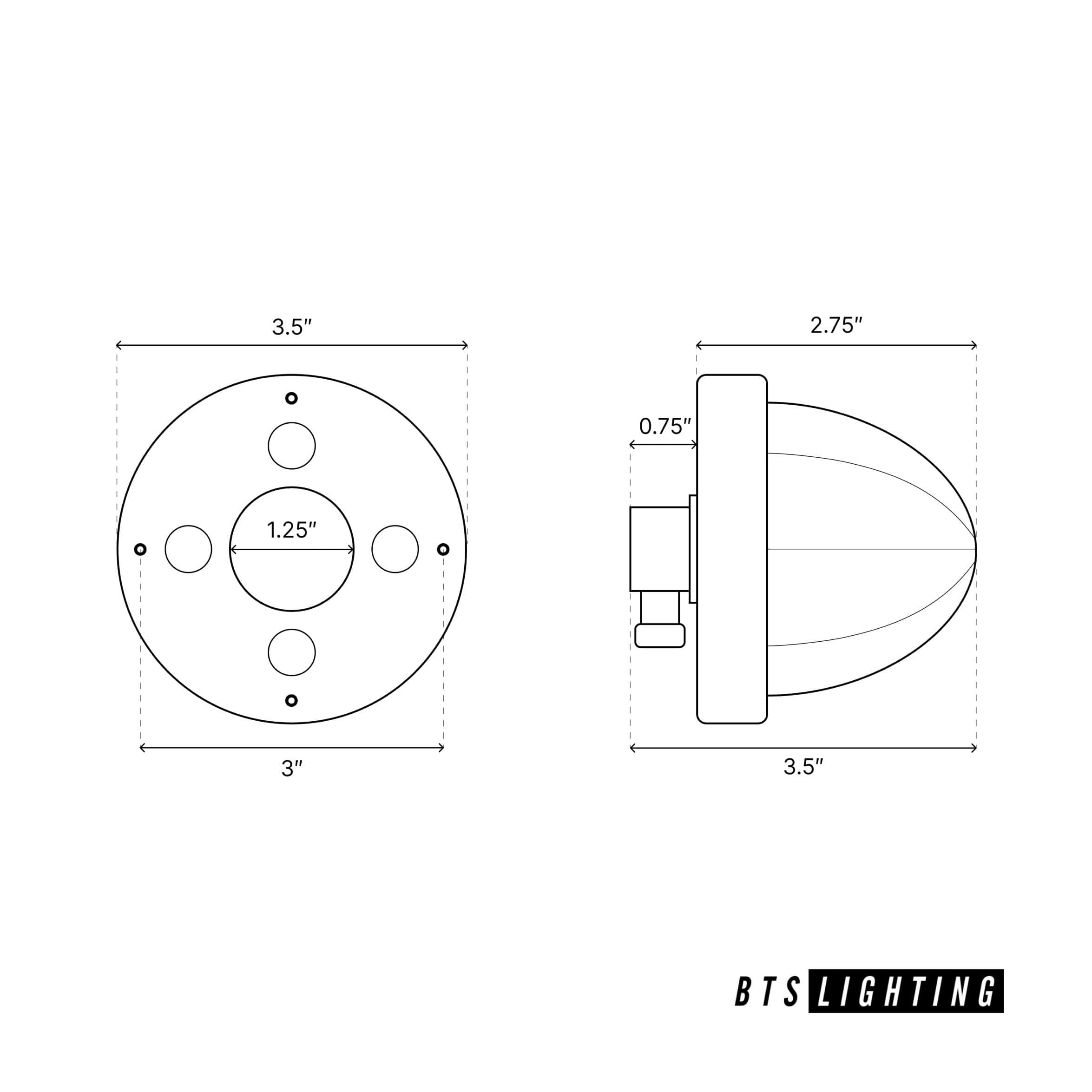

Installation / Fitment / Technical Details
-
Voltage: 12V & 24V compatible
-
Power Draw: 23W (active color)
-
Bulb Base: Custom AlphaFit Duo (H11-style fitment)
-
Wiring: 3-wire (ground, amber, red)
-
Cooling: Active + passive hybrid system
-
Lens: Tempered glass star pattern
Mounting brackets sold separately.
Build Quality / Warranty
The Gen 2 Glass is Class Duo represents a major evolution from the original Duo line:
-
Machine-built bulbs instead of hand-assembled
-
Much tighter manufacturing tolerances
-
Significantly lower failure rates
-
Improved heat and moisture control
Warranty: 1-Year Limited Warranty
Designed and validated by Alpha Series Lighting for real-world truck environments.
⚠️ Not SAE/DOT compliant
These lights are intended for show, off-road, and auxiliary use only due to extreme brightness.
What’s Included
-
(1) Glass is Class Duo Gen 2 Watermelon Light – Amber/Red
-
(1) Pre-installed AlphaFit Duo 23W LED bulb
-
Integrated cooling system and venting
-
Mounting bracket not included
Frequently Asked Questions
Is the red output deep or washed out?
The red output is deep, saturated, and sharply defined thanks to a dedicated red LED bank and real glass optics.
Does red override amber automatically?
Yes. When both color wires are powered, red overrides amber instantly.
Can I run amber as my marker and red only when triggered?
Yes. This is one of the most common and clean wiring setups.
Is this the same bulb as the single-color AlphaFit?
It uses the same housing, cooling system, and engineering — but adds dual LED chip banks for dual-color control.
Is this waterproof?
The glass lens is sealed, and the bulb uses positive-pressure venting. It is weather-resistant and moisture-managed, not a fully potted plastic unit.
