MORIMOTO XB LED · LF544
A new outlook for your Sierra.
A complete Morimoto XB LED headlight pair for the 2014–2018 GMC Sierra 1500 / 2015–2019 Sierra HD. This exact LF544 combines white daytime running lights, amber turn signals and integrated LED low/high-beam optics in replacement housings.
- Left + rightOne complete headlight pair
- White DRLsAmber turn signals
- Integrated LEDLow- and high-beam optics

LIGHTING THAT WORKS AS A SYSTEM
More than a replacement bulb
Integrated projector optics
One Kuria Bi-LED projector in each housing provides both low- and high-beam functions. Set the beam aim after installation for the truck’s actual ride height.
Your daytime signature
The fixed white DRL outlines the housing. The amber turn signal can run sequentially or with a conventional flashing pattern.
Built as a complete assembly
An ABS housing, UV-resistant polycarbonate lens and integrated LED optics replace the complete original lamp. This is a headlight assembly upgrade, not a bulb conversion.

ORIGINAL MANUFACTURER PHOTOGRAPHY

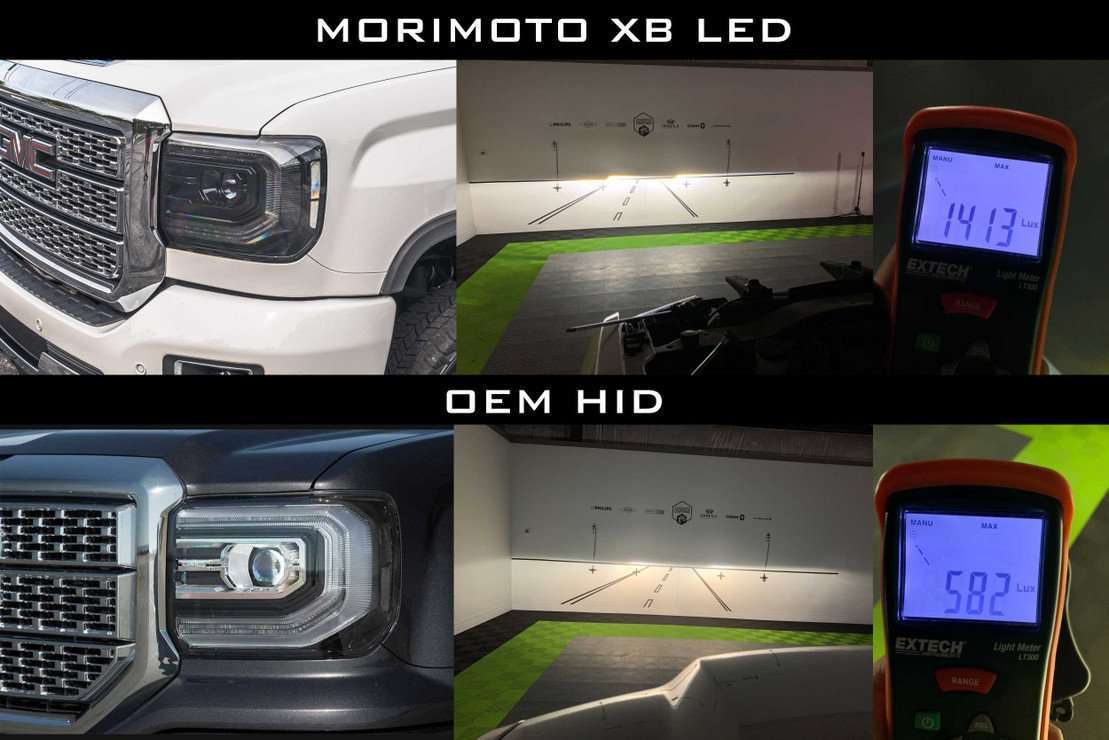

See the comparison on the target
Morimoto’s original image shows XB and OEM HID output in its pictured test setup. The readings are not independent BTS measurements or a guarantee for every installation.

Beam aim, vehicle load and mounting height affect what reaches the road. Check and adjust aim after installation.
MATCH THE TRUCK BEFORE THE LOOK
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2014–2018 GMC Sierra 1500 / 2015–2019 Sierra HD |
| Original equipment | Factory LED turn signals excluded; follow the exact 1500/HD wiring branch |
| DRL colour for this SKU | White |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Package | Left and right complete headlight assemblies |
Morimoto developed and tested these housings on US-spec vehicles. Canadian-market equipment can differ. Contact BTS with the model year, trim, original headlight type and clear connector photos if you are unsure.
ONE ORDER. BOTH SIDES.
What is supplied

- Two complete Morimoto XB LED headlight assemblies: left and right.
- Model-specific headlight wiring and DRL fuse-tap harness.
- Two harness adapters shown in the Sierra guide, used for the applicable original-lamp connection.
The original lower brackets transfer from the existing lamps; use the correct guide section for your truck.
Vehicle photography may show separate fog lights, custom grilles, wheels and other accessories. Those are not included with the headlight pair.
PLAN THE ACCESS. FINISH WITH AIM.
Installation details worth knowing
Use the guide section for the exact truck: 2015–2019 HD, 2016–2018 Sierra 1500, or 2014–2015 Sierra 1500. It shows the required trim or bumper access, transfer of the original lower brackets and DRL-harness routing. The 2016–2018 1500 branch specifically instructs a grey-wire modification on the XB lamp wiring; this is not a universal no-modifications installation.
Download the official LF544 installation guide

EXACT PART · LF544
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | GM Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Optic Bi-LED |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
23268190, 2502394, 23130717, 23130718
Match these with the exact year, body and original-equipment requirements above.
Morimoto identifies the supplied configuration as meeting its stated DOT/SAE requirements when installed and aimed correctly. That does not establish compatibility or compliance for unverified drivers, altered applications or other vehicle equipment.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Official supplier-linked TheRetrofitSource model-family overview. The exact SKU, DRL colour and original-equipment requirements on this page govern your order.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB headlight questions
Is this one headlight or a pair?
One order supplies the complete left and right headlight assemblies with the listed standard wiring.
What vehicle does this exact part fit?
2014–2018 GMC Sierra 1500 / 2015–2019 Sierra HD. Match the original lights and the detailed equipment requirements before ordering.
Will these work with factory LED turn signals?
No. The LF544 application excludes trucks with OEM LED turn signals. Factory LED DRLs are a separate feature and should not be confused with that exclusion.
Does every Sierra installation use identical wiring?
No. The guide has separate HD, 2014–2015 1500 and 2016–2018 1500 sections. The 2016–2018 branch includes a specific grey-wire modification on the XB lamp wiring. Use the exact guide section rather than a general plug-and-play assumption.
Can I change the DRL colour?
This exact LF544 has fixed white daytime running lights. Amber turn signals do not make a white-DRL set an amber-DRL version.
Can the turn signals flash normally?
Yes. Morimoto provides sequential and conventional flashing settings. Configure both sides consistently using the instructions.
Does this replace the whole headlight?
Yes. The complete housings and their integrated LED optics replace the original lamps. This is not a replacement-bulb kit.
Are Supercharged drivers or heated lenses included?
No. Neither a heated-lens feature nor compatible Supercharged drivers have been established for this exact older XB part. Do not assume newer Evo features or accessories apply.
What does LHD mean?
It describes the beam pattern for left-hand-drive vehicles used on the right-hand side of the road. Both headlights are included.
What must be checked after installation?
Test low beams, high beams, DRLs and turn signals. Secure the harness, check aim and retest after a ride-height or load change.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply. Keep your purchase record and contact BTS if you suspect a warranty issue.

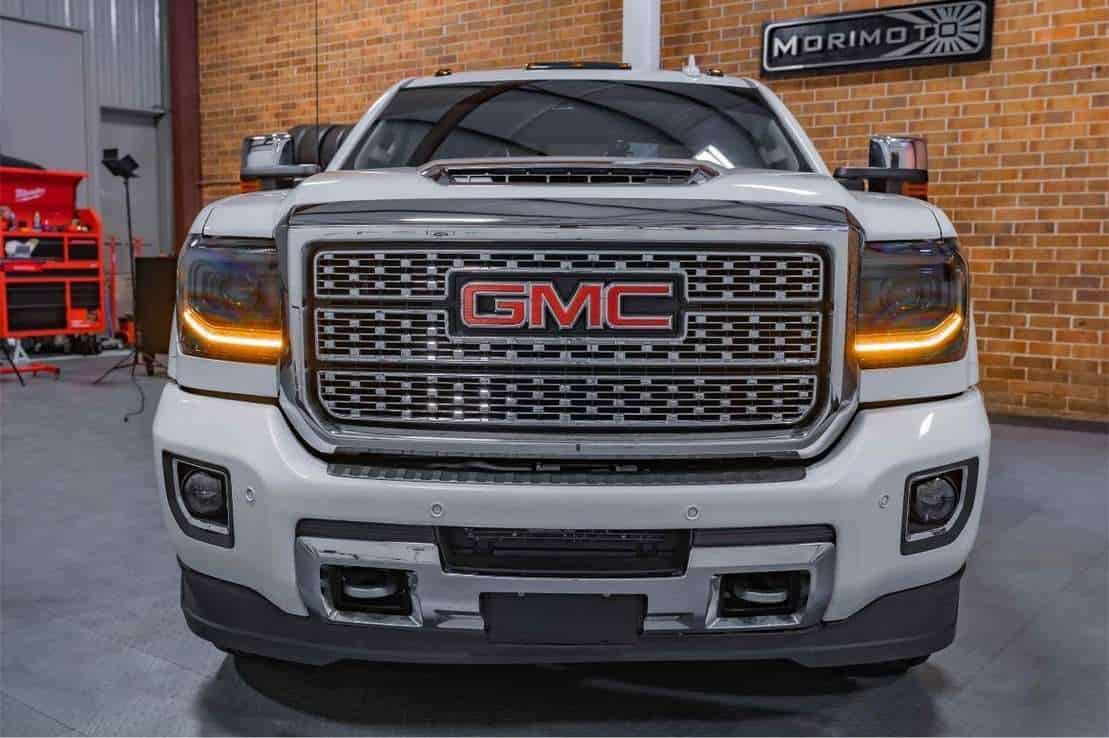

THE FINISHED LOOK
See it on the truck
Exact supplier photography. Other lighting, grilles, wheels and vehicle accessories are not included.
