GMC SIERRA · LF2-544Y
Give your Sierra the XB Evo Hybrid look
Morimoto XB Evo Hybrid headlights combine dedicated Bi-LED low/high-beam projectors with D-Optic high-beam assist and a defined LED daytime-running-light signature. This package contains one left and one right headlight, with the installation components listed below.
One matched pair
One driver-side and one passenger-side assembly.

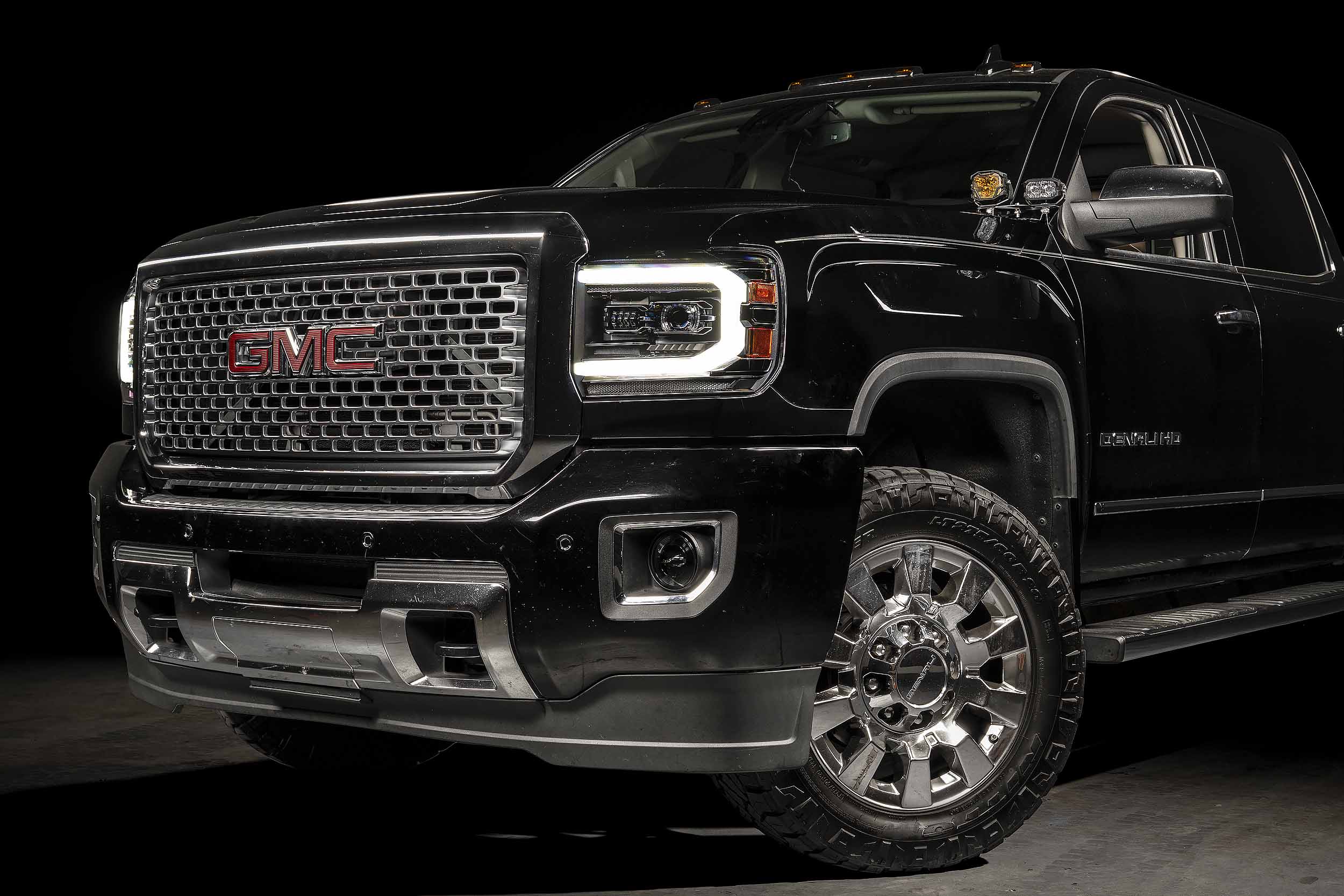

White DRL signature
Fixed white daytime running lights with amber fade-off turn signals.
Designed for your Sierra
North American Sierra 1500 and Sierra HD applications below; match your original lighting configuration.
LIGHTING & DESIGN
Purpose-built optics, a distinctive finish

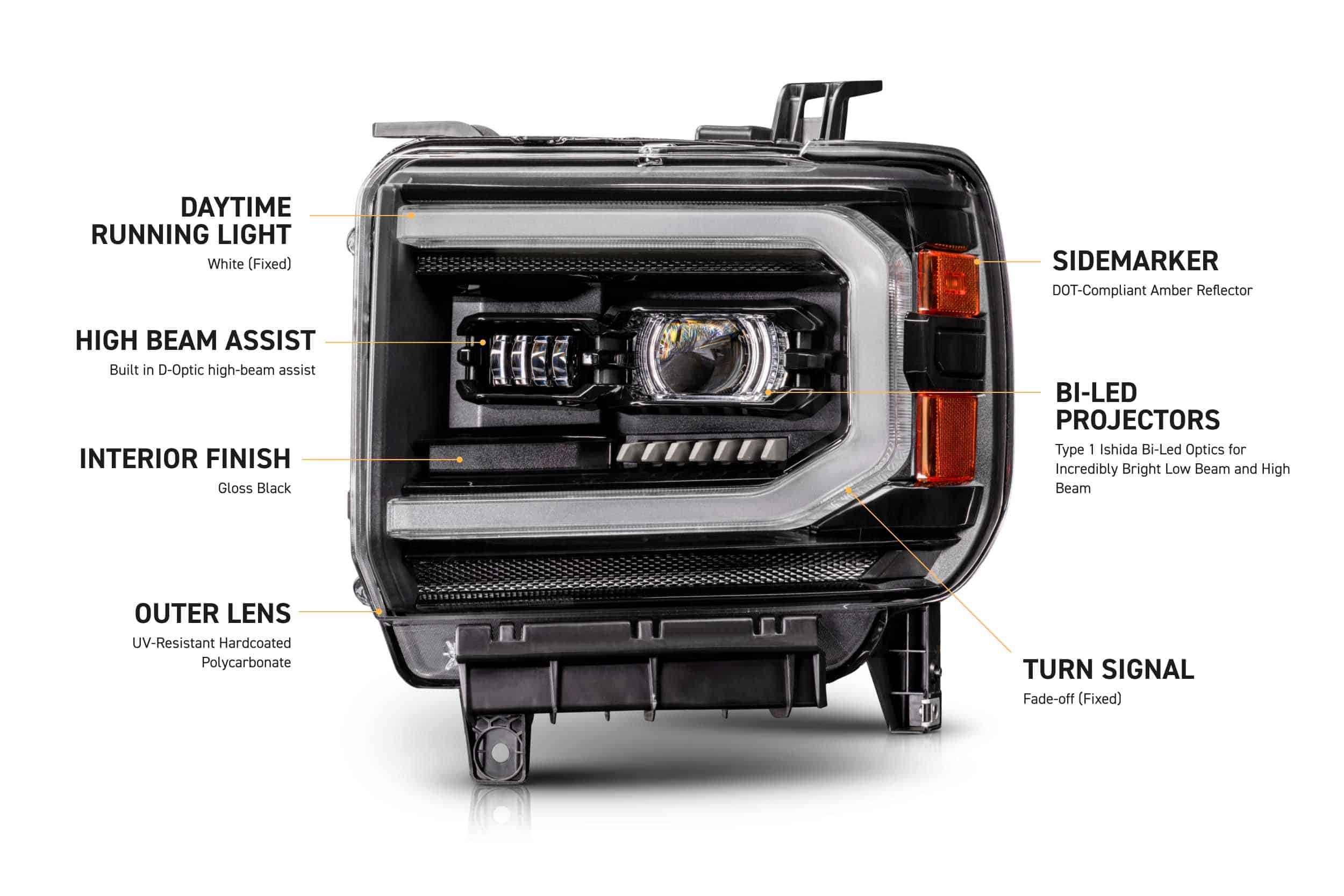

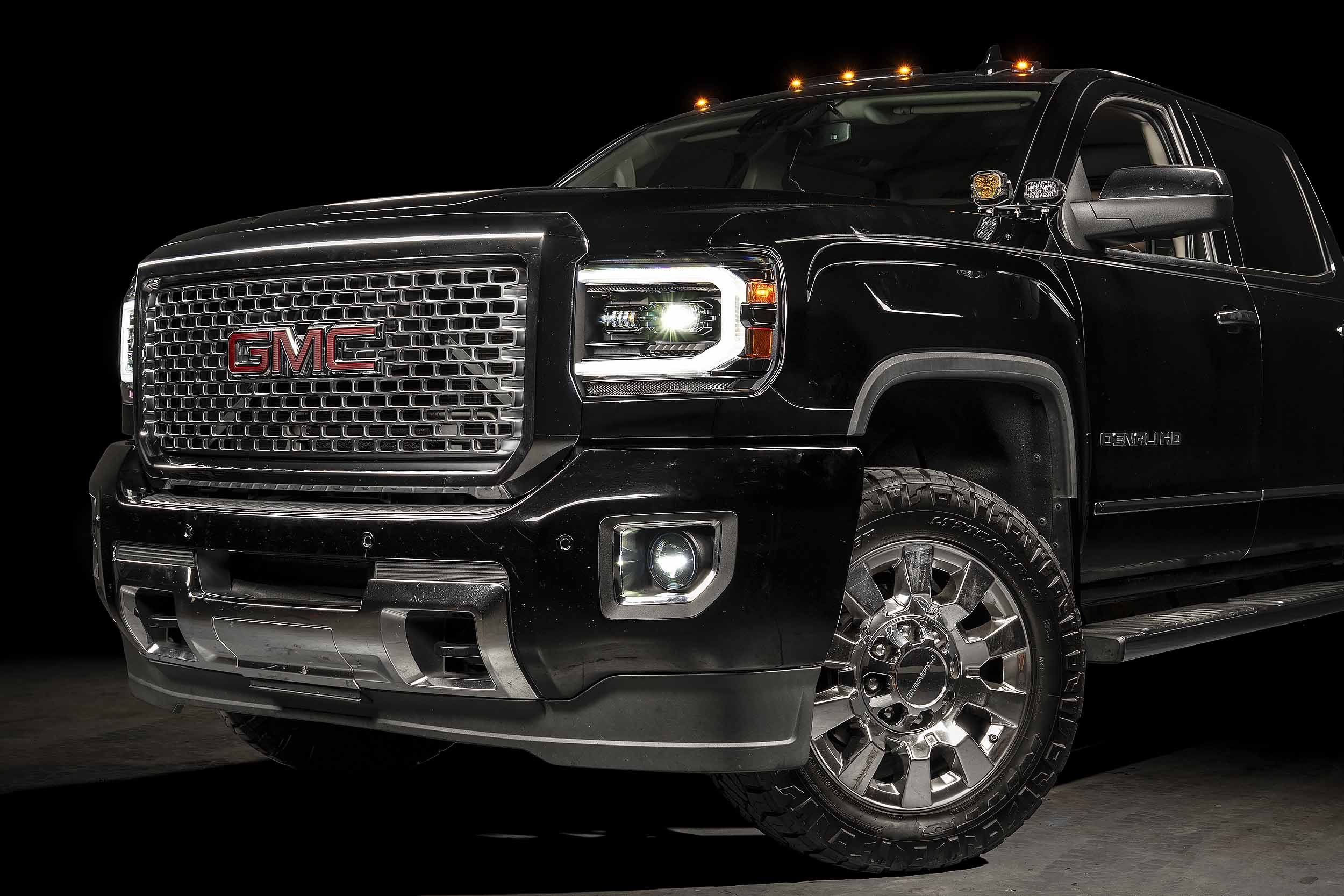

Bi-LED + D-Optic
Each headlight uses one Type 1 Ishida Optic Bi-LED projector and one D-Optic high-beam-assist optic, powered by Osram Oslon LEDs. Vertical aiming is adjustable; aim the lights after installation.
Black internal finish
A black interior frames the projector and DRL optics. Polycarbonate outer lenses have an anti-UV hard coating. Morimoto describes the product as designed, engineered and tested in the USA; the supplier lists country of manufacture as China.
XB EVO HYBRID
The same main optic layout, a simpler feature set
The Hybrid retains the Bi-LED and D-Optic layout, fixed white DRLs and fade-off turn signals. It does not include the Evo lens heaters, mode selectors or welcome sequence. Choose Hybrid when those extra Evo features are not part of your build.
APPLICATION CHECK
Confirm the model, year and original headlights
Sierra 1500
2014–2018 GMC Sierra 1500.
2014 old body style is excluded.
Sierra HD
2015–2019 GMC Sierra 2500HD and 3500HD.
2014 HD is outside this verified application.
Developed for North American left-hand-drive vehicles using right-hand-traffic headlight optics. Compatibility outside North America is not guaranteed by Morimoto. Factory LED, halogen and HID equipment requires different supplied input adapters and signal components: identify the original headlight and turn signal from the guide photos before wiring.
Manufacturer-listed OE replacement references: 84046788, 84515728, 84568272, 84228370, 84144047, 84144048, 84144049 and 84144050. Confirm the original headlight configuration; a reference number alone does not establish fitment.
Aftermarket tail lights, side markers or other exterior lights may affect turn-signal timing or sequential operation. The guide specifically flags non-OEM/non-Morimoto exterior lighting; error-free operation with every aftermarket combination is not promised.

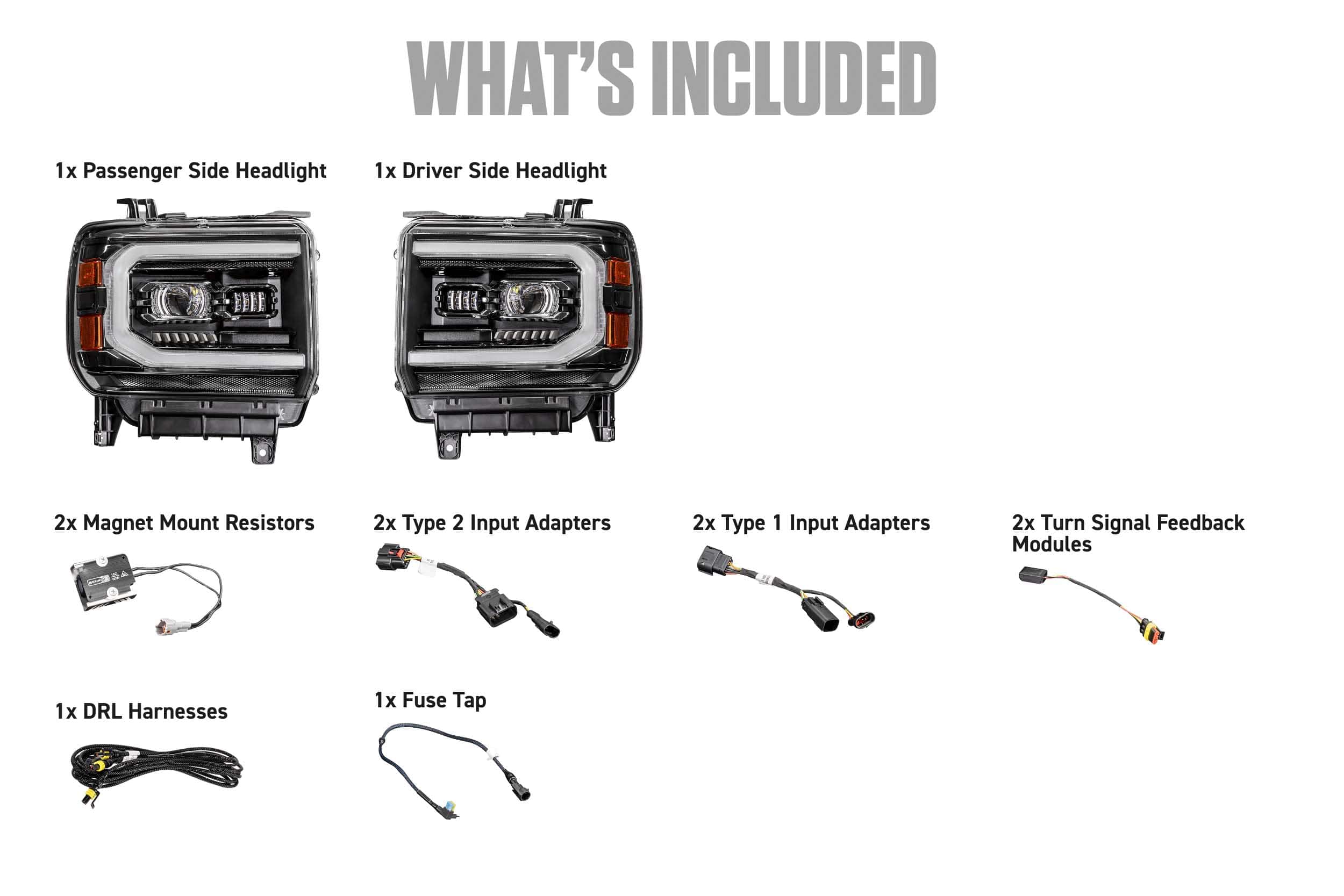

IN THE BOX
Two headlights and the matching installation parts
Headlights
1 × LH driver-side assembly.
1 × RH passenger-side assembly.
Wiring and signal parts
1 × fuse tap and 1 × DRL harness.
2 × magnet-mount resistors.
2 × Type 1 and 2 × Type 2 input adapters.
2 × turn-signal feedback modules.
Use the adapter/resistor or feedback-module combination appropriate to the original headlights; the alternatives are not all installed together. Optional protective film and other separately sold accessories are not included.
OFFICIAL INSTALLATION GUIDE
Download the Sierra installation instructions
The official Morimoto guide covers both LF2-544 and LF2-544Y, including removal, connections, setup, testing and aiming.
Download Sierra XB Evo / Hybrid installation guide
PDF · 28 pages · 9.3 MiB · official October 1, 2026 launch-package version
- Identify your original projector and turn-signal configuration using the guide photos and connectors; choose the correct input adapter and resistor or feedback module.
- Connect the DRL harness and fuse tap as instructed. The guide specifies a small routing notch in the fuse-box lid, so installation is not entirely modification-free.
- Mount resistors to a suitable steel surface with clearance from heat-sensitive parts.
- Test all functions and aim the headlights after installation. Follow the guide’s adjustment limits.
The supplied components address different factory configurations. If the connector or headlight does not match the guide, contact BTS Lighting before applying power.
PRODUCT QUESTIONS
Helpful answers before ordering
Does the price include one light or a pair?
One set contains both the driver-side and passenger-side headlights, plus the listed installation parts.
Will these fit a 2014 Sierra HD?
No verified 2014 HD application is included. These listings cover 2015–2019 Sierra 2500HD/3500HD and 2014–2018 Sierra 1500, excluding the 2014 old body style.
What is different between Evo and Evo Hybrid?
Both use the listed Bi-LED and D-Optic main optics. Evo adds configurable white/amber DRLs, configurable sequential/fade-off turns, a welcome sequence, lens heaters and a piano-black/titanium finish. Hybrid uses fixed white DRLs, fixed fade-off turns and a black finish without the extra Evo features.
Is installation completely plug-and-play?
The assemblies use original mounting locations and supplied factory-configuration wiring parts. The DRL harness needs fuse-box routing, including the small lid notch specified in the guide. Correct resistor/feedback-module selection and aiming are still required.
Are they approved for road use?
Morimoto lists these headlights as DOT/FMVSS108 compliant (LB2V and UB2) for the stated North American application. Correct installation and aiming are required. That manufacturer specification is not an independent performance-test or IIHS award claim.
Are they available right now?
Available to order from BTS Lighting. Contact BTS Lighting for current dispatch timing.
COMPARE & CONTINUE
Choose the Sierra headlight that suits your build
Compare XB Evo
Want configurable DRLs, turn signals and the lens-heating system?
Explore automotive headlights
Browse automotive headlight assemblies
Compare complete assemblies for your exact vehicle and original headlight configuration.
WARRANTY
Five-year limited Morimoto warranty
Morimoto lists five-year limited warranty coverage for these headlights, with service and support through its Atlanta, Georgia team. The manufacturer’s launch information excludes modifications, alterations and misuse. Retain the product identity and proof of purchase and contact BTS Lighting for help with a claim.
