MORIMOTO XB EVO · LF2-544
A sharper Sierra signature. Purpose-built optics.
A complete left/right XB Evo headlight pair for your 2014–2018 Sierra 1500 / 2015–2019 Sierra HD. Configurable white or amber daytime running lights, a startup welcome sequence and Frost-Free lens heating bring a modern lighting signature to your truck.
- Left + rightOne complete headlight pair
- White / amber DRLsConfigurable signals
- Bi-LED + D-OpticBuilt for the exact application

THE OPTICS FOR YOUR TRUCK
Bi-LED + D-Optic. A matched pair.

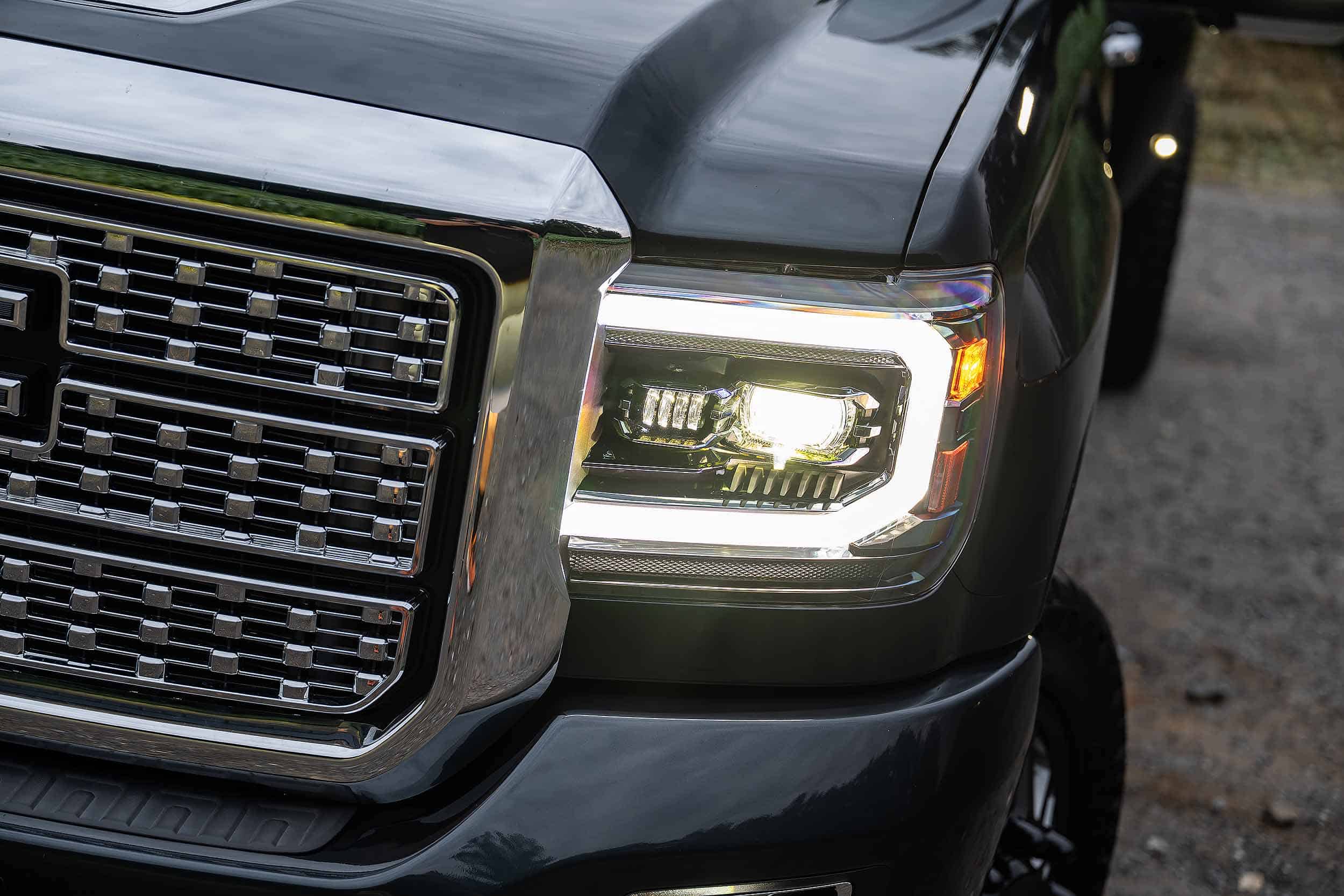

Light where it belongs
One Type 1 Ishida Bi-LED projector and a dedicated D-Optic high-beam-assist optic work together in each housing. The Sierra Hybrid retains this D-Optic assist; it is not omitted when you choose Hybrid.
Complete headlight assemblies
Both housings and the exact listed wiring parts are supplied. This replaces the headlight assemblies, rather than converting a bulb inside the old housing.
Finish with correct aim
Check and adjust beam aim after installation. Original mounting points and a stock ride height do not remove the need to verify alignment.

SEE THE MANUFACTURER COMPARISON
Low beam and high beam, with the configuration shown
These are Morimoto’s original comparison images, not an independent BTS test. Read the original-lamp and driver labels to understand each example.

YOUR FRONT-END SIGNATURE
Choose white or amber. Set your signal style.
The supplied selector keys configure white or amber daytime running lights and sequential or fade-off turn signals. Choose matching keys for both headlights with the vehicle and lamps switched off, following the exact guide.
A multistage welcome sequence adds a startup signature. It is a styling feature, separate from driving-light output.

FROST-FREE LENS HEATING
Request it when cold-weather conditions call for it
Four included mode-key pairs
Choose white or amber DRLs and sequential or fade-off turn signals using the included keys. Change keys only with the vehicle and headlights switched off. A welcome sequence plays at startup.
Cold-weather lens heating
The logic-controlled 50W ceramic heating system and circulation fans help reduce lens frost during driving. It requires manual activation each ignition cycle, ambient temperature at or below 5°C / 41°F and suitable operating conditions.
With the engine running, after the welcome sequence, request heating with four high-beam flashes within four seconds. See the guide for voltage, lens-temperature and automatic-high-beam conditions. This is not an overnight heavy-snow defroster.

CHOOSE THE FEATURES YOU WANT
Compare the matching Evo pair
This listing is LF2-544 XB Evo. The matching Evo and Hybrid are separate products. On smaller screens, swipe across the table to compare every column.
| Feature | XB Evo | XB Evo Hybrid |
|---|---|---|
| Main optics per housing | Bi-LED projector + D-Optic assist | Bi-LED projector + D-Optic assist |
| Daytime running lights | Selectable white / amber | Fixed white |
| Turn signals | Sequential or fade-off | Fade-off |
| Lens heating | Frost-Free; driver-requested | Not included |
| Standard welcome sequence | Included | Not included |

BEFORE YOU ORDER
Match the year, model and original lamps
| Vehicle | Manufacturer-listed application |
|---|---|
| GMC Sierra 1500 | 2014-2018 (excl. 2014 Old Body Style) |
| GMC Sierra 2500HD | 2015-2019 |
| GMC Sierra 3500HD | 2015-2019 |
Developed for North American left-hand-drive vehicles using right-hand traffic. Morimoto does not guarantee compatibility outside North America.
Match the original connector and headlight type to the guide’s input-adapter and signal-component chart. Depending on original equipment, the installation uses a turn-signal resistor or a feedback module.
BOTH SIDES. THE MATCHED HARDWARE.

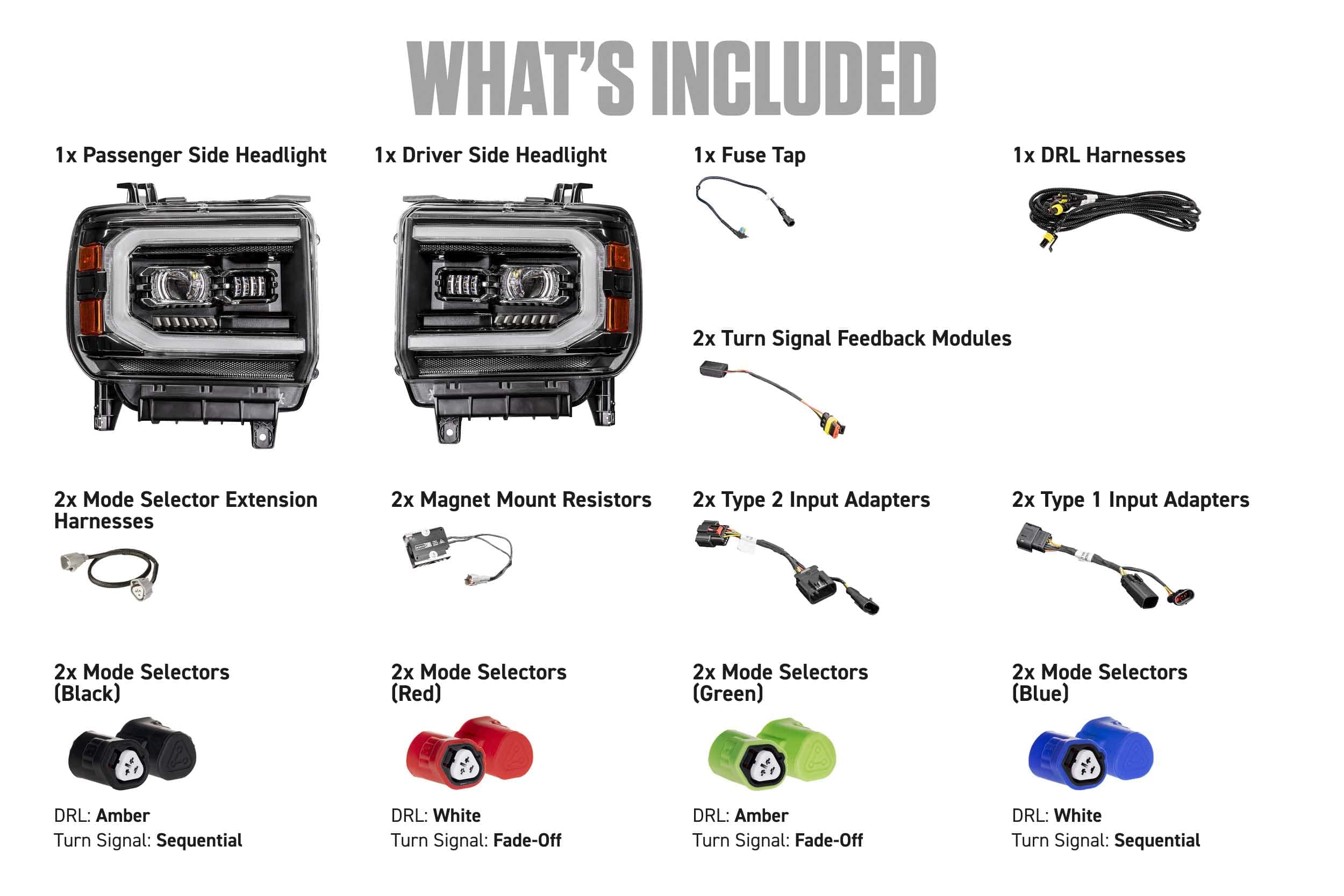

What is supplied

- Headlights: One Pair (1x RH / Passenger Side Headlight, 1x LH / Driver Side Headlight)
- Accessories: 1x Fuse Tap, 1x DRL Harness, 2x Magnet-Mount Resistors, 2x Type 1 Input Adapters,2x Type 2 Input Adapters, 2x Turn Signal Feedback Modules, 2x Mode Selector Extensions, 8x (Four Pairs) Mode Selectors
Use the adapters and signal components appropriate to the truck’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
FACTORY MOUNTING. CAREFUL WIRING.
Plan the installation, then set the aim
- Follow the exact model-family guide and the wiring branch for your original lighting equipment.
- Fit the specified input harnesses and signal components, mount both housings at the original locations and route the DRL harness securely.
- The guide requires a notch in the fuse-box lid for the DRL wire and grommet. Factory mounting points do not mean a completely modification-free installation.
- Secure wires away from heat and moving parts, confirm every lighting function, then adjust the headlight aim.
The Sierra guide identifies both Type 1 and Type 2 factory connectors, with separate HID, halogen and LED wiring choices. Select the correct resistor or feedback-module branch; do not connect every supplied component indiscriminately.
Download the official LF2-544 model-family installation guide
Heater activation applies only to the heated Evo, and the feature defaults off after each ignition cycle.

THE EXACT LF2-544 CONFIGURATION
Specifications and replacement references

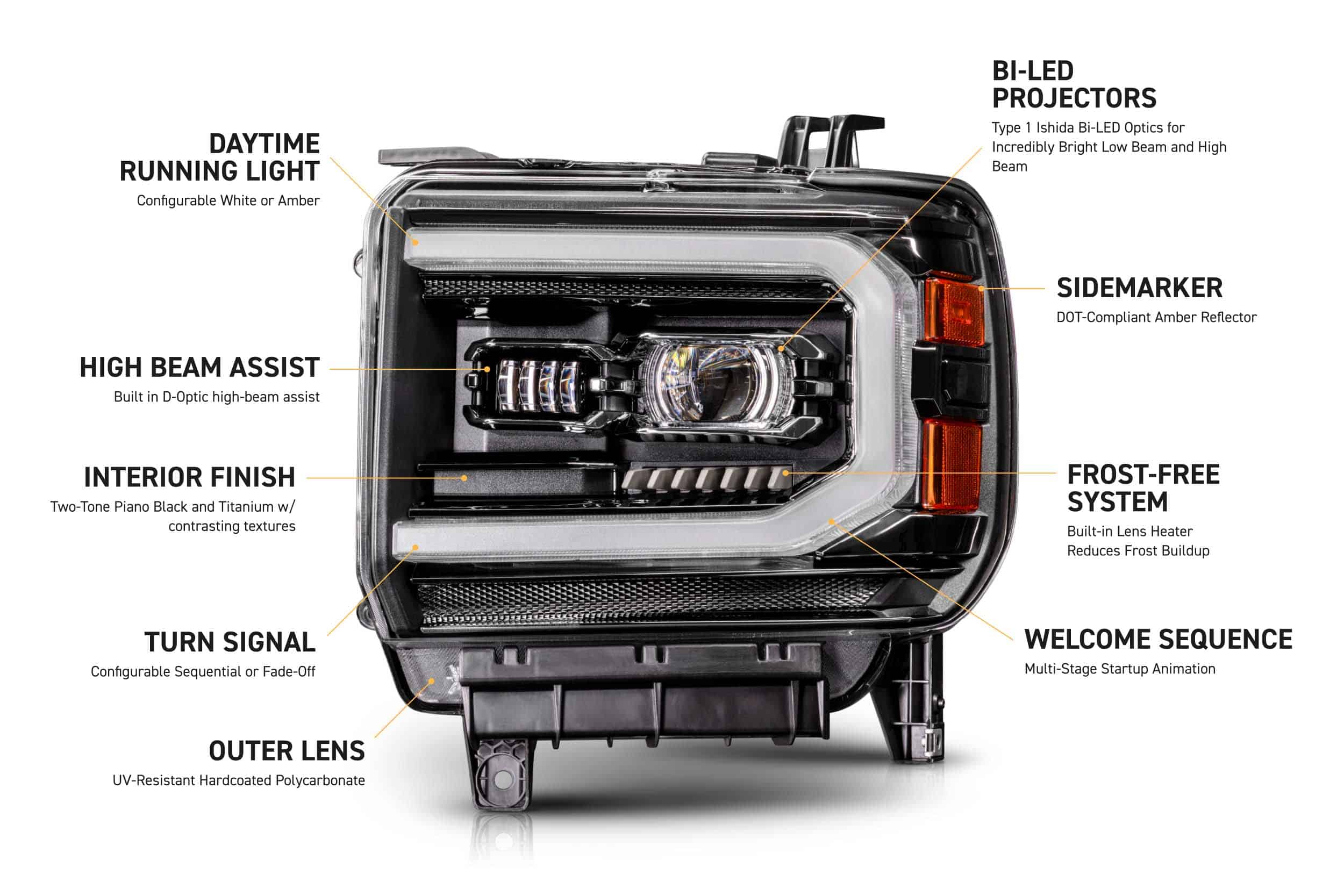

| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD / Right Hand Traffic Only (US/CA Standard) |
| Output | DOT (FMVSS108) Compliant (LB2V and UB2) |
| Main Optics | 1x Type 1 Ishida Optic Bi-LED, 1x D-Optic High Beam Assist |
| Functions | Low, High, Park, Turn, DRL, Welcome, and Lens Heating |
| Turn Signal Modes | Sequential or Fade Off (Configurable) |
| DRL Colors | White or Amber (Configurable) |
| Frost-Free System | Logic-controlled 50w ceramic w/ circulation fans |
| Internal Finish | Two-Tone Piano Black and Titanium w/ contrasting textures |
| Side marker | Amber side reflex reflector (DOT compliant) |
| Lens Details | Polycarbonate with proprietary anti-UV hard coating |
Original-equipment replacement references
84046788, 84515728, 84568272, 84228370, 84144047, 84144048, 84144049, 84144050
Confirm the exact year, model and original lamp equipment above.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Morimoto’s official Sierra model-family presentation. Other versions may appear; use this page’s exact LF2-544 package and specifications for your selection.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Evo questions
Is this one lamp or a pair?
One order supplies both driver-side and passenger-side headlight assemblies with the listed accessories.
Which vehicles does this exact part fit?
2014–2018 Sierra 1500 / 2015–2019 Sierra HD. Exclude 2014 old-body Sierra 1500.
What optics does the Hybrid keep?
The Sierra Hybrid retains one Bi-LED projector and one D-Optic high-beam assist per housing.
Can I choose white or amber DRLs?
Yes. Use the supplied selector keys for white or amber DRLs and sequential or fade-off signals. Follow the guide and switch off the vehicle and lights before changing keys.
Does this exact version have heated lenses?
Yes. Request Frost-Free after startup using the guide’s high-beam sequence. It operates only when its temperature and other conditions allow.
Does it have a startup welcome sequence?
The heated Evo includes a multistage welcome sequence.
What should I plan for installation?
Follow the original-equipment wiring branch, make the specified fuse-box-lid notch for the DRL wire, secure the wiring and adjust aim.
Can I use a generic Evo Supercharged driver with these?
No. Driven Lighting Group confirms that LF2-544 does not support Supercharged drivers. Use the standard drivers supplied with this headlight set; a Supercharged driver intended for another Evo model is not compatible.
Will Frost-Free clear heavy overnight snow?
It helps mitigate buildup while driving in cold conditions. It is not a heavy overnight-snow defroster, and defaults off after each ignition cycle.
What warranty is included?
Morimoto lists a five-year limited manufacturer warranty. Keep proof of purchase and contact BTS for installation support or a suspected warranty issue.
