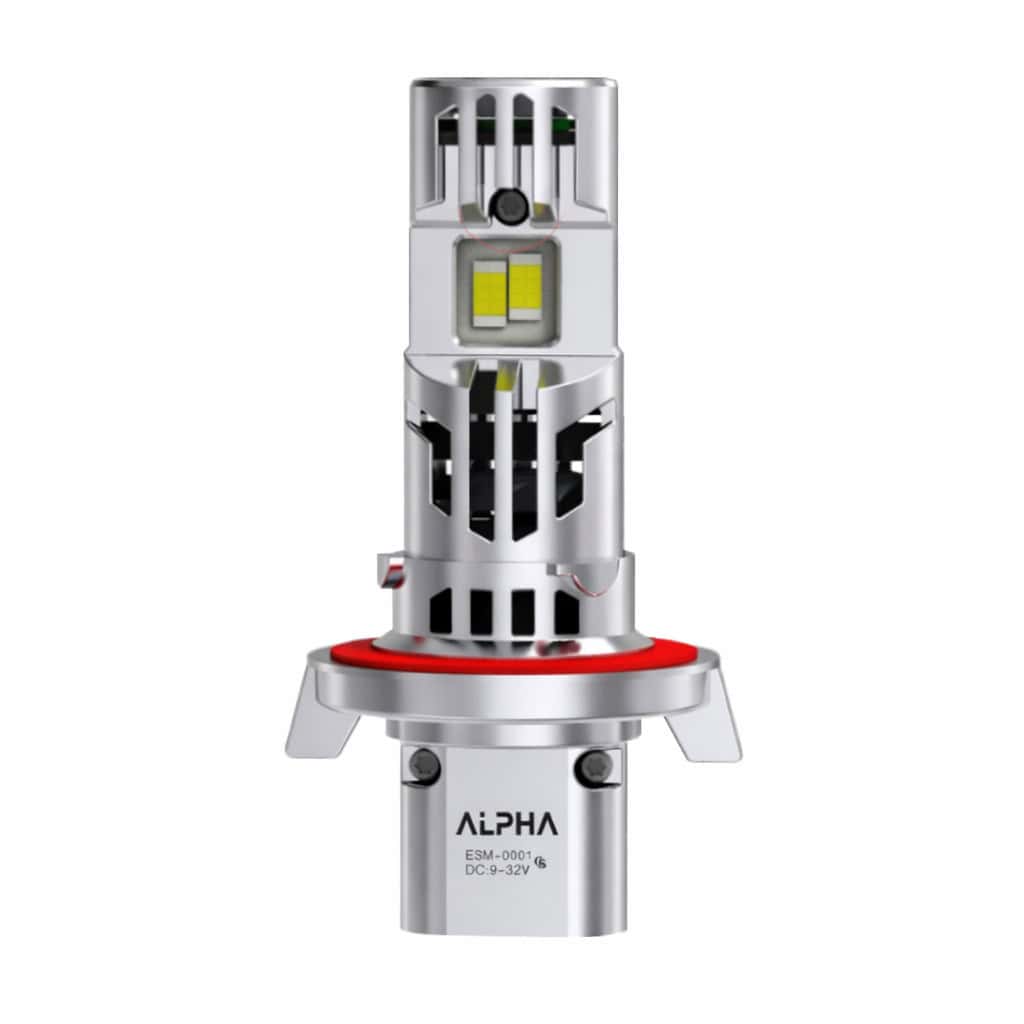

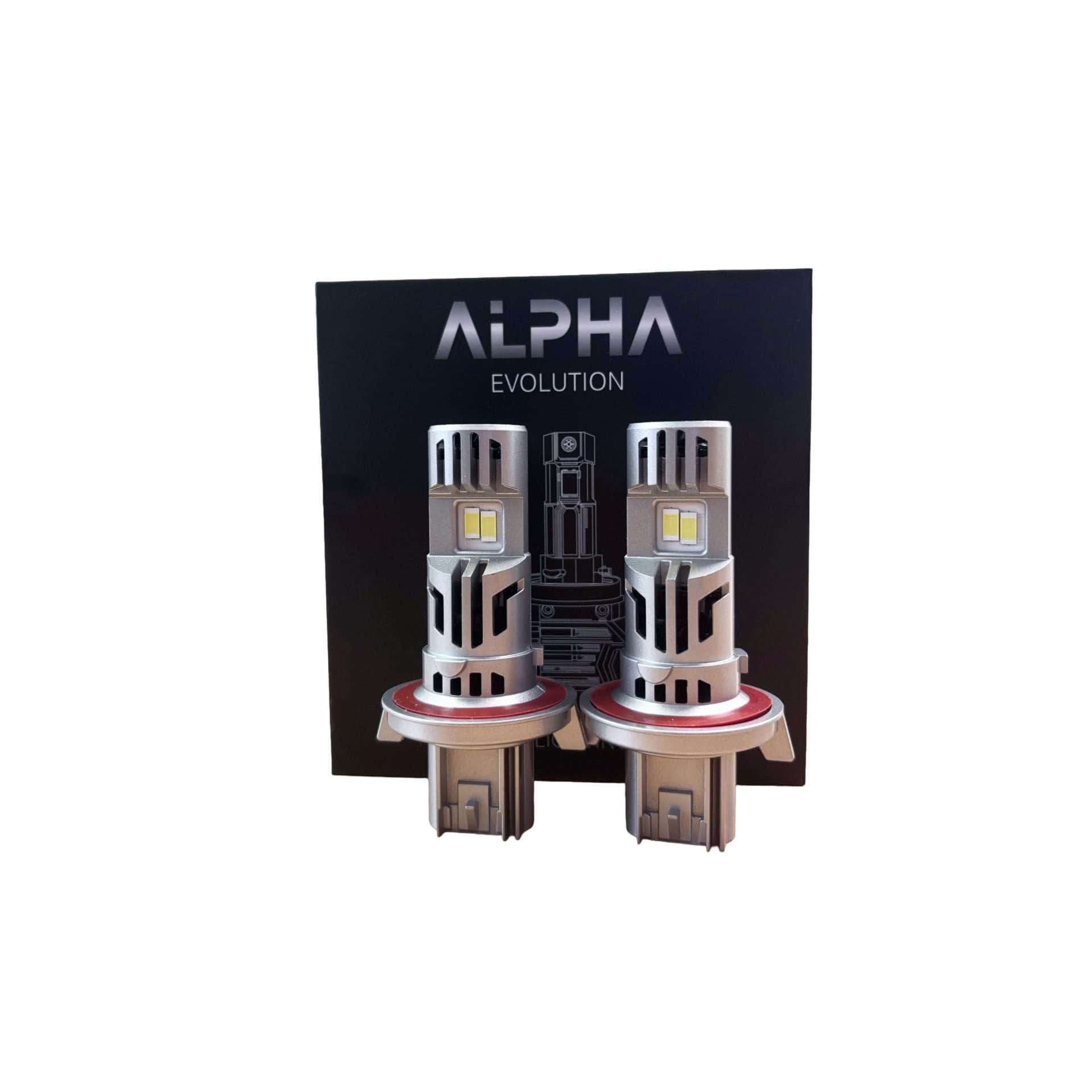

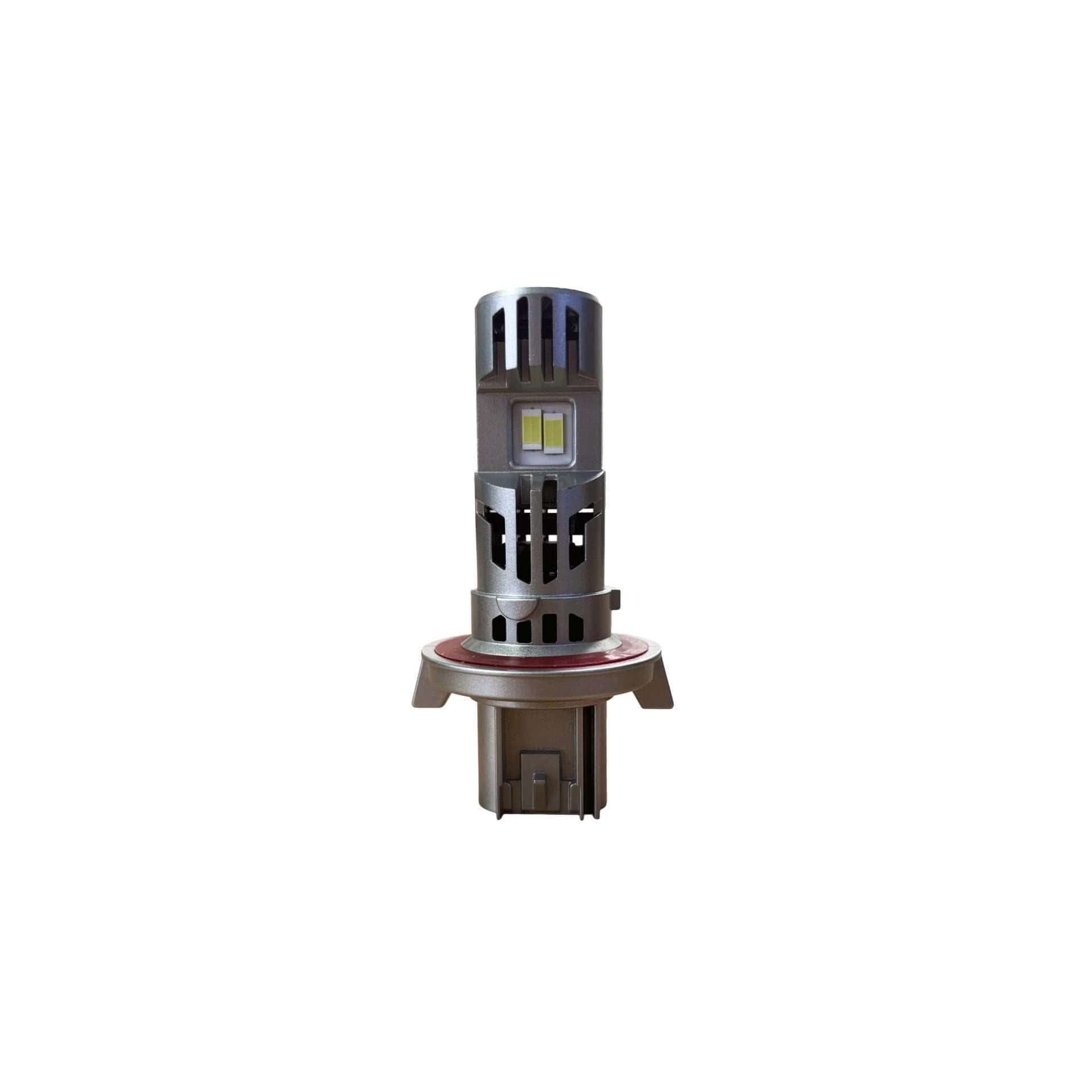

Alpha Series H13 / 9008 LED bulbs: match the bulb and housing
SKU Alpha-H13 identifies this Alpha Series H13 / 9008 LED bulb listing. Its published output is 10,000 lumens per pair with 6000K white light. Compare the installed bulb marking, lamp position, connector and cooling clearance before choosing a replacement.
The Evo H13/9008 uses a dual-beam high/low design with integrated ReadyFit electronics and no external driver box. Its specified input is 11–18V; it must not be treated as a 24V bulb.
Read more: specifications and installation checks
- Exact SKU: Alpha-H13
- Bulb designation: H13 / 9008
- Published light output: 10,000 lumens per pair
- Colour temperature: 6000K white
- Listed supply range: 11–18V DC
- Cooling design: ReadyFit integrated electronics, copper-core PCB, internal micro-fan and liquid-filled thermal tubes
- Warranty: lifetime limited warranty; existing product terms apply

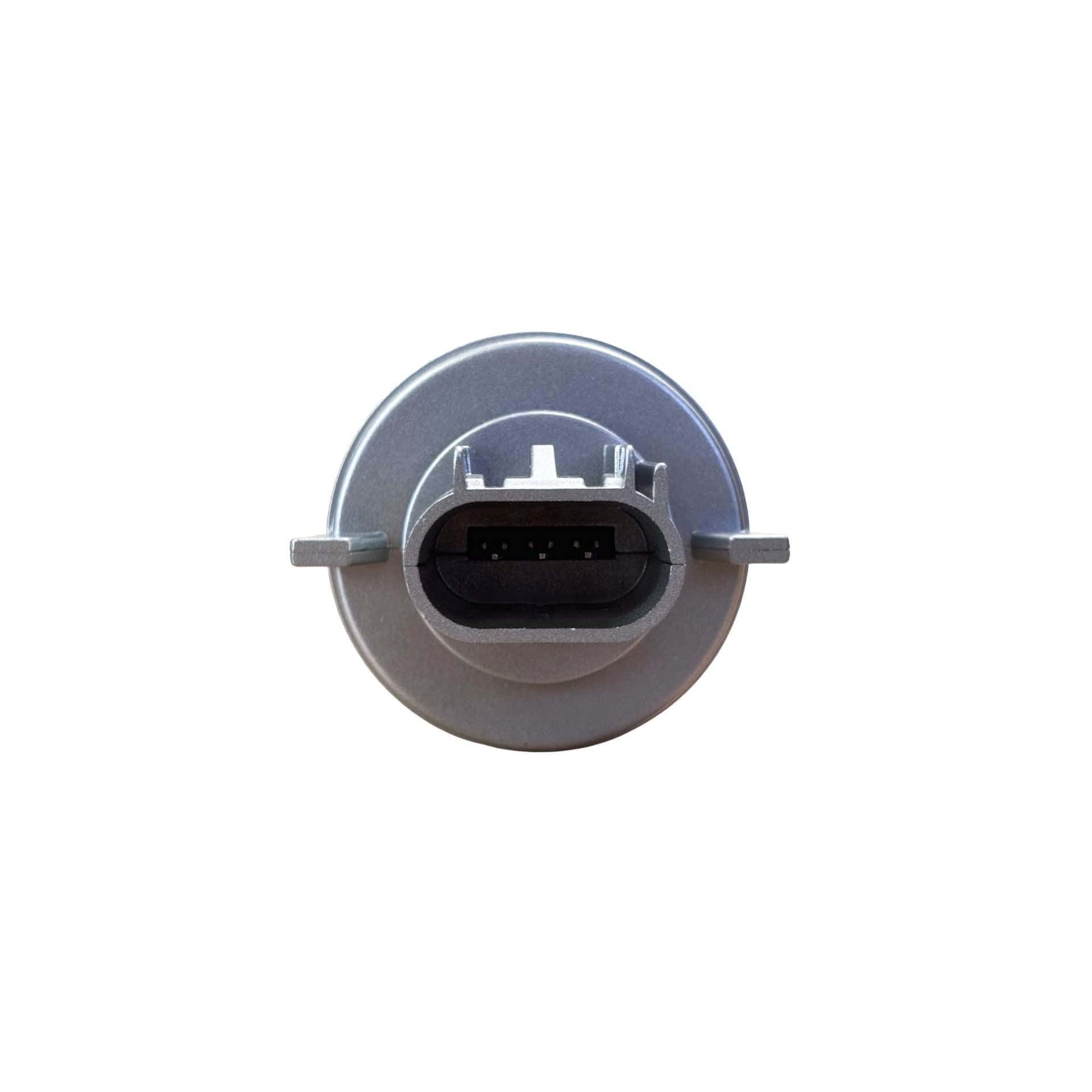

Before installation, compare the mounting/retainer, connector, available space and dust-cap closure. After installation, check high/low operation where applicable and the final beam aim. A bulb-base match alone does not establish optical performance, approval or compatibility with a complete factory LED housing.
Frequently Asked Questions
Is the 10,000-lumen figure for one bulb?
The published rating for SKU Alpha-H13 is 10,000 lumens per pair. Keep that unit with the number when comparing products; it is not a measurement of light delivered to a particular point on the road.
What light colour is this H13 / 9008 product?
This exact listing specifies 6000K white light. Match the SKU and product generation when replacing an existing bulb; another Alpha Series bulb can have a different specification.
What headlight bulb size does a 2017 Ford Super Duty use?
Ford’s 2017 Super Duty bulb chart lists H13/9008 for the replaceable headlamp bulbs. This is an OEM bulb-size reference, not a fitment guarantee for every headlamp assembly. Check the original manual and installed equipment; a factory LED assembly is a different application. This Alpha Series Evo listing specifies an 11–18V input.
What voltage range is listed for Alpha-H13?
This exact product lists an 11–18V DC input range. Check the actual lighting-circuit supply and connector against that range. The 11–18V range is for a nominal 12V application; it does not cover a 24V circuit.
Does an LED bulb replace a complete factory LED headlight?
This is a replacement-bulb product for a compatible serviceable lamp. A complete factory LED headlight can use different integrated electronics and light sources; a model name or similar exterior housing is not a bulb-fitment check.
Will built-in electronics prevent every warning or flicker?
Do not assume a universal result. Check the installed bulb type, connections and lighting circuit. Some applications require an appropriate additional module; diagnose the cause before choosing electrical accessories.
What should I check around the H13 / 9008 cooling system?
This product lists: readyfit integrated electronics, copper-core pcb, internal micro-fan and liquid-filled thermal tubes. Check the space available behind the bulb and the way the original dust cap closes. Keep the cooling path and mounting arrangement consistent with the supplied installation instructions.
What warranty applies to this Alpha Series bulb?
The current product carries a lifetime limited warranty. The existing terms and exclusions for the purchased product apply; a warranty does not make an incompatible housing or electrical supply suitable.
