BTS INSTALLATION GUIDE · JEEP JK
Jeep JK Morimoto Sealed7 Headlight Installation
Replace the JK lamps with the correct Sealed7 anti-flicker connections, with the optional lighting leads explained separately.

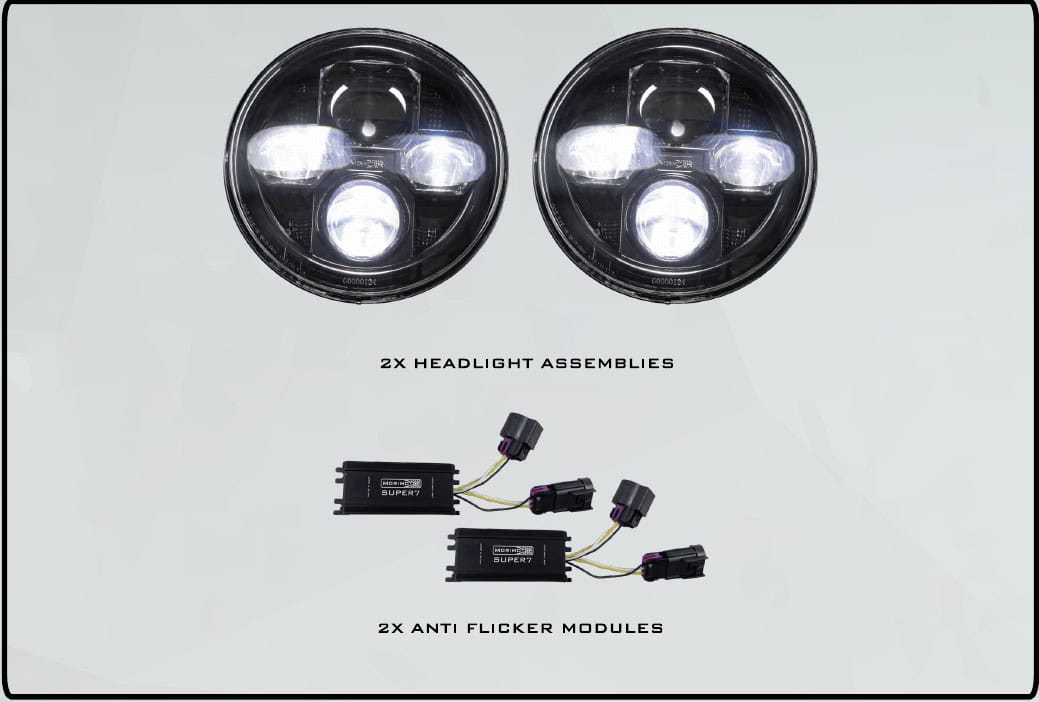

Check the kit before removing the grille
This guide follows the original Morimoto 2007–2018 JK installation manual for this lamp. Match your vehicle and factory equipment to the current product listing; the manual cover is not a separate fitment approval.
Tools: ratchet, T15 Torx bit, and a flat screwdriver or plastic trim tool. Keep the original fasteners for reassembly. If the connectors or mounting parts differ, stop and confirm the kit before modifying anything.
Remove, connect and aim
01 Release the grille
Lift out the six retainers across the top. Pull the grille forward to release its lower clips.
02 Disconnect both grille signals
Slide each red lock back, press the black release and separate the connector. Repeat on the other side before setting the grille aside.
03 Remove the factory lamps

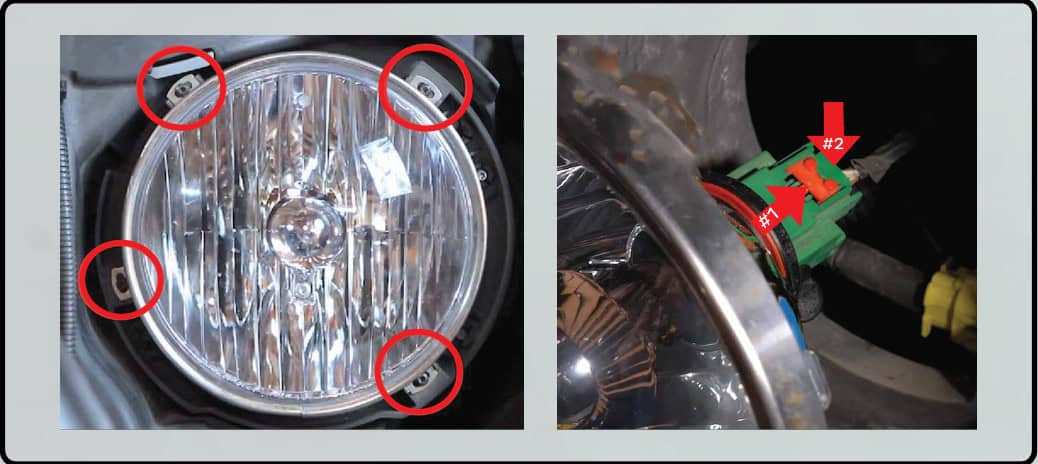

Remove the four T15 trim-ring screws. Support the headlight as it comes out, release its red/black connector lock and unplug it. Repeat on the passenger side.
04 Connect the anti-flicker module

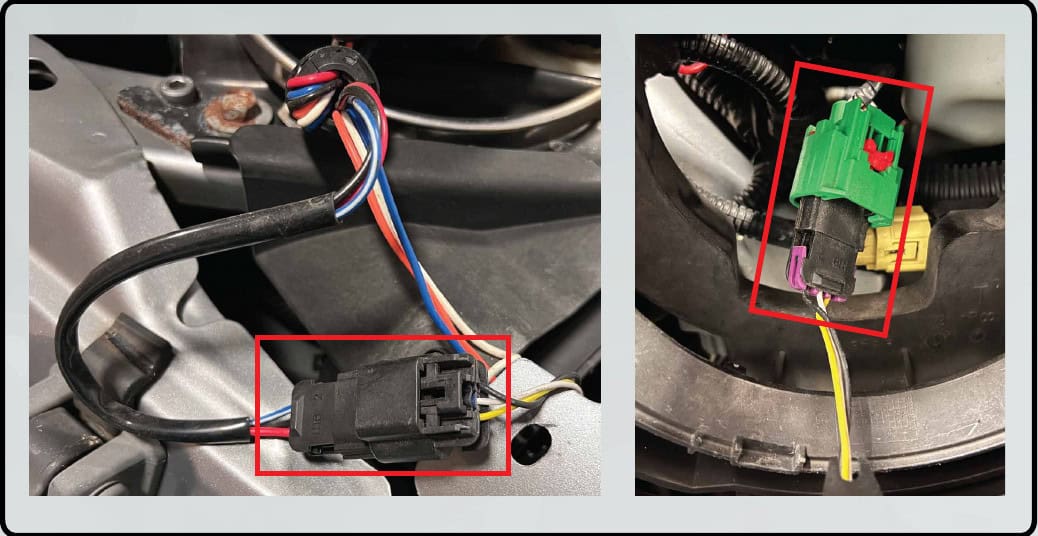

Connect the headlight to its supplied anti-flicker module, then connect the module to the factory harness.
05 Decide whether to connect the optional functions

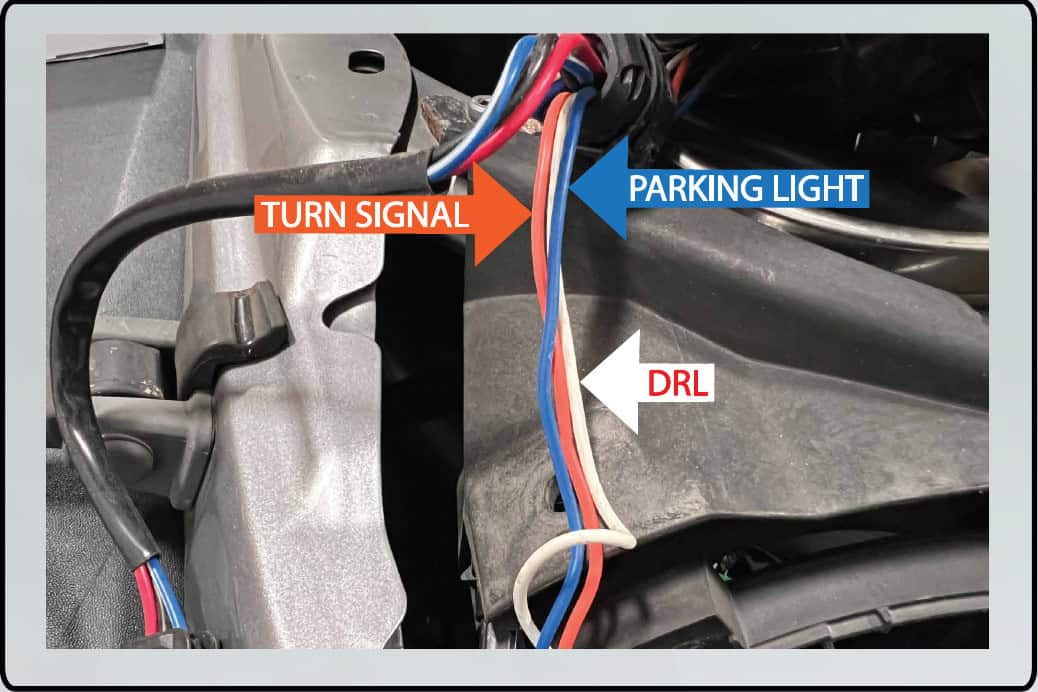

The white lead powers the DRL; Morimoto recommends an ignition-switched supply. The blue parking-light lead requires the white lead to be powered too. If you are not using ignition power for white, the manual permits white and blue together on the parking-light circuit. The orange turn-signal lead operates independently of those two leads. Identify the correct vehicle circuits before making these optional connections.
06 Secure the lamp
Seat the lamp in the factory bucket and reinstall its retaining ring.
07 Install the passenger side
Repeat the anti-flicker connection and mounting steps. Add the optional leads only if you chose those functions.
08 Test the lights
Check low and high beams and every optional function you connected.
09 Set the vertical aim

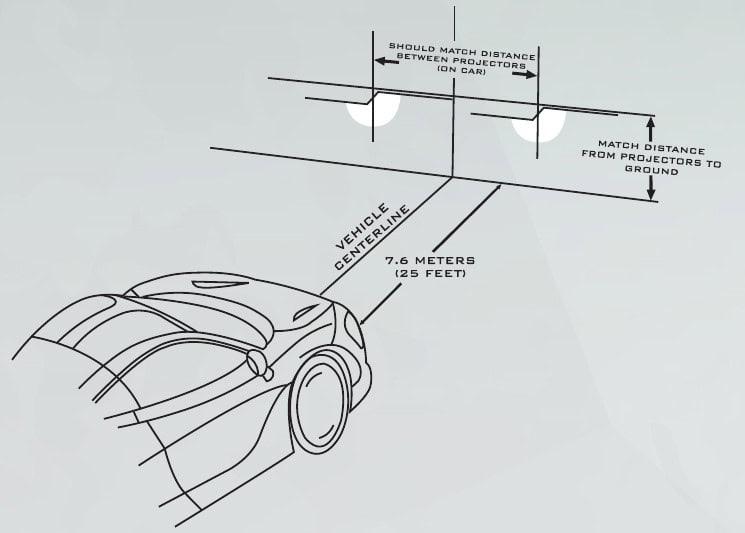

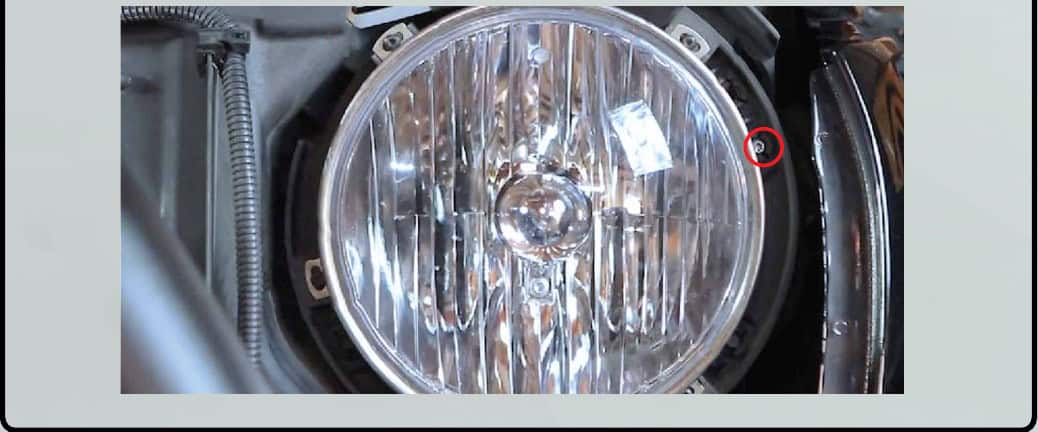

Use the illustrated T15 adjuster. Watch the cutoff while making small changes; use the original 25-foot (7.6 m) reference diagram.
10 Refit the grille
Reconnect both grille signals, refit the lower clips and reinstall the six top retainers.
Original instructions and video
Original Morimoto PDF, unchanged and linked below. Its technical illustrations are reproduced here with their original markings. The linked video is the Super7 family overview supplied on the manufacturer page; use the Sealed7 written steps and PDF for this installation.
