Jeep JL Morimoto 4Banger Fog-Light Installation Guide
Choose the correct bumper procedure

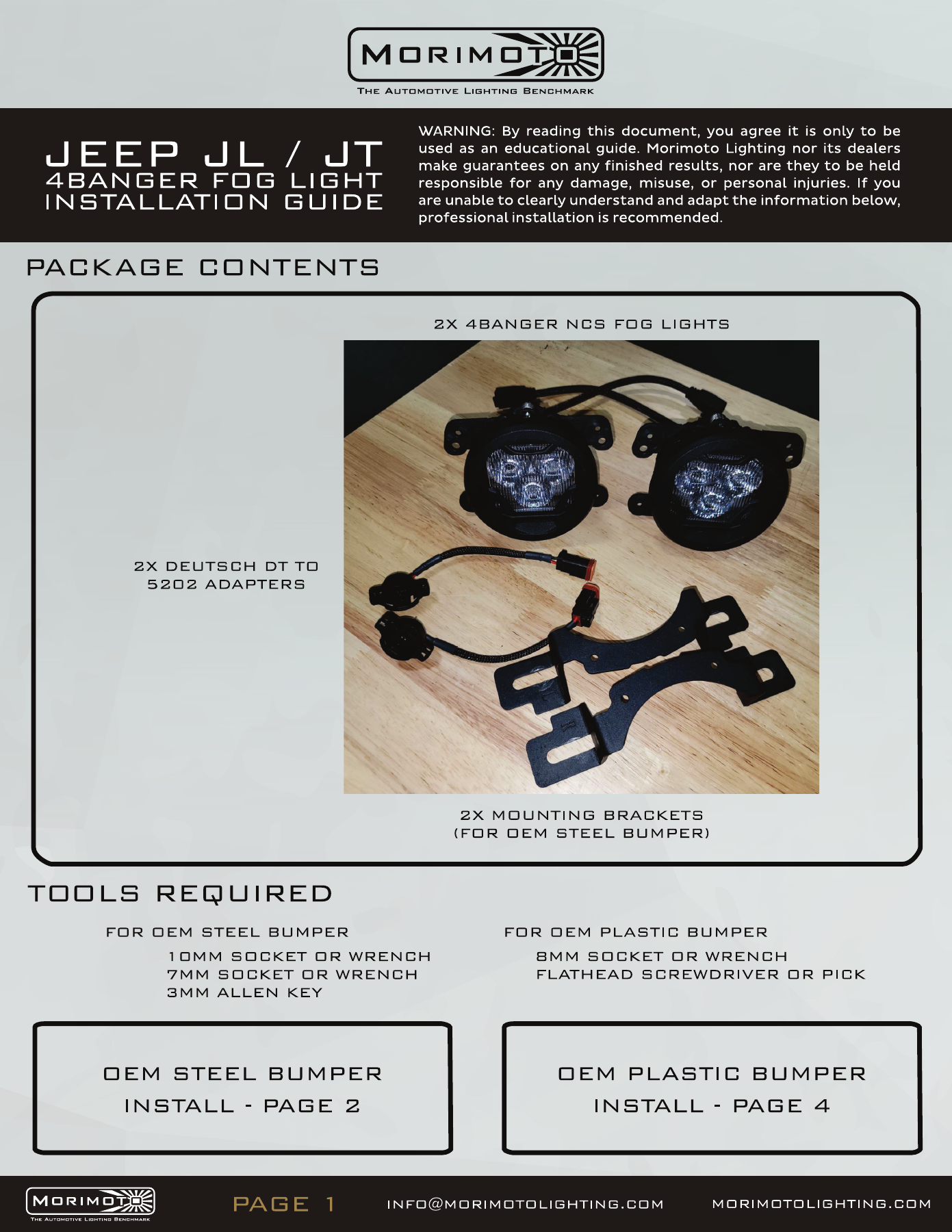

These NCS Wide fog lamps fit supported JL Sahara/Rubicon factory fog locations. Sport and OEM LED fog-light applications are excluded. The kit contains the lamp pair, the steel-bumper mounting brackets and DT-to-5202 adapters. Use the steel or plastic bumper procedure that matches the Jeep.
Open the original manufacturer PDF
OEM steel bumper

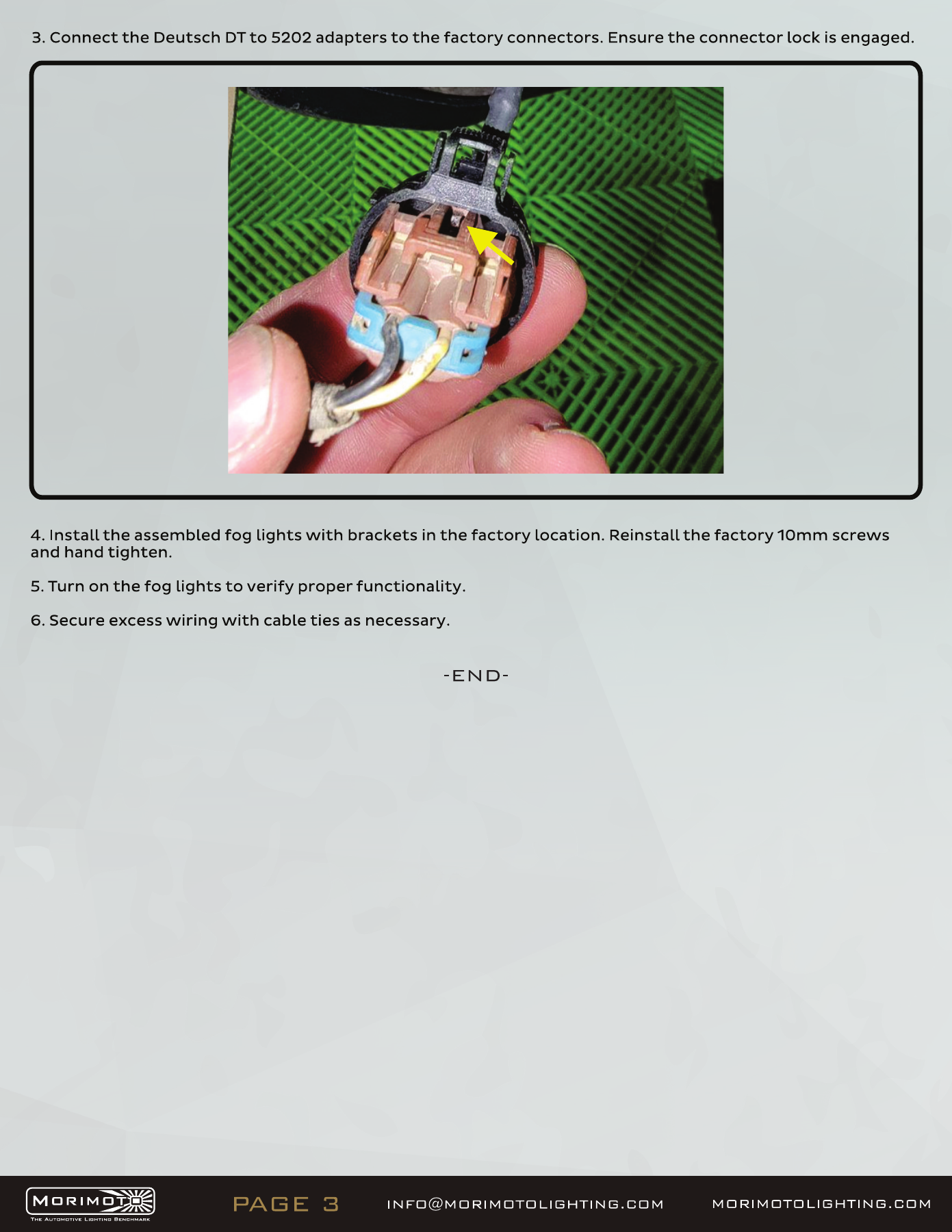

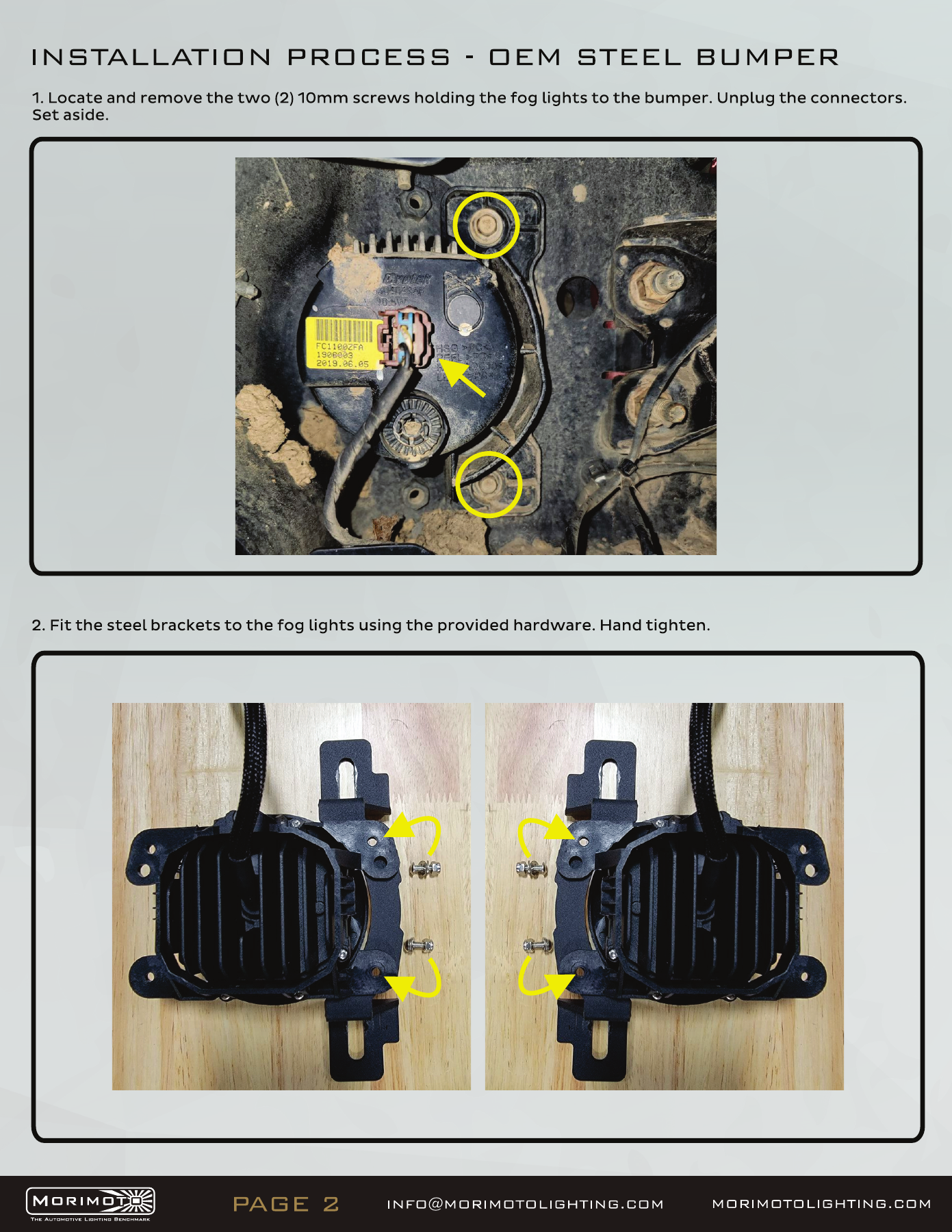

Remove the two 10 mm screws at each factory fog lamp, unplug the connector and remove the lamp. Attach the steel brackets to the new lamps with the supplied hardware. Connect the DT-to-5202 adapters and engage their locks, reinstall using the original screws, then test and secure excess wiring.
Open the original manufacturer PDF
OEM plastic bumper

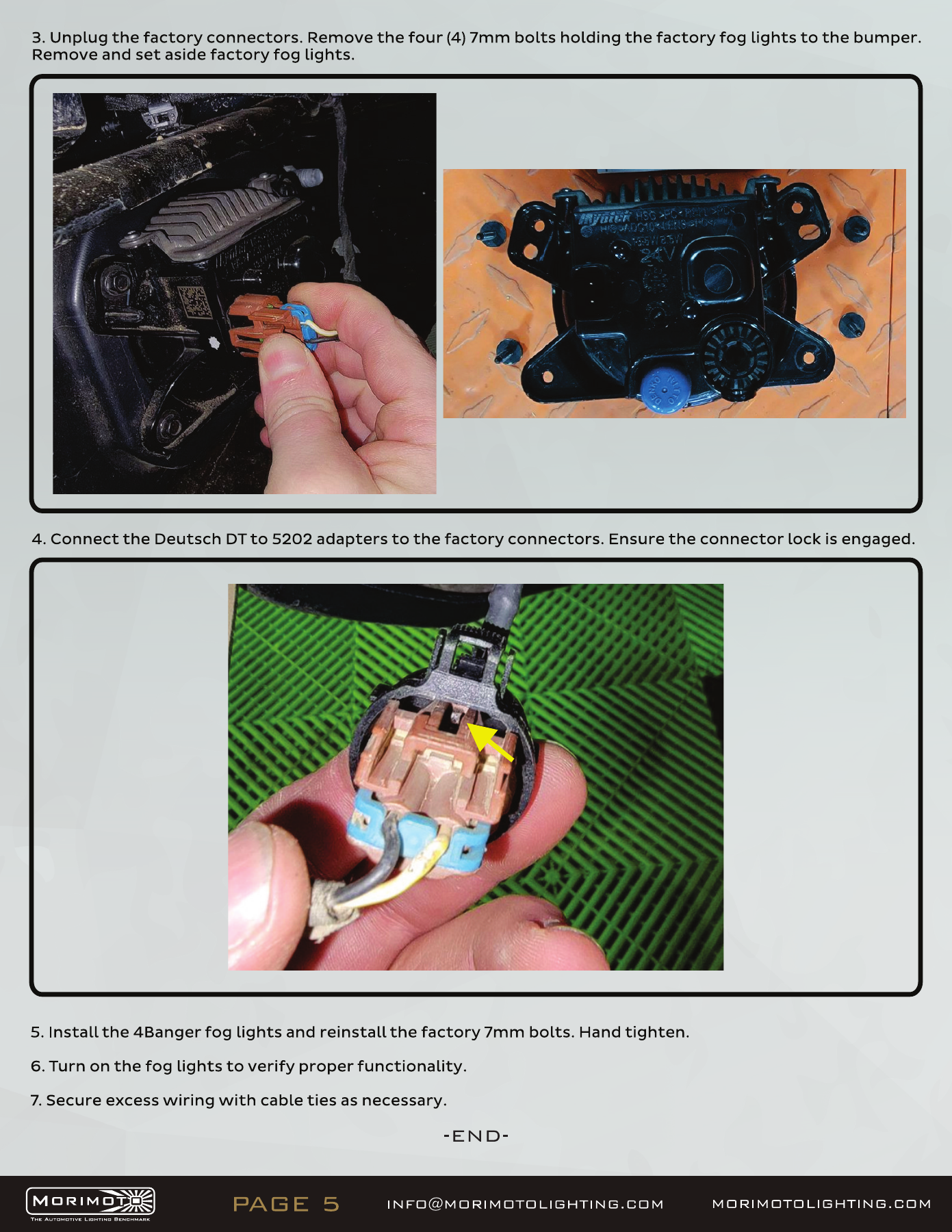

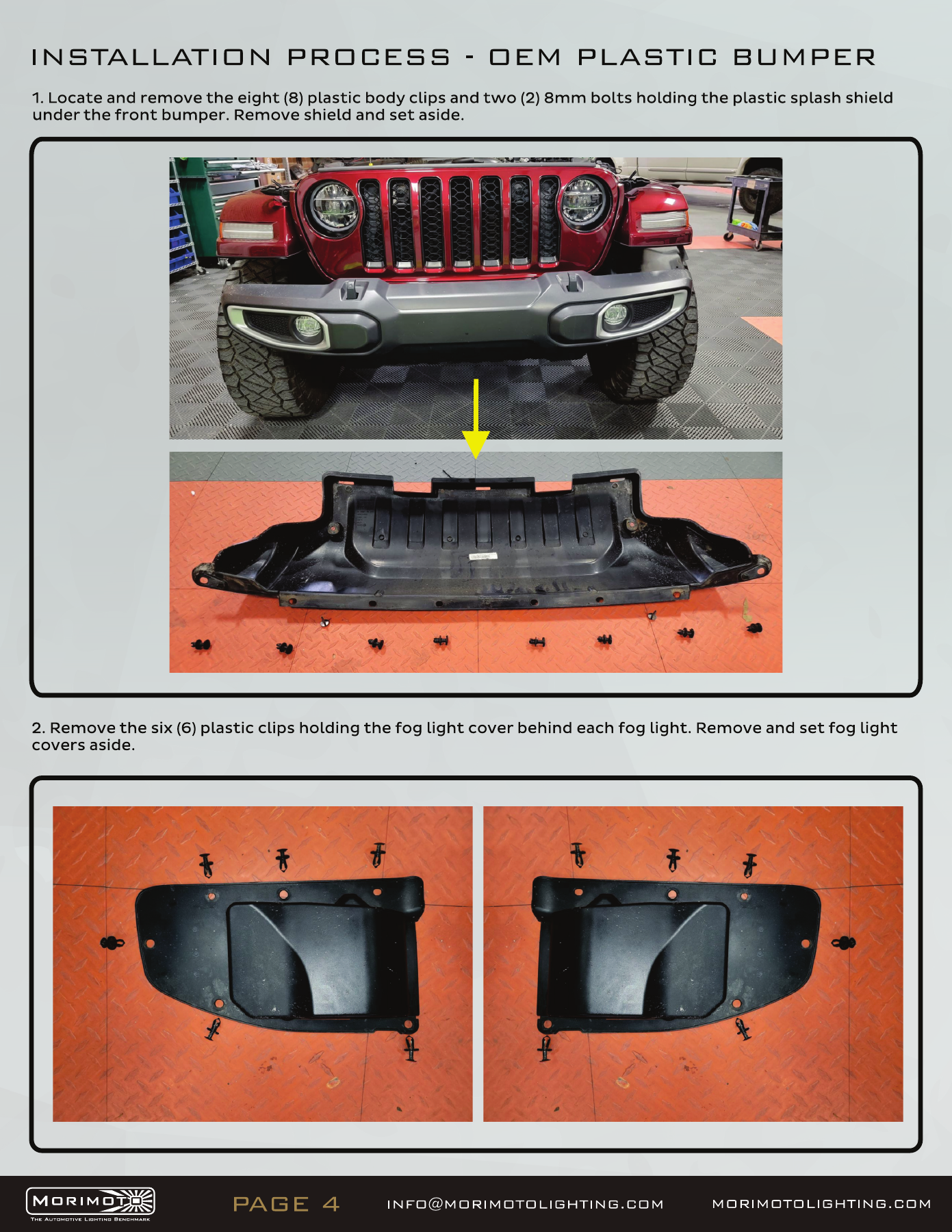

Remove the eight plastic clips and two 8 mm bolts retaining the splash shield. Remove the six clips holding each fog-light cover. Unplug the lamp and remove its four 7 mm bolts. Fit the new lamp, connect the adapter, reinstall the original fasteners, test and secure the wiring before refitting the covers and shield.
Open the original manufacturer PDF
Morimoto JL 4Banger fog-light video
