Product Overview
Designed for 5″ x 7″ applications, this high-performance hi/lo beam headlight delivers precision LED beam performance, SmartHeat® heated lens technology, J.W. Speaker Dual Burn® optics, and the distinctive EVO-X “X” optic in a widely used rectangular headlight format.
Key Features & Benefits
The Model 8900 EVO-X is engineered for 5″ x 7″ rectangular headlight applications, making it a strong upgrade for vehicles using 2B1 sealed beam headlights.
This headlight provides:
- Best-in-class precision beam performance
- Smooth homogeneous pattern spread
- No streaks or dark spots
- Full brightness at minimum voltage
- Bold modern EVO-X styling
Its 5″ x 7″ design makes it ideal for vehicles that need dependable forward lighting with a clean rectangular LED upgrade.
Hi/Lo Beam Functionality
The 8900 EVO-X combines high beam and low beam functionality in one headlight assembly.
Lighting benefits include:
- Low beam spread for road coverage
- High beam punch for stronger distance visibility
- All-in-one functionality
- Front position lighting support
- Simple plug-and-play installation across compatible model years
This makes it a versatile lighting solution for vehicles that require controlled low beam output, strong high beam performance, and simplified installation.
Advanced Dual Burn® Optical Performance
The EVO-X uses J.W. Speaker Dual Burn® technology to improve beam performance across low and high beam operation.
Dual Burn® benefits include:
- Wider low beam spread
- Stronger high beam punch
- Clean, consistent illumination
- Improved beam pattern control
This helps deliver dependable visibility while maintaining controlled light distribution for demanding on-road use.
SmartHeat® Heated Lens Technology
The integrated SmartHeat® system helps prevent snow and ice buildup on the lens.
SmartHeat® benefits include:
- Reduced snow accumulation
- Reduced ice buildup
- More consistent light output in harsh winter conditions
- Improved cold-weather visibility
This makes the Model 8900 EVO-X a strong option for trucks, buses, work vehicles, and equipment operating in harsh weather.

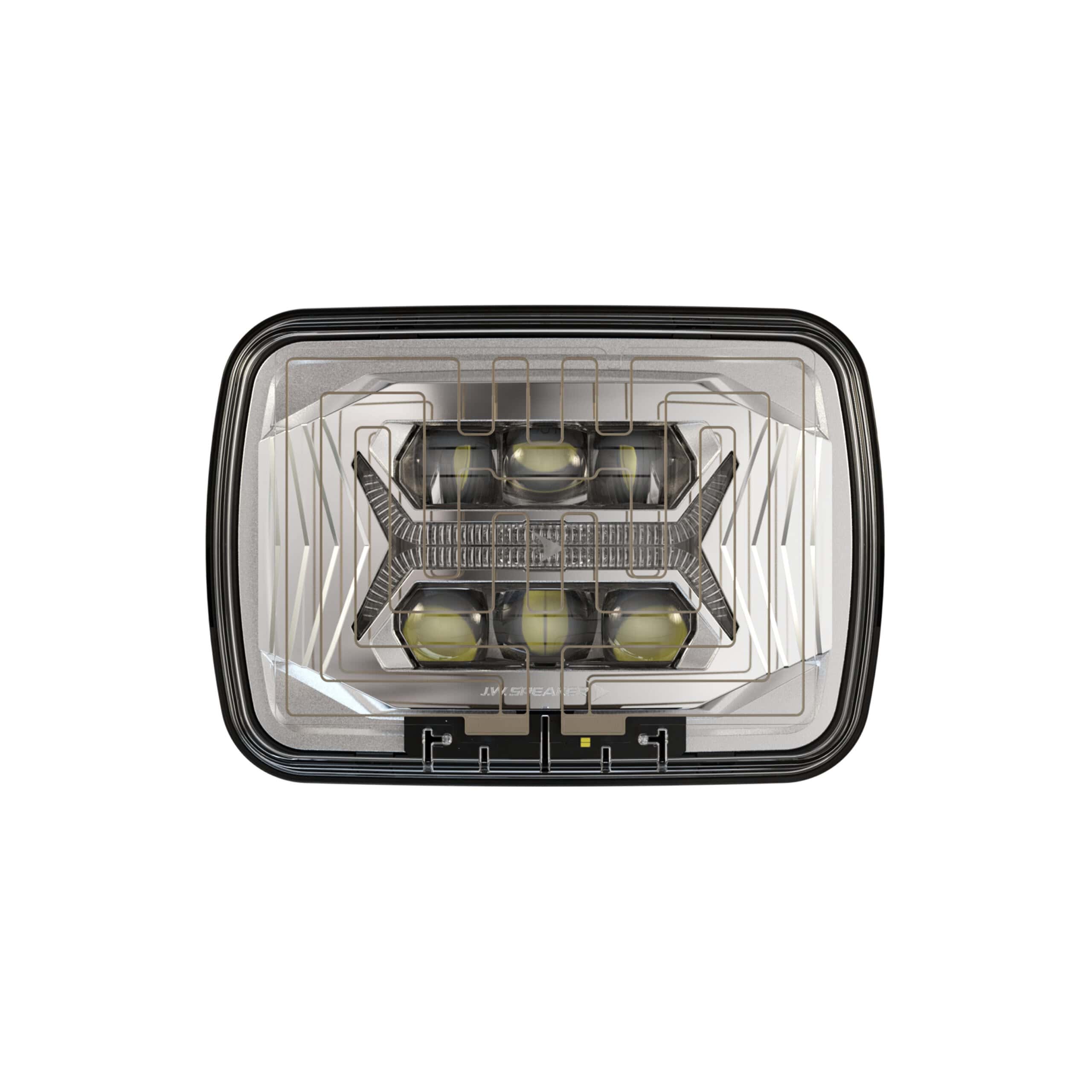

Distinctive EVO-X “X” Optic Design
The signature EVO-X “X” optic gives this headlight a bold, modern appearance while supporting functional lighting performance.
This design enhances both:
- Front-end styling
- Optical light distribution
With a clear hardcoated polycarbonate lens and black or chrome bezel options, this headlight delivers a premium look in a proven 5″ x 7″ rectangular platform.
Performance / Compatibility / Use-Case
Built for Harsh Environments
The Model 8900 EVO-X is designed to perform in demanding operating conditions.
Common applications include:
- Agriculture
- Automotive
- Construction
- Industrial
- Material handling
- Mining
- Off-road 4×4
- Railroad
- Specialty vehicles
- Truck and bus
With a polycarbonate housing, hardcoated polycarbonate lens, decreased part weight, and wide operating temperature range, this headlight is built for tough commercial, industrial, and specialty vehicle use.
Installation / Fitment / Technical Details
Fitment and Retrofit Details
The 8900 EVO-X is designed to retrofit 2B1 5″ x 7″ headlights.
Fitment details:
- Size: 5″ x 7″
- Shape: Rectangular
- Retrofits: 2B1 5″ x 7″ headlights
- Connector: Integrated 6-pin Deutsch to H4
- Lead Length: 10″
- Mating Connector: H4 AMP #172615-2
- Bezel Color: Black or Chrome
Before ordering, confirm your existing headlight size, connector, bezel option, and beam requirements.
Electrical Performance
- Input Voltage: 12–24V DC
- Operating Voltage: 9–32V DC
Physical Specifications
- Height: 142.00 mm / 5.59 in
- Width: 200.00 mm / 7.87 in
- Depth: 77.95 mm / 3.07 in
- Outer Lens Material: Hardcoated polycarbonate
- Outer Lens Color: Clear
- Housing Material: Polycarbonate
- Housing Color: Black
- Bezel Color: Black or Chrome
- Minimum Operating Temperature: -40°C / -40°F
- Maximum Operating Temperature: 65°C / 149°F
Compliance & Legal Use
The JW Speaker Model 8900 EVO-X supports DOT and ECE compliance for on-road applications.
Compliance details:
- DOT compliant for U.S. use
- ECE compliant
- Meets applicable U.S. FMVSS Section 108 requirements
- DOT compliance is etched directly on the lens
- Buy American Act compliant
- Street legal supporting DOT standards
Note: Direction indicator function is not DOT compliant.
Build Quality / Warranty
Warranty: 2-year manufacturer warranty.
What’s Included
- 1 × JW Speaker Model 8900 EVO-X 5″ x 7″ Heated LED Headlight, Hi/Lo Beam
Frequently Asked Questions
What size is this headlight?
This is a 5″ x 7″ rectangular headlight designed to retrofit 2B1 sealed beam headlights.
Is this a high beam or low beam headlight?
This is a hi/lo beam headlight. It provides both low beam spread and high beam punch in one assembly.
Does this headlight have a heated lens?
Yes. The Model 8900 EVO-X features SmartHeat® heated lens technology to help prevent snow and ice buildup.
What voltage systems does it support?
This headlight supports 12–24V DC input and operates from 9–32V DC.
Is this headlight street legal?
Yes. This version supports DOT standards for U.S. on-road use and is also ECE compliant. DOT compliance is etched directly on the lens.
What does this headlight retrofit?
It retrofits 2B1 5″ x 7″ rectangular headlights.
What connector does it use?
It uses an integrated 6-pin Deutsch to H4 connector with a 10″ lead length and H4 AMP #172615-2 mating connector.
What bezel colors are available?
This headlight is available with black or chrome bezel options.
