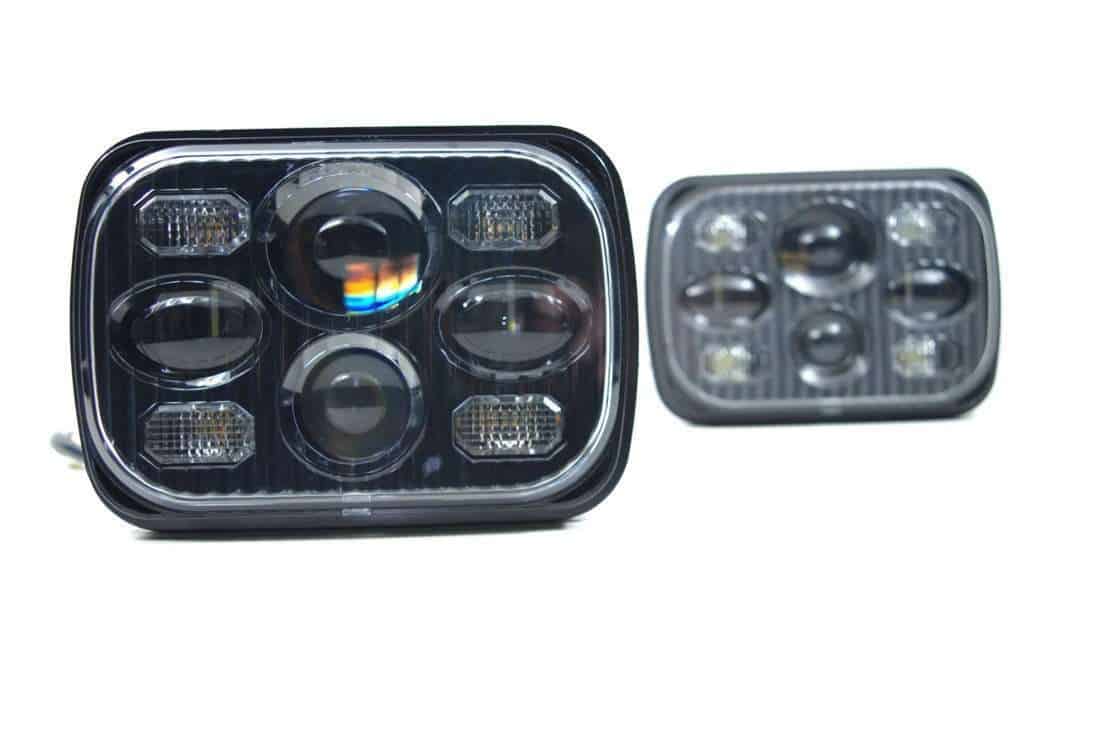

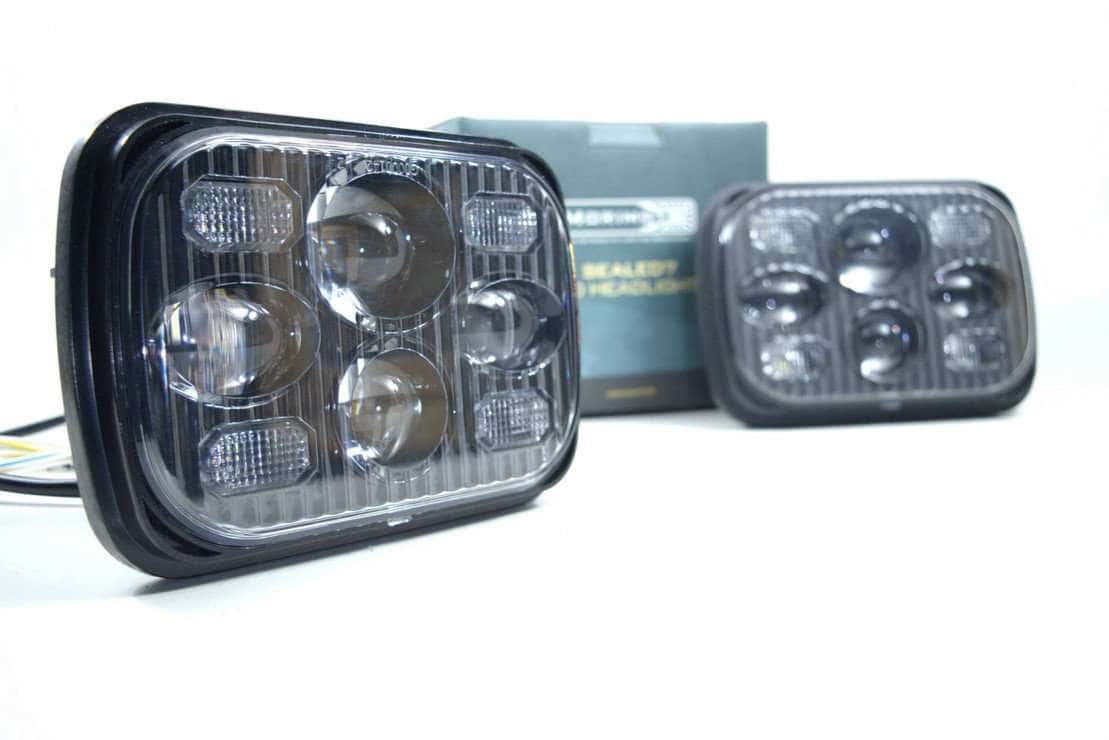

Morimoto Sealed5 combines low/high-beam lighting with optional white DRL, white parking and amber turn-signal functions. Fit depends on the original lamp standard, wiring and space behind the 5 x 7 housing.
Specifications and included items
- One LF268 headlight; H4 low/high/ground input.
- 9–16 V DC and left-hand-drive beam pattern.
- Separate yellow turn, white DRL and white/blue parking-light inputs.
Fitment and installation

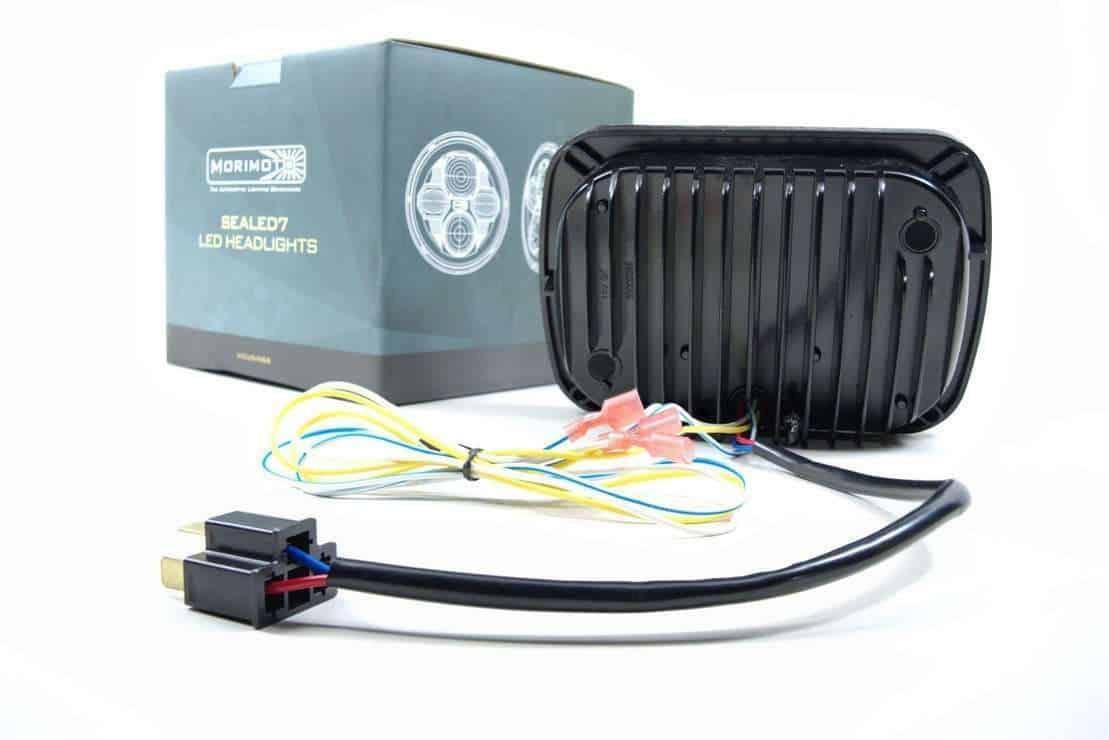

Some original headlight buckets need modification to clear the heat sink. Check this before ordering. DRL and turn functions may be left unwired; they are not activated by the main H4 connection alone.
Questions and answers
Will it run on a 24 V truck circuit?
Morimoto specifies 9–16 V DC. Do not connect it directly to a 24 V supply.
Is this a guaranteed no-modification replacement?
No. Morimoto notes that some original buckets need modification for heat-sink clearance.
Do I have to connect the DRL and turn signal?
No. Those functions are optional and separately wired; the main input operates the headlight.
