Morimoto | LF269

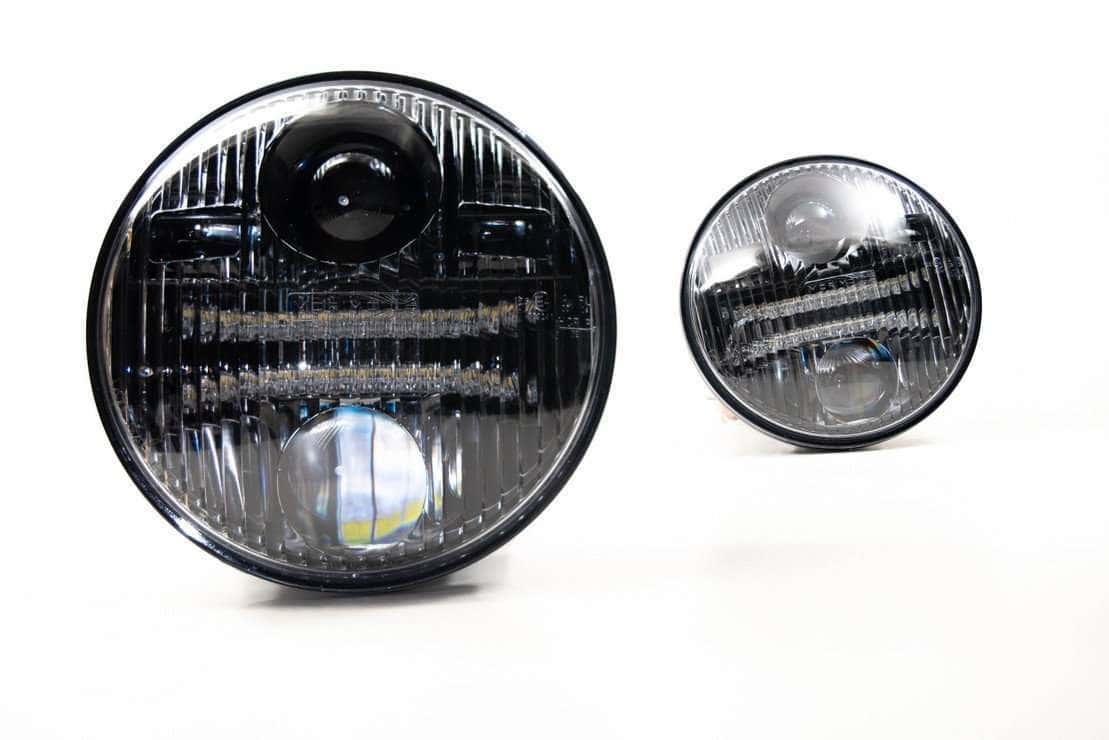

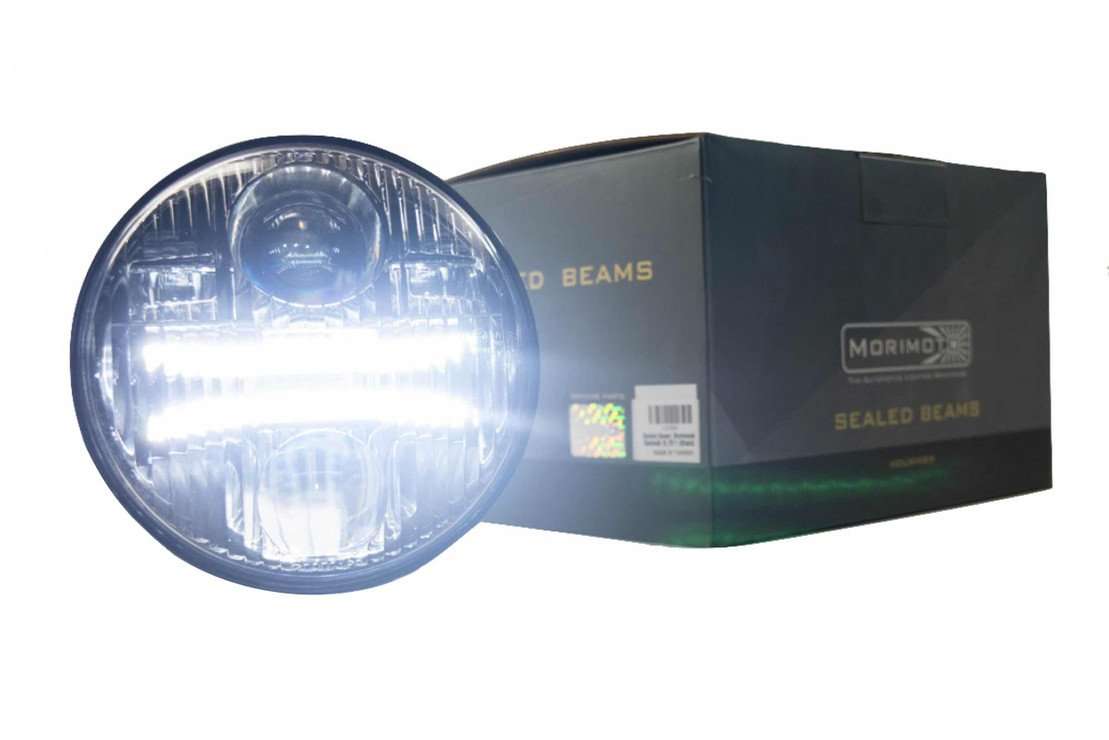

Sealed6: round Bi-LED lighting with a white accent
The Morimoto Sealed6 LF269 brings low and high beam projectors to a 5.75-inch round lamp opening. Its white accent can be connected for daytime-running or parking-light use.

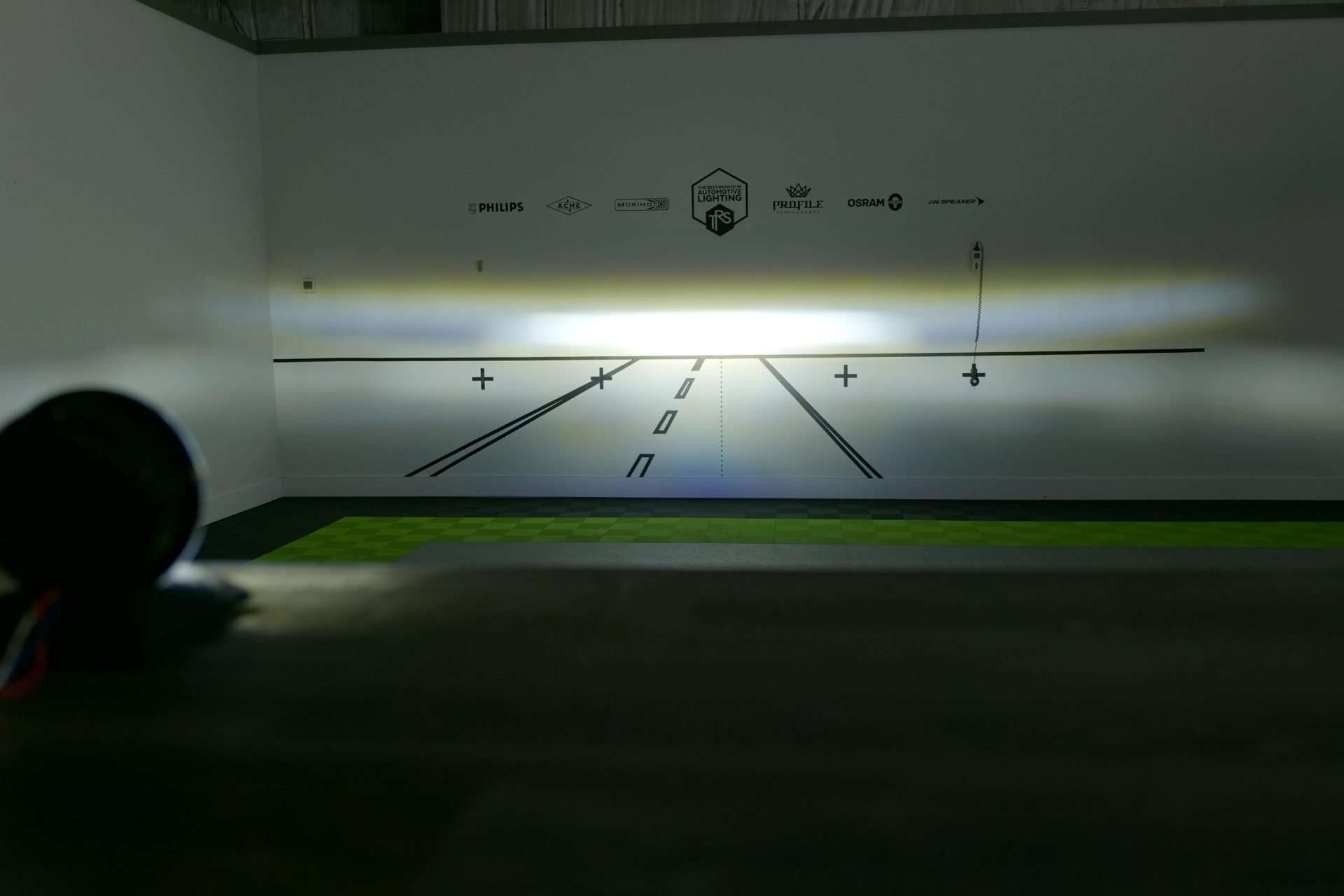

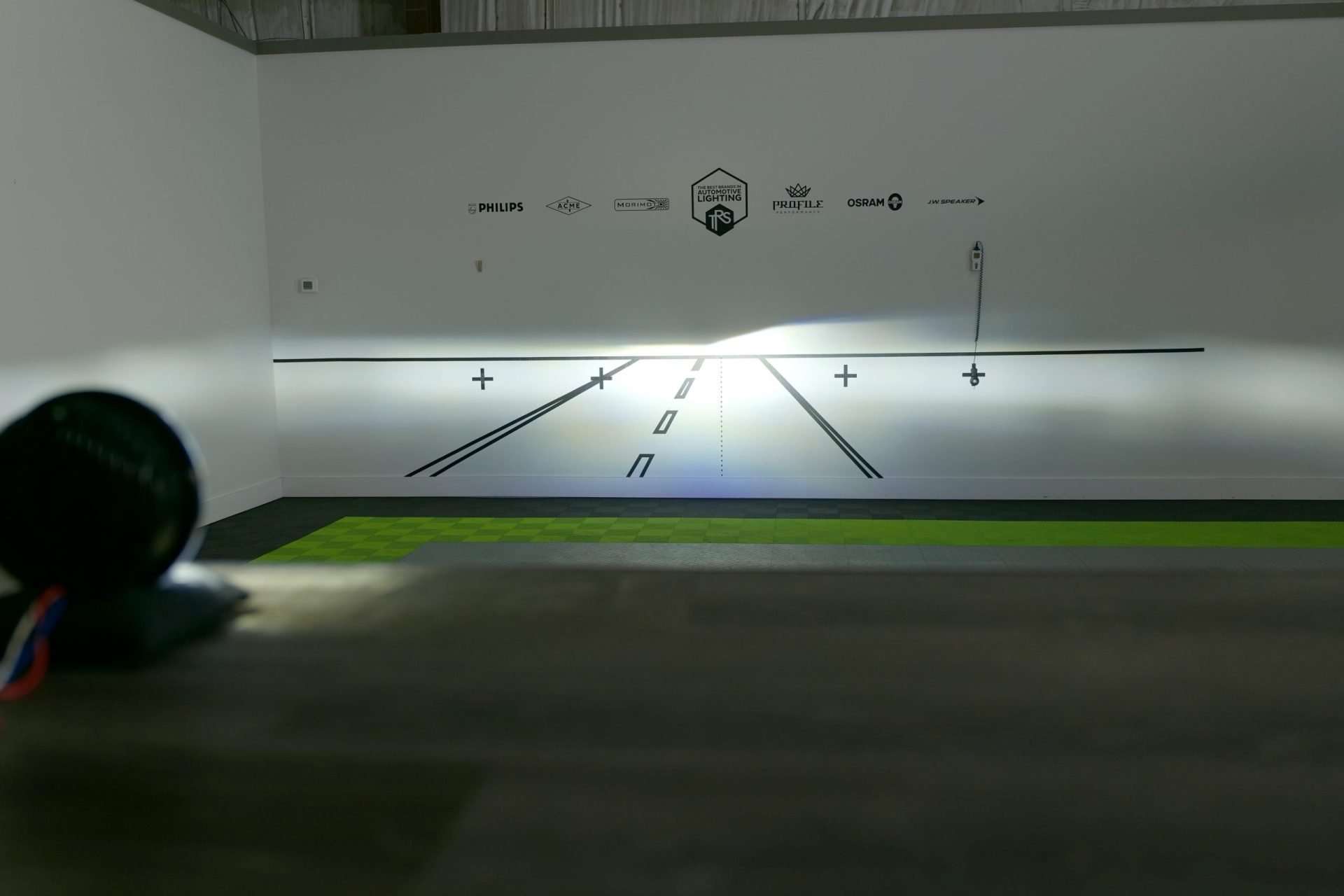

Low and high beam
Both main-beam functions are built into one lamp, with an H4 input and separate DRL connection.
Match the installation
Compare the original H5001/H5006 arrangement, retaining hardware, rear clearance and H4 circuit layout. Use the correct beam position for the vehicle: a nominal lamp size alone does not establish a complete conversion. The light pattern is for left-hand-drive use.
What is supplied

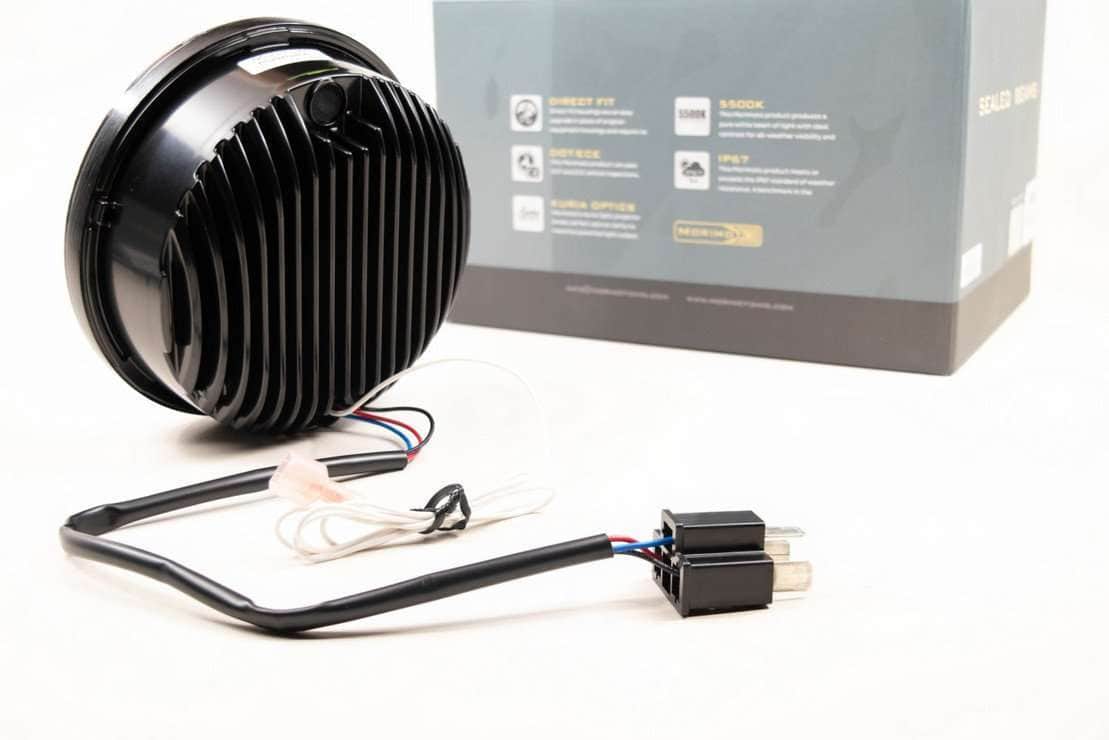

One Sealed6 lamp, H4 input and DRL T-taps.

Product details
Specifications
| Part number | LF269 |
|---|---|
| Input | 9–36V DC |
| Connector | H4 main beam; DRL T-taps |
| Listed output | 2,400 lm low / 4,300 lm high |
| Listed power | 20W low / 35W high |
| Traffic pattern | Left-hand drive |
| Colour temperature | 5000K |
| Package | One Sealed6 lamp, H4 input and DRL T-taps |
Installation resources
Plan the mounting and wiring
Confirm the vehicle circuit and lamp mounting before installation. Connect the white accent to its intended circuit and check final beam aim.
Product questions
Before you order
Does Sealed6 include an amber turn signal?
This LF269 selection is described here for its low/high beam and white accent functions; do not select it expecting the Sealed5 amber turn function.
Is this sold as a pair?
No. Each order supplies one Sealed6 headlight.
