High-Output LED Design with Integrated Position Lighting
Dual-Beam LED Performance
-
Low beam: 1,200 lumens
-
High beam: 1,000 lumens
Provides strong forward illumination with efficient LED output for everyday driving.
Integrated LED Position Light Bar
Features a center LED position light bar, available in amber or white, adding visibility and a modern accent without affecting headlight beam function.

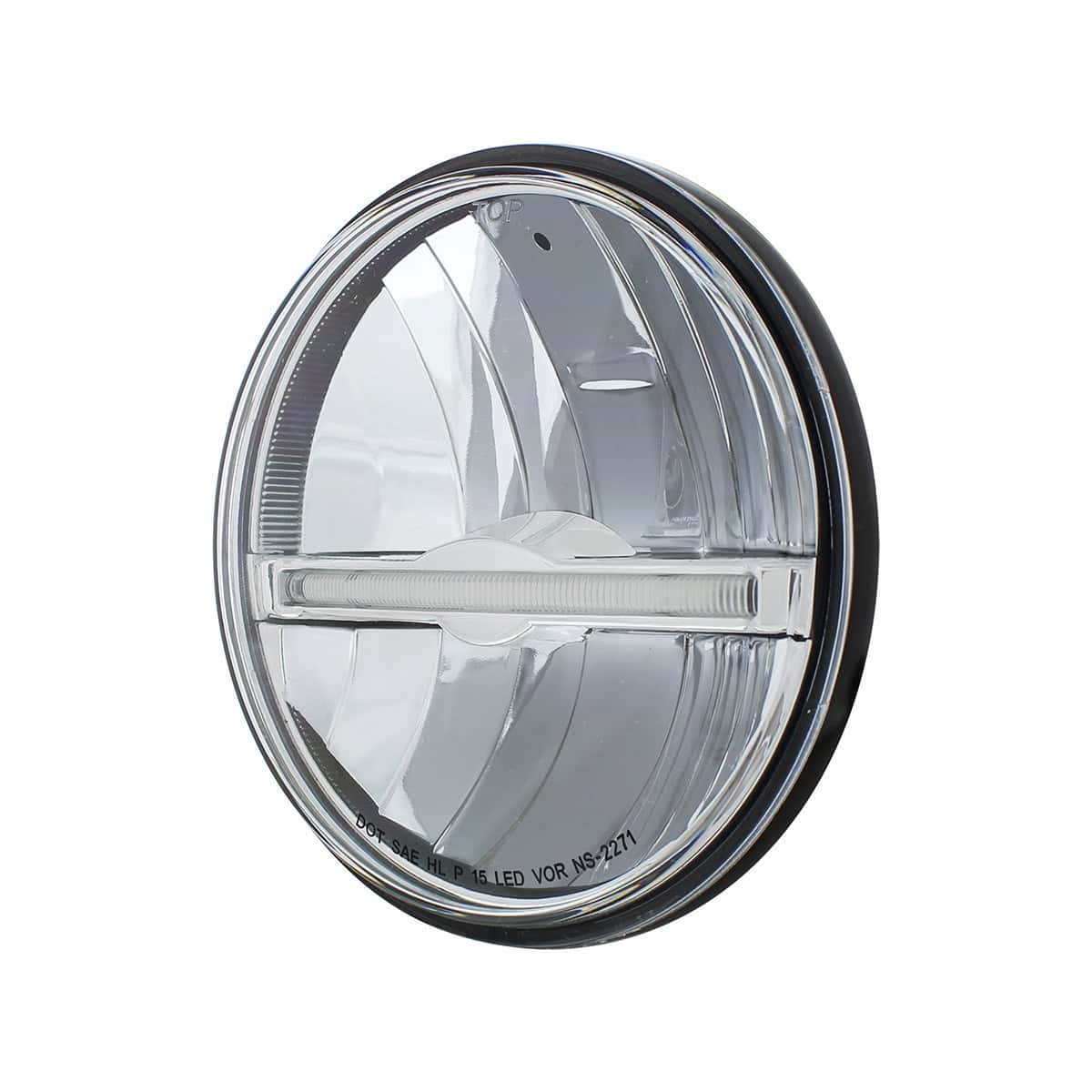

Crystal Polycarbonate Front Lens
The crystal-clear polycarbonate lens enhances light clarity while resisting impact, UV exposure, and road debris.
Reinforced Aluminum Reflector
A rugged aluminum reflector supports consistent light output and provides anti-vibration durability for long-term reliability.
Designed as a Direct Sealed-Beam Replacement

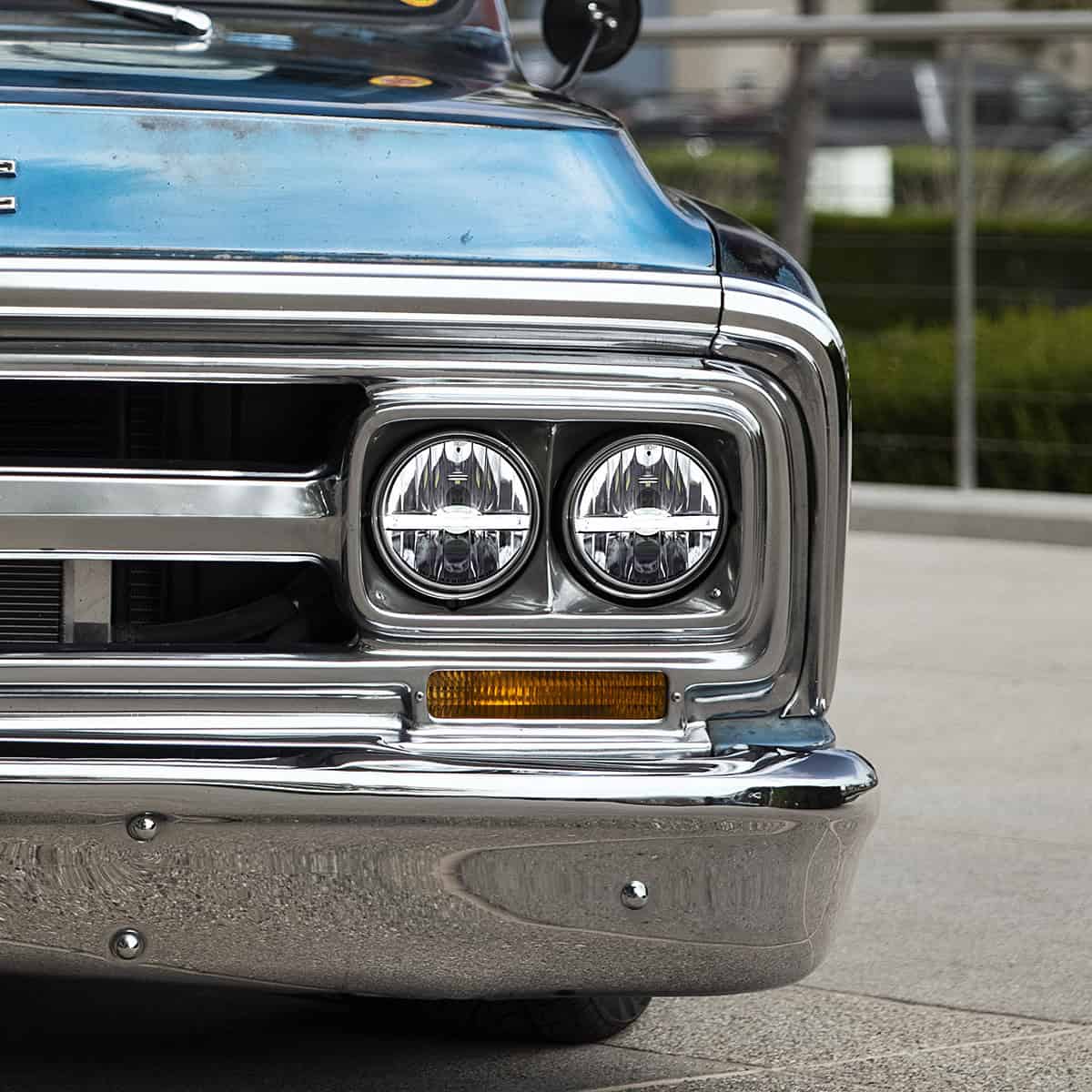

This headlight is engineered as a direct replacement for sealed-beam headlights, making it ideal for vehicles with four-headlamp systems commonly found on cars and trucks.
The compact design maintains proper fitment while delivering the benefits of modern LED technology.
Fitment, Installation & Technical Notes
Installation Overview
-

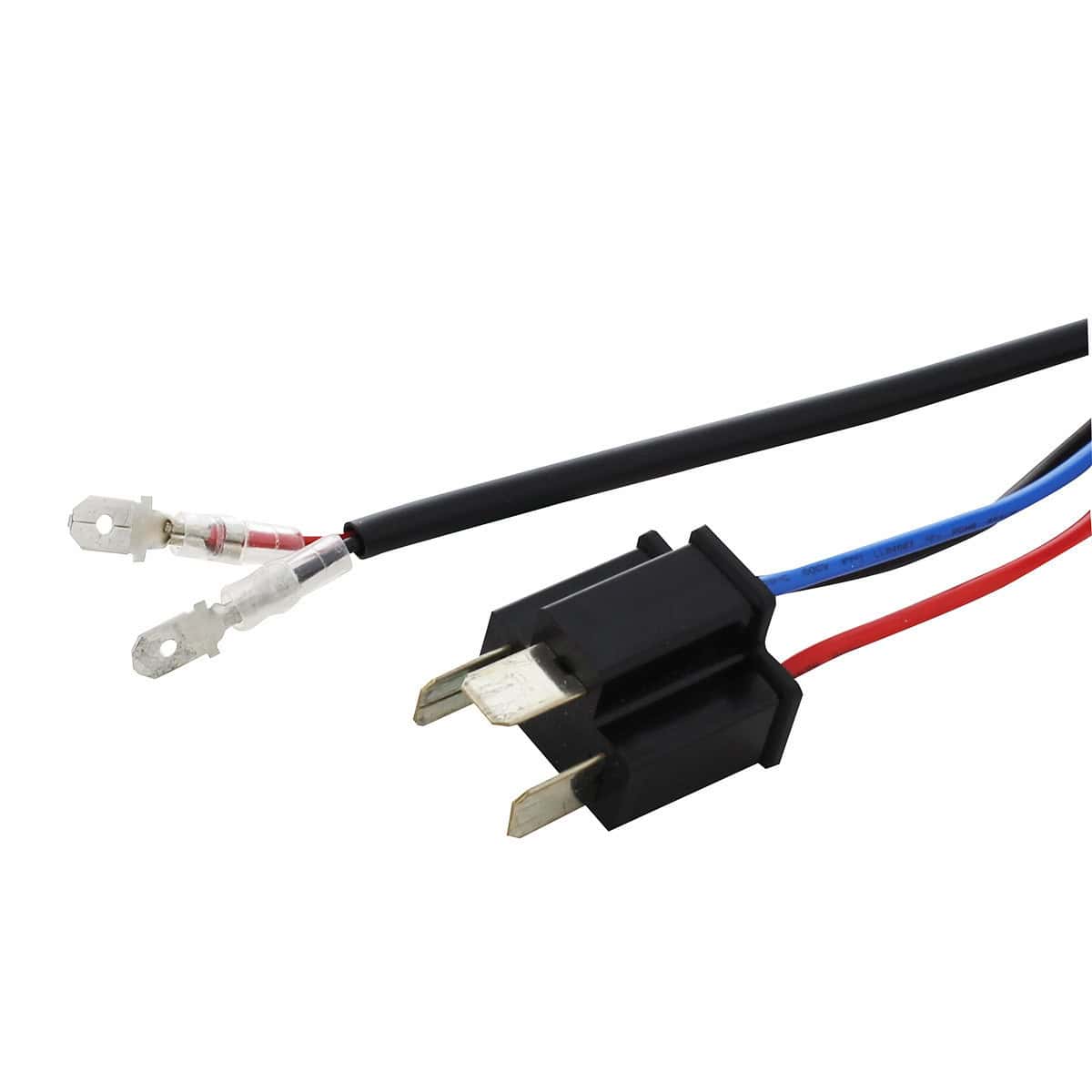

Plug-and-play H4 connector for main headlight function
-
Pre-crimped leads with flanged spade terminals for position light bar wiring
-
Fits standard 5-3/4″ round headlight housings
Electrical & Compatibility Details
-
Operating voltage: 12–24V DC
-
Position light bar requires additional wiring
Compliance
-
DOT / SAE compliant
-
Meets FMVSS 108 requirements
Materials, Durability & Warranty Coverage
Built with solid-state LED technology, reinforced internal components, and a sealed housing, this ULTRALIT headlight is designed to withstand vibration, weather, and daily road use.
Backed by a 3-year warranty, offering long-term confidence and reliability.
What’s Included
-
1 × ULTRALIT 5-3/4″ 9-LED headlight with position light bar
-
Pre-installed wiring for headlight and position light functions
Frequently Asked Questions
What vehicles does this headlight fit?
It fits vehicles that use 5-3/4″ round sealed-beam headlights, including many four-headlamp systems on cars and trucks.
How bright is the output?
The low beam outputs 1,200 lumens, and the high beam outputs 1,000 lumens.
What colors are available for the position light bar?
The position light bar is available in amber or white, depending on the selected version.
Is this headlight plug-and-play?
The main headlight uses a plug-and-play H4 connector. The position light bar requires separate wiring using the included pre-crimped leads.
Is this headlight street legal?
Yes. It is DOT / SAE compliant and meets FMVSS 108 standards.
What warranty is included?
This product includes a 3-year warranty covering manufacturing defects.
