United Pacific | 31259
5.75-inch round replacement lamp

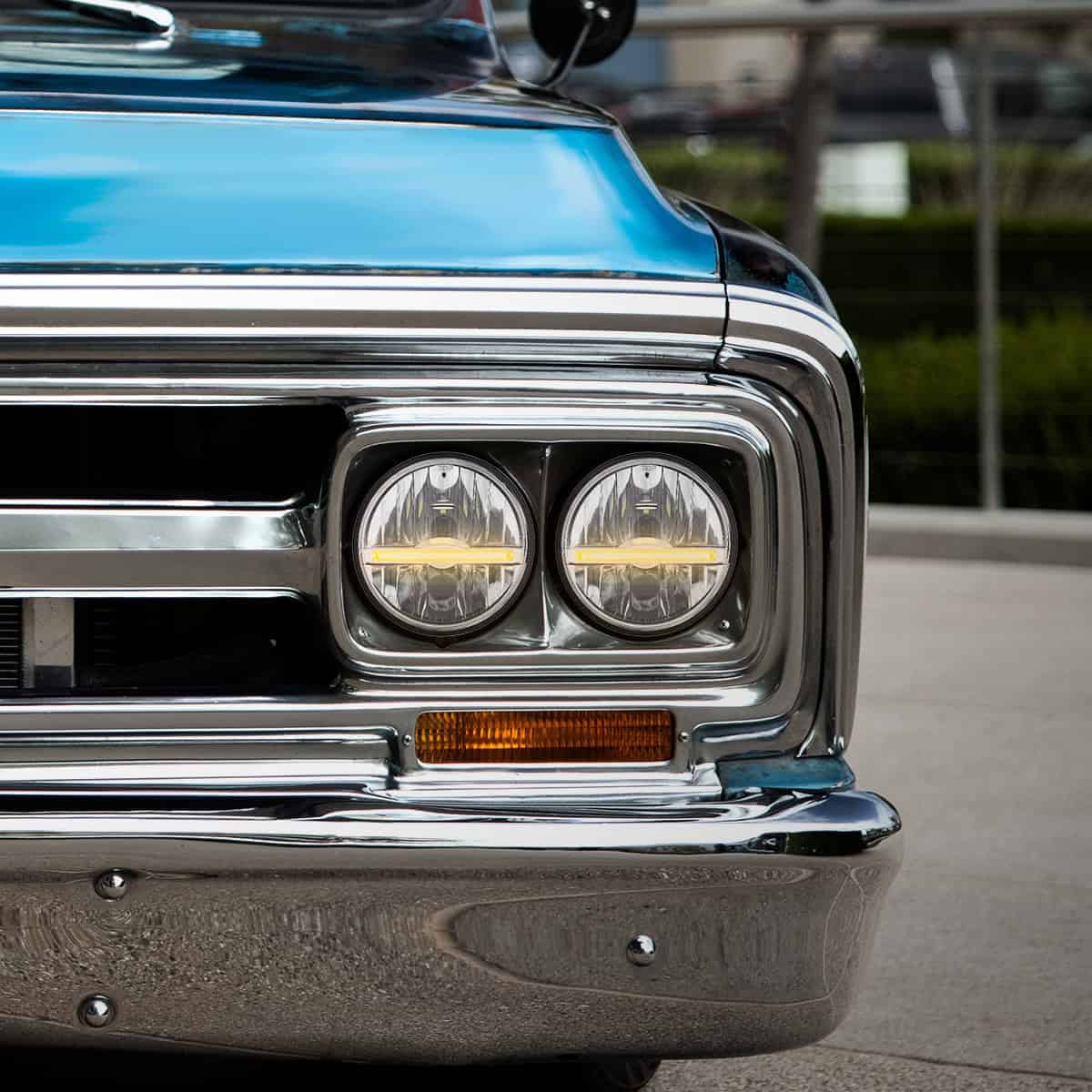

A 5.75-inch LED headlight with a crystal polycarbonate lens, aluminium reflector and a separately wired position-light bar.
Separate position-light bar
Manufacturer-rated output: 1,200 lumens low / 1,000 lumens high.
Match the beam function
High and low beam. Choose the lamp for the circuit and position being replaced.
One lamp per order
This listing supplies one headlight, not a vehicle set. Confirm the quantity required for your installation.

Fitment & selection
Start with the lamp already installed
Compare the existing lamp marking, retaining hardware, rear clearance and circuit functions. A nominal size or model name alone does not confirm compatibility.
The main lamp uses an H4 connector. Compare the exact pinout and connect the position bar through its separate leads.
Manufacturer-listed truck applications
These application entries still require the matching original lamp arrangement. Check any modified housings or wiring separately.
- 1958-1964 International Travelall
- 1961-1966 Kenworth W900
- 1957-1962 Mack N Series
- 1967-1987 Peterbilt 288
- 1954-1972 Peterbilt 341
- 1973-1987 Peterbilt 353
- 1967-1987 Peterbilt 358
Lamp details
Specifications for this exact part
| Part number | 31259 |
|---|---|
| Nominal size | 5.75-inch round |
| Main light type | LED |
| Beam function | High and low beam |
| Supply | 12–24V DC |
| Package | One lamp |
| Manufacturer-rated output | 1,200 lumens low / 1,000 lumens high |
| Manufacturer standards listing | DOT/SAE; FMVSS 108. Match the application and aim the installed headlight. |
Installation resources
Check the correct connector and circuit
Identify the vehicle ground and beam circuits before connecting the lamp. Compare the connector orientation with the exact diagram where provided. Confirm rear clearance, secure the wiring and check every function and the final beam aim.
Product questions
Before you order
Is the quoted colour for the main beam or the bar?
Amber or white identifies the position-light bar on this version. Check the exact part number when matching the appearance of another lamp.
