Starr | STARR-HR5006
HR5006: a serviceable halogen conversion
Replace a matching sealed-beam lamp with a Starr HR5006 housing and replaceable halogen bulb. This listing supplies one housing with its bulb, rather than a pair.
Replaceable halogen bulb
The package uses a 9007 halogen bulb and 14-gauge adapter harness.
Match the installation
Match the original H5006 sealed-beam format, retaining hardware and connector. Confirm rear bulb-access clearance and the vehicle wiring before installing the conversion.
What is supplied
One housing with halogen bulb.

Product details
Specifications
| Part number | STARR-HR5006 |
|---|---|
| Supply | 12V |
| Bulb / wiring | 9007 halogen bulb and 14-gauge adapter harness |
| Lens | Glass |

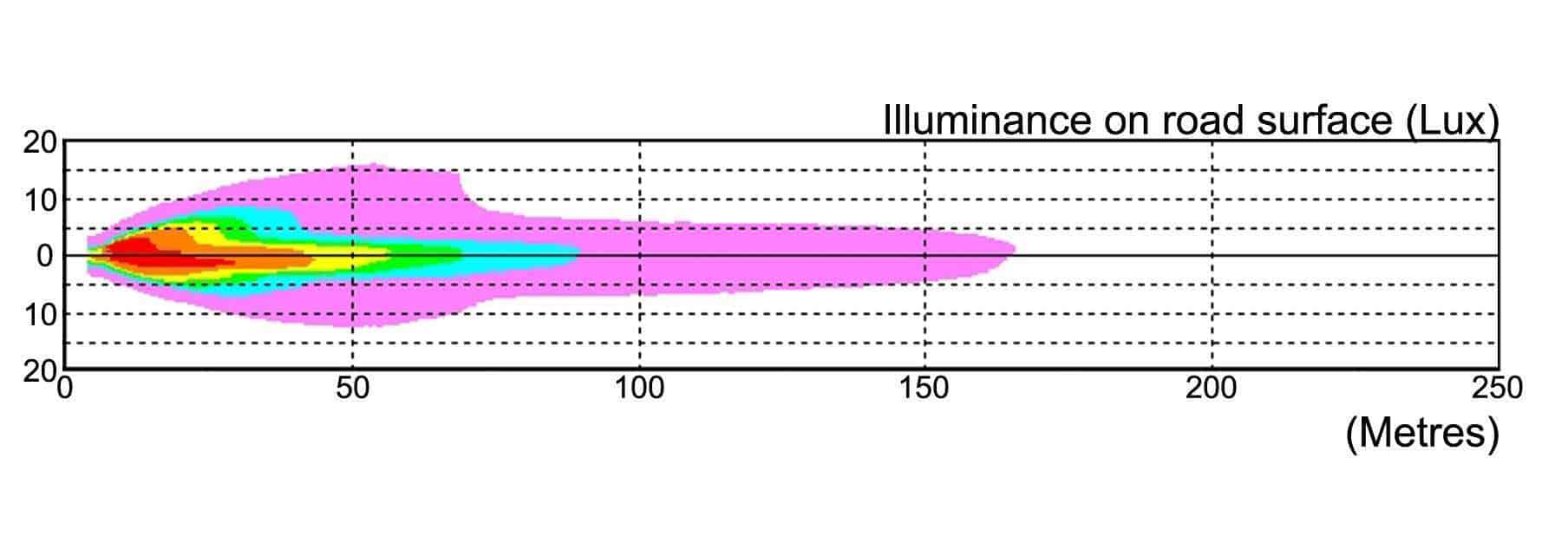

| Effective output | 830 lm low / 1,120 lm high |
| Package | One housing with halogen bulb |
Installation resources
Plan the mounting and wiring
Use the supplier catalogue for the exact configuration. Check connector orientation, secure the housing without stressing the lens, then adjust the beam aim.
Starr housing and bulb configurations — catalogue page 4 (PDF)
Product questions
Before you order
Is the main light LED?
No. This package uses a replaceable halogen bulb.
Does one order convert both sides?
No. It contains one housing and bulb. Order the quantity required for your lamp arrangement.
