J.W. Speaker | JW-0551631
Model 8631 Evolution with an integrated light ring

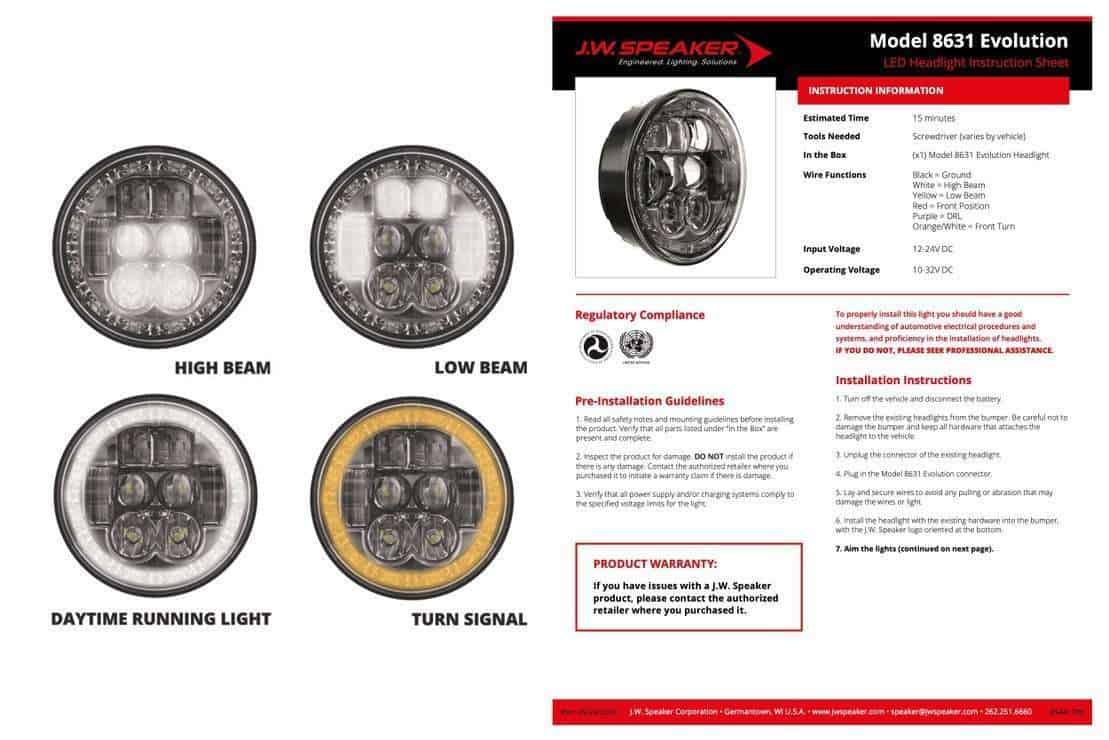

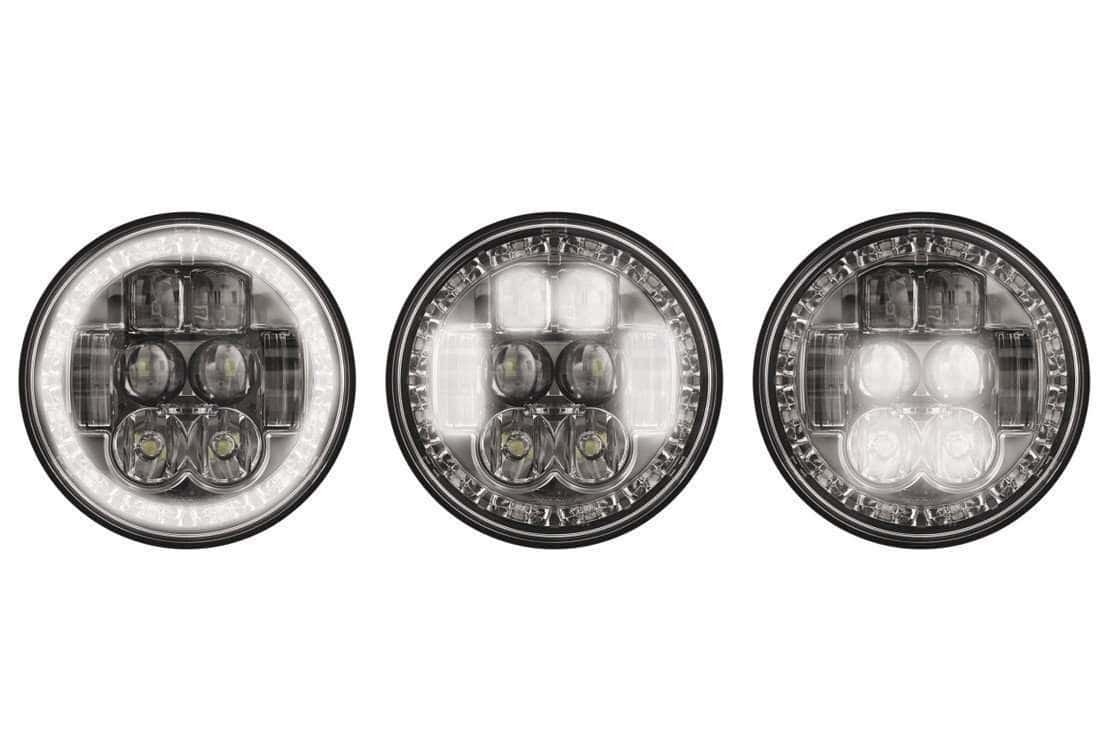

The 0551631 Model 8631 Evolution combines LED low and high beams with daytime-running, front-position and front-turn functions in a 5.75-inch round format.
Several functions in one lamp
The main beams and light-ring functions use separate circuits through the housing connector.
Match the installation
Match the PAR46 opening, retaining system, rear clearance and connector. This right-hand-traffic lamp uses an integral Delphi-style connection; it is not a simple H4-only replacement. Confirm the individual function approvals for the intended installation.
What is supplied
One headlight.

Product details
Specifications
| Part number | JW-0551631 |
|---|---|
| Input | 12–24V DC; 10–32V operating range |
| Lens / housing | Hardcoated polycarbonate / aluminium |
| Mating connector | Delphi 12052848 |
| Effective output | 630 lm low / 1,000 lm high |
| Package | One headlight |
Installation resources
Plan the mounting and wiring
Use the exact 0551631 drawing for connector orientation and function assignment. Check the actual lamp and bucket clearance before ordering mounting hardware; the mounting ring is not promised as part of this listing.
Product questions
Before you order
Does it include an H4 adapter?
No H4 adapter is specified here. Match the Delphi connector and vehicle circuits before installation.
Can I use the nominal diameter to confirm fit?
No. Retaining hardware, rear clearance and connector access must also match.
