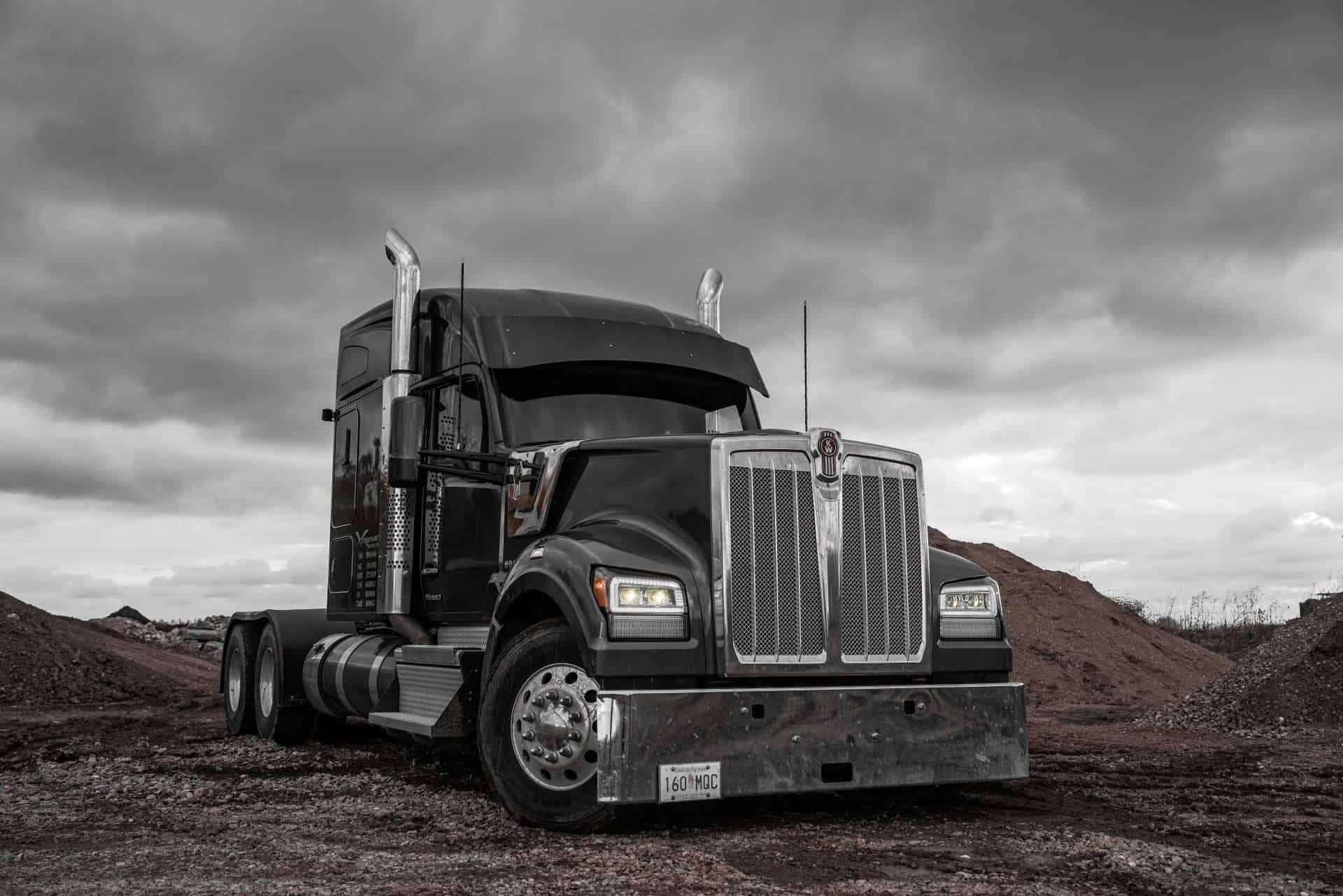

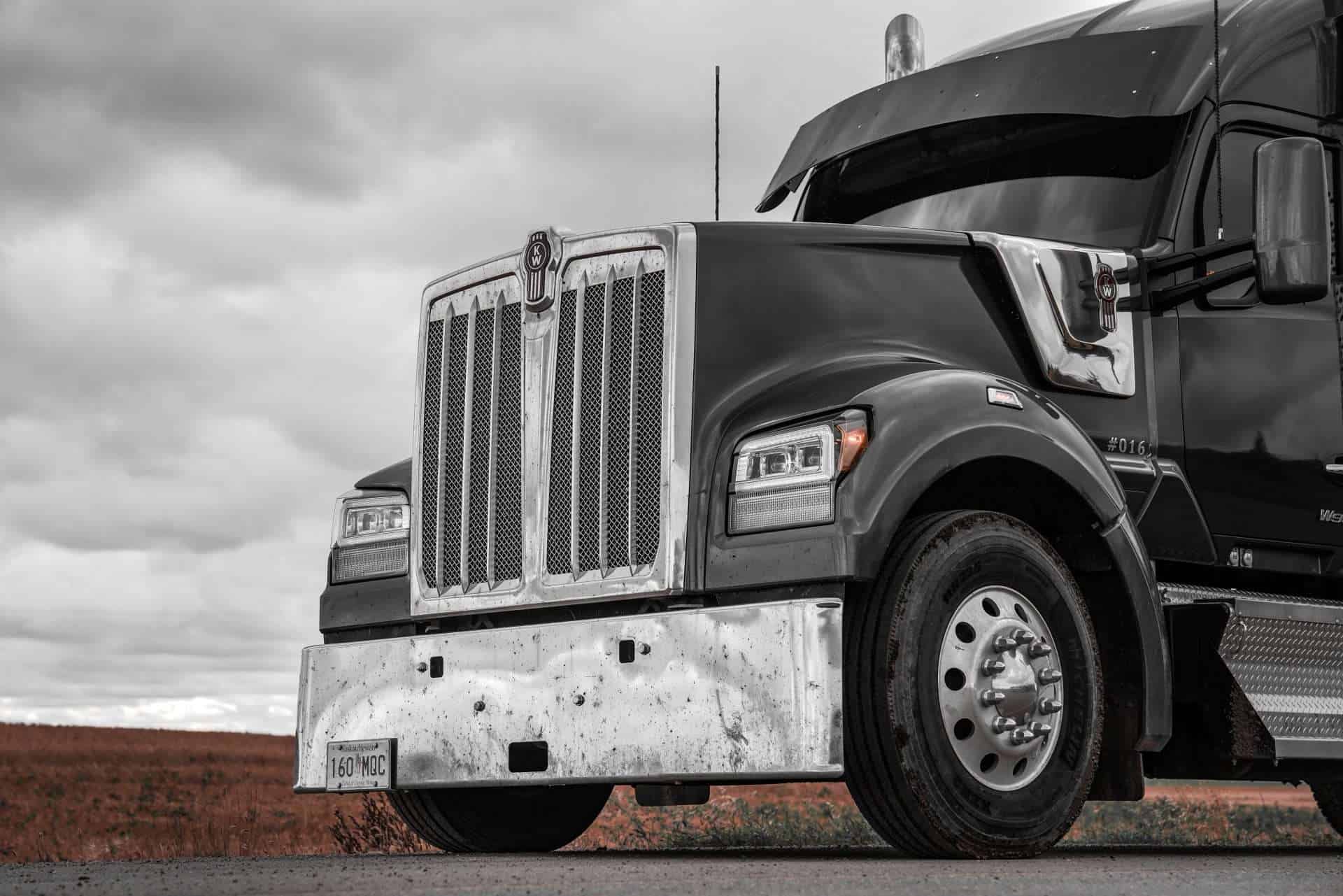

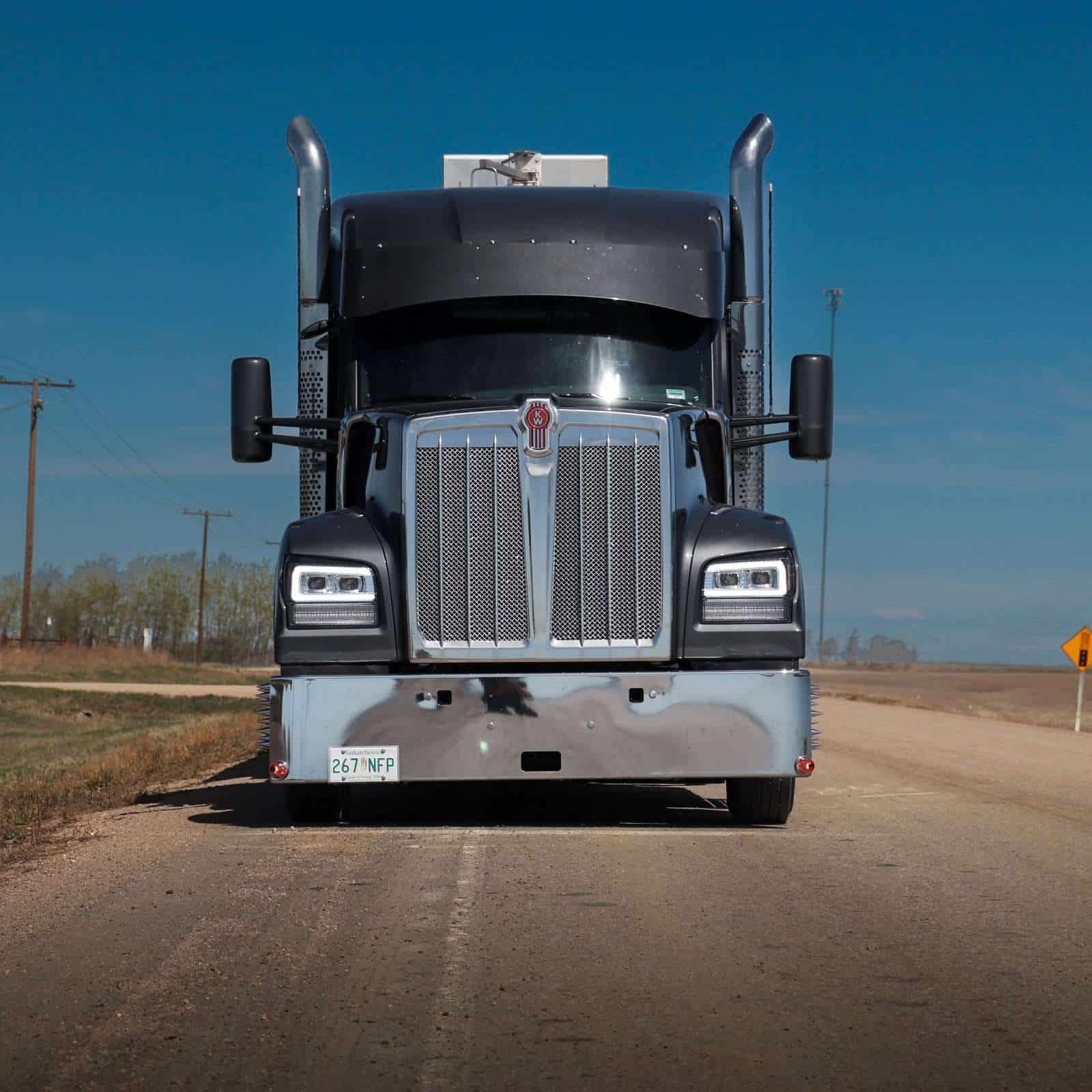

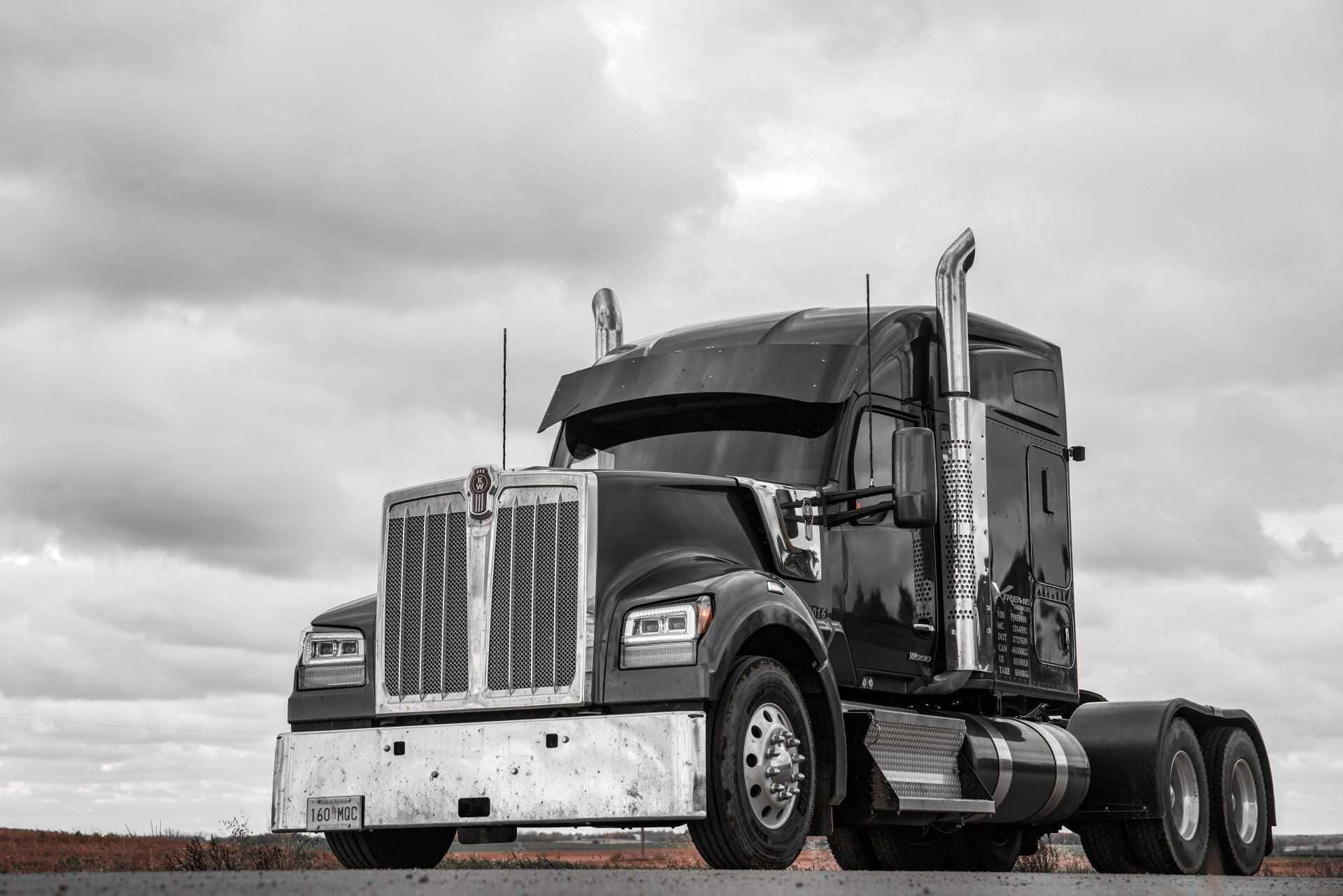

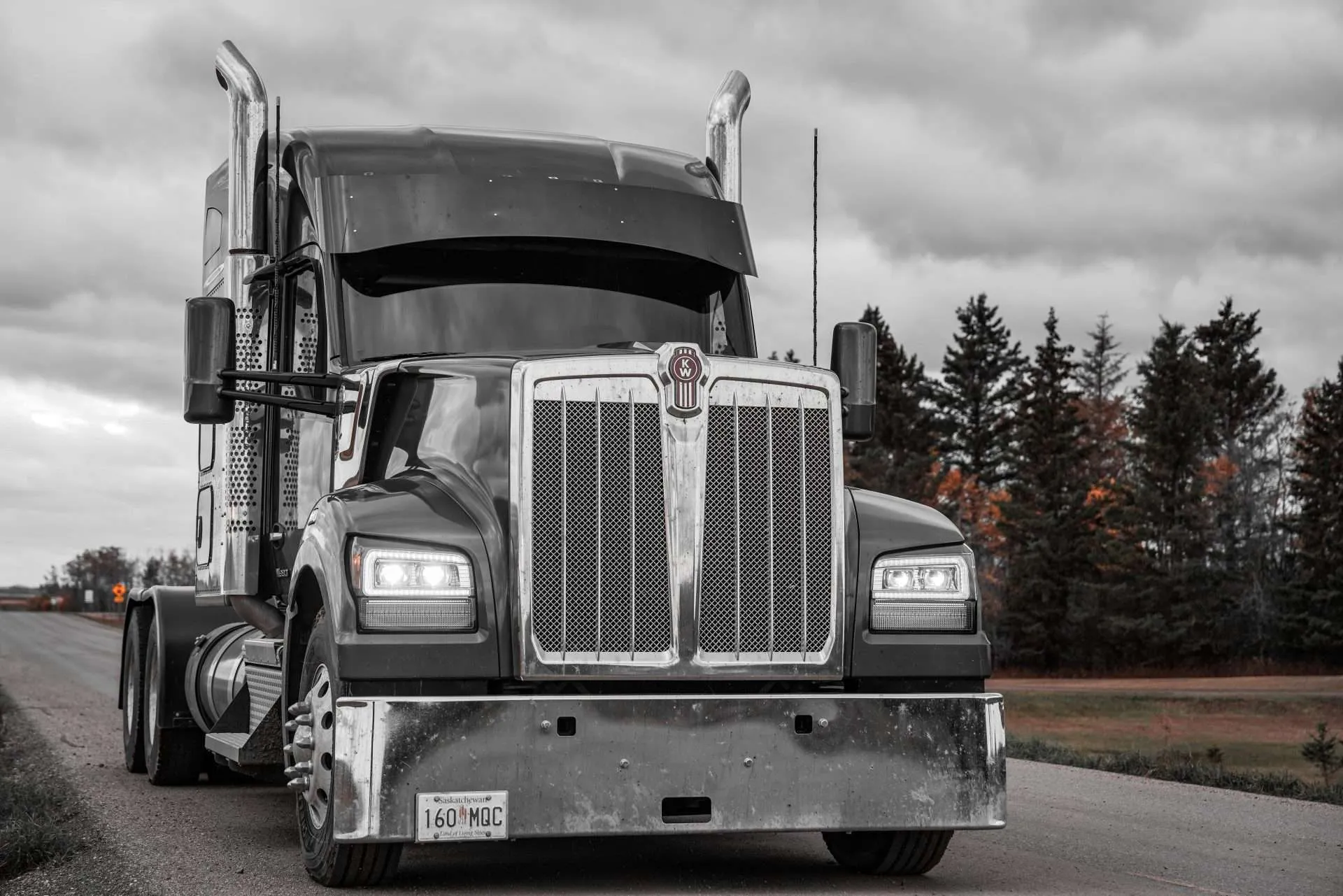

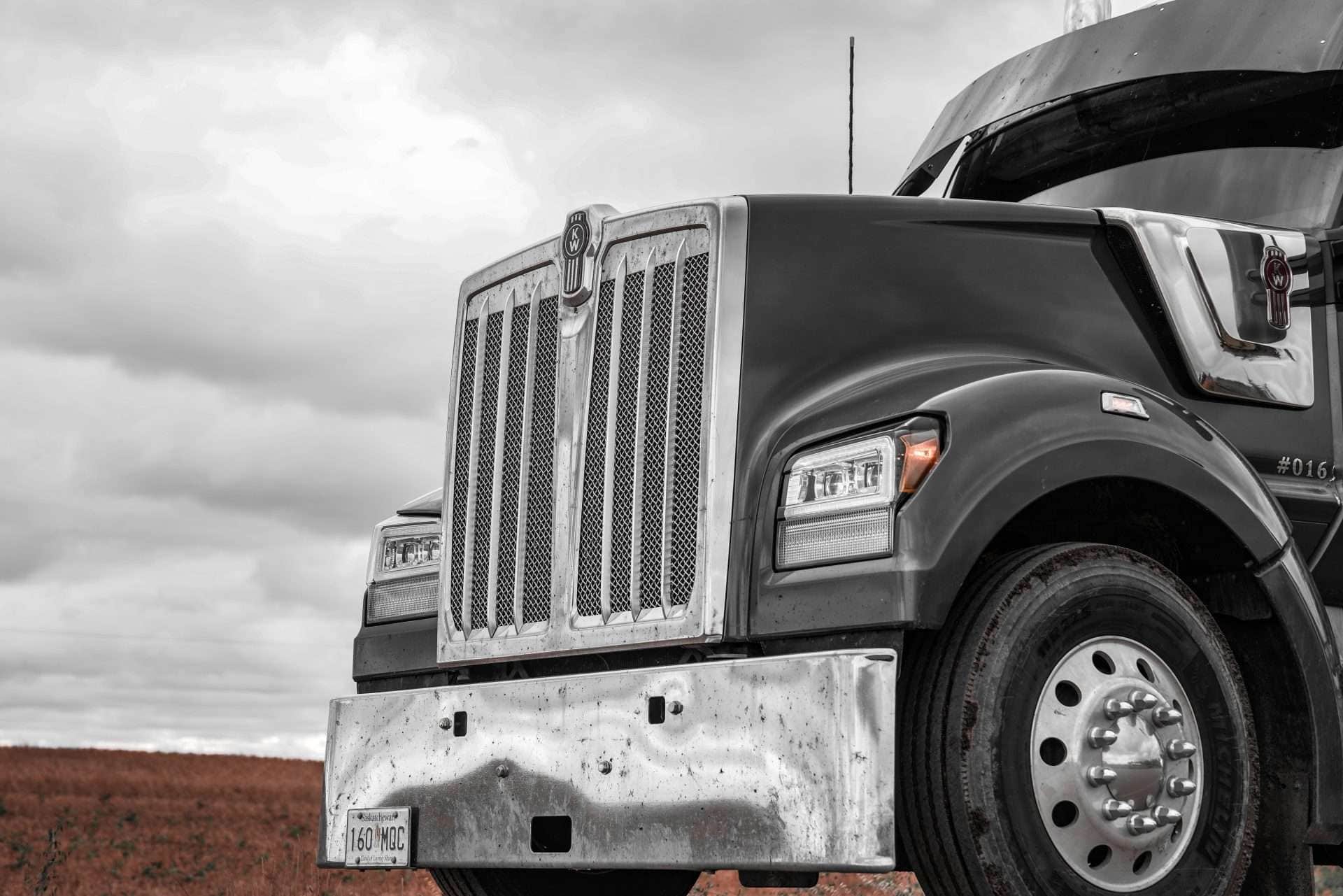

Alpha Series LED assembly for your Kenworth W990

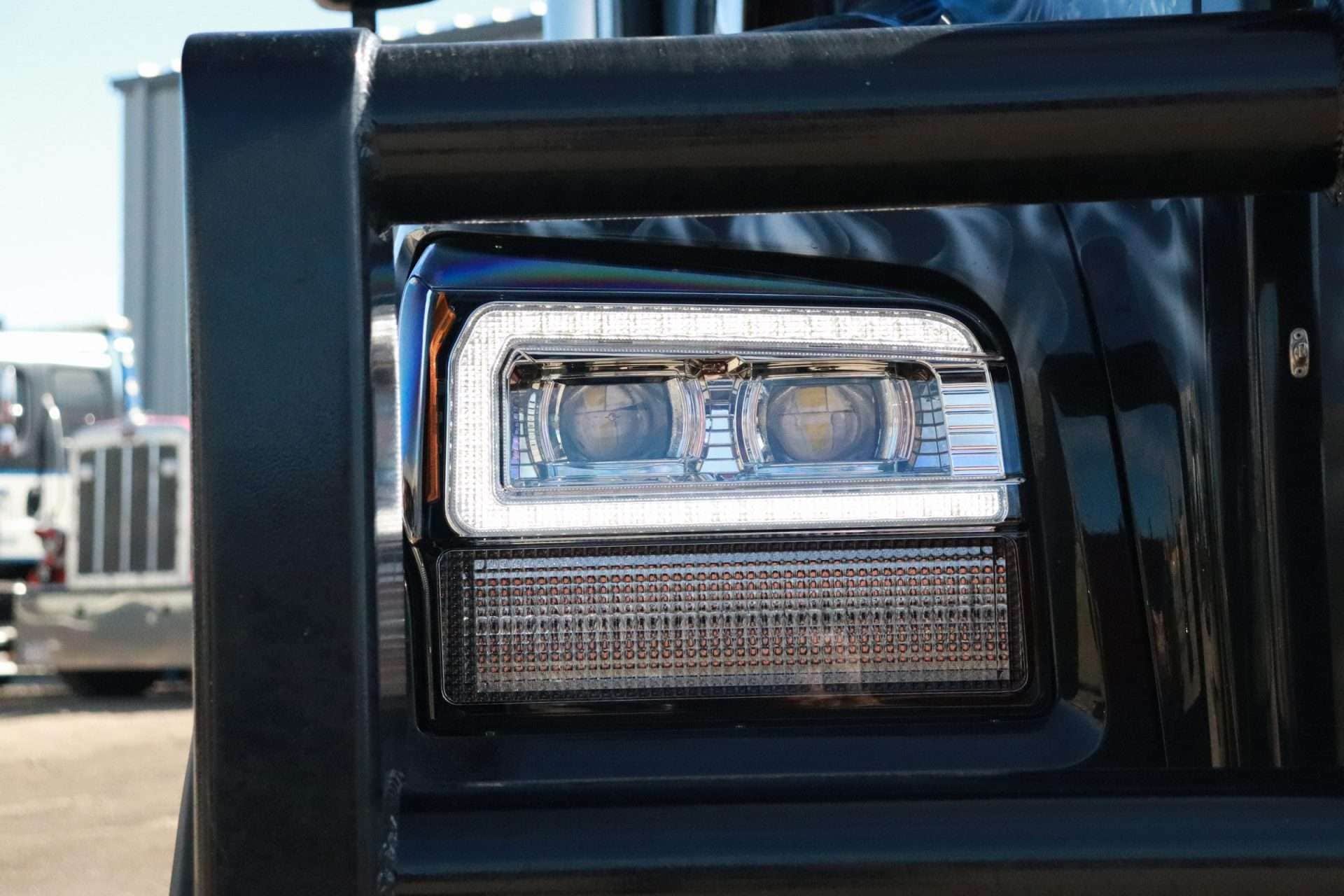

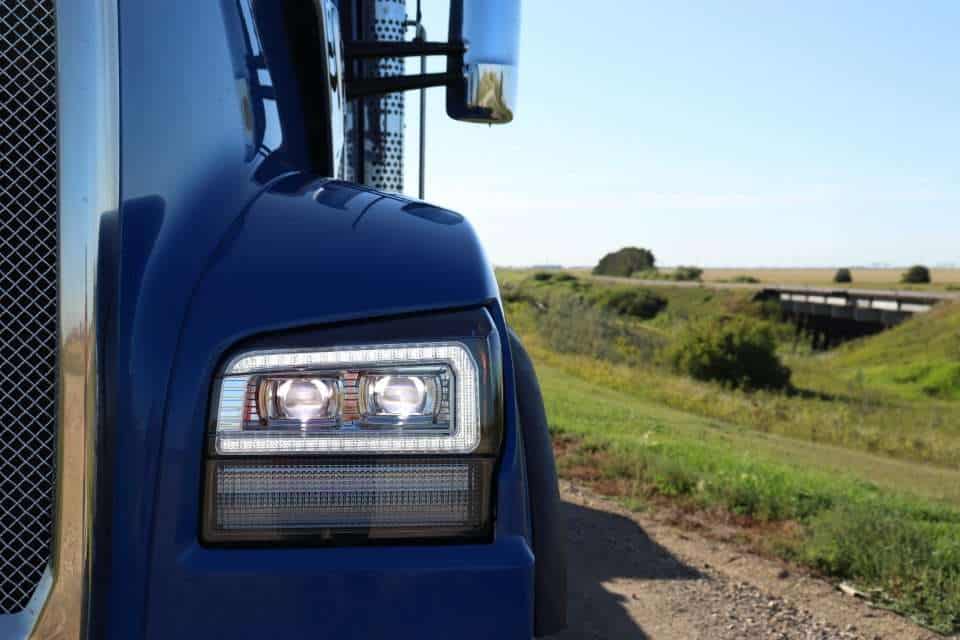

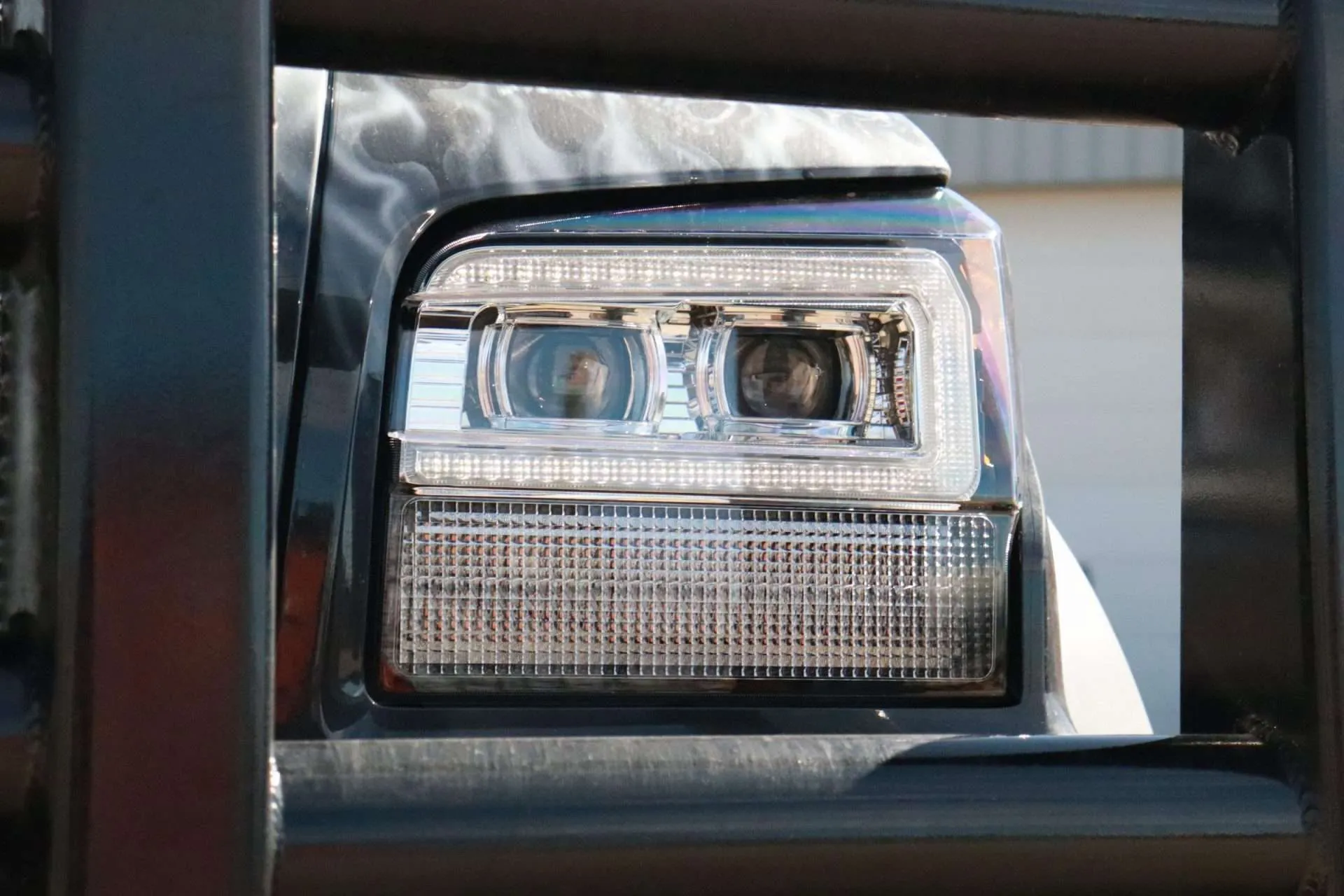

Replace the selected-side headlight with an Alpha Series complete LED assembly. Integrated low and high beams and selectable white/yellow low-beam output give this Kenworth W990 a distinct lighting setup. Driver and passenger sides are sold separately.
One selected-side assembly
Choose Alpha-W990-L for the driver side or Alpha-W990-R for the passenger side.
Selectable low-beam colour
Change the white/yellow low beam using the high-beam control sequence shown in the Alpha guide.
Complete headlight replacement
This is an integrated LED assembly, not a loose replacement bulb for the factory housing.

Fitment & selection
Match the assembly, then choose a side
For 2018–2025 Kenworth W990 with the matching original headlight shape, mounting points and electrical connections. Compare the installed equipment before ordering, especially after an earlier lighting conversion.
Alpha also lists 2018–2025 T880-S for this W990 assembly. That specific application does not include every T880 headlight configuration.
| Driver | Alpha-W990-L — one headlight |
|---|---|
| Passenger | Alpha-W990-R — one headlight |
| Replacing both sides | Order the driver and passenger options separately |
Lighting details
Functions and order contents
| Main beams | Integrated LED low and high beams |
|---|---|

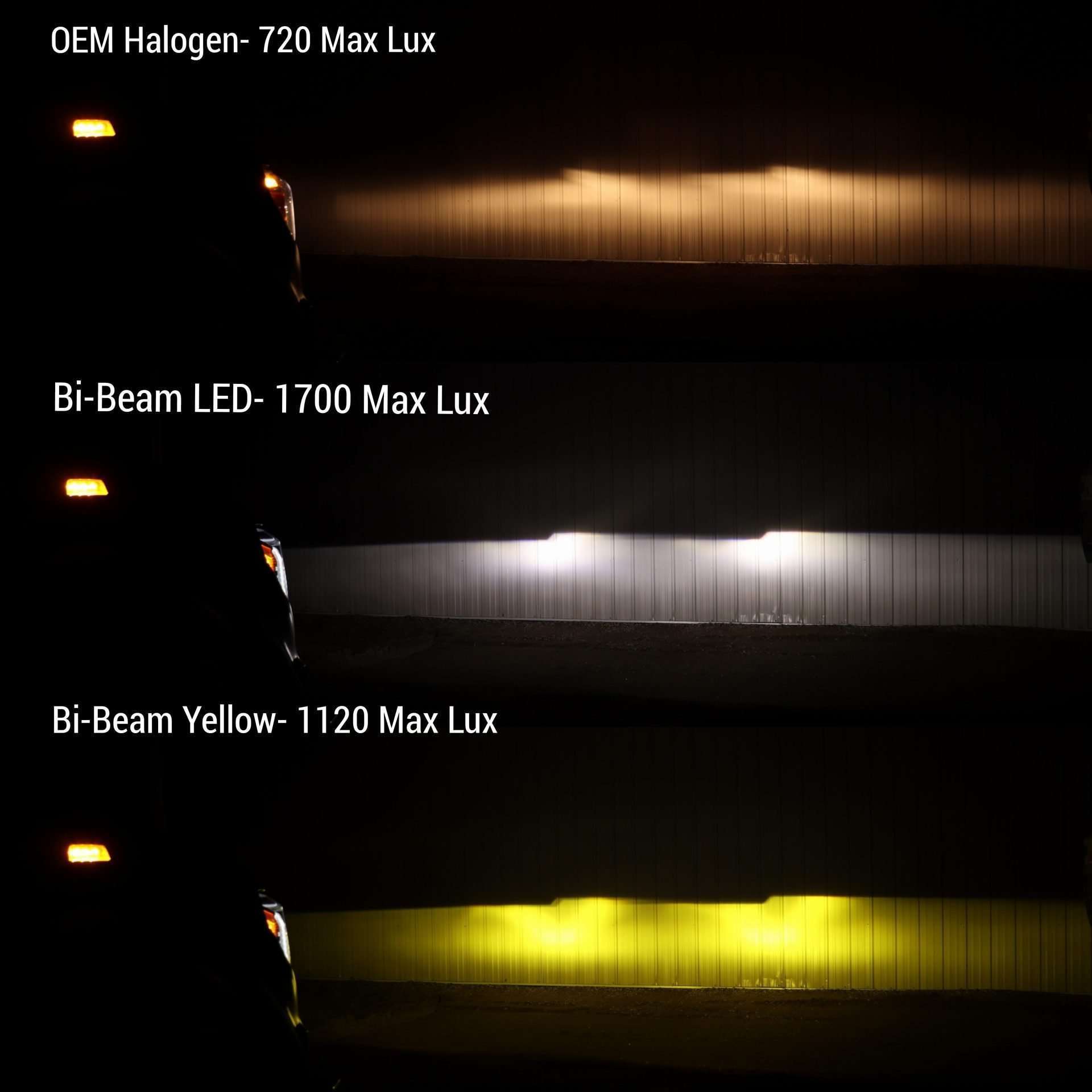

| Low-beam colour | Switchable white/yellow |
| Connection | Kenworth multi-pin connection |
| Traffic pattern | Left-hand drive |
| Housing / lens | Polycarbonate housing / UV-resistant polycarbonate lens |
| Running and signal functions | Running lights, parking and turn signals |
| Package | One selected-side headlight assembly |
| Warranty | One-year limited manufacturer warranty; applicable terms and exclusions apply |
Confirm the accessory contents for the selected side. The installation guide illustrates two headlights and an optional DRL harness; that illustration does not change this listing’s individual-side quantity.
Installation & controls
Follow the Alpha assembly guide
Use the Alpha picture guide for the matching assembly and harness. It covers mounting, wiring connections, optional DRL routing, colour control and aiming. Follow the truck’s electrical-isolation and service instructions; confirm the actual fuse circuit and harness requirements before connecting the optional DRL supply.
Alpha W990 / T880 installation picture guide
After installation, secure the housing and wiring, check running lights, turn signals, low and high beams, and check the beam aim. Use white/yellow modes only where permitted for the lighting function and location.
Product questions
Before you order
Does one selection include both headlights?
No. Select and order both side options if you need a driver-and-passenger replacement.
How do I change the low-beam colour?
Switch the high beams on and off twice quickly. The Alpha guide shows the control sequence and the connector-cap method for retaining white-only operation. Keep the high beam on to return the light output to white.

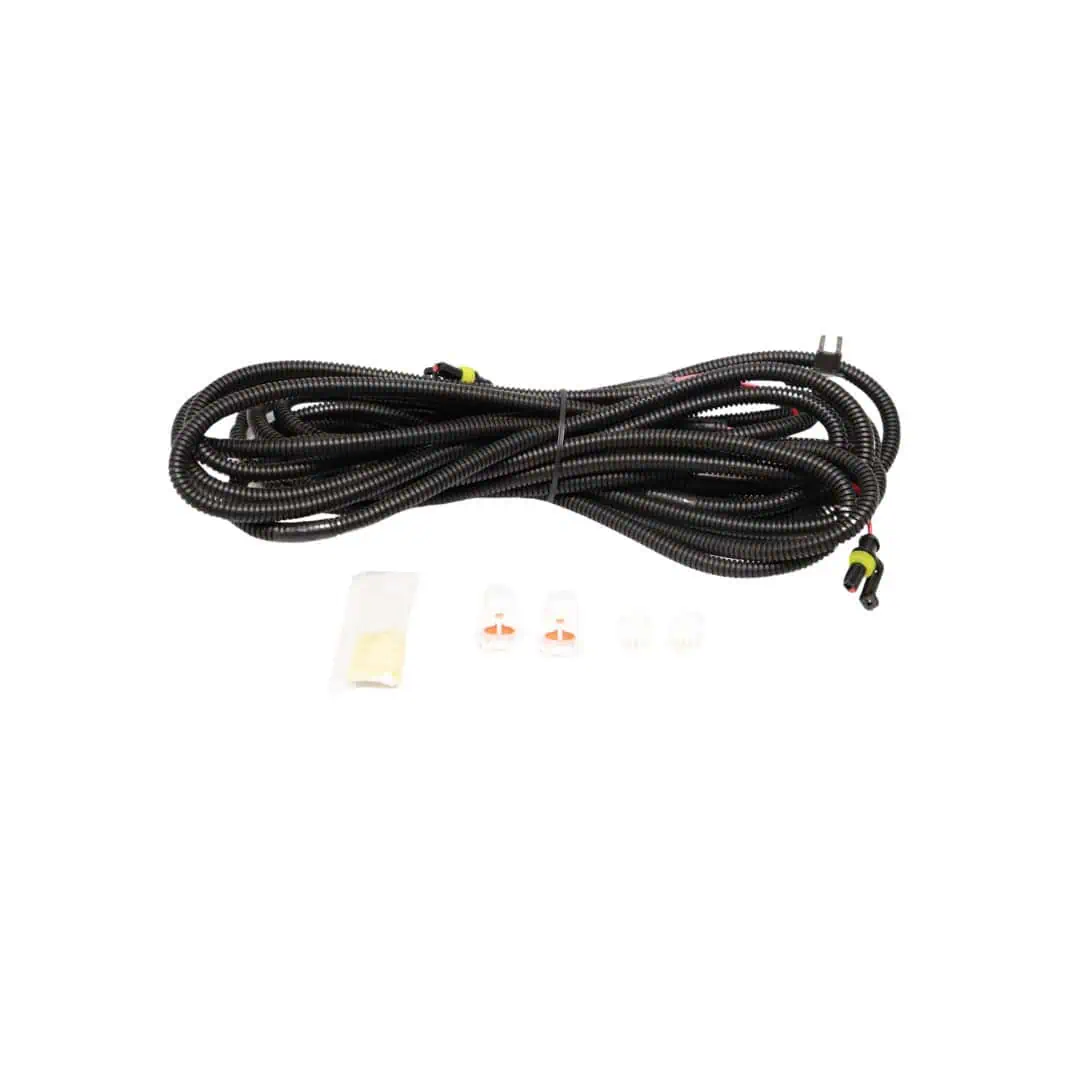

What does the optional DRL harness do?
The illustrated harness enables the white C-bar at key-on. In the guide it operates at 100% intensity with the key on and dims to 50% with the marker/running lights; without the optional harness, the C-bar runs with the marker/running lights. Confirm that your assembly and harness match the guide.
Can I use the lifetime Alpha bulb warranty?
This assembly carries a one-year limited warranty. It is separate from warranties offered on other Alpha products.
