Alpha Series W990 and T880 installation picture guide

This text follows the original Alpha-branded slides below for the pictured complete headlight assemblies and optional DRL harness. It is not a procedure for every W990 or T880 replacement headlight, a loose-bulb kit or another harness.

Match your exact headlight, selected side, connector and truck equipment before starting. The slides do not state a model-year range. Check the current Alpha W990 assembly or Alpha T880 assembly for its own application and supplied parts. A photograph showing two lamps does not establish that an individual-side order includes a pair.

Follow the truck and headlight manufacturers’ electrical-isolation and service instructions. The picture guide does not supply torque values, fuse-tap orientation, fuse ratings or a complete vehicle-specific service procedure; confirm those details for the actual truck and harness.

Alpha Kenworth W990 and T880 headlight installation guide cover

The original contents slide lists tools, pictured components, mounting and optional DRL wiring. Its final “Applications” entry leads to the white/yellow operation slide; it does not provide a separate fitment or model-year chart.

Original guide contents: tools, components, mounting and optional DRL harness

Tools and pictured parts

Tools shown

  • Flathead screwdriver
  • 8 mm socket
  • Ratchet or power ratchet
Tools pictured: flathead screwdriver, 8 mm socket and ratchet

Components shown

The slide identifies a headlight assembly, an optional DRL harness, dielectric grease and bi-beam cap ends. Confirm the quantity and included harness/cap components for the exact selected side; the illustration is not an order contents list for every product.

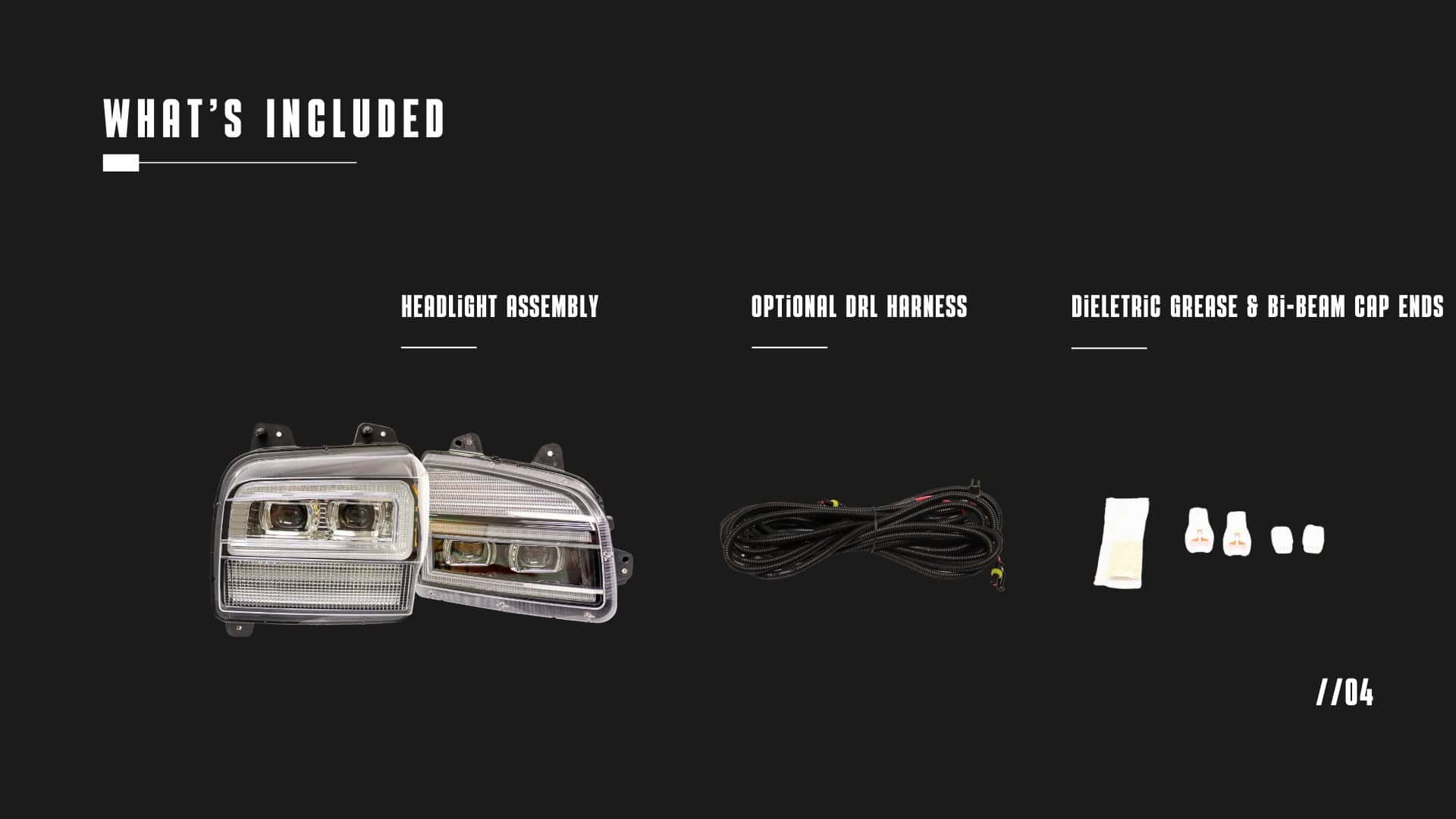

Pictured headlight assemblies, optional DRL harness, dielectric grease and bi-beam caps

Headlight mounting: original steps 1–7

Steps 1–2: Open the hood and remove the fender liner

  1. Open the hood and ensure the latch lock is secure.
  2. Remove the three wing nuts from the fender liner.
Steps 1 and 2: secure the open hood and remove three fender-liner wing nuts

Step 3: Remove the headlight mounting bolts

Using an 8 mm socket, remove the four bolts holding the headlight in place. The photographs mark the mounting points for the pictured assemblies.

Step 3: four headlight mounting bolts marked for removal with an 8 mm socket

Step 4: Release the wiring plug

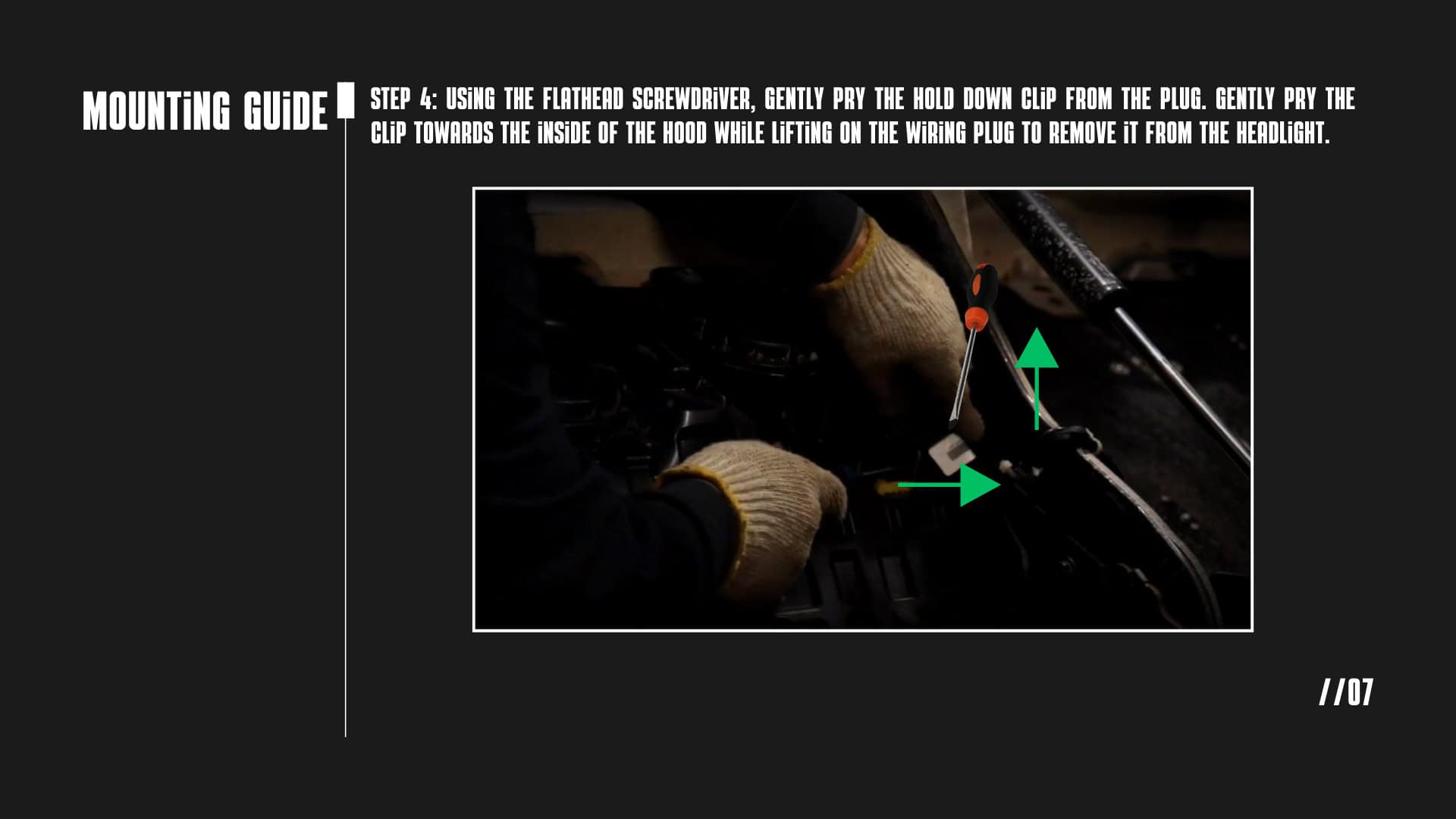

Using the flathead screwdriver, gently pry the hold-down clip from the plug. Move the clip toward the inside of the hood while lifting the wiring plug to remove it from the headlight, as illustrated.

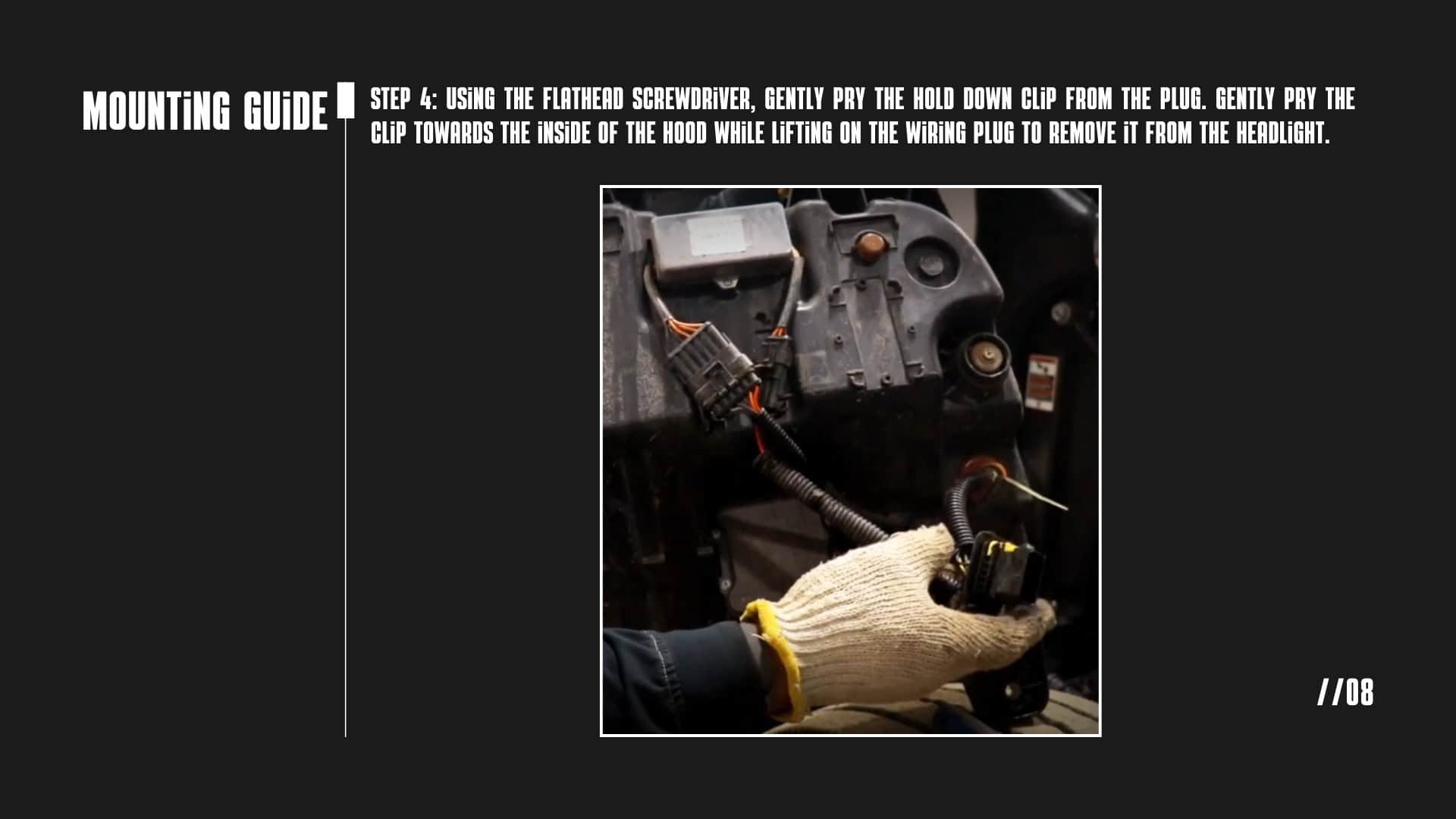

Step 4: release the headlight wiring-plug hold-down clip

This second photograph repeats step 4 and shows the released plug. Match the connector and locking arrangement to the equipment actually installed; do not identify a circuit from wire colour alone.

Second step 4 photograph showing the released wiring connector

Steps 5–7: Replace and secure the assembly

  1. Remove the headlight assembly.
  2. Install the new headlight assembly.
  3. Using the 8 mm socket, reinstall the four headlight mounting bolts. Repeat for the other side.

The slide does not give a tightening torque or a separate main-plug reconnection procedure. Use the current installation instructions for the exact assembly and truck.

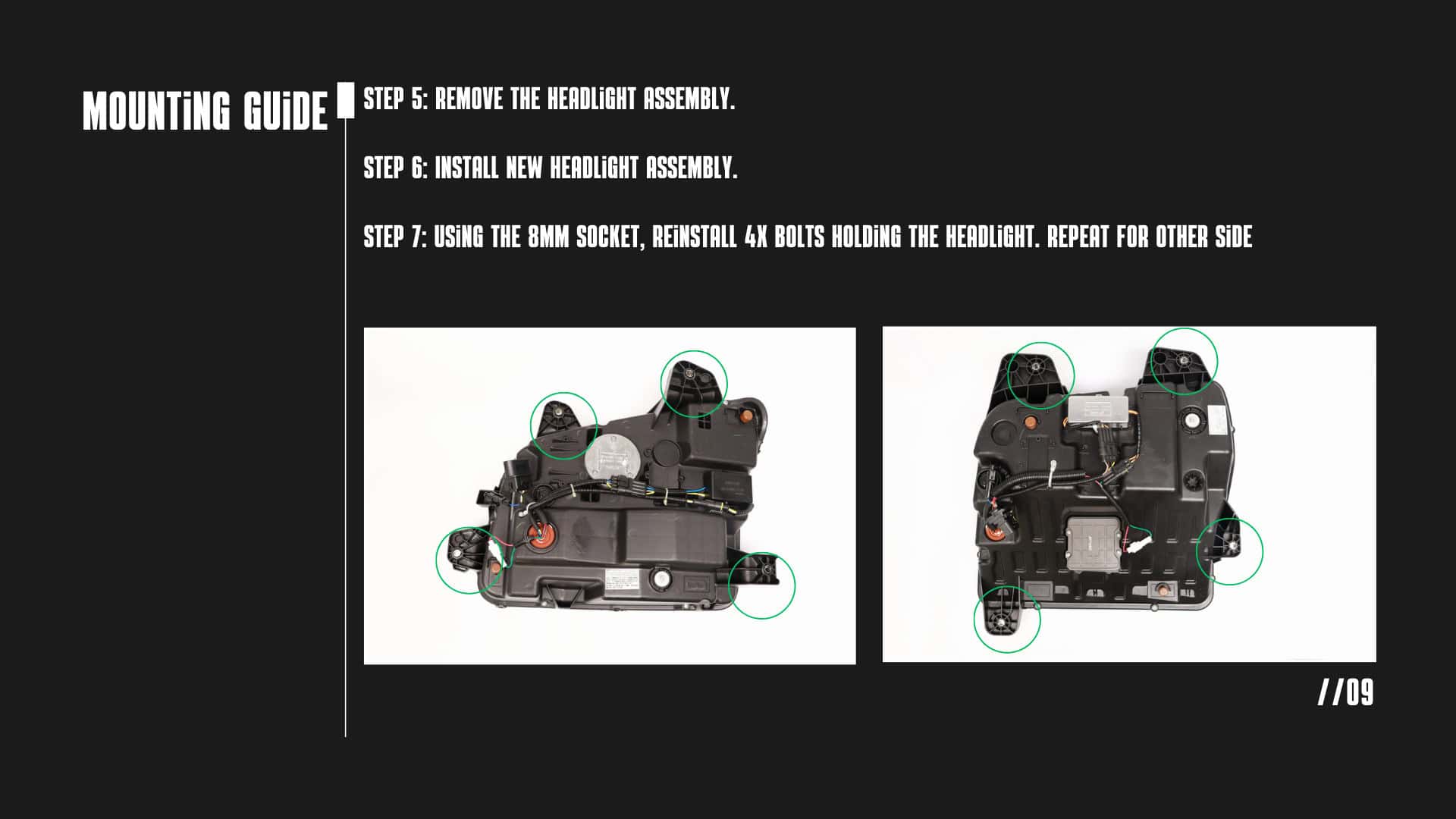

Steps 5 to 7: remove the old assembly, install the new assembly and refit four bolts

Normal function and optional DRL function

The original guide describes these functions for the pictured headlight:

  • Without the optional harness: the white running-light C-bar illuminates at 50% intensity when the marker/running lights are switched on.
  • With the optional harness: the white C-bar illuminates at 100% intensity at key-on, then dims to 50% when the headlight switch is moved to the marker/running-light position.

The slide labels the 100% function a road-legal DRL. That label is not a verification of every lamp, installation or operating jurisdiction; check the exact product’s documentation and permitted use.

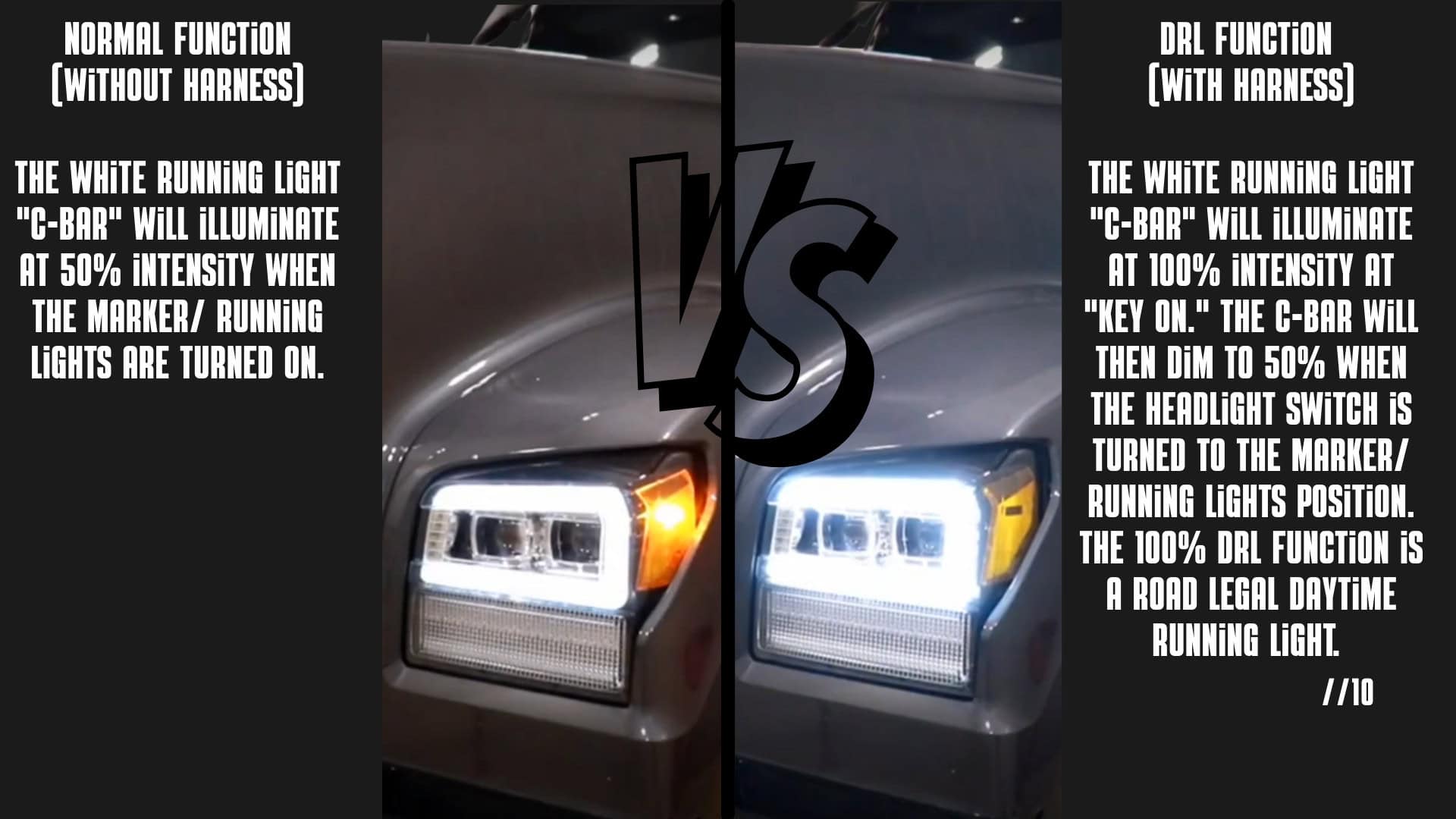

C-bar function comparison with and without the optional DRL harness

Optional DRL harness: original steps 8–10

If the optional DRL harness is not being installed, the original guide directs you to skip to step 11.

Step 8: Connect the harness

Connect the DRL harness to both headlights using the AMP connectors pictured below. The optional harness procedure covers both lamps; confirm the harness and connector-cap contents when ordering an individual side.

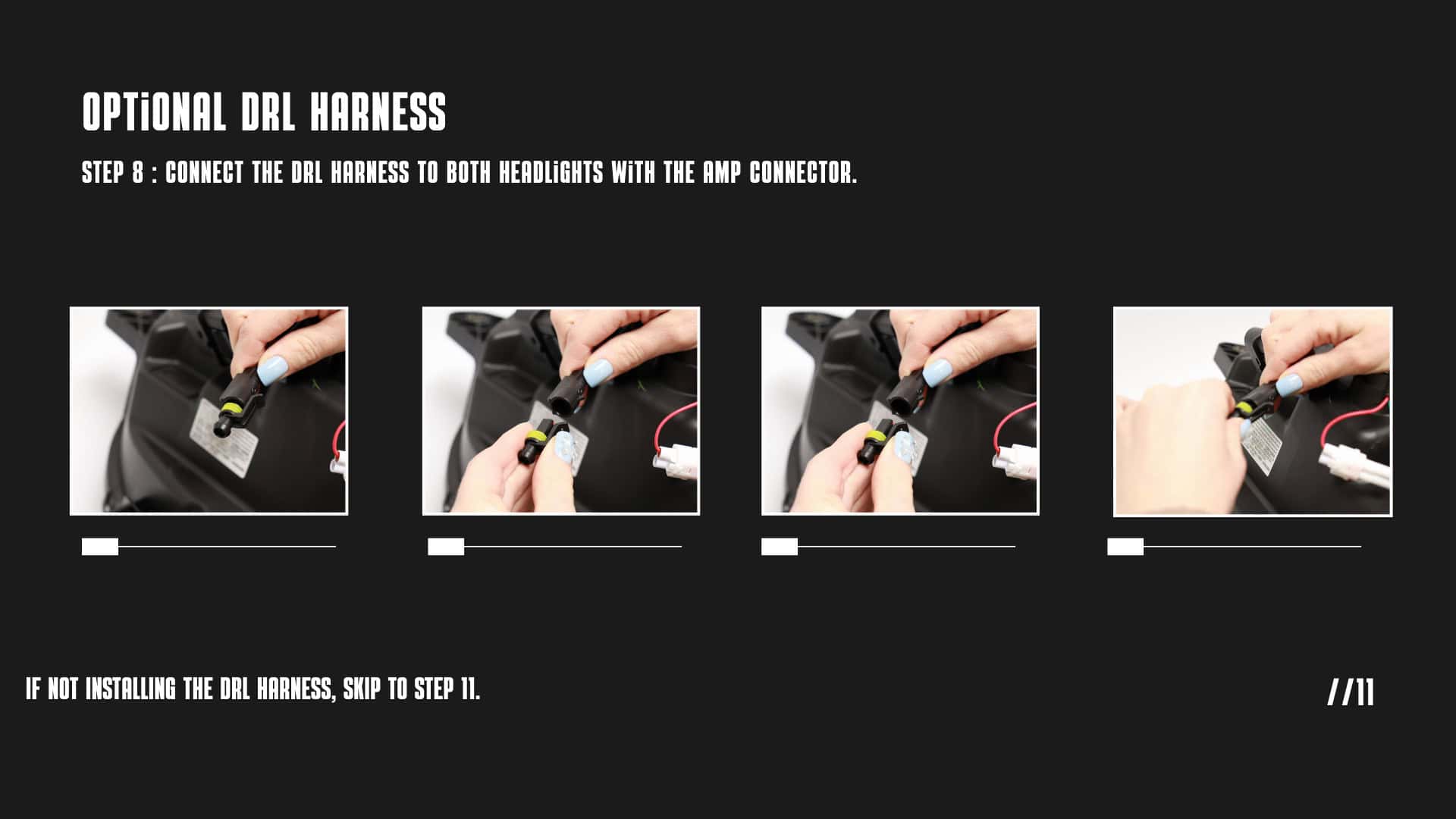

Step 8: optional DRL harness AMP connections to both headlights

Step 9: Route the harness

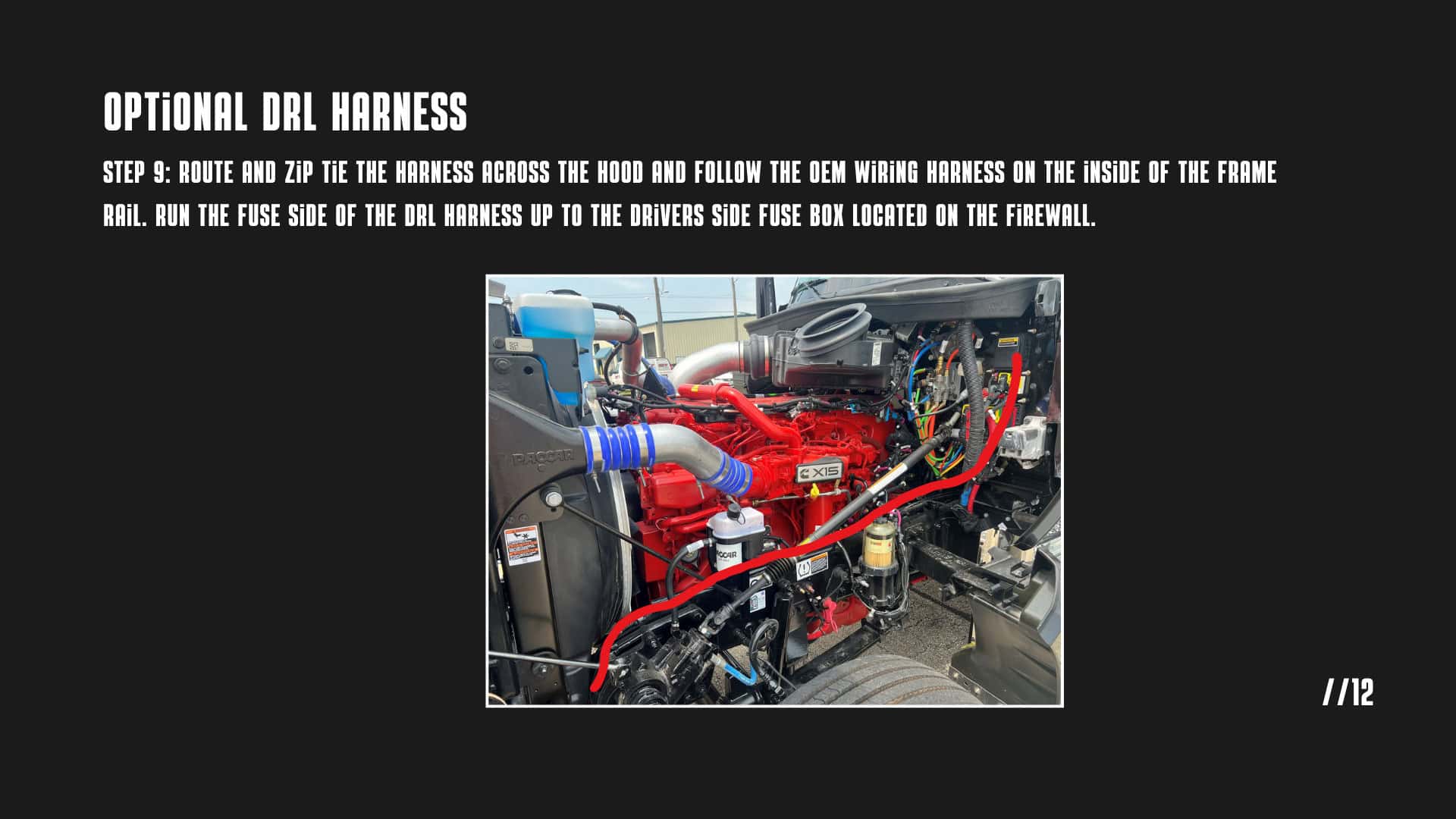

Route and zip-tie the harness across the hood, following the OEM wiring harness on the inside of the frame rail. Run the fuse side of the DRL harness to the driver-side fuse box on the firewall, following the illustrated route for the pictured installation.

Step 9: illustrated DRL harness route along the hood wiring to the driver-side fuse box

Step 10: Confirm the pictured fuse-box connection

The original slide specifies opening the fuse box and installing the fuse tap at J10 on the pictured fuse box. Confirm that position and the correct circuit against the actual truck’s fuse diagram and harness instructions before connecting; J10 is not established here as a universal W990/T880 connection.

The slide describes closing the fuse box around the harness or making a slight notch for clearance. It does not specify fuse rating, tap orientation or a cover-sealing method. Do not pinch or damage the wiring; confirm the correct routing, fuse protection and cover fit for the exact installation.

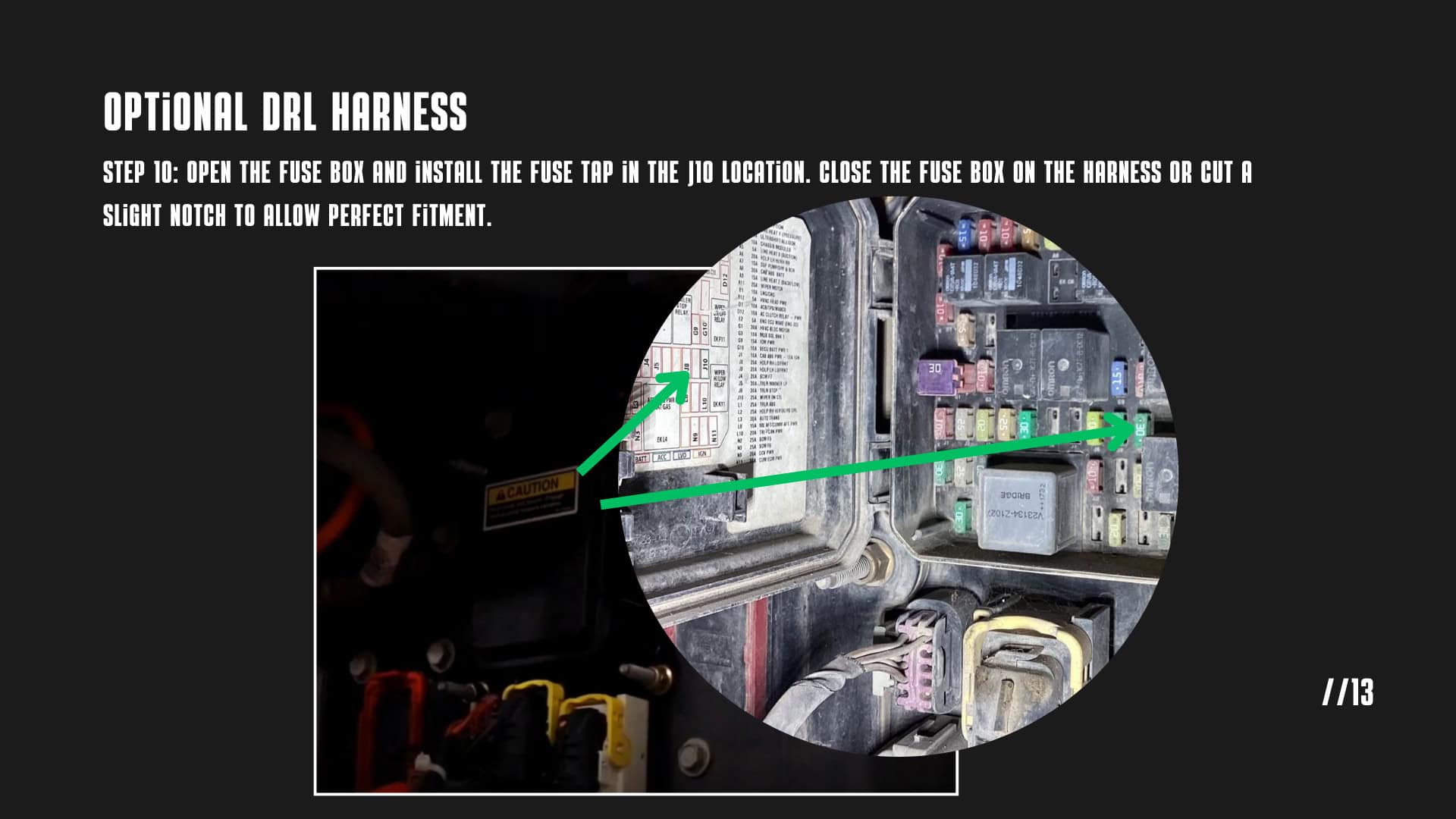

Step 10: J10 fuse-tap position in the pictured fuse box; confirm the actual truck circuit

Aiming and fender liners: original steps 11–12

  1. Aim the headlights.
  2. Reinstall the fender liners and secure them with the factory wing nuts.

The original slide does not provide aim measurements. Use the aiming and functional-check instructions for the exact headlight and truck.

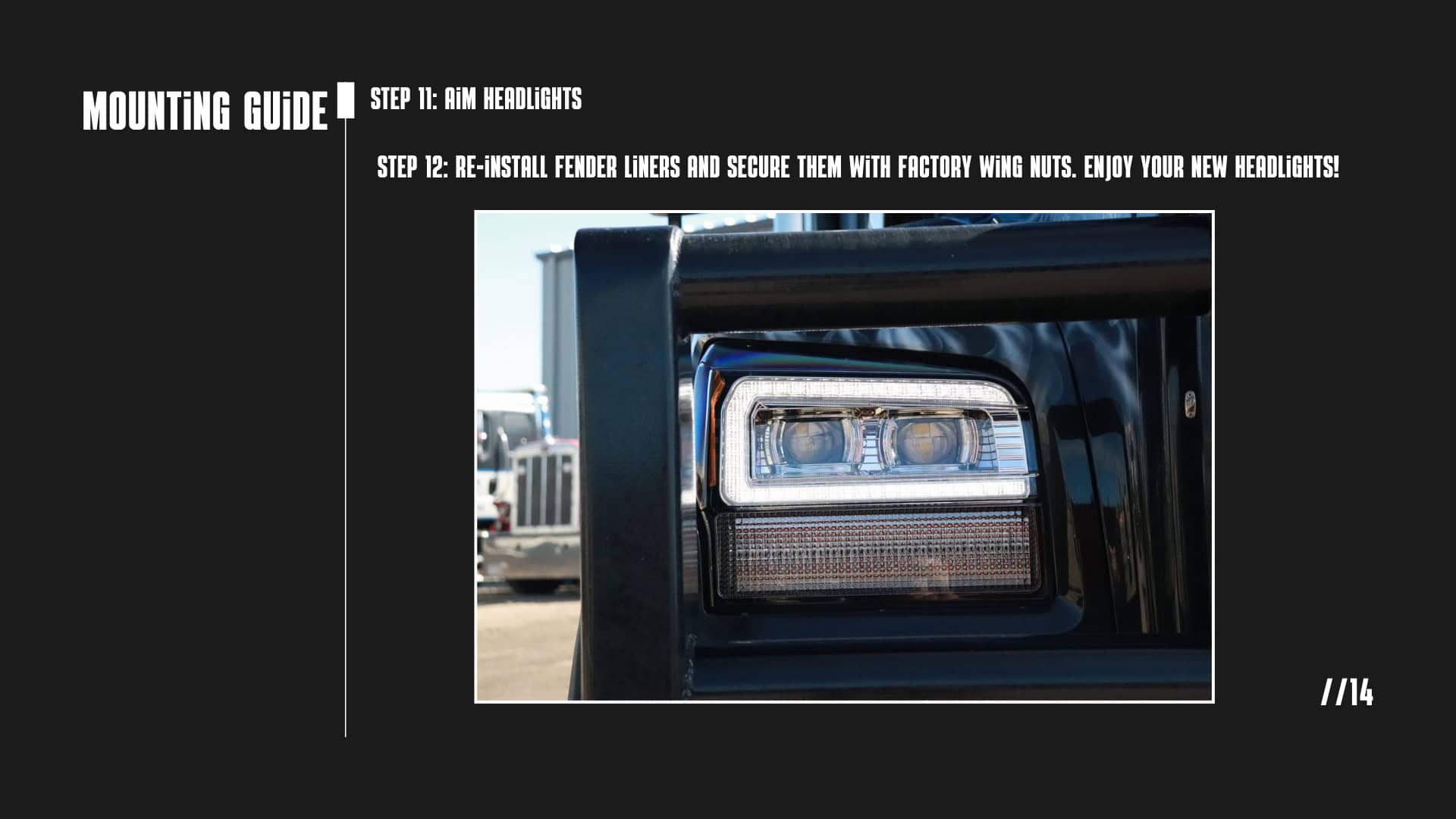

Steps 11 and 12: aim the headlights and reinstall the fender liners

White/yellow low-beam operation

For the pictured bi-beam headlight, the original guide says to toggle the low beam between white and yellow by switching the high beams on and off twice quickly: four clicks of the stalk. Leaving the high beams on returns it to white; two more quick on/off cycles achieve the same result.

This describes the illustrated product’s controls. It does not establish permitted use of yellow low beam on public roads or the behaviour of another headlight model. Use the white-only setting below where the colour-changing function should remain disabled.

Illustrated white and yellow bi-beam control sequence

Values printed on the original beam comparison

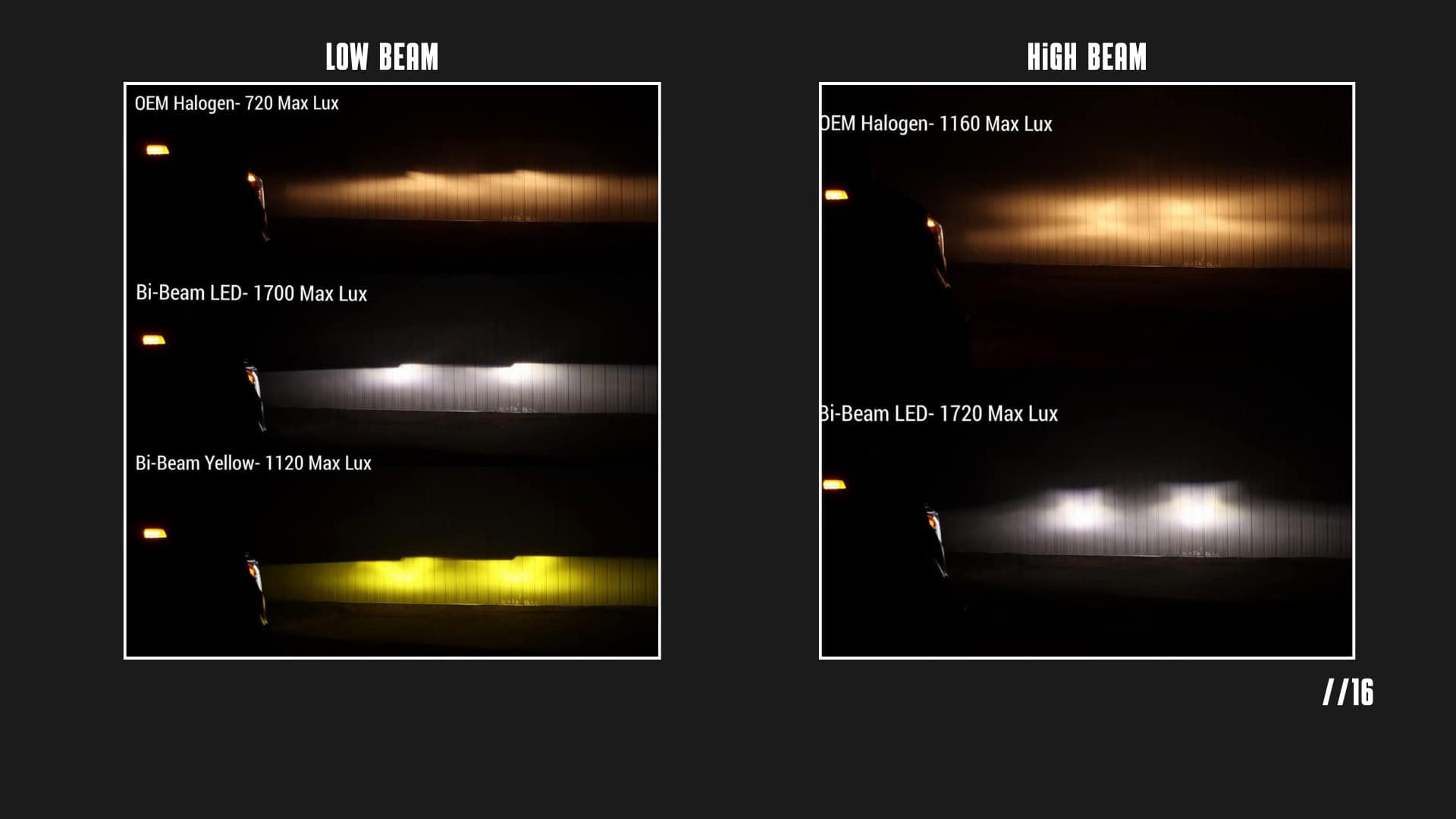

Original slide 16 maximum-lux labels
Beam and lamp labelMaximum lux shown
Low beam: OEM halogen720
Low beam: bi-beam LED white1,700
Low beam: bi-beam yellow1,120
High beam: OEM halogen1,160
High beam: bi-beam LED1,720

These are the original slide’s labels, not a new test. The slide does not state measurement distance, instrument or aim conditions, so the values do not establish a visibility distance or an equivalent result for another installation.

Original OEM halogen and bi-beam LED maximum-lux comparison labels

Disable colour changing and retain white light

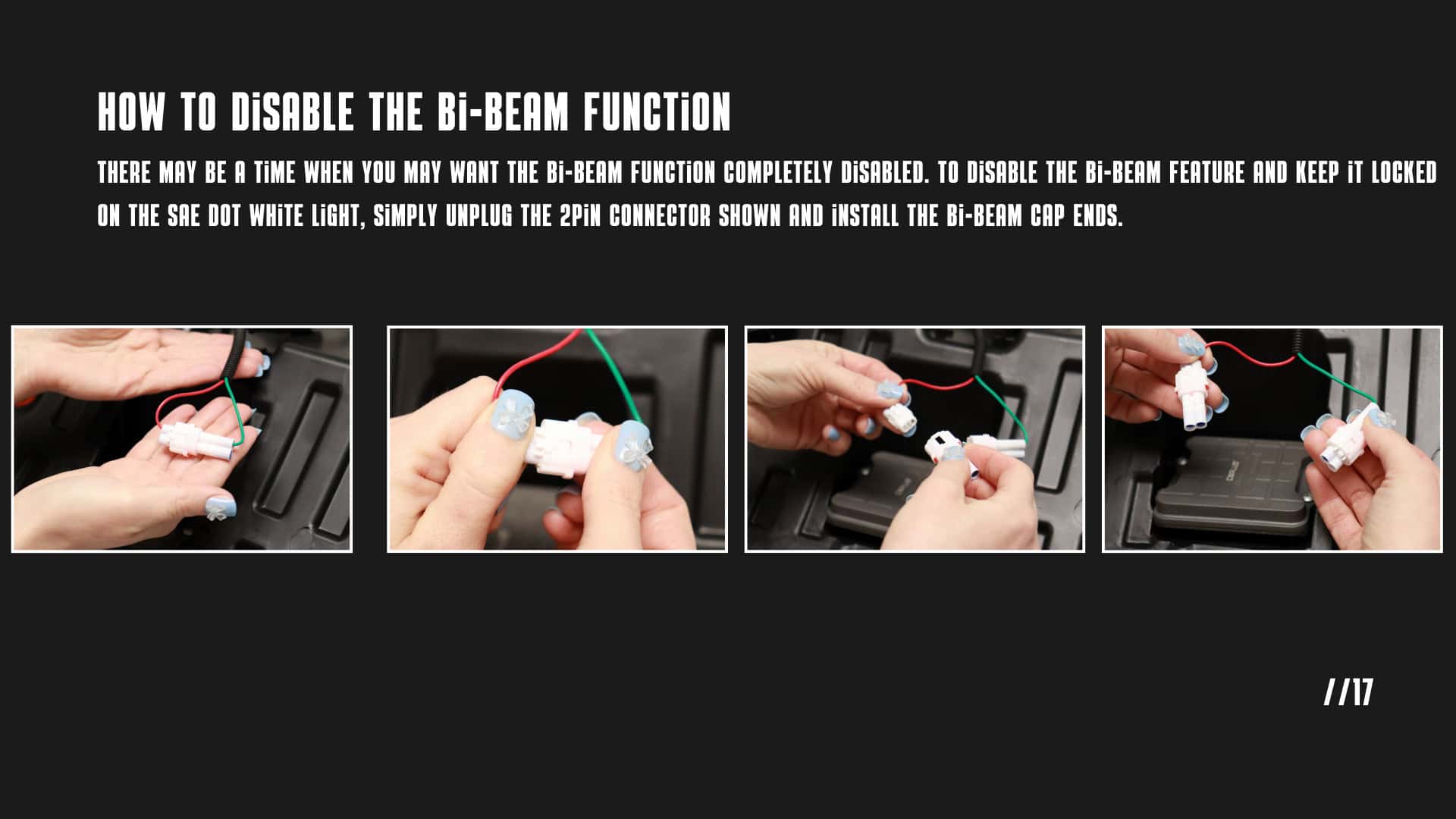

To disable the pictured bi-beam colour-changing function, the original guide shows unplugging the two-pin connector and fitting the bi-beam cap ends. Identify the exact connector from the original photographs and the current product instructions; do not unplug another circuit based only on its wire colour.

The slide describes this as locking the lamp to “DOT white.” Retaining white output alone does not verify the approval or compliance of a complete installation.

Illustrated two-pin connector and cap ends for retaining white-only operation
