Product Overview
If you need compact, compliant clearance lighting with adjustable brightness, the ArcBlast 3/4″ LED Dual Function Mini Light delivers professional performance in a tight footprint.
Unlike standard single-output marker lights, this model provides:
-
Low mode for standard marker lighting
-
High mode for enhanced visibility
-
Epoxy-sealed moisture protection
-
Stainless steel bezel durability
If you’re searching for 3/4 amber LED marker lights, dual function penny lights, or compact LED clearance lights for trucks, this ArcBlast version offers reliability and flexibility in one clean install.
Key Features & Benefits
Dual Function High / Low Brightness
Two brightness levels give you installation flexibility:
-
Low brightness mode for marker applications
-
High brightness mode for increased visibility
Perfect for clearance, marker, or auxiliary lighting needs.
Super Bright Amber LED Output
A high-intensity amber LED provides:
-
Strong front visibility
-
Clean illumination through a clear lens
-
Efficient energy consumption
Ideal for front clearance and side marker positions.
Epoxy-Sealed Polycarbonate Lens
The polycarbonate lens is epoxy sealed to the housing to prevent:
-
Moisture intrusion
-
Corrosion
-
Premature LED failure
Designed for all-weather reliability and harsh road environments.
Stainless Steel Bezel Construction
The polished stainless steel bezel provides:
-
Corrosion resistance
-
Structural reinforcement
-
Clean, professional appearance
Perfect for fleet trucks and custom builds alike.
Performance / Compatibility / Use-Case
Designed for Clearance & Marker Use
This amber configuration is ideal for:
-
Front side marker lighting
-
Front clearance lighting
-
Perimeter outlining
When properly installed, it meets DOT/SAE and FMVSS 108 standards for legal clearance and marker applications.
12V System Compatible
-
Designed for 12V DC systems
-
3-wire hookup for dual brightness control
-
0.180″ bullet plugs for easy installation
Compatible with semi-trucks, trailers, RVs, motorcycles, and custom vehicles.
Installation / Fitment / Technical Details
Mounting
-

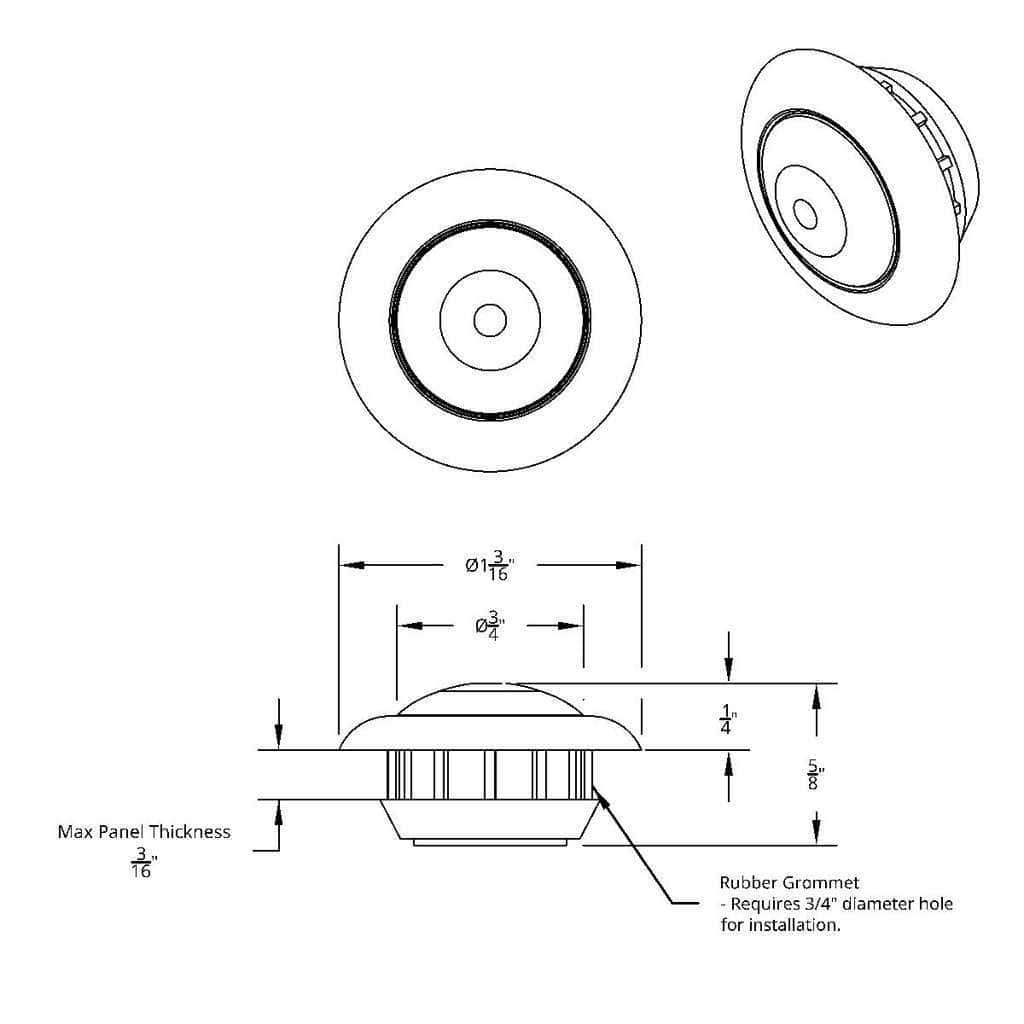

Requires 3/4″ diameter hole
-
Mounts securely with included rubber grommet
Wiring Setup (3-Wire System)
-
Ground
-
Low brightness power
-
High brightness power
-
0.180″ male bullet plugs
Simple integration into existing marker circuits.
Build Quality / Warranty
-
Single high-output amber LED
-
Polycarbonate lens
-
Epoxy-sealed housing
-
Stainless steel bezel
-
IP67 waterproof rating
-
12V DC compatible
Engineered for long-term durability and consistent performance.
Warranty: 10-year manufacturer warranty.
What’s Included
-
1 x LED Dual Function ArcBlast 3/4″ Mini Light – Amber LED / Clear Lens
-
1 x Rubber Grommet
-
3-wire hookup with 0.180″ bullet plugs
Frequently Asked Questions
What does dual function mean on this light?
Dual function means the light operates at two brightness levels: low for marker use and high for increased visibility.
Is this light DOT compliant?
Yes. When installed correctly, this amber LED marker light meets DOT/SAE and FMVSS 108 standards for clearance and marker lighting.
Will this fit a standard 3/4″ mounting hole?
Yes. It is specifically designed for 3/4″ grommet-mount openings.
Is this light waterproof?
Yes. It features epoxy-sealed electronics and carries an IP67 water-resistant rating.
How long is the warranty?
This ArcBlast mini light is backed by a 10-year warranty for dependable long-term performance.
