Morimoto 1Banger LED Pods – HXB Combo Beam (Set)
Add serious lighting performance in a compact package with Morimoto 1Banger HXB Combo Beam LED Pods. Designed for tight mounting spaces without sacrificing output, these pods deliver a balanced mix of width and distance—perfect for daily driving, off-road use, and supplemental lighting.
Off-Road Reinvented Performance
Morimoto’s 1Banger series brings the same high-performance engineering as their larger pods into a smaller, more versatile form factor.
Ideal for:
- Supplemental lighting alongside headlights
- Tight mounting locations where larger pods won’t fit
- Off-road and rural driving conditions
Designed, engineered, and tested in the USA, the 1Banger lineup is built to perform in real-world environments.

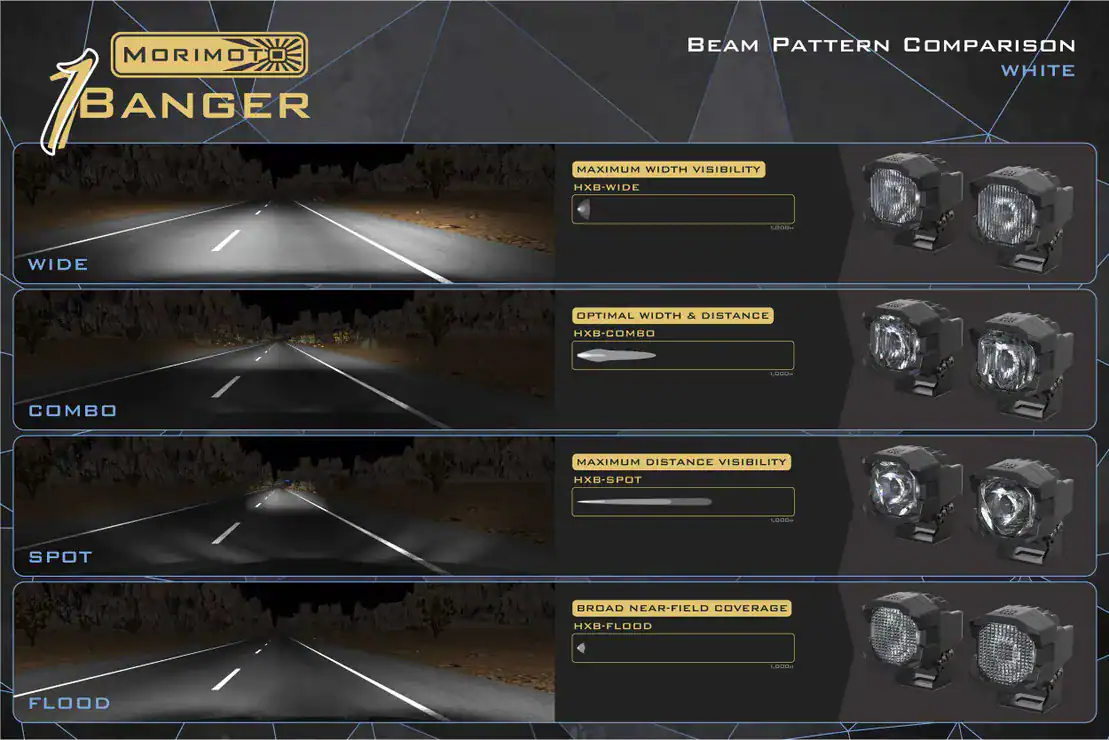

HXB Combo Beam – Balanced Width & Distance
The HXB Combo Beam is tuned for versatile lighting performance.
Features include:
- Medium-range forward projection
- Wide beam spread for improved peripheral visibility
- Optimized oval hotspot for balanced illumination
This makes it an excellent all-around lighting solution for drivers who need both distance and usable width.
Ultra High Output Osram HX Boost LED Technology
The HXB series uses high-performance Osram HX Boost LEDs to deliver strong, consistent output in a compact design.
Benefits include:
- High-intensity output for improved visibility
- Efficient LED performance
- Designed for demanding driving conditions
All internal components are proprietary and engineered specifically for performance.
Ultra-Compact Design for Flexible Installation
The 1Banger is designed with an extremely compact footprint, making it ideal for installations where space is limited.
Perfect mounting locations include:
- A-pillars
- Bumpers
- Roof racks
- Tight custom mounting areas
Allows for clean installs without bulky or oversized lighting.
Built for All Weather Conditions
Available in both white and yellow output options to suit your driving environment.
White Output:
- Ideal for general-purpose visibility
- Bright, clean illumination
Yellow Output:
- Improved performance in fog, rain, and snow
- Reduced glare in poor weather conditions
The yellow version uses phosphor-converted LEDs to produce true yellow light at the source.
Engineered for Durability & Heat Management
Designed to handle harsh conditions with advanced thermal and structural engineering.
Construction features include:
- Copper DTP (Direct Thermal Path) circuit board
- Cast aluminum housing with electroplated and powder-coated finish
- Integrated DT connector and sealed wiring
- IP69K-rated weather resistance
Built to withstand heat, vibration, water, dust, and extreme environments.
Flexible Mounting Options
Each set includes standard bottom mount brackets for universal installation.
Additional mounting options available:
- Flush mounts
- Tube mounts
- Hanging mounts
- Omni-directional mounts
Compatible with Morimoto application-specific brackets for bolt-on installs.
Plug-and-Play Ready (Optional Wiring)
Optional wiring solutions are available for a complete installation setup.
Available options:
- Switched relay harness
- DT pigtail connectors
Designed for secure, weather-resistant electrical connections.
Street Legality
When properly aimed, the Combo Beam can comply with SAE J581 standards for auxiliary high beam use.
Always verify local regulations and ensure proper installation.
What’s Included
- 2 × Morimoto 1Banger HXB Combo Beam LED Pods (White or Yellow)
Brackets:
- 2 × Standard bottom mount brackets
Hardware:
- 2 × M10 carriage bolts
- 2 × M10 washers
- 2 × M10 lock nuts
- 8 × M4 screws
Optional:
- Wiring harness or pigtails
Warranty Coverage
Backed by Morimoto’s Lifetime Limited Warranty.
Frequently Asked Questions About 1Banger HXB Combo Pods
What is a combo beam used for?
A combo beam provides both width and distance, making it ideal for general driving, off-road use, and supplemental lighting.
What makes the 1Banger different from the 4Banger?
The 1Banger is more compact, making it ideal for tight mounting locations, while still delivering strong performance.
What LED technology is used?
These pods use high-performance Osram HX Boost LEDs for increased output and efficiency.
What color options are available?
Available in white or yellow output depending on your driving conditions.
Are these lights waterproof?
Yes, they are rated IP69K for maximum protection against water, dust, and harsh environments.
Where can these lights be mounted?
They can be mounted on bumpers, A-pillars, roof racks, and other custom installations.
