NX920 9″ Slimline LED Driving Lights – Combo Beam (Black Twin Pack)
Big Light. Slim Frame. Zero Compromises.
Meet the NX920 9″ Slimline LED Driving Lights — a premium lighting solution engineered to fit modern bull bars and narrow spaces without sacrificing performance. Packing an incredible 19,200 raw lumens per pair and a combo beam that reaches 1 Lux at 1000 meters, these lights are built for serious visibility on the open road and in the dirt. With a sleek black finish, rugged build quality, and brilliant 5700K white light, the NX920 gives drivers the edge in both looks and functionality.
Whether you’re pushing through the outback, logging highway miles, or building the ultimate overland rig, this is the upgrade your truck has been waiting for.
Key Features & Benefits
-
1000m Combo Beam Performance: See farther, clearer, and wider with a precision-engineered beam pattern that blends long-range distance with close-range flood.
-
Slimline 9″ Form Factor: Designed for shallow bull bars and tight mounts — perfect for today’s compact front ends.
-
High Output Power: 19,200 raw lumens per pair powered by premium 5W Osram LED chips.
-
Natural White Light: 5700K color temperature for improved contrast, reduced eye fatigue, and daylight-like visibility.
-
IP68 Waterproof: Fully sealed and protected against dust, water, and environmental extremes.
-
Shock and Vibration Resistant: Built for brutal off-road conditions and constant use.
-
EMI Certified (R10): Prevents interference with radios and communications systems.
-
Multivolt Compatibility (12V–24V): Use across a wide range of vehicles and equipment.
-
3-Year Warranty: Built to last, and backed with confidence.
When the Trail Demands More — Light Up the Distance

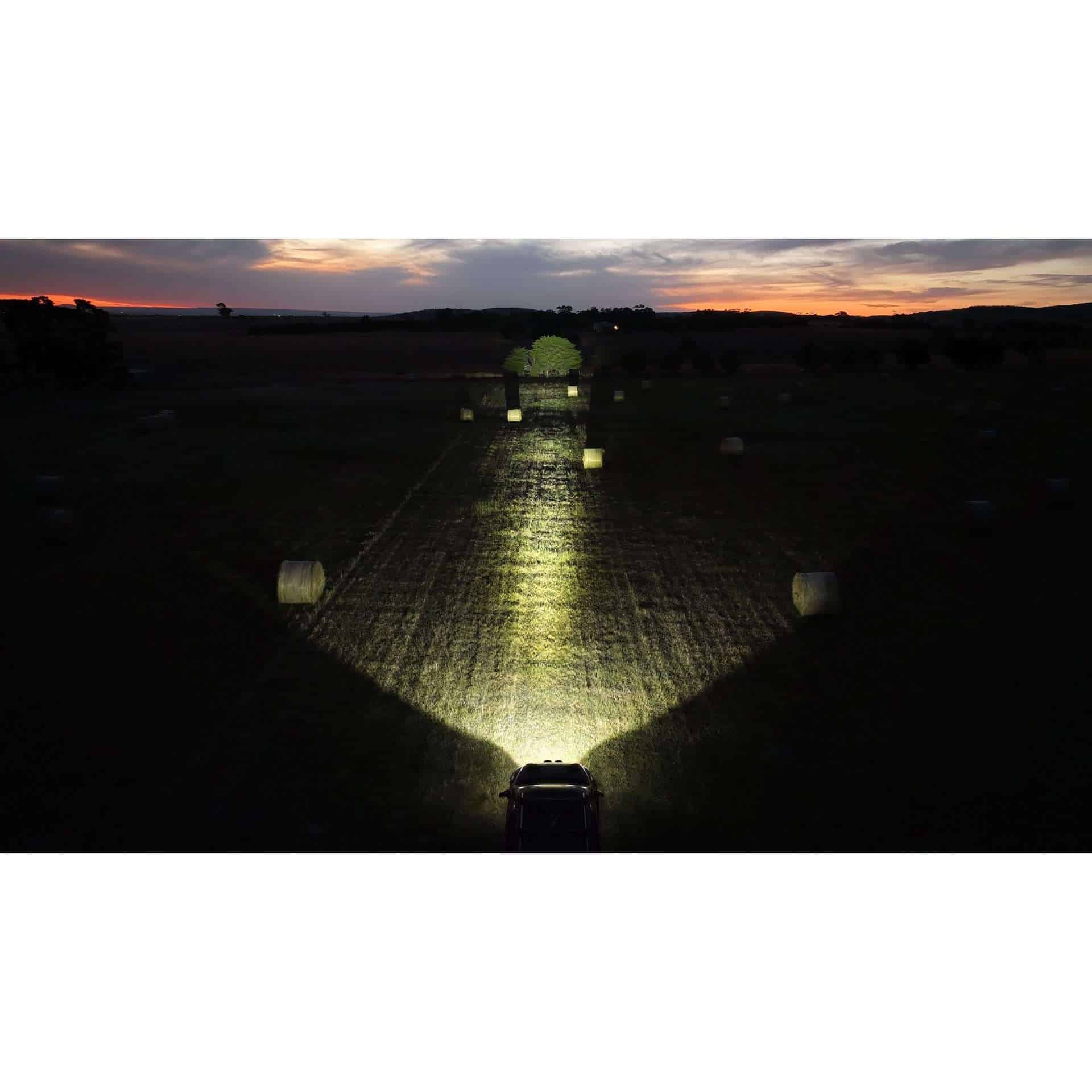

The NX920 Slimline Driving Light was made for drivers who refuse to compromise. Featuring a razor-sharp beam pattern that throws 1 Lux up to 1 full kilometer, you’ll gain unbeatable visibility on unlit highways, remote bush trails, and rural job sites. The slim design allows it to mount cleanly on newer bull bars, while the blacked-out finish gives it a stealthy, aggressive look.
Internally, Osram 5W LED chips fire off an ultra-bright 5700K beam that cuts through darkness and weather with ease. Combined with a heavy-duty, IP68-rated housing, you’re looking at a lighting solution that’s ready for real-world abuse — rain, dust, rocks, and vibration included.
Whether you drive a long-haul rig, a weekend warrior 4×4, or an agricultural workhorse, the NX920 delivers the lighting power and reliability you demand — and the style to match.
Vehicle Compatibility
The NX920 9″ Slimline LED Driving Lights are ideal for:
-
Pickup trucks (Chevy Silverado, Ram 2500, Ford Super Duty, etc.)
-
4WD and off-road rigs (Toyota LandCruiser, Nissan Patrol, Jeep Gladiator)
-
UTVs, SxS vehicles, and overlanding setups
-

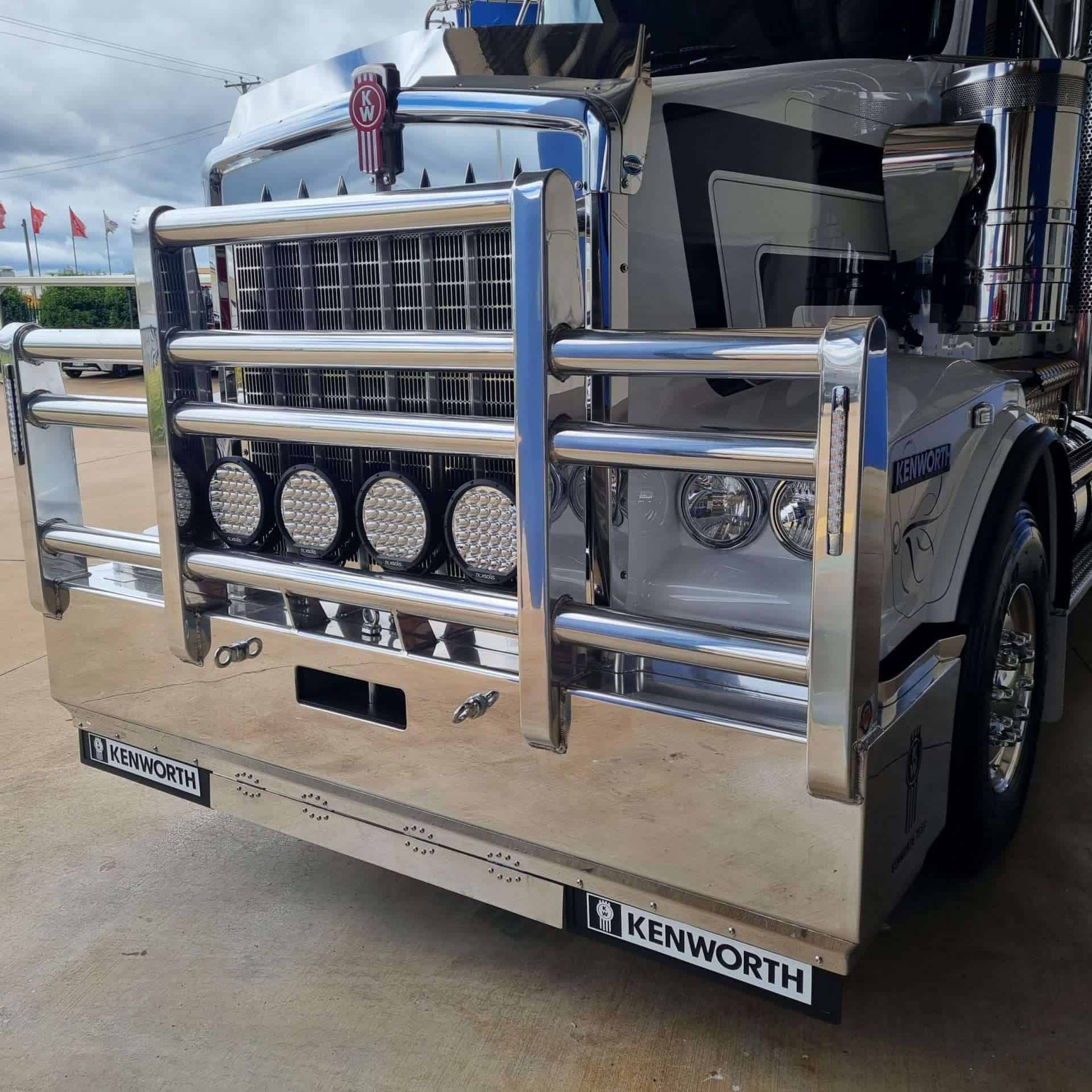

Long-haul highway trucks
-
Industrial and agricultural machinery
-
Vehicles with tight or shallow bull bar mounting space
Compatible with both 12V and 24V systems.
Technical Specifications
-
LED Source: 5W Osram chips
-
Total Output: 19,200 raw lumens (pair)
-
Beam Pattern: Combo (spot + flood)
-

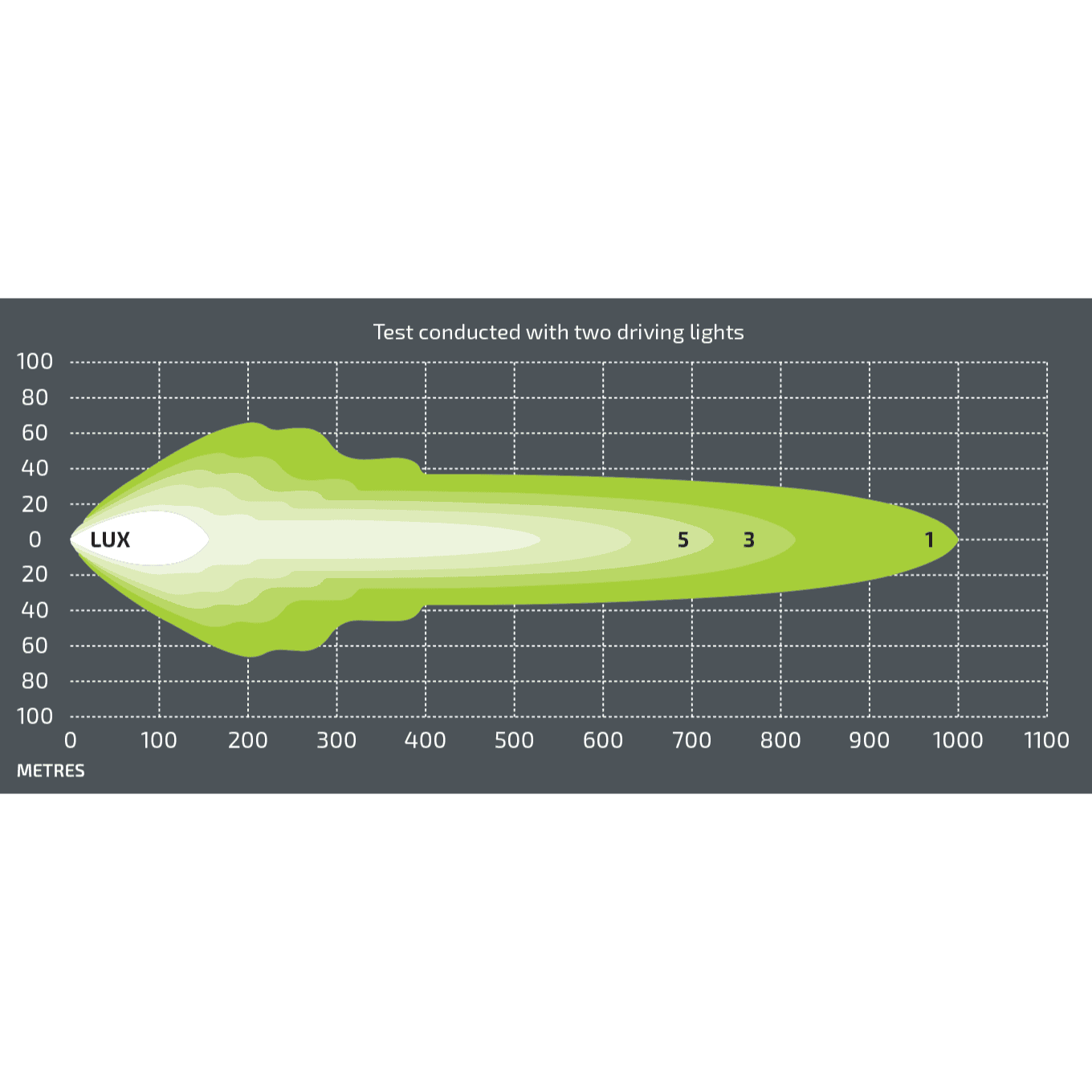

Beam Distance: 1 Lux @ 1000 meters
-
Voltage: 12–24V DC
-
Current Draw: 9.8A @ 12V / 4.8A @ 24V
-
Color Temp: 5700K (white light)
-

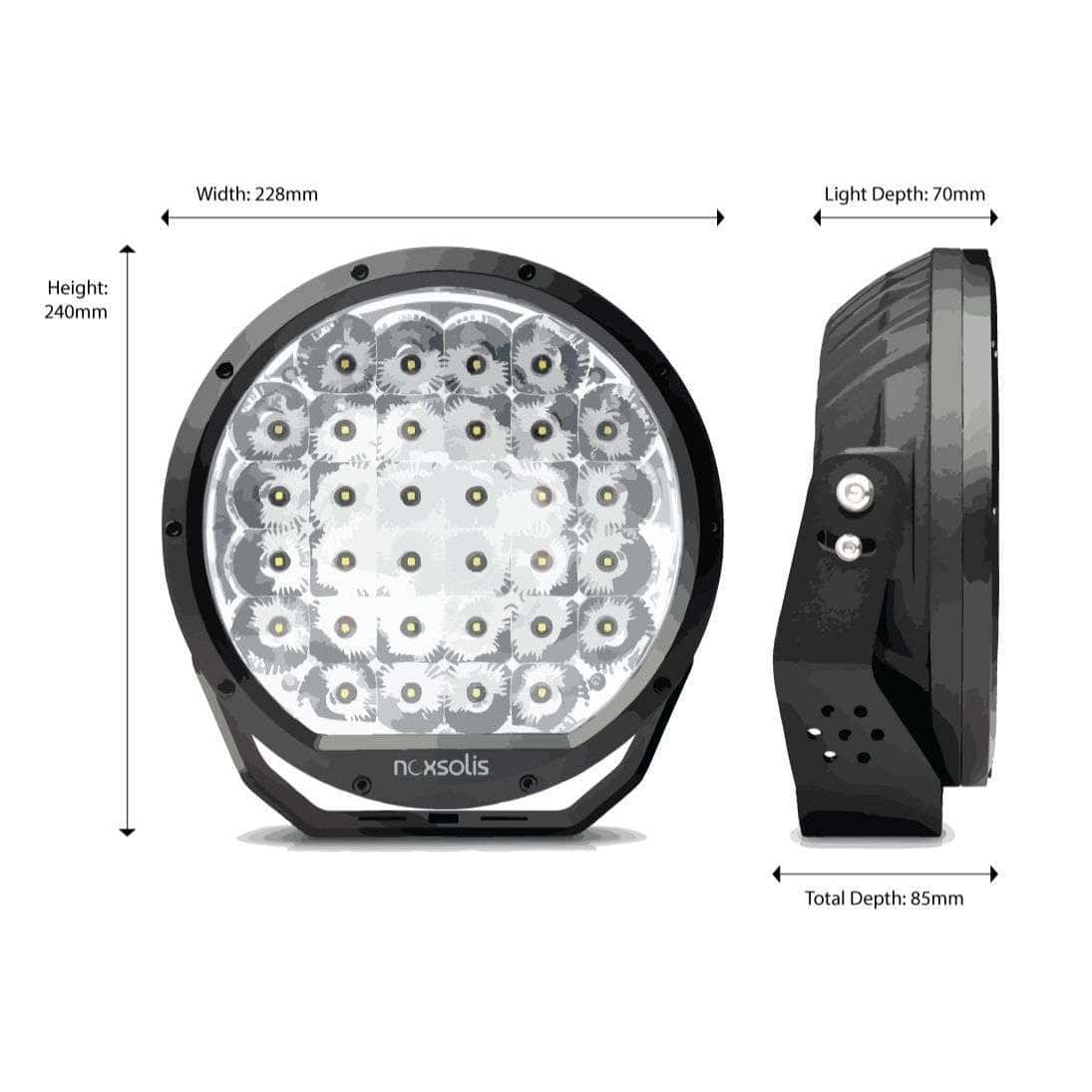

Diameter: 220mm (9″ round)
-
Weight: 2.5kg per light
-
IP Rating: IP68
-
EMI Rating: R10 compliant
-
Warranty: 3-Year Limited Warranty
What’s Included
-
2x NX920 9″ Slimline LED Driving Lights (Black Housing, Combo Beam)
-
Mounting brackets and hardware
-
Product manual/spec sheet
Note: NX200 wiring harness sold separately.
Now Available at BTS Lighting
Don’t let size limit your lighting potential. The NX920 9″ Slimline LED Driving Lights bring pro-level performance to even the tightest installs. Whether you’re building a show rig or prepping for serious overland duty, this twin-pack delivers unmatched visibility, durability, and value in one compact package.
Order yours today and lead the way.
