NX500 – 3.5″ LED Work Light (12–24V, 3400 Lumens, 40W, Flood Beam)
Compact Size. Heavy-Duty Build. Maximum Output.
Get the job done with confidence using the NX500 3.5″ LED Work Light — the compact, high-performance lighting solution built for real-world work environments. Delivering 3400 lumens of crisp 5700K white light from a rugged 3.5″ housing, the NX500 punches well above its weight class in brightness and durability. Whether you’re outfitting a service vehicle, off-road rig, farm machine, or workshop build, this light is made to handle the tough stuff.
Designed with a heavy-duty stainless steel bracket, IP69K waterproofing, and a wide flood beam, the NX500 is ideal for high-vibration, high-impact situations where reliable light matters most.
Key Features & Benefits
-
Impressive Output: 3400 lumens of bright, daylight-like 5700K white light.
-
Compact Housing: Powerful flood beam performance in a space-saving 3.5″ footprint.
-
Wide Voltage Range: Operates on 9–32V systems — ideal for 12V or 24V vehicles and equipment.
-
IP69K Waterproofing: Fully sealed and pressure-wash safe — perfect for wet or dirty work environments.
-
Tough Bracket: Heavy-duty stainless steel mounting bracket withstands extreme vibration and abuse.
-
Shatter-Resistant Lens: Durable polycarbonate construction resists impacts, chips, and cracking.
-
DT Connector with Fly Lead: Quick, secure, and weather-resistant electrical connection.
-
Flood Beam Pattern: Broad illumination ideal for work zones, backup lighting, and area lighting.
-
5-Year Warranty: Long-term durability backed by one of the best warranties in its class.
Small But Mighty — Ready for Any Job
The NX500 Work Light is the ideal blend of size, strength, and brightness. Whether you’re reverse-lighting a trailer, illuminating a construction site, or outfitting your UTV for night runs, the flood beam cuts through the dark with even, wide-area coverage. Thanks to the IP69K rating and reinforced bracket system, it performs flawlessly in the harshest conditions — mud, snow, pressure washers, and all.
With universal voltage support and plug-and-play DT connector compatibility, installation is fast and frustration-free, no matter the vehicle or equipment.
Vehicle & Application Compatibility
Perfect for:
-
UTVs, SxS, and off-road rigs
-
Pickup trucks and service vehicles
-
Heavy equipment and agricultural machinery
-
Trailers, ATVs, and marine setups
-
Emergency response and utility fleets
-
General-purpose lighting on 12V or 24V systems
Technical Specifications
-
Light Output: 3400 Lumens
-
Power Consumption: 40W
-
Beam Type: Flood Beam Only
-
Voltage Range: 9–32V DC
-
Color Temp: 5700K (white light)
-
Connector: DT Connector with Fly Lead
-
Lens Material: Polycarbonate
-
Mounting Bracket: Heavy-duty stainless steel
-
Waterproof Rating: IP69K
-

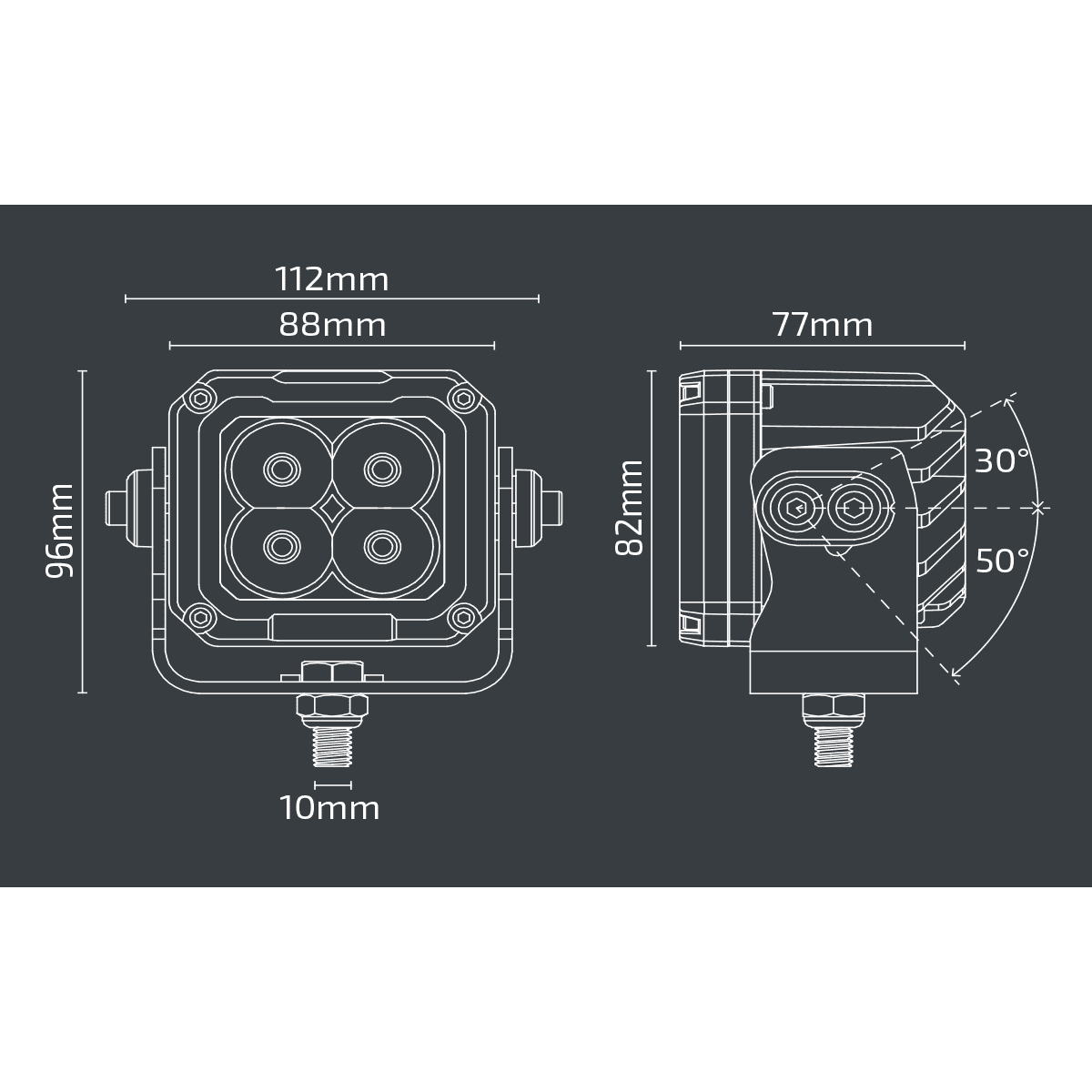

Housing Size: 3.5″
-
Warranty: 5-Year Limited Warranty
What’s Included
-
1x NX500 3.5″ LED Work Light
-
All necessary mounting hardware
-
DT Connector with fly lead
Now In Stock at BTS Lighting — Work Light That Works as Hard as You Do
The NX500 3.5″ Work Light combines compact form, rugged build, and impressive light output into one value-packed solution. Designed to withstand the grind of off-road, industrial, and utility use, this is the last work light you’ll need to install for years to come.
