NX514 – 4″ x 3″ LED Work Light (12–24V, 4,250 Lumens, 50W, Flood Beam)
Mid-Size Powerhouse. Maximum Versatility. Built to Perform.
Tough, compact, and ultra-bright — the NX514 4″ x 3″ LED Work Light is designed to outperform expectations. With a powerful 4,250 lumens of 5700K white light in a wide flood beam pattern, this mid-size work light is perfect for utility vehicles, construction equipment, trailers, and off-road applications that demand strong, even illumination in a rugged and compact form factor.
The NX514 features an IP69K waterproof rating, impact-resistant polycarbonate lens, and a heavy-duty stainless steel mounting bracket, making it ready for rough roads, high-vibration installs, and all-weather conditions. It’s everything you need in a work light — without taking up too much space.
Key Features & Benefits
-
High Output in a Compact Housing: 4,250 lumens from a durable 4″ x 3″ frame — ideal for general-purpose work lighting.
-
Flood Beam Pattern: Wide light spread for work zones, trailer interiors, backup lighting, or side-mounted task lights.
-
5700K Color Temperature: Crisp daylight-white beam for better contrast, visibility, and reduced eye strain.
-
Multivolt Compatibility: Works across 9–32V systems, including both 12V and 24V applications.
-
IP69K Waterproof Rating: Withstands high-pressure washes, heavy rain, dust, and mud without compromise.
-
Heavy-Duty Bracket: Stainless steel mount resists vibration, bending, and impact in demanding conditions.
-
Impact-Resistant Lens: Polycarbonate construction offers long-term resistance to chips, cracks, and UV degradation.
-
Quick Installation: DT plug with fly lead makes electrical connection fast, sealed, and simple.
-
5-Year Warranty: Premium performance backed by industry-leading support.
Work Smarter, Brighter, and Tougher
The NX514 LED Work Light offers a perfect balance of size, output, and durability. Whether you’re mounting it on a roof rack, trailer frame, service truck, or agricultural implement, it provides broad illumination without being bulky or overbuilt.
Its mid-size footprint allows it to fit almost anywhere, while the bright 4250-lumen flood beam ensures your workspace is always fully lit.
Vehicle & Application Compatibility
Ideal for:
-
Pickup trucks and utility/service vehicles
-
UTVs, ATVs, and off-road rigs
-
Trailers, tow vehicles, and fleet lighting
-
Agricultural, mining, or construction machinery
-
Worksite, shop, or task-specific lighting
Compatible with 12V and 24V electrical systems.
Technical Specifications
-
Light Output: 4,250 Lumens
-
Power Consumption: 50W
-
Beam Type: Flood
-
Voltage Range: 9–32V DC
-
Color Temperature: 5700K
-
Lens Material: Polycarbonate
-
Mounting Bracket: Stainless Steel
-
Connector: DT Plug with Fly Lead
-
Waterproof Rating: IP69K
-

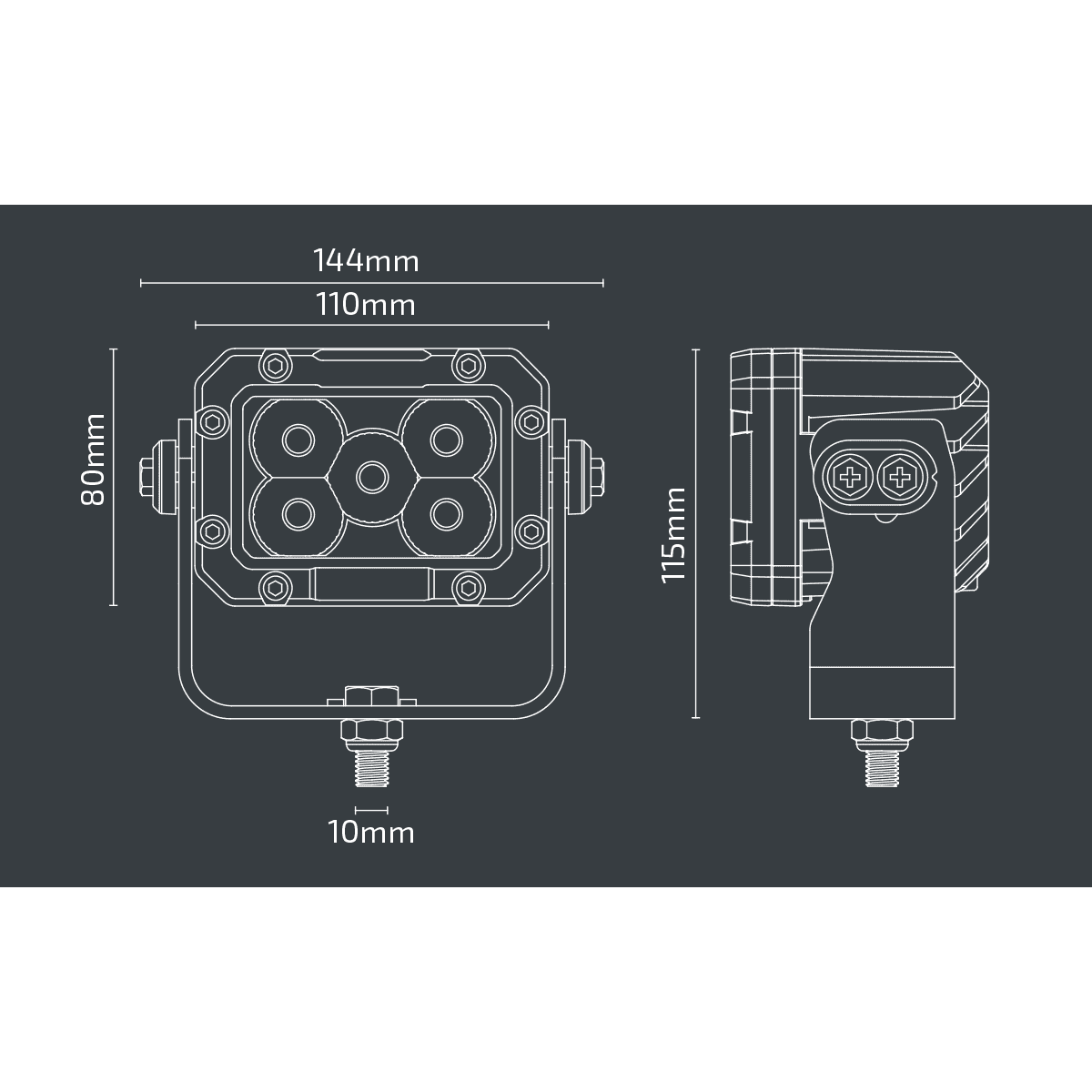

Housing Size: 4″ x 3″
-
Warranty: 5-Year Limited Warranty
What’s Included
-
1x NX514 4″ x 3″ LED Work Light (Flood Beam)
-
All stainless steel mounting hardware
-
DT Connector with fly lead
Now Available at BTS Lighting — Compact Power with Big Impact
Get serious lighting performance in a mid-size package with the NX514 LED Work Light. Designed for those who need reliability, power, and durability — without taking up valuable space — this is a true workhorse ready for whatever your day (or night) demands.
