NX531 – 3.5″ LED Slim Work Light (12–24V, 3,060 Lumens, 36W, Flood Beam)
Slim Body. Serious Brightness. Built to Outlast.
The NX531 3.5″ LED Slim Work Light delivers exceptional light output from a sleek and compact form factor — ideal for tight installations that demand high performance. Packing 3,060 raw lumens of clean 5700K white light, this workhorse is perfect for applications where space is limited but brightness can’t be compromised.
Engineered with IP68 waterproofing, CISPR 25 Class 4 EMI suppression, and a rugged vibration rating of 15g, the NX531 is ready for off-road, industrial, and utility use in any environment. Its slim profile, rock-solid stainless steel bracket, and EMI-safe operation make it a favorite for pros who know lighting.
Key Features & Benefits
-
High Output in a Slim Frame: 3,060 lumens from a compact 3.5″ body — ideal for UTVs, trailers, and tight mounting points.
-
Efficient Power Draw: Uses just 36W — drawing only 1.6A @ 13.2V and 0.9A @ 24V.
-

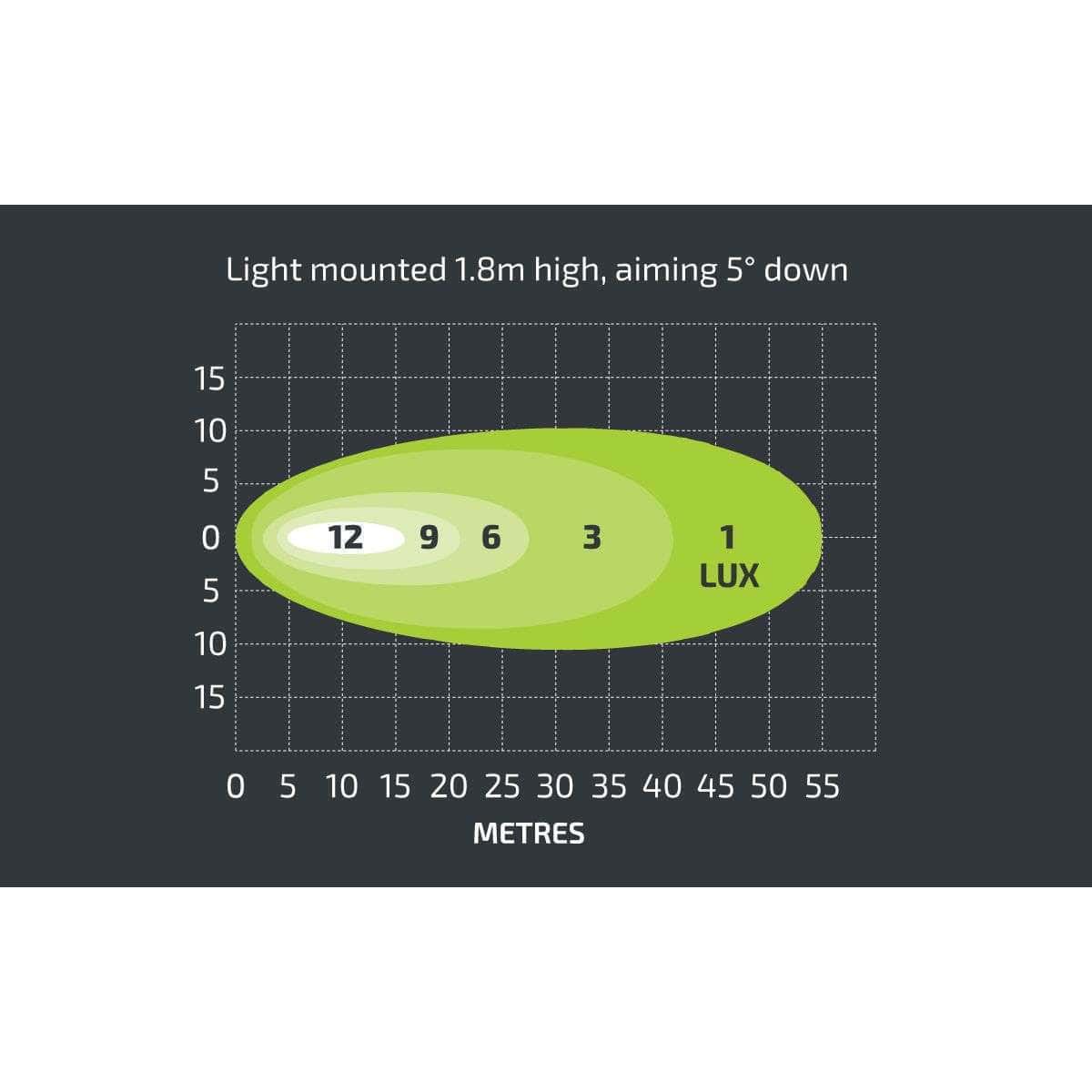

Flood Beam Pattern: Wide, even spread of light perfect for close-up visibility and workspace illumination.
-
EMI-Safe Operation: Certified CISPR 25 Class 4 and ECE R10 compliant for use near sensitive electronics.
-
Extreme Durability: Built to withstand up to 15g of vibration and high-impact conditions.
-
Waterproof Protection: IP68 rated — sealed against dust and water intrusion.
-
Daylight Clarity: Crisp 5700K color temperature enhances visibility and reduces fatigue.
-
Built to Last: Stainless steel mounting bracket and polycarbonate lens resist corrosion, impact, and abuse.
-
Quick Install: Includes 210mm hardwire fly lead for a clean, sealed connection.
-
5-Year Warranty: Noxsolis stands behind the build with long-term support.
Tight on Space. Big on Output.
The NX531 Slim Work Light is perfect for low-clearance, discreet mounting applications that still require serious lighting. Its high efficiency, robust build quality, and compact design make it a favorite for trucks, UTVs, trailers, and equipment builds where EMI suppression and reliability matter most.
Whether you’re mounting under a rack, along a bumper, or behind a grille, the NX531 delivers dependable brightness wherever you need it.
Vehicle & Application Compatibility
Ideal for:
-
Side-by-sides, UTVs, and ATVs
-
Compact pickups, overland rigs, and off-road builds
-
Enclosed trailers and camper builds
-
Commercial vehicles and construction equipment
-
Any 12V or 24V system requiring a slim, high-output work light
Technical Specifications
-
Light Output: 3,060 Lumens (Raw)
-
Power Consumption: 36W
-
Current Draw: 1.6A @ 13.2V / 0.9A @ 24V
-
Beam Type: Flood
-
Voltage Range: 12–24V DC
-
Color Temperature: 5700K
-
Lens Material: Polycarbonate
-
Mounting Bracket: Stainless Steel
-
Connector: 210mm Hardwire Fly Lead
-
Waterproof Rating: IP68
-
EMI Compliance: CISPR 25 Class 4, ECE R10
-
Vibration Rating: 15g
-
Warranty: 5-Year Limited Warranty
What’s Included
-
1x NX531 3.5″ Slim LED Work Light (Flood Beam)
-
All necessary stainless steel mounting hardware
Now Available at BTS Lighting — Compact Size, Unmatched Clarity
The NX531 Slim LED Work Light gives you serious visibility without sacrificing space, safety, or reliability. Whether you’re lighting up a work trailer, a custom rack, or an off-road path, this light is ready to perform wherever you mount it.
