NX560 – 4″ LED Blue Spot Work Light (12–24V, 4,000 Lumens, 45W, Flood Beam)
Blue Beam Precision. Built for the Field.

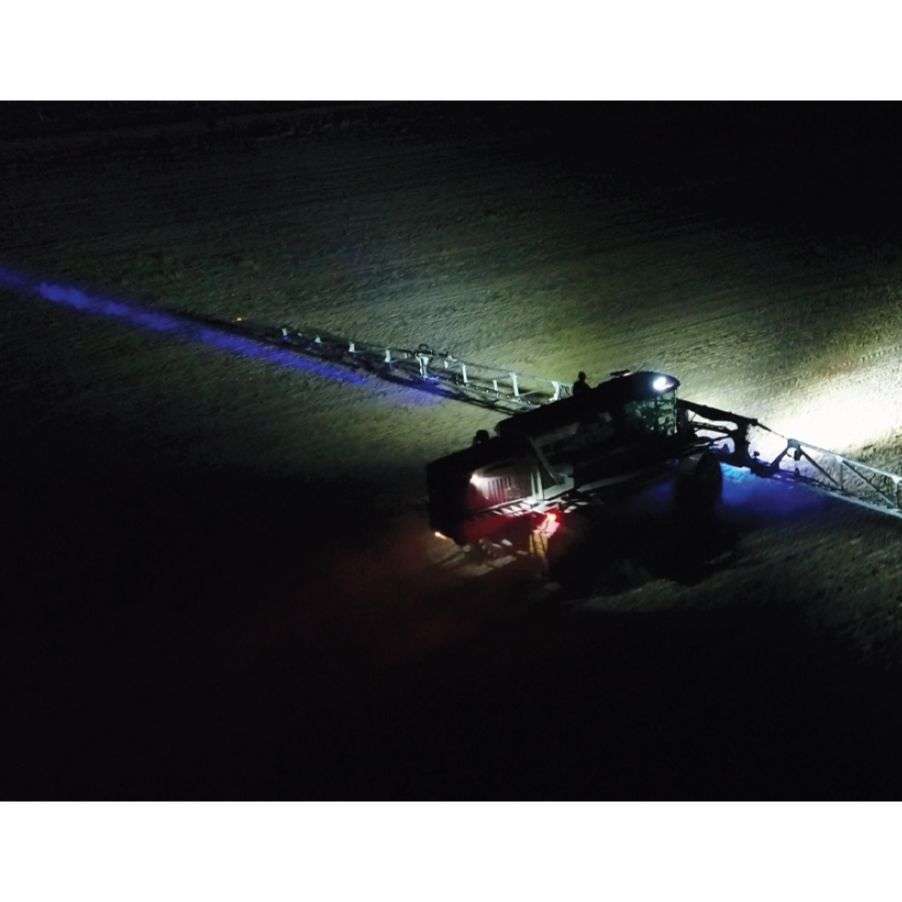

The NX560 4″ LED Blue Spot Work Light is purpose-built for agricultural professionals and night operators who need targeted visibility without the glare of traditional white lights. Emitting a crisp blue flood beam at 4,000 raw lumens, this 45W light improves visibility of spray patterns, makes nozzle inspection easier, and reduces eye strain during nighttime operations.
Designed to survive in the harshest environments, the NX560 features an IP69K waterproof rating, stainless steel mounting bracket, and impact-resistant polycarbonate lens — making it perfect for sprayers, tractors, and farm machinery where dependability is a must.
Key Features & Benefits
-
Blue Spot Flood Beam: Enhances visibility of spray coverage, detects blocked nozzles, and reduces glare during night spraying.
-
High Output: 4,000 raw lumens provide ample light for wide-area coverage with a sharp blue hue.
-
Built for Agriculture: Especially useful for nighttime farming applications like crop spraying and irrigation system inspection.
-
Durable Construction: Stainless steel mounting bracket and polycarbonate lens resist impact, vibration, and field abuse.
-
All-Weather Ready: IP69K waterproof rating ensures full protection from water, mud, and high-pressure washing.
-
Multi-Voltage Operation: Compatible with both 12V and 24V systems (9–32V DC range).
-
Quick Wiring: Comes with a DT plug and 210mm fly lead for fast and sealed installation.
-
5-Year Warranty: Backed by Noxsolis for long-term durability and peace of mind.
Designed for the Field — Trusted by Professionals
The NX560 Blue Work Light is more than just a colored beam — it’s a practical tool for operators who work long hours after dark. The distinct blue output enhances contrast, highlights details in mist and spray, and helps detect inconsistencies that would be missed under white light.
This is a must-have upgrade for agricultural sprayers, boom arms, and equipment operating in low-light or dusty conditions.
Vehicle & Equipment Compatibility
Ideal for:
-
Agricultural sprayers and boom arms
-
Tractors, harvesters, and irrigation rigs
-
Utility and farm vehicles
-
UTVs, trailers, and custom agricultural setups
-
Nighttime operations in the farming, livestock, or greenhouse industry
Compatible with 12V and 24V electrical systems.
Technical Specifications
-
Light Output: 4,000 Lumens (Raw)
-
Power Consumption: 45W
-
Beam Type: Blue Spot / Flood
-
Voltage Range: 9–32V DC
-
Color Output: Blue
-
Lens Material: Polycarbonate
-
Mounting Bracket: Stainless Steel
-
Connector: DT Plug with 210mm Fly Lead
-
Waterproof Rating: IP69K
-

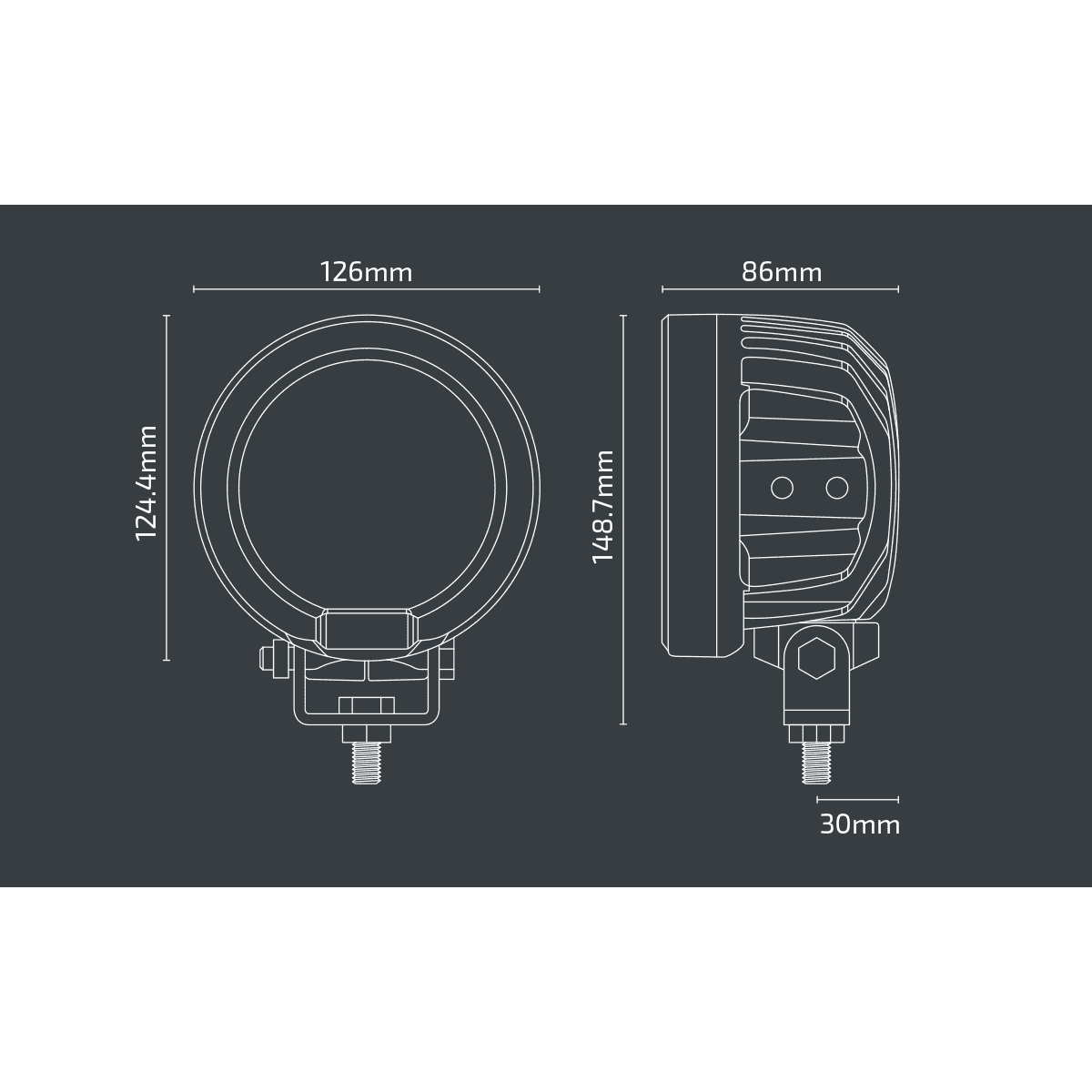

Housing Size: 4″
-
Warranty: 5-Year Limited Warranty
What’s Included
-
1x NX560 4″ LED Blue Spot Work Light
-
All stainless steel mounting hardware
-
DT Connector with fly lead
Now Available at BTS Lighting — See More. Work Smarter. Spray Safer.
Designed with agriculture in mind, the NX560 Blue Spot Work Light delivers reliable nighttime visibility where standard lighting falls short. From highlighting nozzle issues to easing eye fatigue, this compact, field-ready light will transform your night operations.
