Stage Series Single-Color LED Rock Light Kit (4-Pack)
Product Overview
Transform your off-road visibility and vehicle aesthetics with the Stage Series Single-Color LED Rock Light Kit by Diode Dynamics. Designed, engineered, and assembled in the USA, this four-light kit offers unmatched durability, powerful illumination, and versatile functionality. With 1000 lumens of peak output per light and interchangeable lenses included, it delivers bold performance wherever your journey takes you—on the trail, under the hood, in cargo spaces, or beyond.
Key Features & Benefits
-

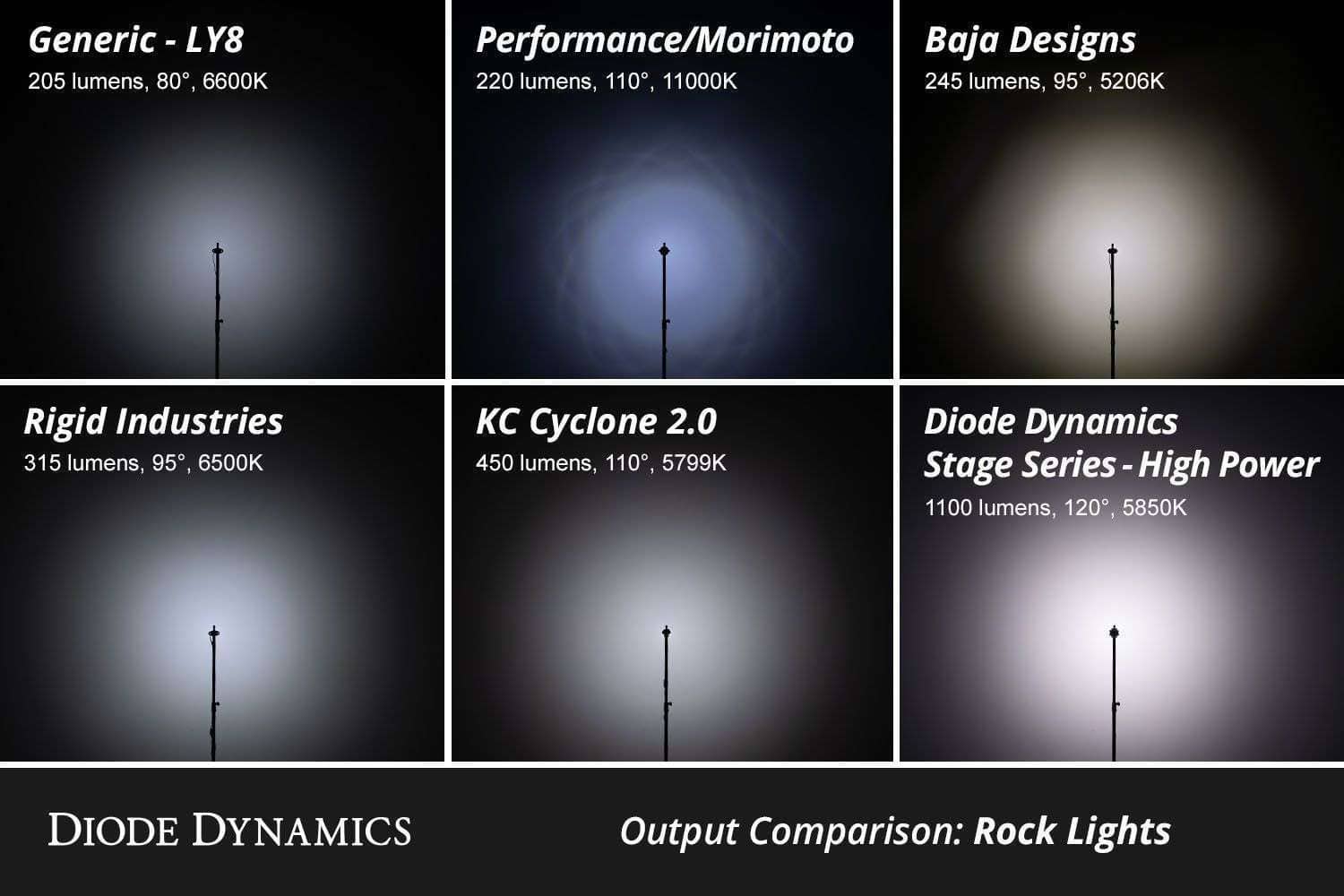

Extreme Output: Each light produces up to 1000 lumens with true 10W output—far beyond most generic rock lights.
-
Dual Intensity Modes: Features low-power and high-power settings for versatile brightness control.
-
Optically Engineered Lens: Integrated optics in a thick polycarbonate lens deliver broad, even coverage.
-

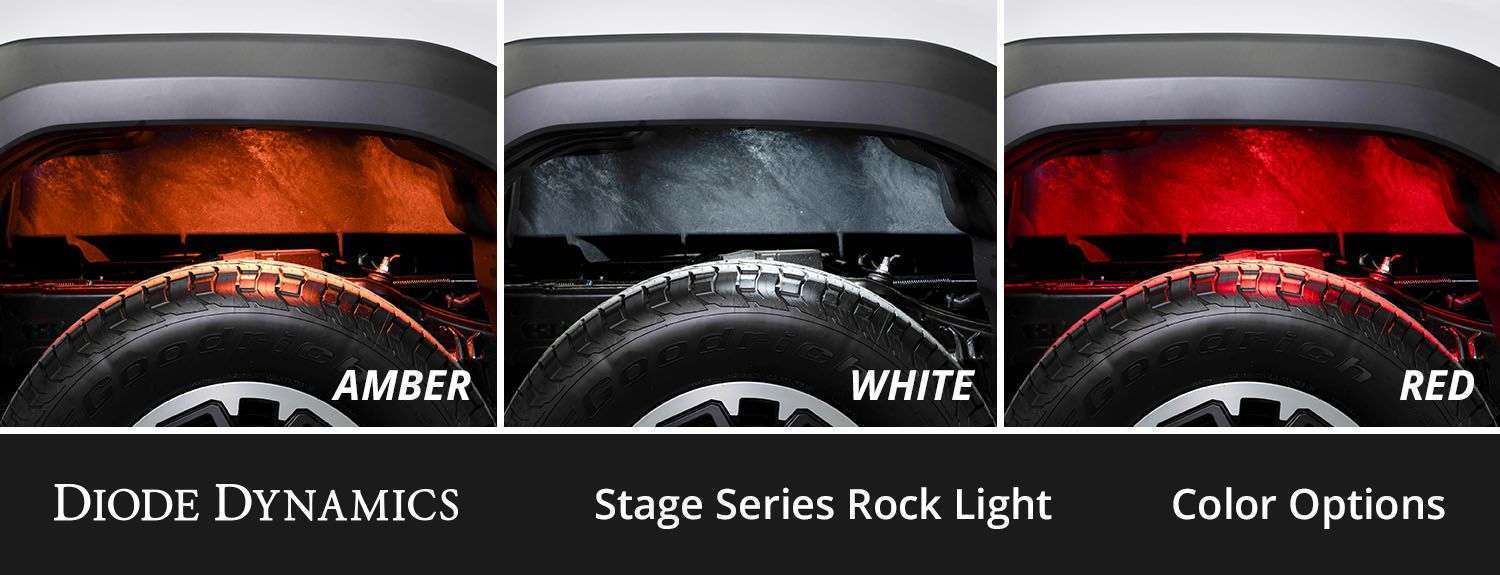

Interchangeable Lens Colors: Includes four amber and four red lenses for flexible color customization.
-
Rugged Construction: IP68 waterproof-rated with cast aluminum heatsink and UV-coated polycarbonate housing.
-
Flexible Mounting Options: Center bolt and optional magnet mounts support a range of installation locations.
-
Plug-and-Play Wiring: M8 waterproof connectors and harnesses simplify installation.
-
Built for Harsh Conditions: Operates in extreme temperatures (-40°F to 185°F) and passes SAE J575 durability testing.
-
Made in the USA: Engineered and assembled for superior quality control.
-
Limited Lifetime Warranty: Backed by Diode Dynamics’ trusted warranty.
Expanded Benefit Section
The Stage Series Single-Color Rock Light Kit redefines what rock lights can be. With 10W of real power per light, this kit offers true 1000-lumen performance, while its dual-mode output lets you switch between high and low brightness depending on the setting or battery needs. The precision-engineered lens design ensures smooth and even light dispersion, and the included amber and red interchangeable lenses allow you to shift the color scheme on the fly.
This kit is built to thrive in the toughest environments. Each light is housed in a rugged, powder-coated aluminum shell, sealed against moisture and dust, and equipped with passive cooling for thermal reliability. Whether you’re customizing your off-road build, improving nighttime visibility, or simply adding style, this kit delivers professional-grade results.
Vehicle Compatibility
Ideal for all 12V DC systems in:
-
Trucks
-
Jeeps
-
SUVs
-
UTVs and ATVs
-
Trailers
-
RVs and custom builds

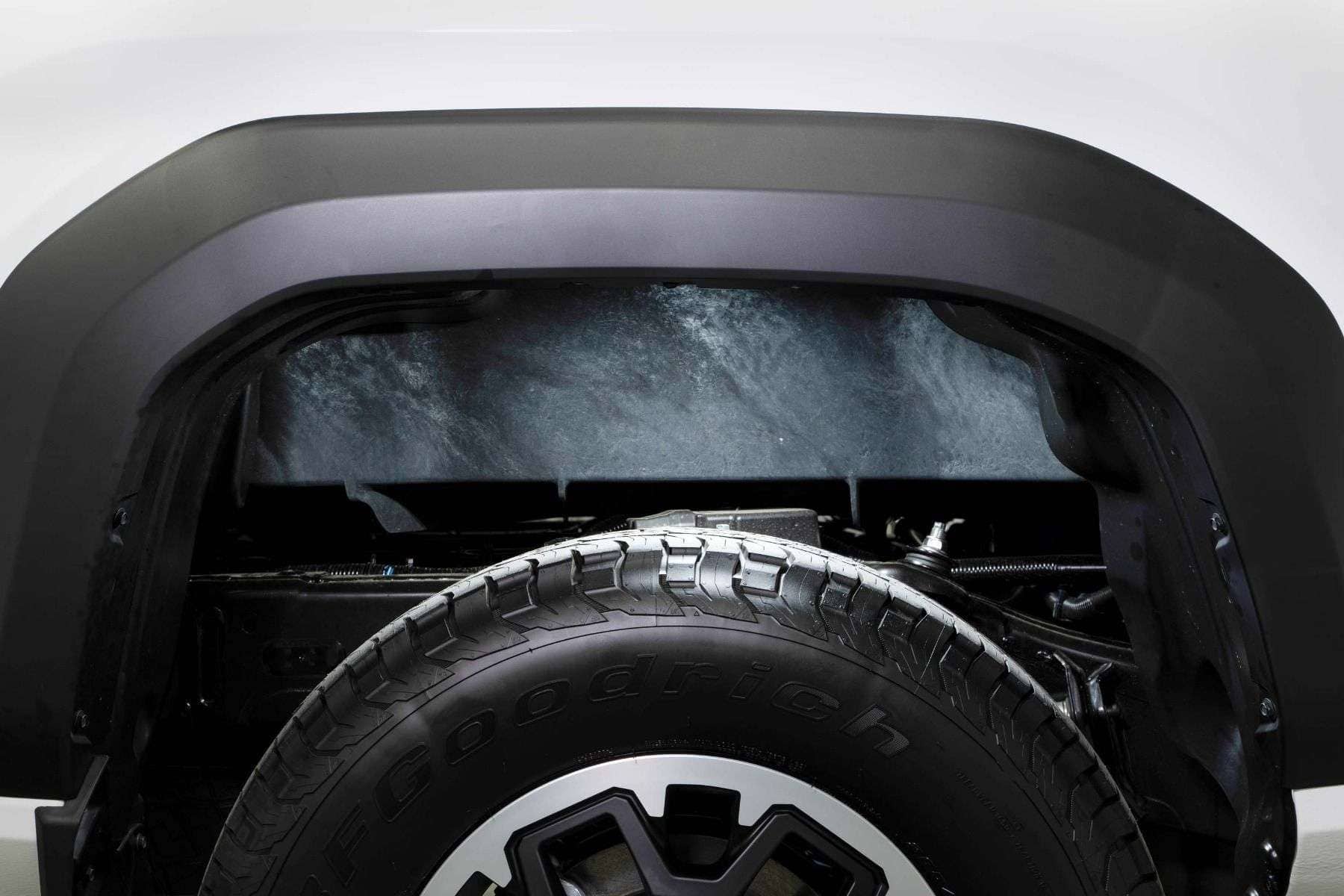

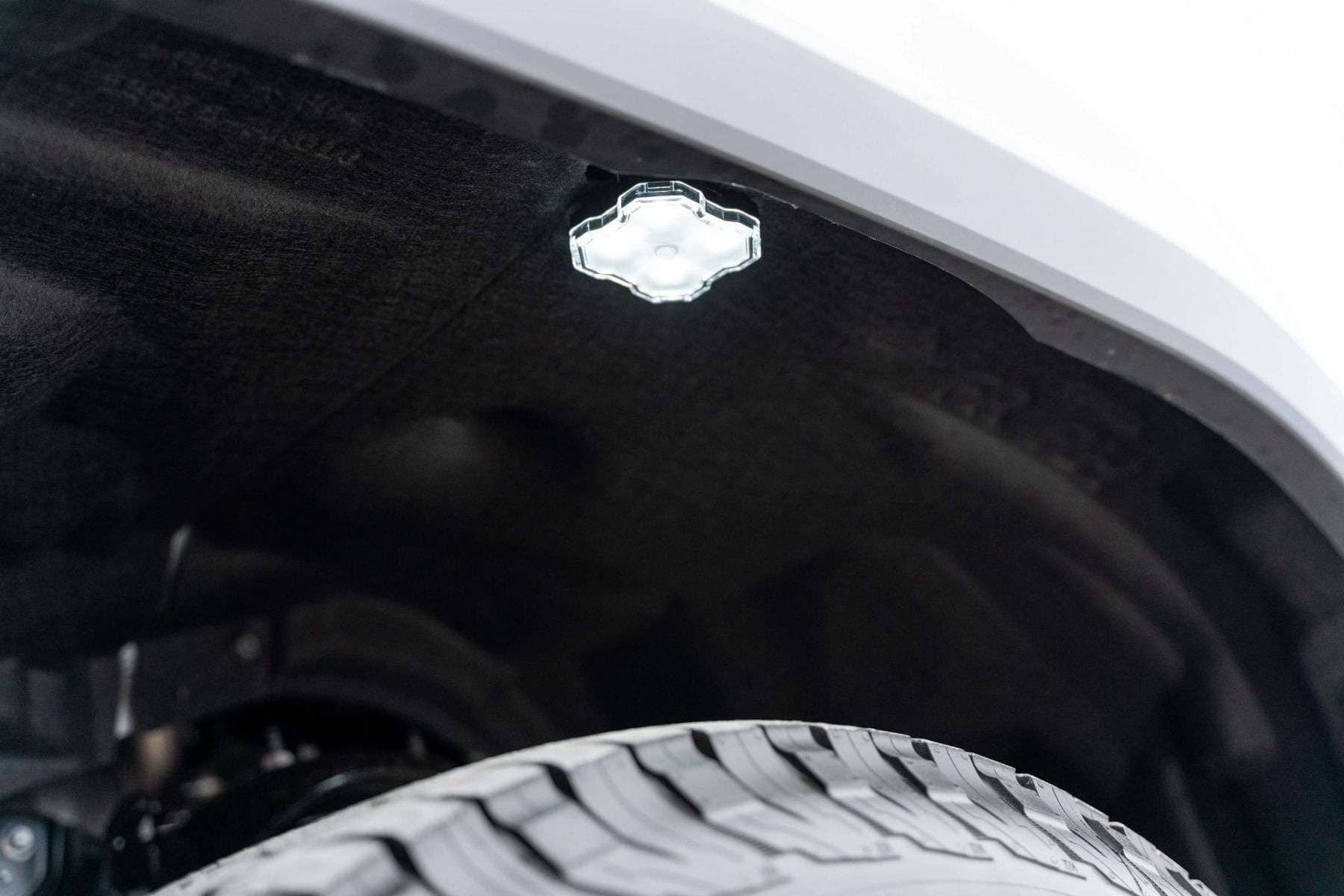

Can be mounted undercarriage, in wheel wells, engine compartments, cargo areas, or on roll bars.
Technical Specifications (Per Light)
-
Lens Type: Amber Diffused / Red Diffused (interchangeable)
-
High Output: Up to 1000 lumens (no lens), 800 lumens (white diffused), 410 lumens (amber), 70 lumens (red)
-
Low Output: 330 lumens (no lens), 130 lumens (amber), 25 lumens (red)
-
Beam Angle: 60° Round
-
Current Draw: 1.1A @ 13.2V
-
Power: 10W (High), ~3W (Low)
-
Voltage: 9–16V DC
-
Connector: M8 waterproof barrel
-
LED Type: Lumileds Z ES
-
Materials: UV-coated polycarbonate lens, powder-coated aluminum body
-
Cooling: Passive pin-fin heatsink
-
IP Rating: IP68 waterproof
-
Operating Temp: -40°F to 185°F (-40°C to 85°C)
-
Product Size: 2.4″ x 2.4″ x 0.6″
-
Compliance: SAE J575 durability tested
-
Warranty: Limited Lifetime Warranty

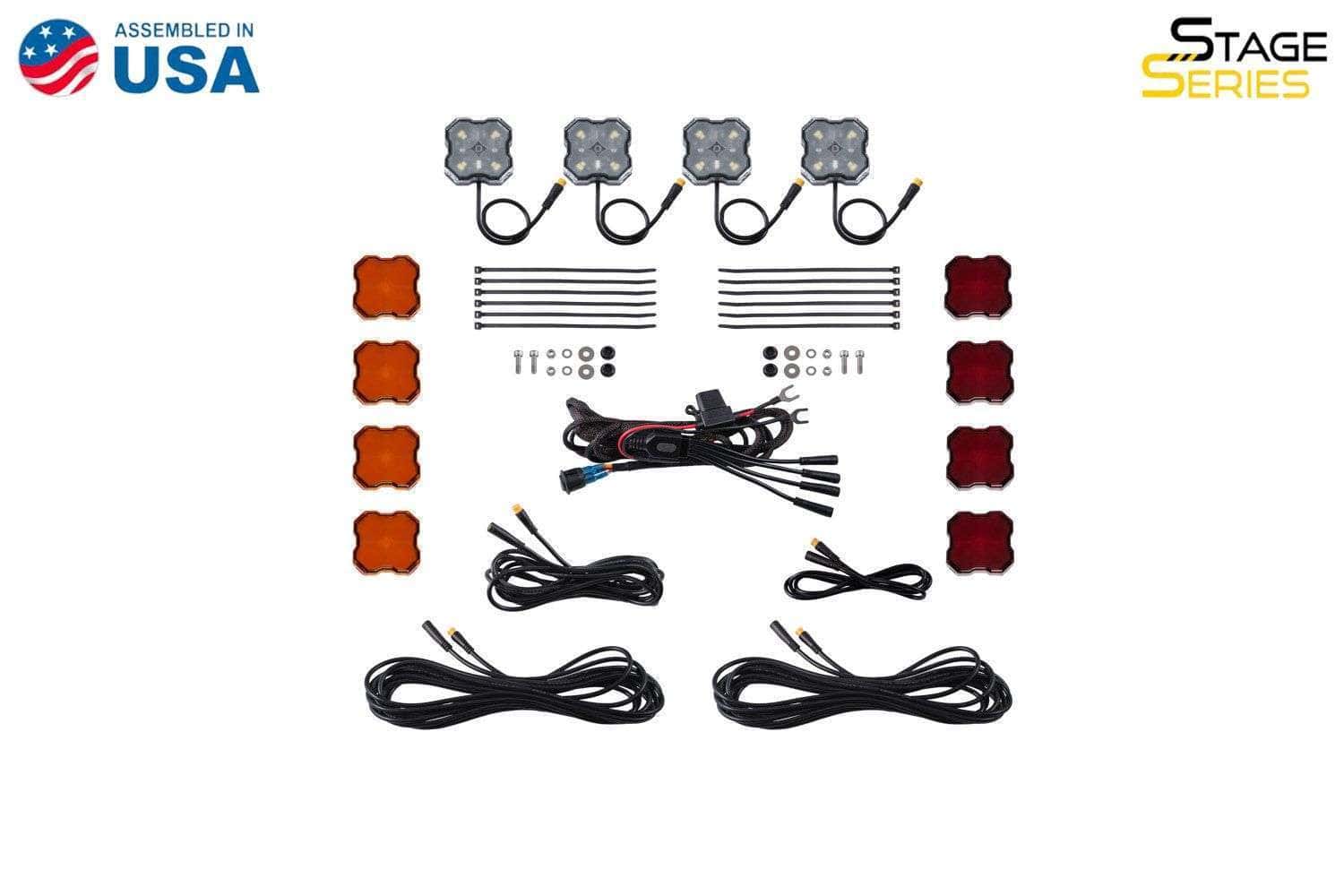

What’s Included
-
4x Stage Series Single-Color Rock Lights
-
4x Amber Interchangeable Lenses
-
4x Red Interchangeable Lenses
-
4x Rock Light Hardware Kits
-
4x Magnet Mount Adapter Kits (DD7739 only)
-
1x Single-Color Wiring Harness
-
1x 1M Extension
-
1x 3M Extension
-
2x 5M Extensions
-
12x Zip Ties
-
Installation Guide
Light Up the Trail with Confidence
With its blend of performance-grade light output, easy installation, and customizable lens options, the Stage Series Single-Color Rock Light Kit offers unbeatable value for enthusiasts who demand more from their lighting setup. Backed by Diode Dynamics’ Limited Lifetime Warranty, this kit is a proven performer on any terrain, in any condition.
Configurations and installation details
Introducing the Stage Series LED Rock Light Installer Kit! Designed for superior durability and maximum performance Stage Series LED Rock Lights have set a new standard in the offroad category.
- 10-watt 1000 lumen peak output
- Aluminum heatsink with signature Ico Bezel shape
- Convenient center-mount installation
- Engineered and Assembled in USA
- Interchangeable durable lenses for quick color swap
Choose your configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD7738 | Single-Color Rock Light Installer Kit (4-pack) |
| DD7739 | Single-Color Rock Light Installer Magnet Mount Kit (4-pack) |
Package contents by option
DD7738 — Single-Color Rock Light Installer Kit (4-pack)
- Four (4) Stage Series White Diffused Rock Lights
- Four (4) Red Diffused Replacement Lenses
- Four (4) Amber Diffused Replacement Lenses
- Four (4) Rock Light Hardware Kits
- One (1) Rock Light Single-Color Wiring Harness
- One (1) 1M Extenstion
- One (1) 3M Extension
- Two (2) 5M Extensions
- Twelve (12) Zip Ties
- Installation guide
DD7739 — Single-Color Rock Light Installer Magnet Mount Kit (4-pack)
- Four (4) Stage Series White Diffused Rock Lights
- Four (4) Red Diffused Replacement Lenses
- Four (4) Amber Diffused Replacement Lenses
- Four (4) Magnet Mount Adapter Kits
- Four (4) Rock Light Hardware Kits
- One (1) Rock Light Single-Color Wiring Harness
- One (1) 1M Extenstion
- One (1) 3M Extension
- Two (2) 5M Extensions
- Twelve (12) Zip Ties
- Installation guide
Questions and answers
What is different about the magnet-mount version?
DD7739 includes four magnet mount adapter kits. DD7738 uses the standard mounting hardware without those magnet adapters. Both options contain four white-diffused single-color lights plus red and amber replacement lenses.
Is an RGBW controller needed?
No. These are single-color lights with interchangeable lenses and low/high power inputs. The package includes the single-color wiring harness rather than an RGBW controller.
How many zip ties are included?
The current manufacturer package list specifies twelve zip ties for either four-light installer kit.
Manufacturer warranty
Diode Dynamics lists a lifetime limited warranty for this product range. Coverage is subject to the manufacturer’s terms and exclusions.
