Diode Dynamics Stage Series Single-Color LED Rock Light Kit – 8 Pack
Illuminate the trail with the Diode Dynamics Stage Series Single-Color LED Rock Light Kit. Designed for durability and high-output performance, this 8-pack system provides powerful underbody lighting for off-road vehicles while offering flexible mounting and wiring options.
High-Performance Rock Lighting for Off-Road Vehicles
The Stage Series Rock Light Kit is engineered to deliver significantly more output than typical aftermarket rock lights. Each light draws over 10 watts of true power, producing up to 1000 lumens of output for bright and reliable trail illumination.
This makes the Stage Series rock lights ideal for:
-
Off-road trail driving
-
Rock crawling
-
Campsite lighting
-
Underbody illumination
Optically Engineered Lens System
Unlike basic rock lights that simply use a protective cover, Stage Series rock lights incorporate integrated optical features molded directly into the lens.
Benefits include:
-
Wide, even light spread
-
Improved coverage under the vehicle
-
Consistent illumination across terrain
The thick automotive-grade polycarbonate lenses are designed to withstand harsh trail environments.
Interchangeable Color Lenses
The kit includes both amber and red lenses, allowing you to customize your lighting color depending on your needs.
Lens options included:
-
Amber lenses – ideal for trail visibility and off-road conditions
-
Red lenses – useful for campsite lighting or low-glare illumination
The interchangeable design allows quick color changes when needed.

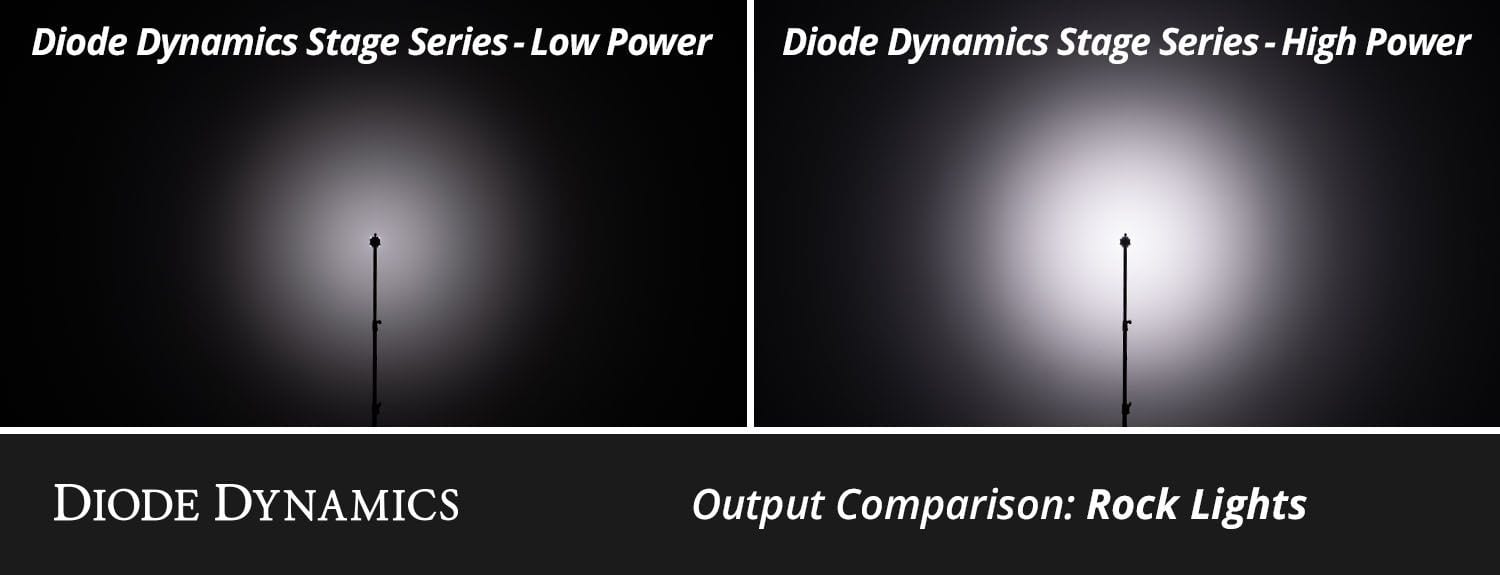

Dual Power Modes
Stage Series rock lights feature a 3-wire system that allows two brightness levels.
High-Power Mode
Delivers full output with maximum brightness.
Low-Power Mode
Provides reduced brightness to conserve battery power when full output is unnecessary.
This system also enables creative wiring setups such as:
-
Running light + brake light
-
Running light + turn signal
The lights are also compatible with PWM dimmers for adjustable brightness control.
Flexible Mounting Options
The rock lights can be mounted using multiple methods depending on the vehicle setup.
Center Bolt Mount
Each light includes a hidden center mounting bolt, ideal for permanent installation on:
-
Frame rails
-
Wheel wells
-
Suspension components
-
Underbody panels
Optional Magnet Mount
Optional magnet mounts feature N42 magnets with approximately 35 lbs of holding force, allowing secure temporary installation on metal surfaces.
Waterproof Wiring System
Each rock light includes a waterproof M8 barrel connector with a 10-inch lead, providing a reliable connection that resists moisture and dirt.
The included harness and extension cables allow flexible routing across the vehicle.
Built for Extreme Off-Road Conditions
Stage Series rock lights are designed to survive harsh environments.
Construction features include:
-
Cast aluminum housing
-
Pin-fin heat sink for thermal management
-
Thick UV-coated polycarbonate lenses
-
IP68 waterproof rating
Each unit is tested for:
-
Temperature range -40°F to 185°F
-
Vibration resistance
-
Moisture intrusion
-
Corrosion resistance
Engineered and Assembled in the USA
Diode Dynamics designs and assembles its lighting products in the United States using high-quality materials and strict testing standards.

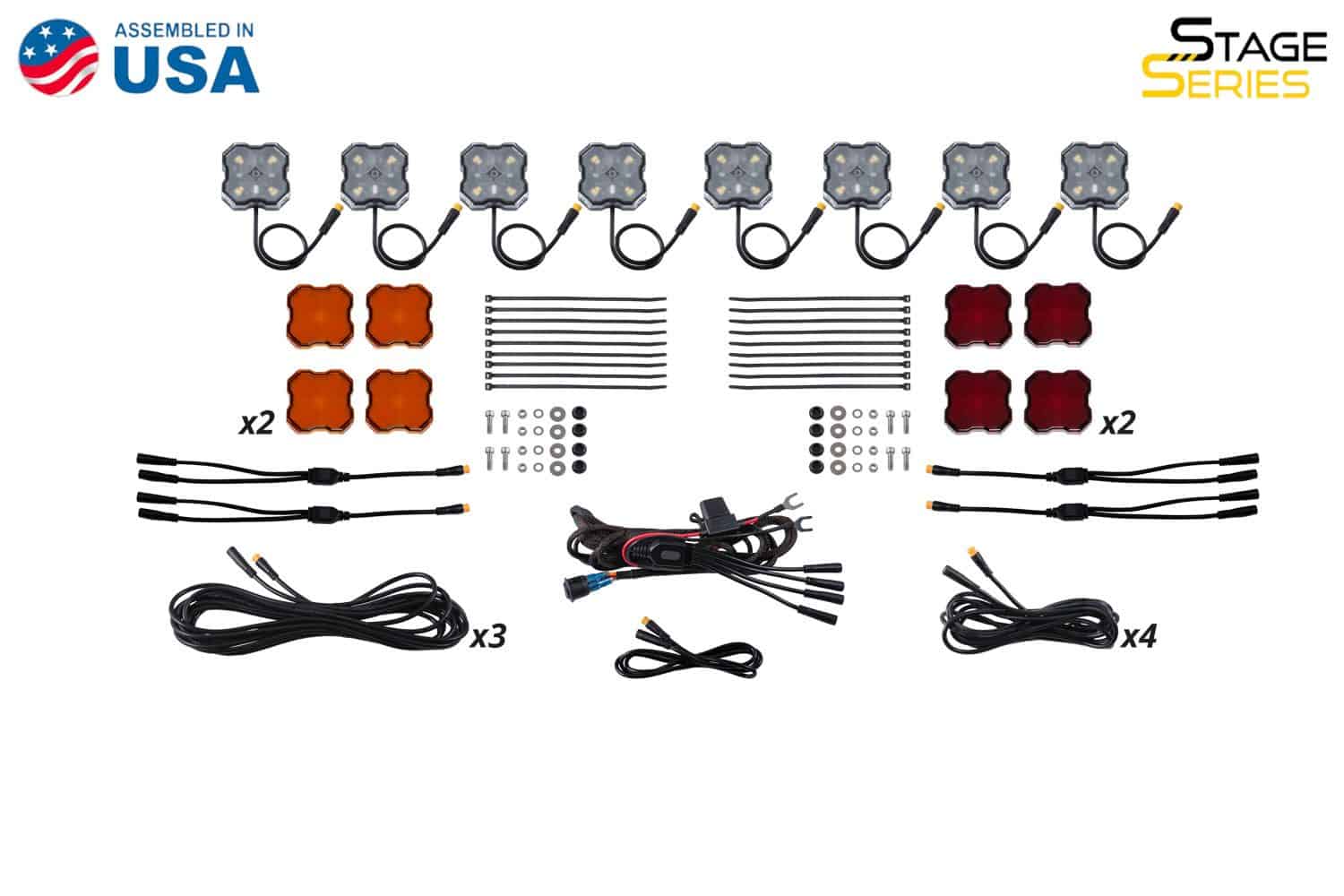

What’s Included
-
8 × Stage Series Single-Color Rock Lights
-
8 × Amber rock light lenses
-
8 × Red rock light lenses
-
8 × Rock light hardware kits
-
8 × Magnet mounts (Optional)
-
1 × Single-color rock light wiring harness
-
1 × 1-meter extension cable
-
4 × 3-meter extension cables
-
3 × 5-meter extension cables
-
4 × M8 splitters
-
12 × zip ties
-
Installation guide
Warranty & Guarantee
-
Limited Lifetime Warranty
-
30-Day Return Policy (No Restocking Fee)
-
100% Satisfaction Guarantee
Frequently Asked Questions About Stage Series Rock Lights
How many lights are included in this kit?
This kit includes 8 rock lights, ideal for full underbody coverage.
What colors can the lights display?
The lights themselves are single-color LEDs, but the kit includes interchangeable amber and red lenses.
Are the lights waterproof?
Yes. The lights carry an IP68 waterproof rating.
Can the brightness be adjusted?
Yes. The lights include high-power and low-power modes, and they are also compatible with PWM dimmers.
How are the lights mounted?
They can be installed using the center bolt mount or optional magnet mounts.
What warranty is included?
The kit includes a limited lifetime warranty.
