MORIMOTO XB GEN I · LF470
The original XB look for the BRZ, FR-S and 86.
A smooth white daytime outline, compact Bi-LED projector and amber signal strip give these lightweight coupes a complete lighting refresh. This page covers the original Gen I LF470 assembly.
- Left + rightOne complete headlight pair
- White DRLFixed daytime signature
- Bi-LED opticsIntegrated low and high beams

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set
Integrated LED optics

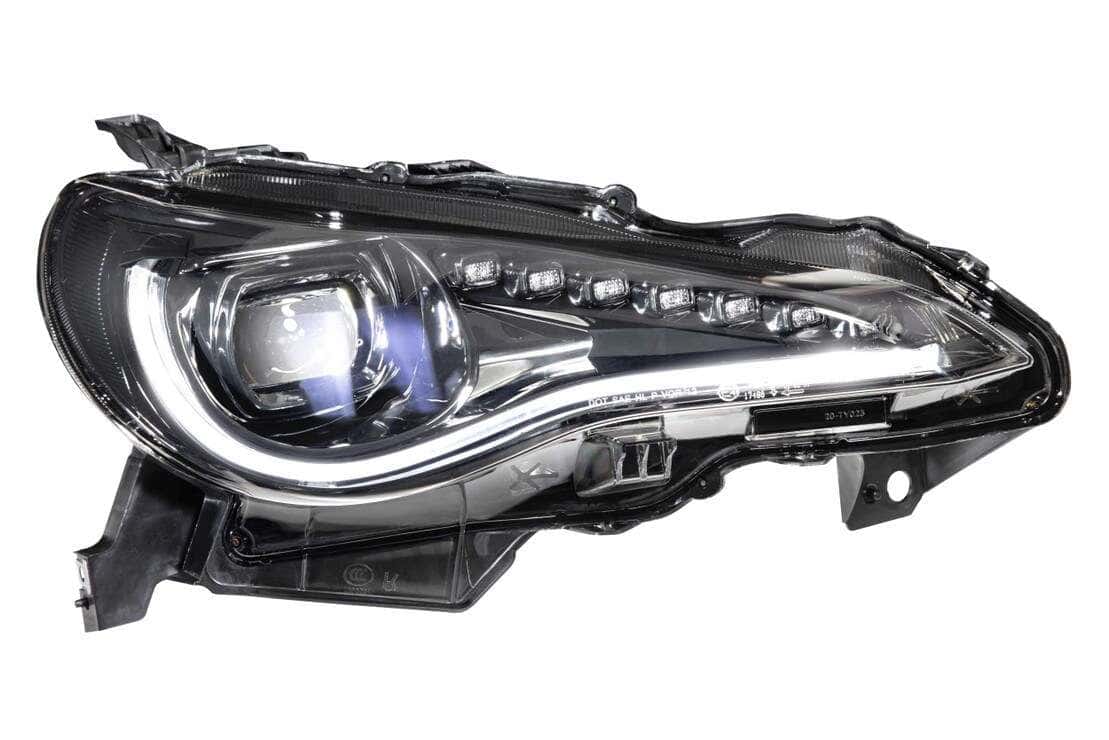

The Kuria Bi-LED projector integrates low and high beams. The supplier lists 2,600 raw lumens per lamp; raw lumens are not an on-road lux measurement.
Choose the signature

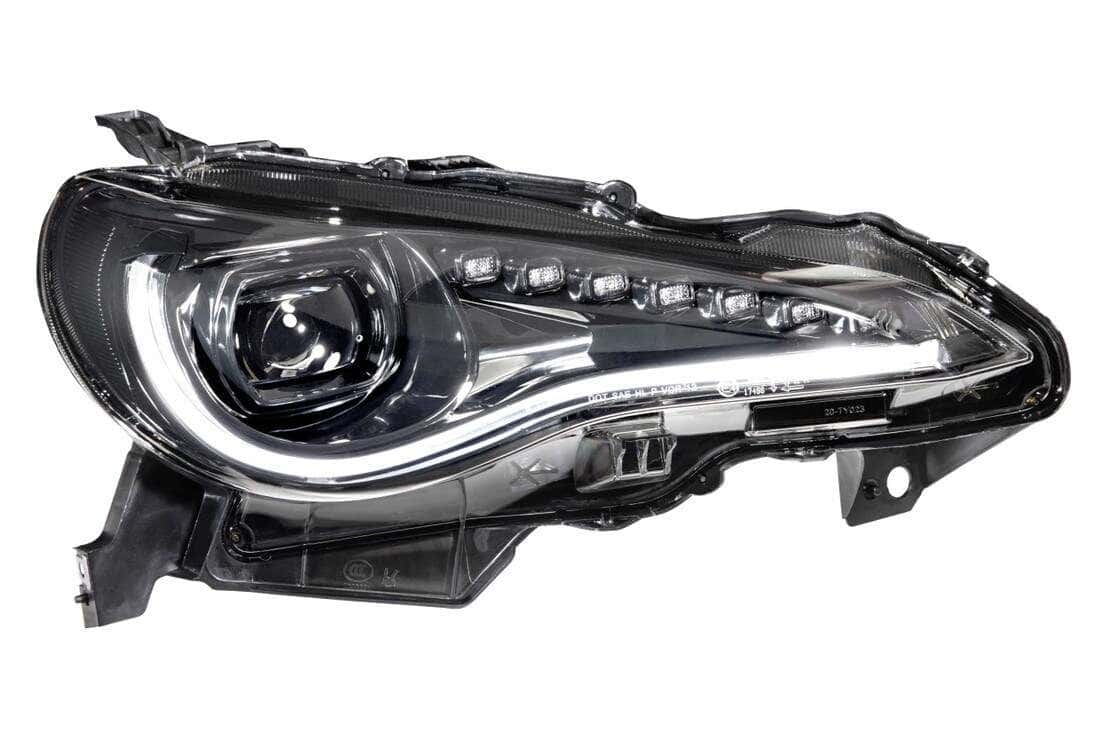

A fixed white daytime outline follows the headlight shape and dims for parking-light operation. This Gen I design does not use the later Gen II dual-projector housing.
Amber turn signals

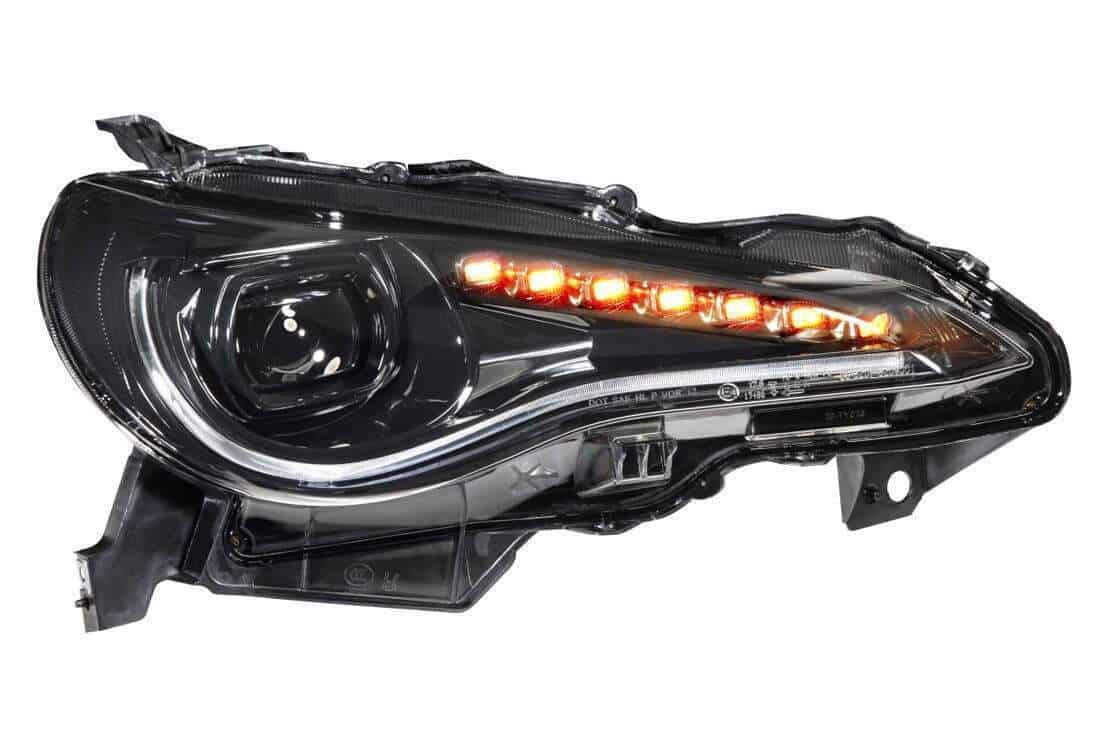

The upper amber LED strip provides the turn signal. Its sequential presentation is visible in the original supplier imagery and product video.

YOUR LIGHTING SIGNATURE
See the available lighting modes
A fixed white daytime outline follows the headlight shape and dims for parking-light operation. This Gen I design does not use the later Gen II dual-projector housing.


MATCH THE VEHICLE AND ORIGINAL EQUIPMENT
Exact fitment before you order
| Check | This exact application |
|---|---|
| Subaru BRZ | 2012–2018 |
| Scion FR-S | 2012–2016 |
| Toyota 86 | 2017–2018 |
| Market and traffic | US-spec, left-hand drive; other-market fitment not assumed |
| Generation | LF470 Gen I; use its included wiring and installation guide |
| Exact part | LF470 |
| Package | Complete driver- and passenger-side headlight assemblies |
THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: 2x (One Pair) FR-S / BR-Z / GT86 XB LED Headlights
- Wiring: Plug and Play Harness, Fuse Tap
Use the adapters and signal components appropriate to the vehicle’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
Includes the pair, plug-and-play harness and fuse tap. Select the illustrated adapter arrangement for your original headlight equipment.
Other lighting, bodywork and accessories in the vehicle photographs are separate products.

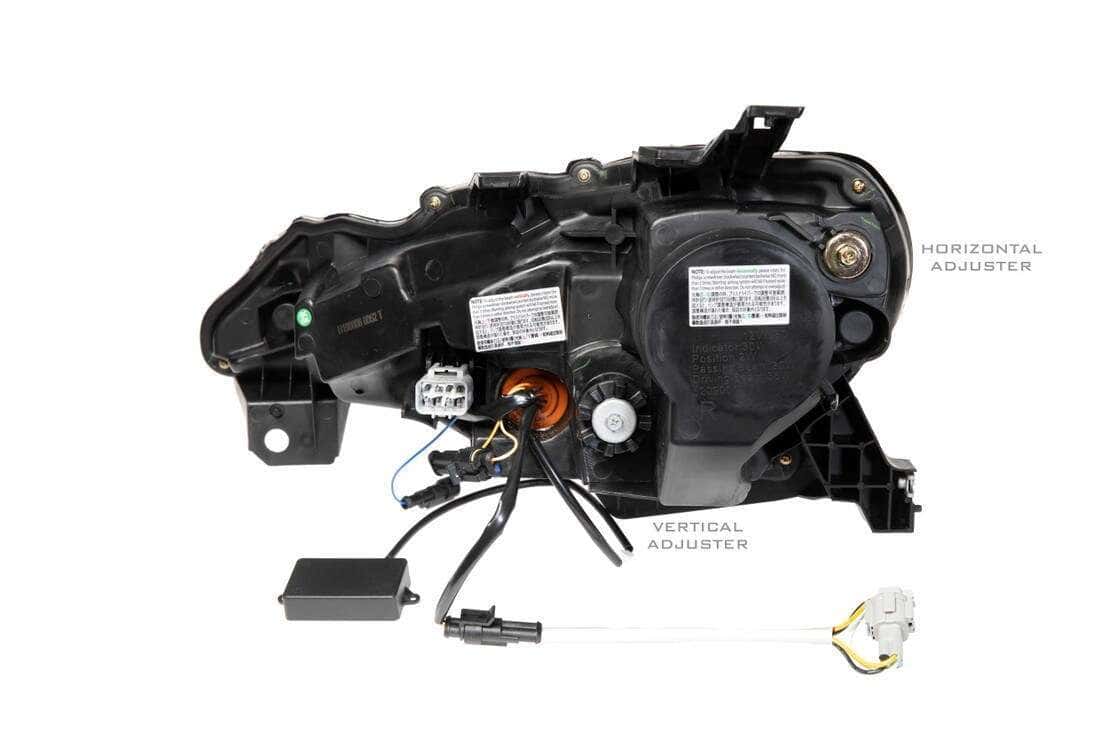

PLAN THE ACCESS AND WIRING
Installation details worth knowing
The April 2019 Gen I guide removes the bumper cover and original headlight brackets for access. Factory-HID and halogen connections differ: halogen cars use the supplied 8-pin-to-6-pin adapter, while the guide gives a separate 2017+ US Toyota 86 harness arrangement. Do not use that adapter on a branch where the guide specifically excludes it. Disconnect or reconnect original levelling connections only as directed, secure the harness and test the full lighting system before reassembly.
Download the official LF470 installation guide
Follow the instructions supplied with the exact set and the actual vehicle’s wiring information. Other aftermarket exterior lighting can affect turn-signal behaviour. Test the complete system before final reassembly.

EXACT PART · LF470
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Intensity | 2,600lm (Raw; each) |
| Traffic Pattern | LHD Only |
| Input | Multi-Pin OEM |
| Functions | DRL (White), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Optic BI-LED |
| UV Coating | Momentive UVHC3000 |
Lumen figures are raw output per headlight, not road lux or measured output for the complete pair.
Original-equipment replacement references
SU00302502, SU00305140, SU00302501, SU00305139, 840002CA120, 84002CA130, 84002CA131
Use these references with the exact model-year and equipment checks above, not as a standalone compatibility decision.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
An official supplier-linked overview and installation video for this model. Use the current written part-specific fitment and package details above when the video shows earlier configurations.
BRZ XB LED Headlights by Morimoto

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Gen I questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this exact part fit?
US-spec 2012–2018 Subaru BRZ, 2012–2016 Scion FR-S or 2017–2018 Toyota 86. Check the original equipment and market notes above before ordering.
How do I choose the daytime lighting?
A fixed white daytime outline follows the headlight shape and dims for parking-light operation. This Gen I design does not use the later Gen II dual-projector housing.
Which lighting functions does this set provide?
The upper amber LED strip provides the turn signal. Its sequential presentation is visible in the original supplier imagery and product video.
Can I add Supercharged drivers?
Supercharged-driver compatibility has not been confirmed for this LF470 model. The pair comes with its standard drivers; contact BTS before selecting a separate driver upgrade.
Should the headlights be aimed after installation?
Yes. Check all functions and adjust the low-beam cutoff on the actual vehicle. Suspension changes, load and ride height can affect the aim.
What warranty applies?
Morimoto provides a 5-year limited manufacturer warranty. Coverage and exclusions follow the manufacturer’s terms; retain proof of purchase and contact BTS for assistance.
Is this the dual-projector Gen II set?
No. This is LF470 Gen I with the original single-projector housing. The linked Gen II page explains the later dual-projector design and its own model-year range.
Will this Gen I pair fit my 2019 or 2020 BRZ?
This LF470 selection ends at 2018 for the BRZ and Toyota 86. See the separately listed Gen II application for 2019–2020, or contact BTS for help.
THE FINISHED LOOK
See the design on the vehicle
Original supplier photography; other vehicle equipment is separate.
