MORIMOTO XB GEN II · LF2-470
Dual projectors. A sharper BRZ, FR-S and 86 signature.
The second-generation XB design pairs two Bi-LED projectors with a sculpted white DRL and pinpoint amber turn optics. A configurable start-up sequence adds a distinctive welcome when the car comes to life.
- Left + rightOne complete headlight pair
- White DRLFixed daytime signature
- Bi-LED opticsIntegrated low and high beams

THE LIGHTING SYSTEM, EXPLAINED
Three details that define this set
Integrated LED optics

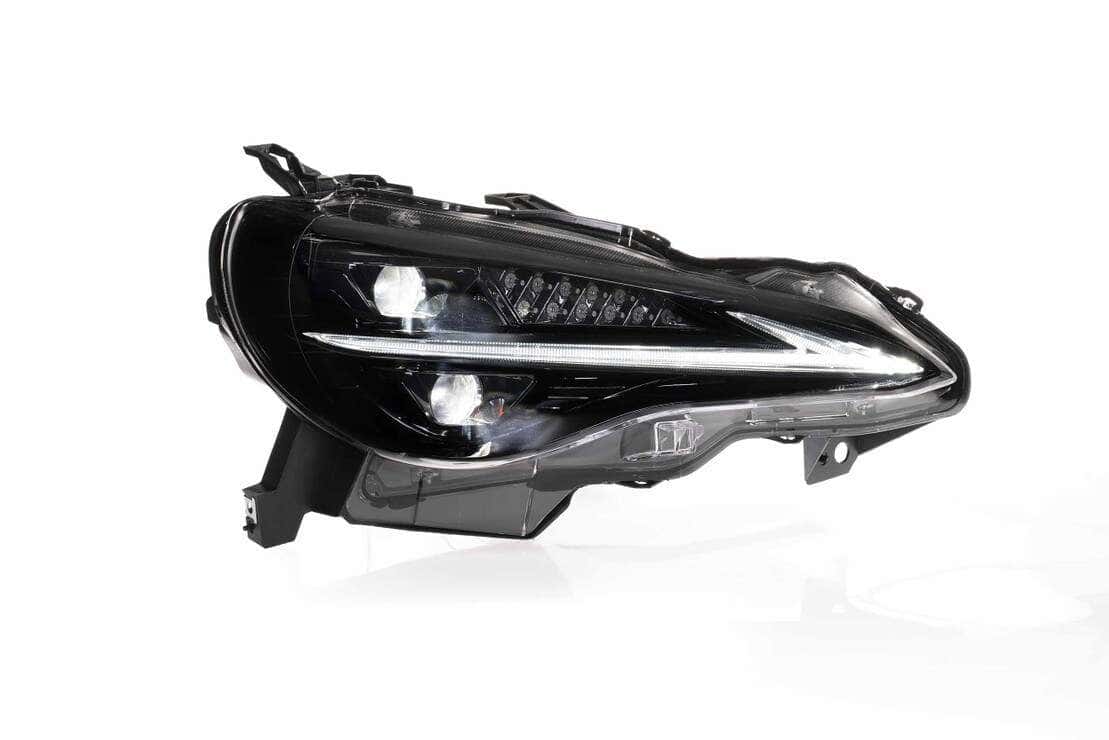

Two Bi-LED projectors per lamp handle low and high beams. The clear lenses and black housings create a sharp, coordinated front end.
Choose the signature
The DRL is white only. The exact guide uses the blue loop to enable or disable the start-up sequence and the brown loop to select sequential or fade-off turn signals. Switch vehicle and lights off before changing the loops.

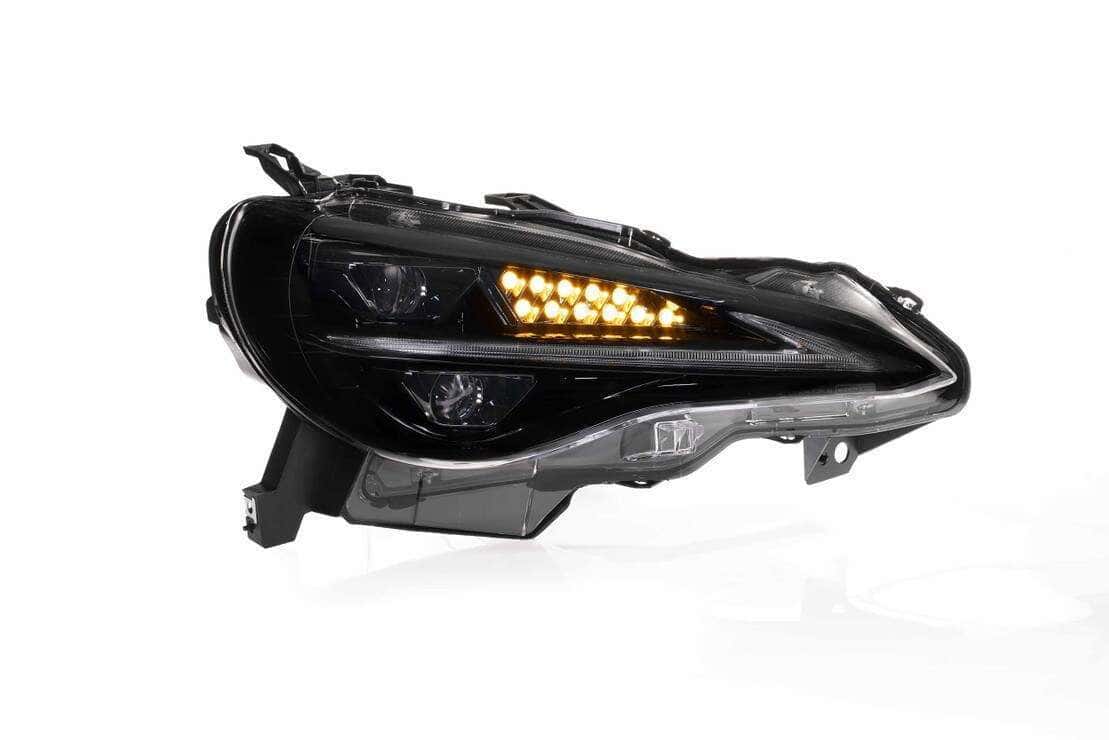

Amber turn signals
Pinpoint amber optics create the turn indication. The optional start-up animation briefly uses amber before the white daytime signature; it does not provide an amber DRL selection.

YOUR LIGHTING SIGNATURE
See the available lighting modes
The DRL is white only. The exact guide uses the blue loop to enable or disable the start-up sequence and the brown loop to select sequential or fade-off turn signals. Switch vehicle and lights off before changing the loops.


MATCH THE VEHICLE AND ORIGINAL EQUIPMENT
Exact fitment before you order
| Check | This exact application |
|---|---|
| Subaru BRZ | 2012–2020 |
| Scion FR-S | 2012–2016 |
| Toyota 86 / GT86 | 2017–2020 |
| Market and traffic | US-spec, left-hand drive |
| Original wiring | Use the appropriate 6-pin/8-pin and bumper-turn-signal branch in the LF2-470 guide |
| Exact part | LF2-470 |
| Package | Complete driver- and passenger-side headlight assemblies |
THE STANDARD HEADLIGHT PACKAGE
What comes with the pair

- Headlights: 2x (One Pair) FR-S / BR-Z / GT86 XB LED Gen II Headlights
- Wiring: 2x Headlight Adapters, 2x Turn Signal Adapters, 1x Fuse Tap, 1x DRL Harness
Use the adapters and signal components appropriate to the vehicle’s original lighting. Any optional accessories are separate selections; the listed standard installation parts are supplied with the headlight pair.
Includes two headlight adapters, two turn-signal adapters, one fuse tap and one DRL harness. Blue and brown mode loops are part of the headlight wiring.
Other lighting, bodywork and accessories in the vehicle photographs are separate products.
PLAN THE ACCESS AND WIRING
Installation details worth knowing
Remove the bumper cover, transfer the original bumper brackets and follow the original-connector branch. The guide identifies the 10A washer fuse, then requires a small notch in the fuse-box lid and the supplied grommet to route the DRL harness safely. Cars with bumper-mounted signals need their dedicated turn adapters and those signals reconnected before testing. Reconnect the original adjuster-motor plug where equipped, select the blue/brown loop modes with power off, and aim both lamps after installation.
Download the official LF2-470 installation guide
Follow the instructions supplied with the exact set and the actual vehicle’s wiring information. Other aftermarket exterior lighting can affect turn-signal behaviour. Test the complete system before final reassembly.

EXACT PART · LF2-470
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD |
| Input | Toyota/Subaru Multi-pin |
| DRL | White Only |
| Turn Signal | Sequential or fade-off, selected using brown control loops; exact installation guide |
| Functions | Low, High, Park, DRL, Turn |
| Interior Color | Gloss Black |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Dual Morimoto Bi-LED |
| Lens Coating | Hardened Anti-UV Protection |
Original-equipment replacement references
SU00302502, SU00305140, SU00302501, SU00305139, 840002CA120, 84002CA130, 84002CA131
Use these references with the exact model-year and equipment checks above, not as a standalone compatibility decision.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
An official supplier-linked overview and installation video for this model. Use the current written part-specific fitment and package details above when the video shows earlier configurations.
Unleash Your Style with Morimoto's New XB Gen II Headlights for 12-20 Toyota FRS/Subaru BRZ/GT86!

Choose a video to load it. No autoplay. Historical launch or availability statements are not current BTS stock information; the written part-specific details govern this selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Gen II questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this exact part fit?
US-spec 2012–2020 Subaru BRZ, 2012–2016 Scion FR-S or 2017–2020 Toyota 86 / GT86. Check the original equipment and market notes above before ordering.
How do I choose the daytime lighting?
The DRL is white only. The exact guide uses the blue loop to enable or disable the start-up sequence and the brown loop to select sequential or fade-off turn signals. Switch vehicle and lights off before changing the loops.
Which lighting functions does this set provide?
Pinpoint amber optics create the turn indication. The optional start-up animation briefly uses amber before the white daytime signature; it does not provide an amber DRL selection.
Can I add Supercharged drivers?
Supercharged-driver compatibility has not been confirmed for this LF2-470 model. The pair comes with its standard drivers; contact BTS before selecting a separate driver upgrade.
Should the headlights be aimed after installation?
Yes. Check all functions and adjust the low-beam cutoff on the actual vehicle. Suspension changes, load and ride height can affect the aim.
What warranty applies?
Morimoto provides a 5-year limited manufacturer warranty. Coverage and exclusions follow the manufacturer’s terms; retain proof of purchase and contact BTS for assistance.
Can I turn off the start-up animation?
Yes. The current LF2-470 guide shows the blue loop controlling start-up animation and the brown loop controlling the turn-signal effect. Use that exact guide with the vehicle and lamps switched off.
Why does the original turn-signal location matter?
A car with bumper-mounted turn signals uses the supplied turn-signal adapter branch. Other original arrangements use different white/yellow-wire connections. Follow the illustrated branch for the actual vehicle.
THE FINISHED LOOK
See the design on the vehicle
Original supplier photography; other vehicle equipment is separate.
