Subaru Legacy 2015–2017 | SS3 LED Fog Light Kit
Features
-
Direct replacement for Subaru Legacy OEM fog lamps
-
SAE-compliant, road-legal performance
-
Includes angled bezel for an OEM-style fit
-
Plug-and-play installation with no modifications
-
Advanced TIR optics for superior focus and efficiency
-
Durable powder-coated aluminum die-cast housing
-
Engineered and assembled in the USA
Overview
High-Performance Upgrade

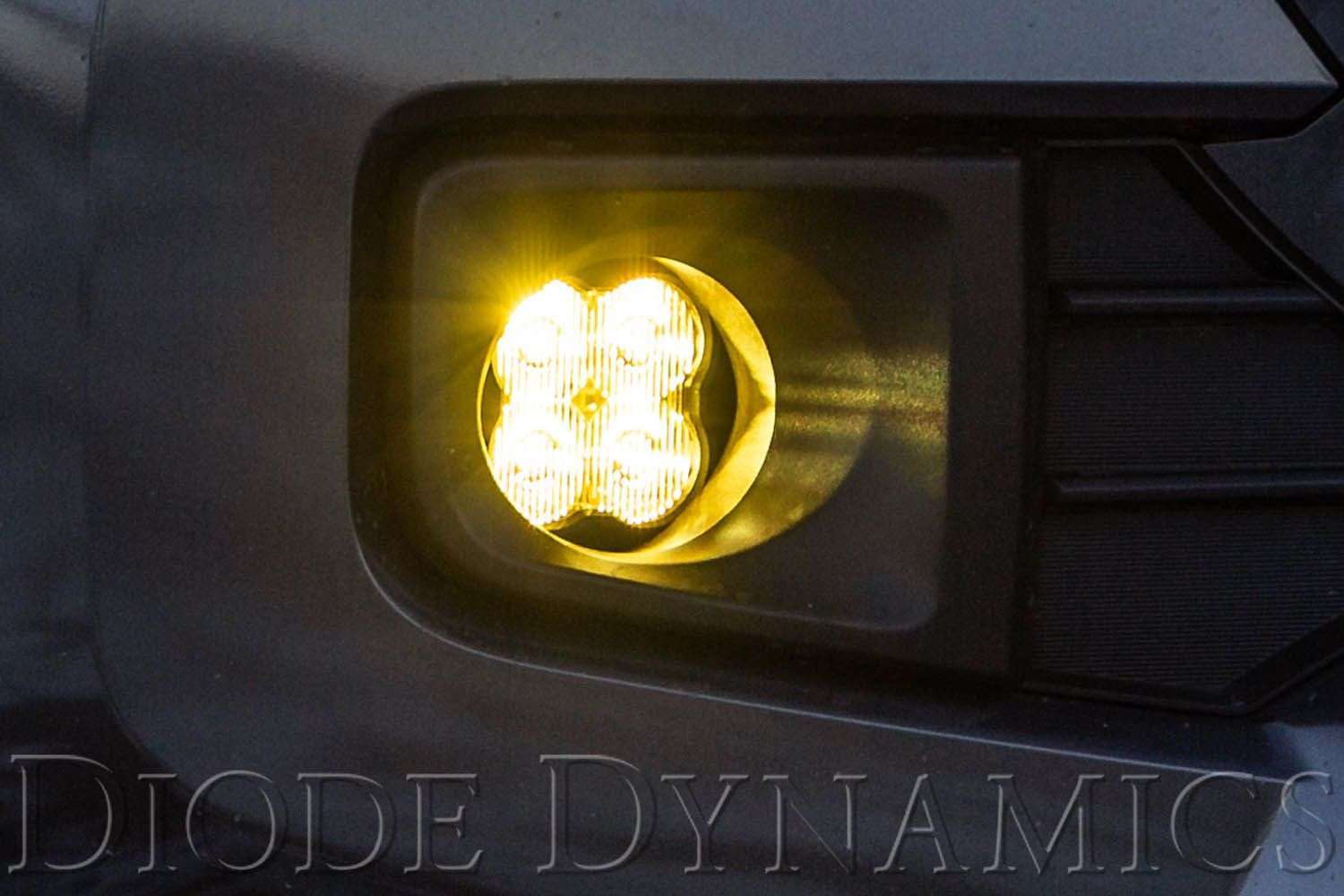

Bring next-level lighting performance to your Subaru Legacy with the SS3 LED Fog Light Kit. Designed for maximum output and durability, the SS3 uses custom-engineered TIR optics to deliver functional, road-legal beam patterns with a sleek, factory-style finish using the included angled bezel.
Simple Installation
With custom-molded brackets, the SS3 Fog Light Kit installs in minutes. Just remove your OEM fog lamp assembly, bolt in the SS3, and plug into the factory harness—no cutting or extra wiring required.
Optimized Optics
Unlike traditional reflectors and lenses that scatter light, the SS3’s Total Internal Reflection (TIR) optic captures and directs light precisely where it’s needed. This dramatically reduces glare, improves efficiency, and maximizes brightness compared to other fog lamps.
SAE-Compliant Beam Patterns
-
SAE Fog (J583): Wide 80° spread with FineLine optics, ideal for fog, rain, and snow.
-
SAE Driving (J581): 18°x8° beam pattern, great for supplementing high beams with extended visibility.
Both options are street-legal when aimed properly, delivering safe, reliable performance.
Amber Backlight Accent
Each SS3 pod includes an integrated amber backlight that fully illuminates the optic for a modern, distinctive look. The included harness allows flexible wiring to your preferred vehicle function.
Color Options
-
Cool White (6000K): Crisp, modern look to match OEM LEDs.
-
Selective Yellow (3000K): Improves contrast and visibility in poor weather.
Power Levels
-
Sport: Excellent performance and value.
-
Pro: Twice the total light output for serious power.
-
Max: The ultimate in LED technology with extreme intensity.
Proven Reliability
Built to handle the toughest conditions:
-
Operates from -40°F to 185°F
-
Tested for vibration, moisture, and corrosion resistance
-
Validated to SAE standards and proven in real-world use
What’s Included
-

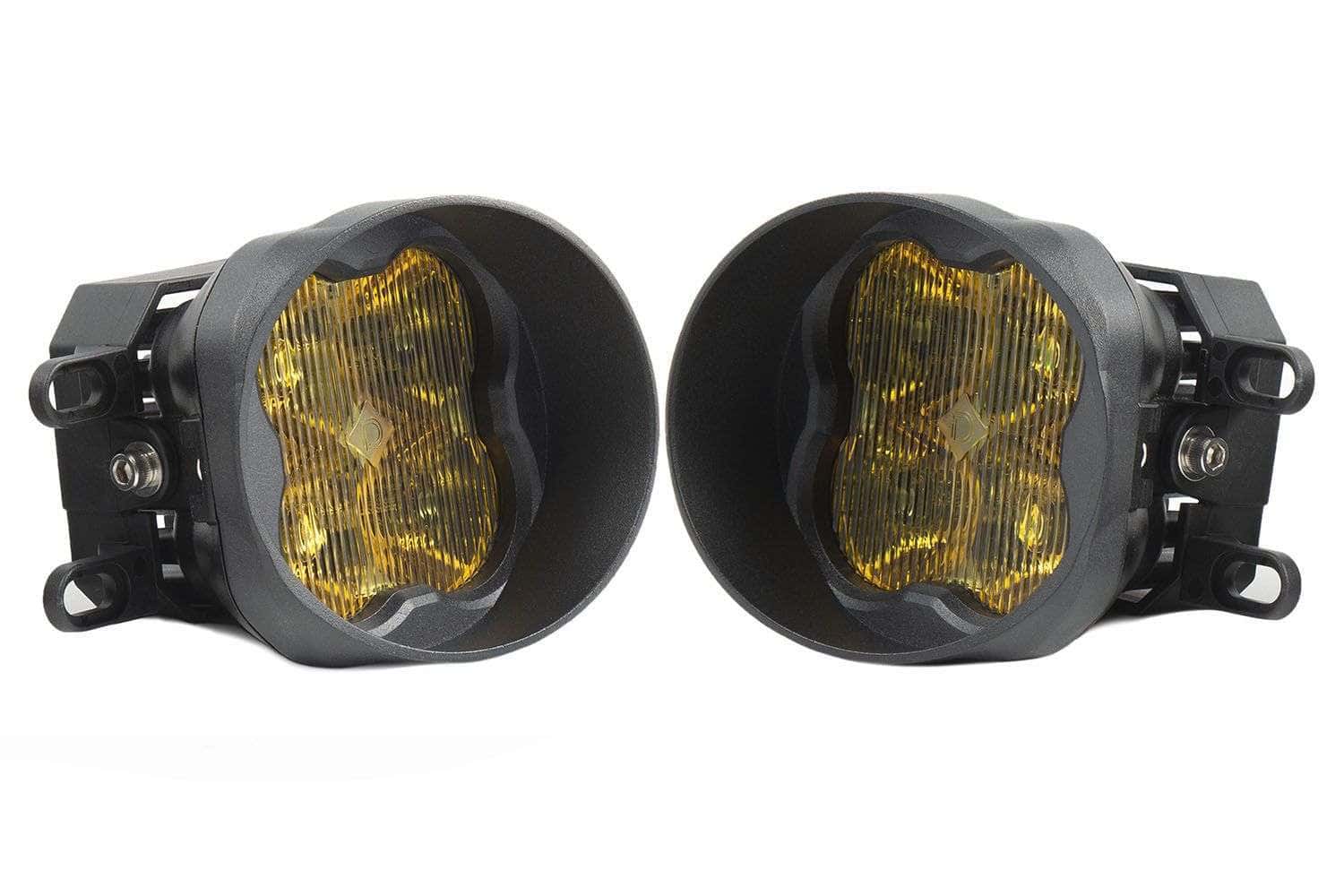

Two (2) SS3 3” Angled LED Pods
-
Two (2) Type B Brackets
-
Two (2) H11 4-Pin DT Backlight Tap Wires
-
Mounting Hardware
-
Mounting Guide
Quantity: Pair (Left and Right Side)
Warranty: Limited Lifetime Warranty
Return Policy: 30-day return, no restocking fee, 100% satisfaction guarantee
Fitment
Application: Fog Light Replacement Kit
Make: Subaru
Model: Legacy
Years: 2015, 2016, 2017
⚠️ Notes:
-
This kit is a direct replacement for OEM fog lamps. Vehicles without fog lamps may require additional hardware and wiring.
-
If your Legacy has factory LED fog lights, additional parts may be needed for proper installation.
Choose the correct Diode Dynamics configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD6996 | SS3 Sport Type B Kit ABL White SAE Fog |
| DD6997 | SS3 Sport Type B Kit ABL Yellow SAE Fog |
| DD6999 | SS3 Pro Type B Kit ABL White SAE Fog |
| DD7000 | SS3 Pro Type B Kit ABL Yellow SAE Fog |
| DD7001 | SS3 Max Type B Kit ABL White SAE Fog |
| DD7002 | SS3 Max Type B Kit ABL Yellow SAE Fog |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD6996, DD6997, DD6999, DD7000, DD7001, DD7002; each row is a real product configuration.
What is included?
Two (2) SS3 3” Angled LED Pods; Two (2) Type B brackets; Two (2) H11 4-pin DT backlight tap wires; Mounting hardware; Mounting guide
What vehicle details must match?
Match the stated model years, model and any bumper, trim or factory-equipment requirements. A kit for one bumper or fog-light opening is not automatically compatible with another configuration of the same vehicle.
Explore pod lights, vehicle-specific lighting kits and matching wiring harnesses.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
