Type B Elite fog lights: choose the right kit
Diode Dynamics Elite Series Type B LED Fog Lights (Pair) pairs purpose-built fog optics with an OE-style installation for the manufacturer-listed applications. Choose the exact mounting configuration and output option, then check the original equipment and supplied parts for that SKU.
Fitment and original equipment
- Type B is a specific mounting and connector family. Match the exact vehicle application and original fog-lamp equipment before ordering.
- These are replacements for listed original fog lamps. Vehicles without factory fog lights may need additional wiring, hardware or modification.
The vehicle application is specific to each SKU. Year, model, trim, body style and original lighting can change the required parts. Confirm the original equipment for Canadian-market and imported vehicles; currency or shipping country does not establish vehicle compatibility.
Choose your output

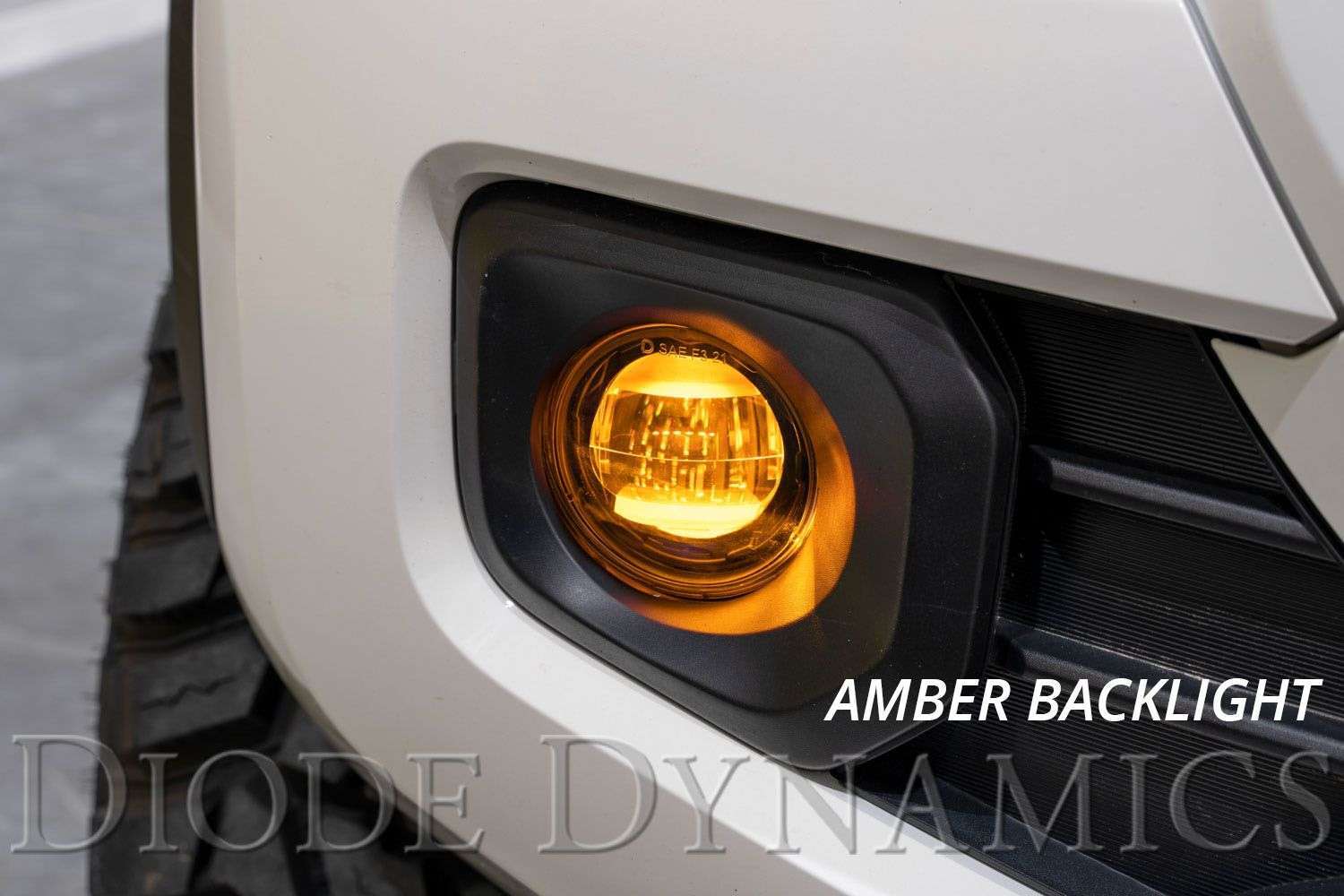

Choose a single-color 6000K white or 3000K yellow version, or the selectable dual-color version where listed. The dual-color version provides selectable white or yellow output; follow the SmartSelect operating instructions for that installation. The single-color versions do not gain that function. The integrated amber backlight is a separate accent function; follow the wiring guide for the selected kit.
| SKU | Option | Manufacturer warranty |
|---|---|---|
| DD5185P | Dual Color (6000K White / 3000K Yellow) | Limited lifetime manufacturer warranty on the Diode Dynamics lighting; separate mounting-part terms may apply. |
| DD5134P | Cool White (6000K) | 8-year limited manufacturer warranty; coverage and exclusions follow the manufacturer policy. |
| DD5137P | Yellow (3000K) | 8-year limited manufacturer warranty; coverage and exclusions follow the manufacturer policy. |

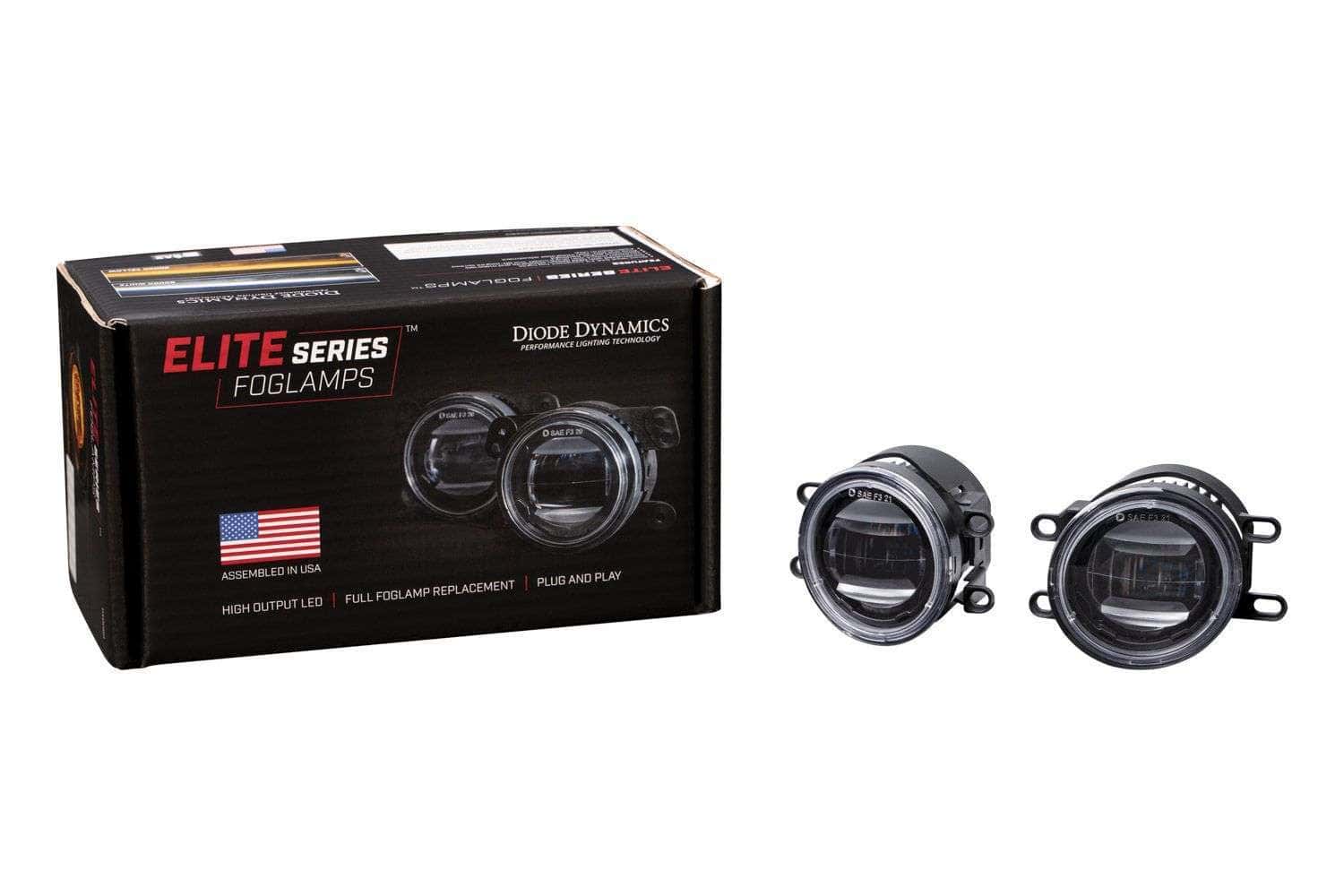

What is included?
Each listed SKU supplies a two-lamp fog-light package. Brackets, bezels and wiring differ by kit; use the exact package list below.
DD5185P — Elite Foglamp Type B Dual Color (pair)
- Two (2) Elite Series Type B fog lamps
- Two (2) H11 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
DD5134P — Elite Foglamp Type B White (pair)
- Two (2) Elite Series Type B fog lamps
- Two (2) H11 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
DD5137P — Elite Foglamp Type B Yellow (pair)
- Two (2) Elite Series Type B fog lamps
- Two (2) H11 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
Installation and aiming
Compare the original mounting points and connectors before removal. Secure the supplied wiring, connect the backlight only as directed, and aim both fog lamps after installation. A fog-light pattern supplements the vehicle’s headlights; it does not replace them. Follow applicable lighting rules and the exact manufacturer installation instructions.
Questions before ordering
Does one SKU include one lamp or two?
One selected SKU is a pair of fog lamps with the listed kit-specific parts. Do not order two identical kits merely to obtain a left/right pair.
Can one lamp switch between white and yellow?
Only the option explicitly labelled Dual Color has selectable white/yellow output. The Cool White and Yellow options are separate single-color products.
Will this fit any vehicle with the same connector?
No. The mounting type, lamp opening, trim and original lighting equipment also matter. Check the exact SKU application and kit notes.
Can I use the replacement kit on a vehicle without fog lights?
Do not assume a direct installation. Use the dedicated add-on kit when one is listed for your vehicle, or confirm the additional wiring, controls and mounting parts first.
Does changing the currency confirm Canadian vehicle fitment?
No. Prices and vehicle-market fitment are separate. Confirm the original equipment if the manufacturer application only establishes U.S.-market fitment.
Browse automotive fog lights, compare automotive headlights, or ask BTS with the vehicle year, model, trim and a photo of its original lamps. See the manufacturer warranty policy for terms and exclusions.
