Stage Series · Type B · Pair
Toyota SS3 fog lights, your output level
A pair of compact SS3 pods, angled Type B brackets and the wiring adapters needed for the listed factory fog-light applications. Choose Sport, Pro or Max, then White or Yellow.
Six fixed-colour configurations
| Power level | White / Yellow SKUs | Main beam | Manufacturer power |
|---|---|---|---|
| Sport | DD6996 / DD6997 | White / Yellow | 14.5 W per pod |
| Pro | DD6999 / DD7000 | White / Yellow | 36 W per pod |
| Max | DD7001 / DD7002 | White / Yellow | 38.5 W per pod |
These six choices have a fixed-colour SAE Fog main beam and a separate amber backlight. The power figures are per individual pod, not the whole pair. Sport, Pro and Max can share representative supplier photos; the selected SKU establishes the internal specification.


Want selectable White and Yellow in one pair? See the separate DD8935 SS3 Dual Color Type B kit.
Match the Toyota and its original fog lamps
2016–2023 Tacoma: factory fog-light replacement, excluding TRD Pro. Check the original lamp, mounting points and connector before ordering. A Tacoma without factory fog lights needs a separate wiring and hardware assessment.
Type B is used by several vehicle applications. A matching connector alone does not establish fitment. For another Toyota, Lexus or Subaru application, confirm the exact year, trim and original fog equipment against the manufacturer’s application list.
Other manufacturer-listed Toyota applications
Factory fog equipment and model-specific exclusions still apply. The current Type B list also names:
- Toyota 4Runner 2014-2023
- Toyota Avalon 2007-2012
- Toyota Camry 2007-2015
- Toyota Corolla 2009-2016
- Toyota Highlander 2008-2010
- Toyota Highlander 2014-2023
- Toyota Matrix 2009-2013
- Toyota Prius 2010-2011
- Toyota Prius 2015-2016
- Toyota Prius C 2012-2016
- Toyota Prius V 2012-2016
- Toyota RAV4 2006-2012
- Toyota RAV4 2016-2023
- Toyota Solara 2007-2008
- Toyota Tundra 2014-2021
- Toyota Venza 2009-2014
- Toyota Yaris 2007-2016
For other model years, trims or factory lamp designs, confirm the exact application before ordering.
For a different model or generation, check the manufacturer’s Type B application list; do not transfer the Tacoma TRD Pro exclusion to every Toyota model.
A complete two-pod fog-light kit

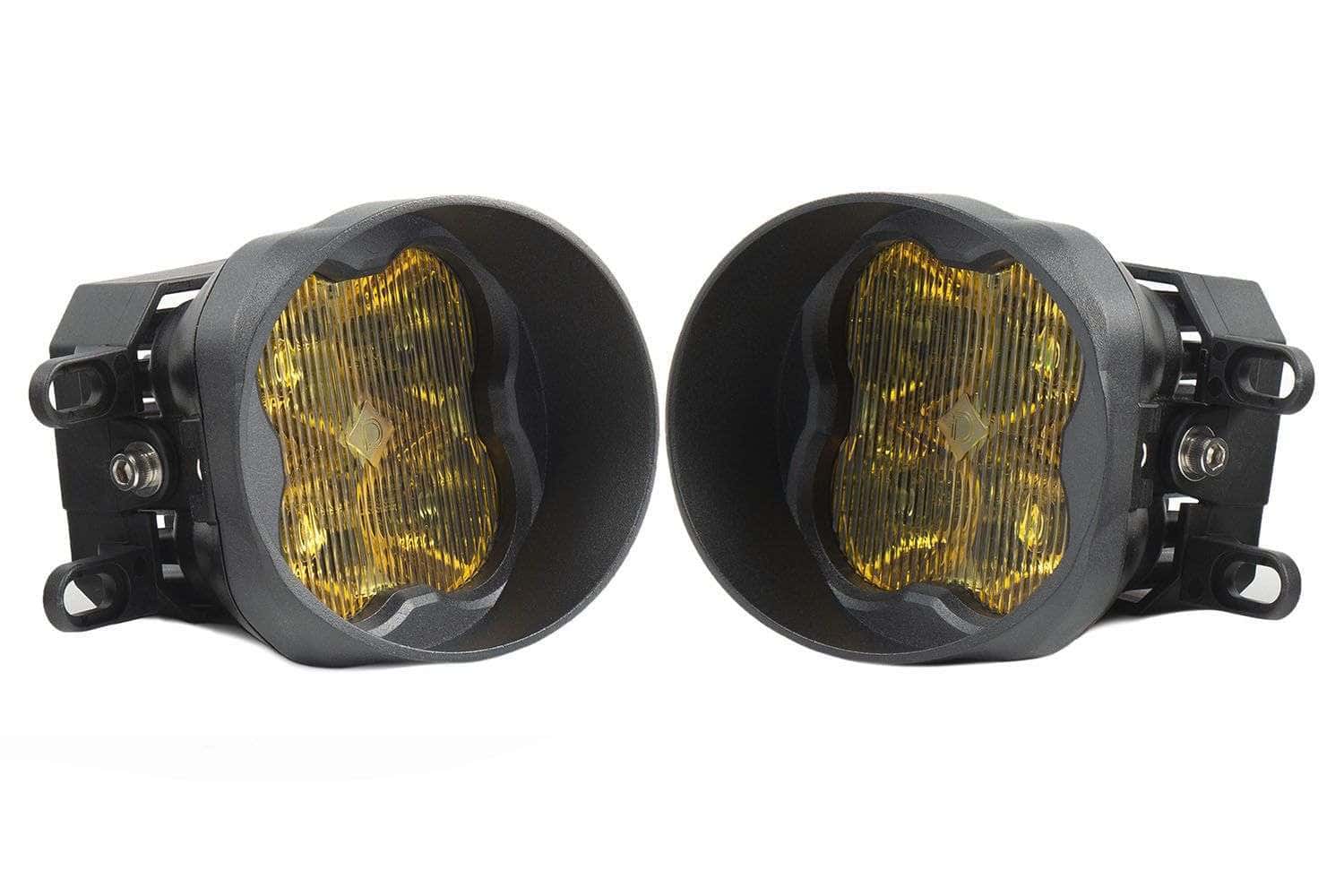

- Two SS3 3-inch angled LED pods.
- Two Type B brackets and mounting hardware.
- Two H11 4-pin DT backlight tap wires and the mounting guide.

Set the brackets, then set the beam
The bracket holds the pod at the original fog-light mounting points. Install the correct side, route the adapters clear of heat and moving parts, then set both cutoffs four inches below lamp-centre height at 25 feet.
Optional Tacoma backlight harness: DD4134 can provide an inline connection on compatible 2016–2023 Tacoma headlight connectors. It does not fit factory OEM LED headlights, and some halogen headlight assemblies also lack the required connector. Compare the original connector before adding it. The main fog beam and the amber accent backlight are separate circuits.
Open the illustrated SS3 Type B installation guide
General optics explanation; the vehicle application and selected SKU still govern this kit.
Manufacturer coverage
Limited lifetime manufacturer coverage applies to eligible Diode Dynamics lighting purchases from April 15, 2025; commercial, industrial and fleet use is limited to eight years. Bundled wiring and accessories follow their own terms. After the first three years, inspection and repair or replacement are at the manufacturer’s discretion. Keep proof of purchase and obtain an RMA before a return. See the manufacturer warranty policy.
Choose the function you need
Are Driving and Fog interchangeable on this listing?
No. These six listed SKUs are SAE Fog configurations. Do not use a Driving-beam description to identify them.
Does Pro switch between White and Yellow?
No. Sport, Pro and Max are fixed-colour choices here. DD8935 is the separate Dual Color kit.
Can I fit this to a Tacoma TRD Pro?
The current 2016–2023 Tacoma application excludes TRD Pro. Confirm a different manufacturer-listed kit before ordering.
Can the backlight connect straight to the battery?
No. The manufacturer specifies a fused 12V source for the optional backlight. Follow the wiring guide.
