DD8935 · SS3 Dual Color · Pair
White and Yellow from the same fog-light pair
Select the main-beam colour through the factory fog-light switch. This is a dedicated Dual Color SS3 configuration with one power level, supplied with Type B brackets and H11 adapters.
One kit, two selectable main-beam colours

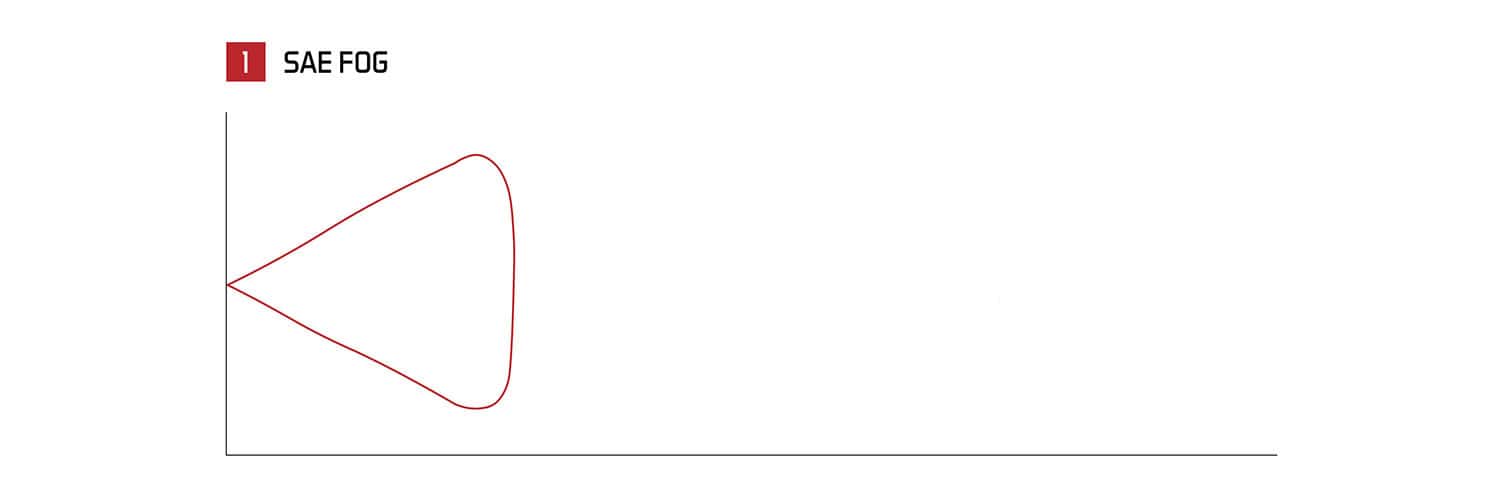

DD8935 supplies selectable 6000K White and 3000K Yellow SAE Fog output using SmartSelect. It is a single complete configuration, not a Sport/Pro/Max option. The manufacturer lists 20 W per pod for this Dual Color version.
The amber backlight is a separate accent. Choosing the main-beam colour does not turn the backlight into an additional fog beam.

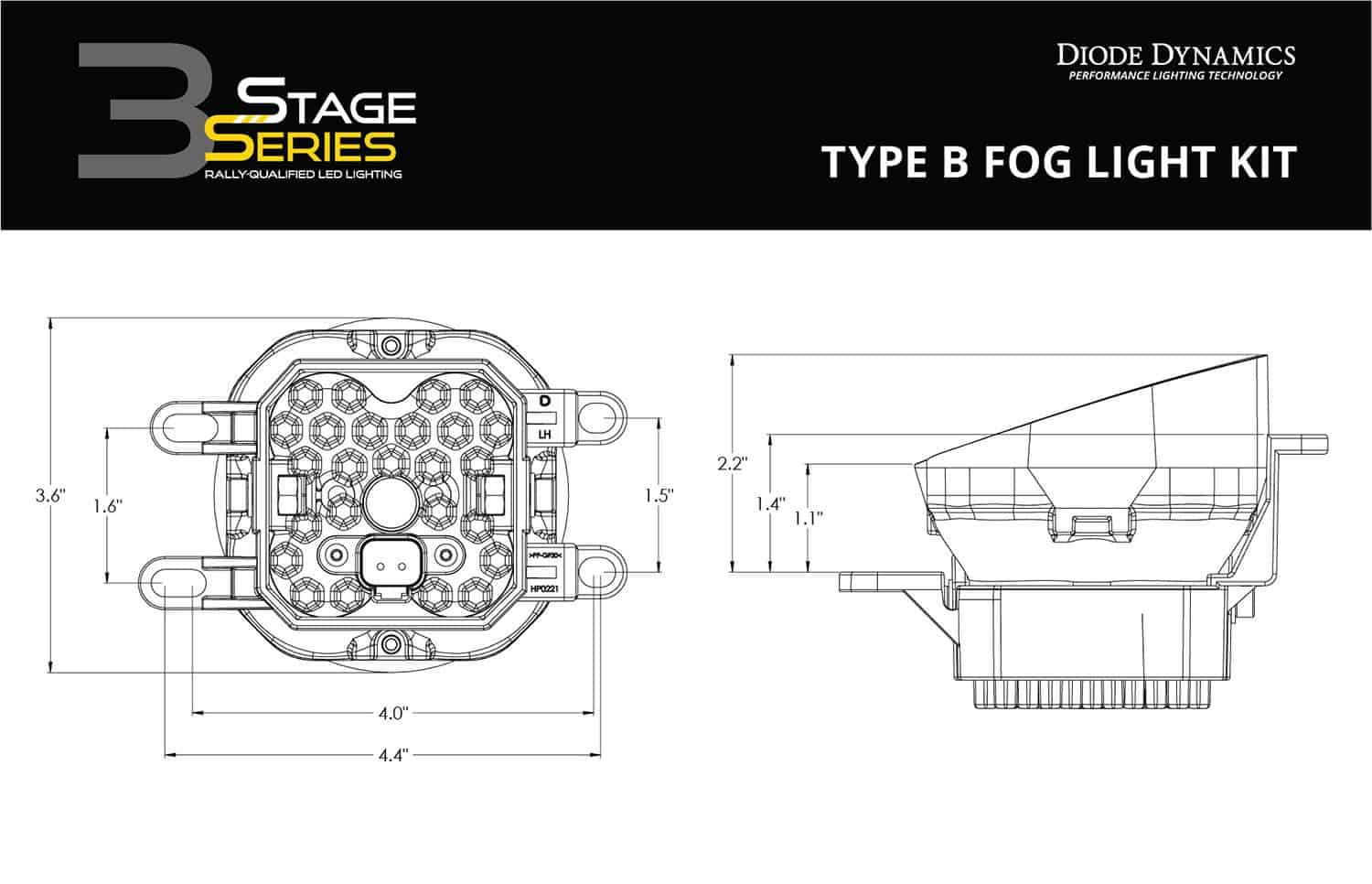

Confirm Type B mounting and original equipment
2016–2023 Tacoma: factory fog-light replacement, excluding TRD Pro. Check the original lamp, mounting points and connector before ordering. A Tacoma without factory fog lights needs a separate wiring and hardware assessment.
Type B is used by several vehicle applications. A matching connector alone does not establish fitment. For another Toyota, Lexus or Subaru application, confirm the exact year, trim and original fog equipment against the manufacturer’s application list.
Other manufacturer-listed Toyota applications
Factory fog equipment and model-specific exclusions still apply. The current Type B list also names:
- Toyota 4Runner 2014-2023
- Toyota Avalon 2007-2012
- Toyota Camry 2007-2015
- Toyota Corolla 2009-2016
- Toyota Highlander 2008-2010
- Toyota Highlander 2014-2023
- Toyota Matrix 2009-2013
- Toyota Prius 2010-2011
- Toyota Prius 2015-2016
- Toyota Prius C 2012-2016
- Toyota Prius V 2012-2016
- Toyota RAV4 2006-2012
- Toyota RAV4 2016-2023
- Toyota Solara 2007-2008
- Toyota Tundra 2014-2021
- Toyota Venza 2009-2014
- Toyota Yaris 2007-2016
For other model years, trims or factory lamp designs, confirm the exact application before ordering.
Everything in the fog-light package
- Two SS3 angled Dual Color pods.
- Two Type B brackets and mounting hardware.
- Two H11 4-pin DT backlight tap wires.
- Mounting guide.
Install once, then set your colour
Install and aim the Type B pair before programming. Use the original fog switch for SmartSelect, and let the saved colour remain on for at least five seconds.
Optional Tacoma backlight harness: DD4134 can provide an inline connection on compatible 2016–2023 Tacoma headlight connectors. It does not fit factory OEM LED headlights, and some halogen headlight assemblies also lack the required connector. Compare the original connector before adding it. The main fog beam and the amber accent backlight are separate circuits.
Manufacturer aiming demonstration; this is not a vehicle-specific disassembly video.
Manufacturer coverage
Limited lifetime manufacturer coverage applies to eligible Diode Dynamics lighting purchases from April 15, 2025; commercial, industrial and fleet use is limited to eight years. Bundled wiring and accessories follow their own terms. After the first three years, inspection and repair or replacement are at the manufacturer’s discretion. Keep proof of purchase and obtain an RMA before a return. See the manufacturer warranty policy.
Dual Color questions
Does this kit include a separate colour switch?
SmartSelect uses the factory fog-light control. Use the timing sequence in the programming guide.
Is Dual Color the same as Max?
No. DD8935 has its own Dual Color configuration and specification. It is not a Max kit with an added feature.
Can I order White and Yellow separately?
This SKU includes both selectable colours. The Toyota SS3 Sport, Pro and Max page offers separate fixed-colour pairs.
