Two pods. A clean factory-bumper fit.
2021–2023 Ford F-150 · SS5 bumper kit

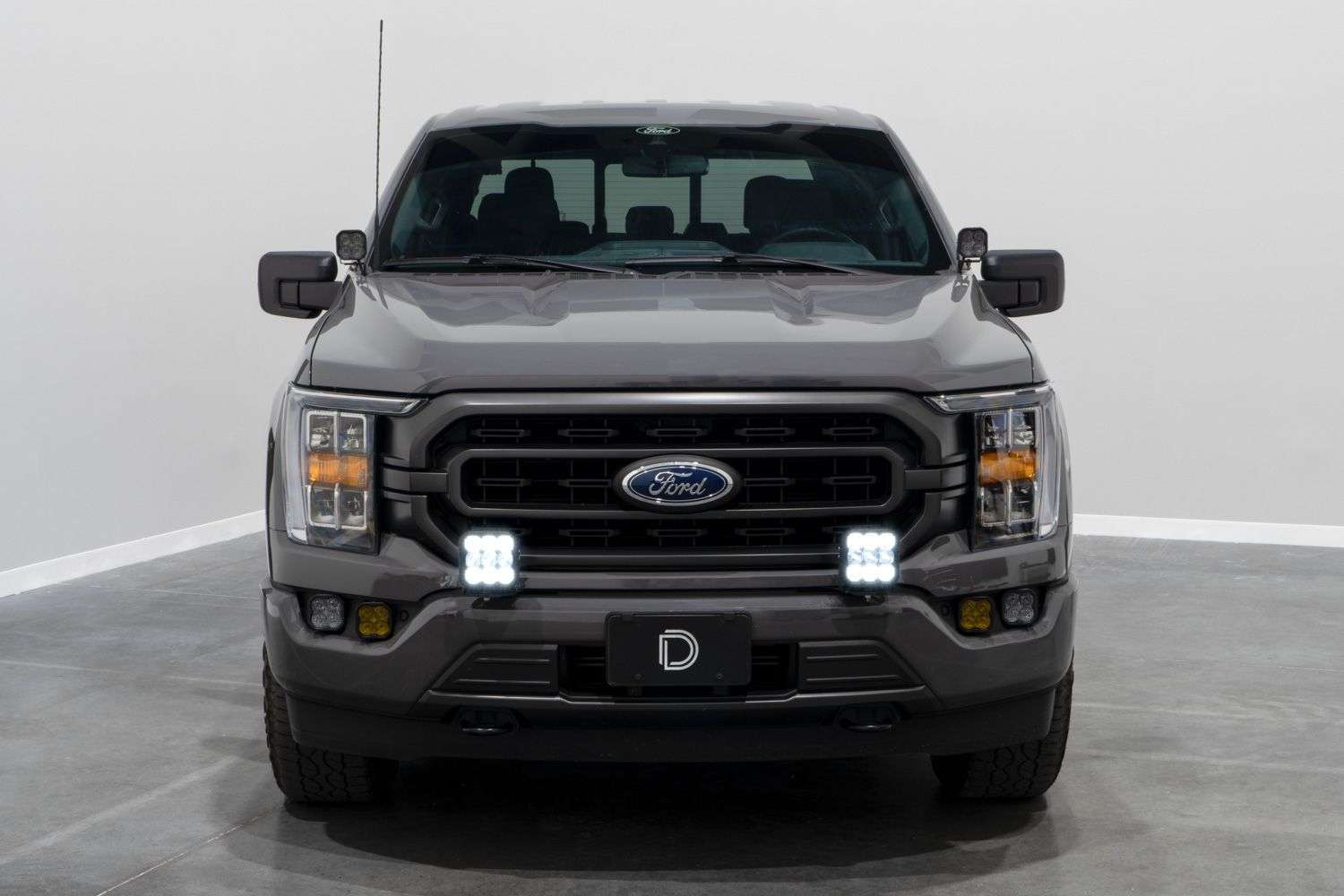

Add a pair of independently mounted SS5 pods in front of the original bumper. Vehicle-specific brackets use the factory mounting points, while the complete kits bring the lights, mounting hardware and dual-output wiring together.

Choose the light you want to drive with
Sport · 40W per pod
A compact two-pod setup with the same application-specific mounting layout as Pro. Available in White or Yellow, with Combo or Driving optics.
Pro · 90W per pod
Higher-output SS5 pods for demanding off-road use. Choose the same four colour-and-beam combinations, with the supplied dual-output harness.
White · 6000K
Cool-white main lighting. The separate accent backlight can be set to eight colours.
Selective Yellow · 3000K
Yellow main lighting through a yellow lens. The separate backlight is Amber only.
Already own suitable SS5 pods? Choose Bracket Only with No lights (N/A) for DD7325P. It contains the vehicle brackets only; lamps and wiring are not included.
White kit photographs show the Combo optic as a representative view. Your selected beam pattern and SKU determine the supplied optics; compare the beam images below.
Wider coverage or a focused beam?
Combo
Driving optics in the centre reach downrange, while flood optics above and below fill more of the surrounding area. A versatile choice for trails and mixed off-road use.
Driving
A more focused pattern for downrange visibility with less foreground spill. These auxiliary pods are for off-road use; the Driving version is not an SAE auxiliary high beam.

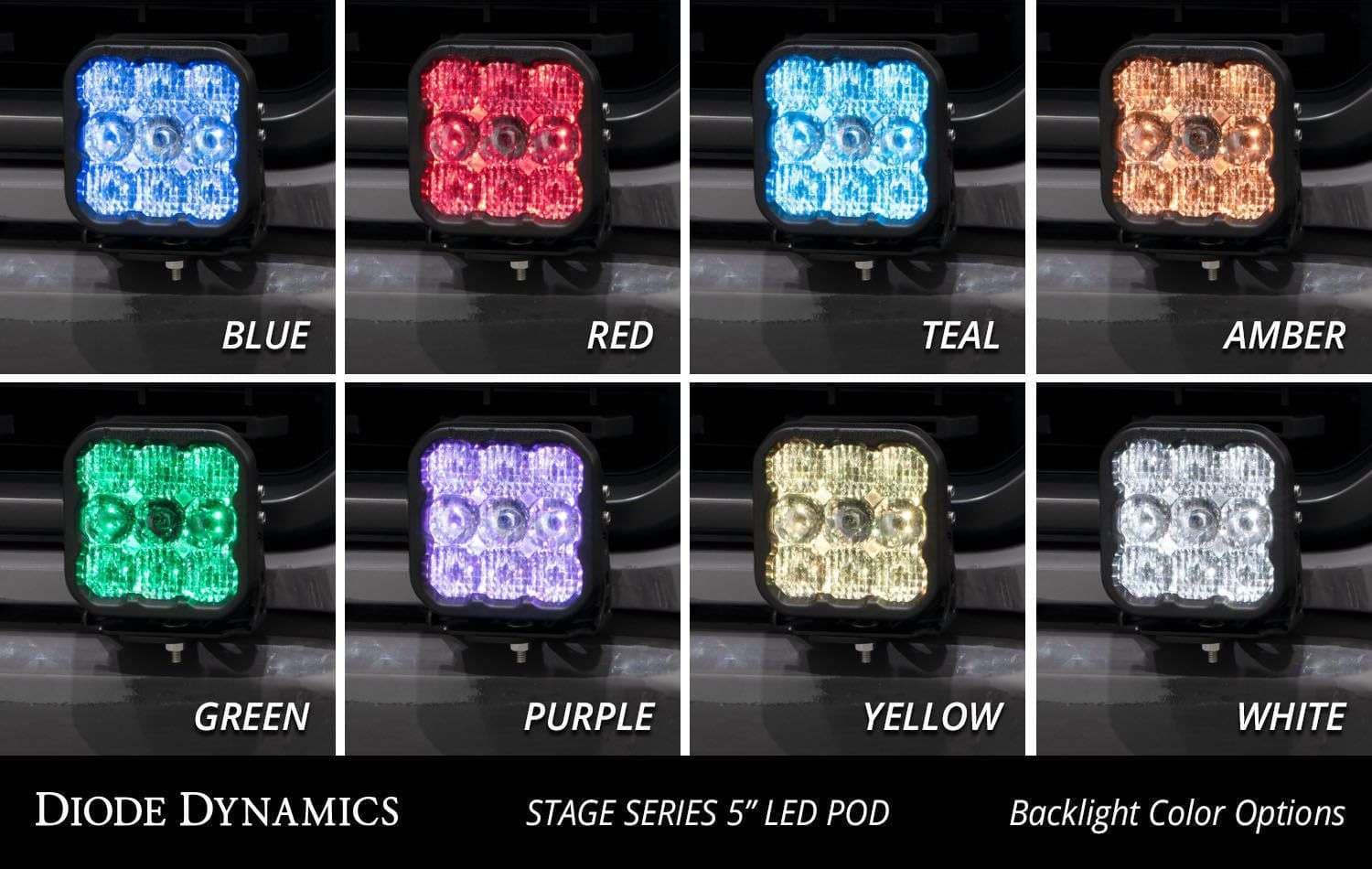

Accent lighting with the main beam off
White-lens SS5 pods offer White, Red, Blue, Green, Purple, Yellow, Amber and Teal backlights. A timed power-toggle sequence saves your choice without a separate colour controller. Yellow-lens pods use an Amber-only backlight.

Designed around the original F-150 bumper
- Vehicle
- 2021, 2022 and 2023 Ford F-150 with the original bumper and mounting points.
- Installation
- Application-specific steel brackets bolt to existing mounting points. No cutting or drilling is required for the supported factory-bumper installation.
- 2024 and newer
- This kit is not confirmed for the redesigned 2024+ F-150.
- Modified bumpers or Raptor
- Confirm the exact bumper application with BTS before ordering; this page does not establish those configurations.
- Use
- Off-road auxiliary lighting. Keep the main beams off on public roads.
Plan around existing accessories, airflow and the view of any front camera. This is a two-pod kit, separate from the five-pod CrossLink grille lightbar.
What arrives in a complete kit
- Two SS5 pods in your selected power, colour and optic

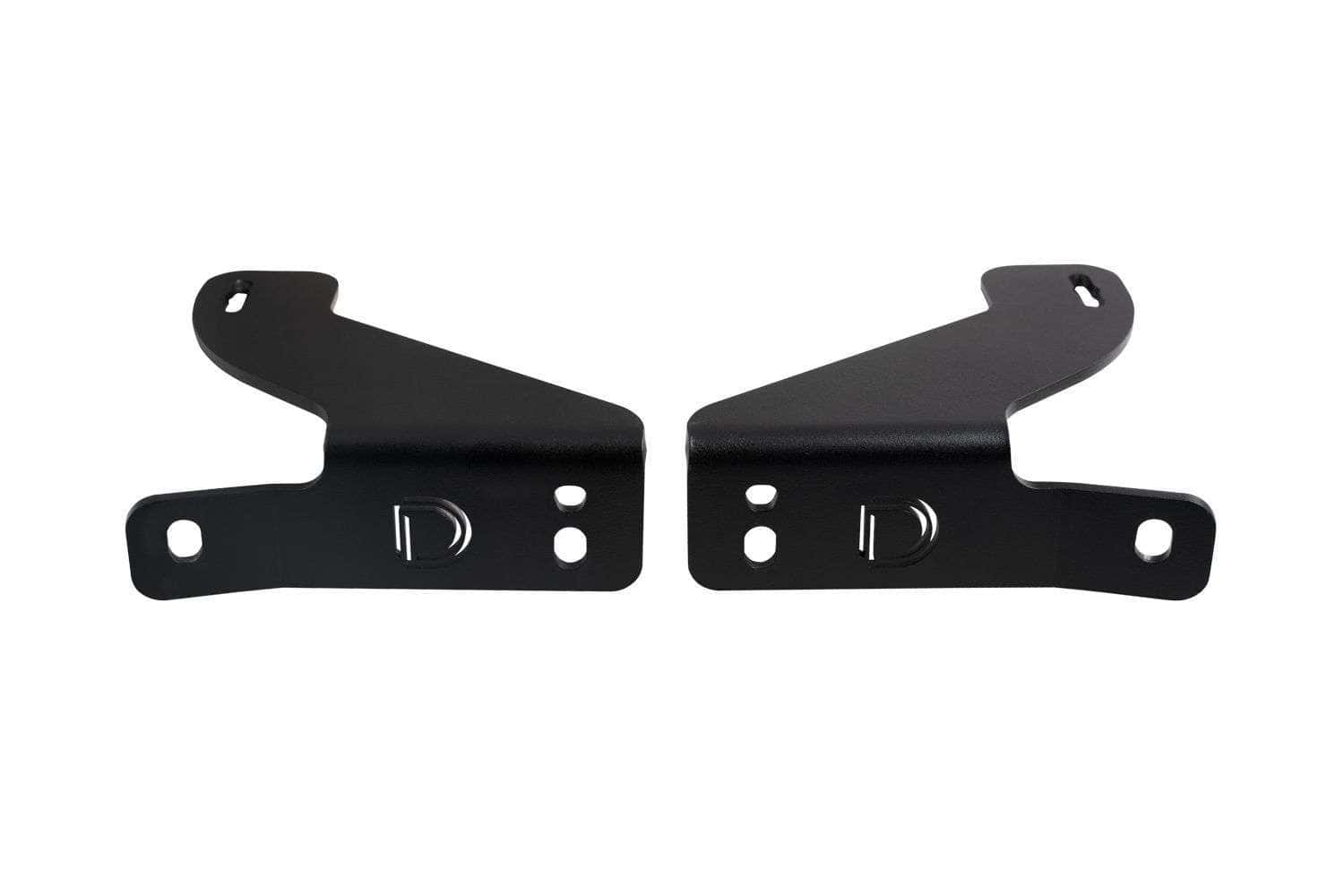

- Two F-150-specific heavy-duty steel base brackets
- Pod mounting brackets and hardware
- One DD4093 heavy-duty dual-output 4-pin wiring harness
- Connections for a toggle switch or factory auxiliary control
DD7325P Bracket Only supplies the vehicle brackets, without lamps or a harness.

See every mounting step before you start
Allow approximately 1–2 hours. The job involves removing the upper bumper valance and grille, fitting the base brackets, routing the harness, then mounting and aiming the two pods.
BTS illustrated installation guide
Removal, two-pod mounting and wiring
Follow the original marked photos and diagrams, including the bumper clips, grille bolts, pod brackets and separate backlight circuit.
Diode Dynamics demonstrates vehicle access and mounting for its F-150 SS5 kits. Follow the two-pod route in this guide; the five-pod CrossLink assembly is a separate option.
Match your selected configuration
| SKU | Power | Colour / beam | Package |
|---|---|---|---|
| DD7326 | Sport | White Combo | Two pods + mounts + harness |
| DD7327 | Sport | Yellow Combo | Two pods + mounts + harness |
| DD7328 | Sport | White Driving | Two pods + mounts + harness |
| DD7329 | Sport | Yellow Driving | Two pods + mounts + harness |
| DD7330 | Pro | White Combo | Two pods + mounts + harness |
| DD7331 | Pro | Yellow Combo | Two pods + mounts + harness |
| DD7332 | Pro | White Driving | Two pods + mounts + harness |
| DD7333 | Pro | Yellow Driving | Two pods + mounts + harness |
| DD7325P | Bracket Only | No lights | Vehicle brackets only |
Built for exposed mounting
- Housing / lens
- Aluminum housing, polycarbonate lens and rubber gasket
- Protection
- IP69K
- Voltage
- 9–16V DC
- Cooling
- Passive pin-fin heatsink
- Assembly
- Designed, engineered and assembled in the USA
Eligible SS5 pods and off-road brackets carry a limited lifetime manufacturer warranty. Wiring and accessories have separate three-year coverage.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
A few useful answers
Do all choices include lights?
The eight Sport/Pro choices are complete two-pod kits. DD7325P is the bracket-only option and includes no lights or harness.
Can I use factory auxiliary switches?
Yes. The guide covers a main-beam control connection and a separate backlight circuit. If your truck has no auxiliary switch bank, use the supplied toggle-switch adapter.
Can Yellow pods change backlight colour?
No. Yellow-lens versions have an Amber-only backlight. The eight-colour setting applies to White-lens pods.
Can I change lenses later?
Replacement SS5 lenses can change colour or optic. Lenses and snap-on covers are optional accessories, sold separately.
Is this a replacement for the factory fog lights?
No. These pods mount on the bumper as independent off-road auxiliary lights. The SS3 fog-pocket kit and Elite fog lights are separate upgrades.
