Features
-
Direct replacement for Subaru WRX fog lamps
-
SAE-compliant road-legal output
-
Custom bracket with bezel for a factory-style appearance
-
Plug-and-play installation, no modifications required
-
Advanced TIR optics for maximum efficiency and focus
-
Durable powder-coated aluminum die-cast housing
-
Engineered and Assembled in the USA
Plug-and-Play Installation
Installation is quick and simple. Using custom-molded brackets, the SS3 kit bolts directly in place of your factory fog light assembly. Included wire adapters connect seamlessly to your OEM bulb sockets — no cutting or splicing required.

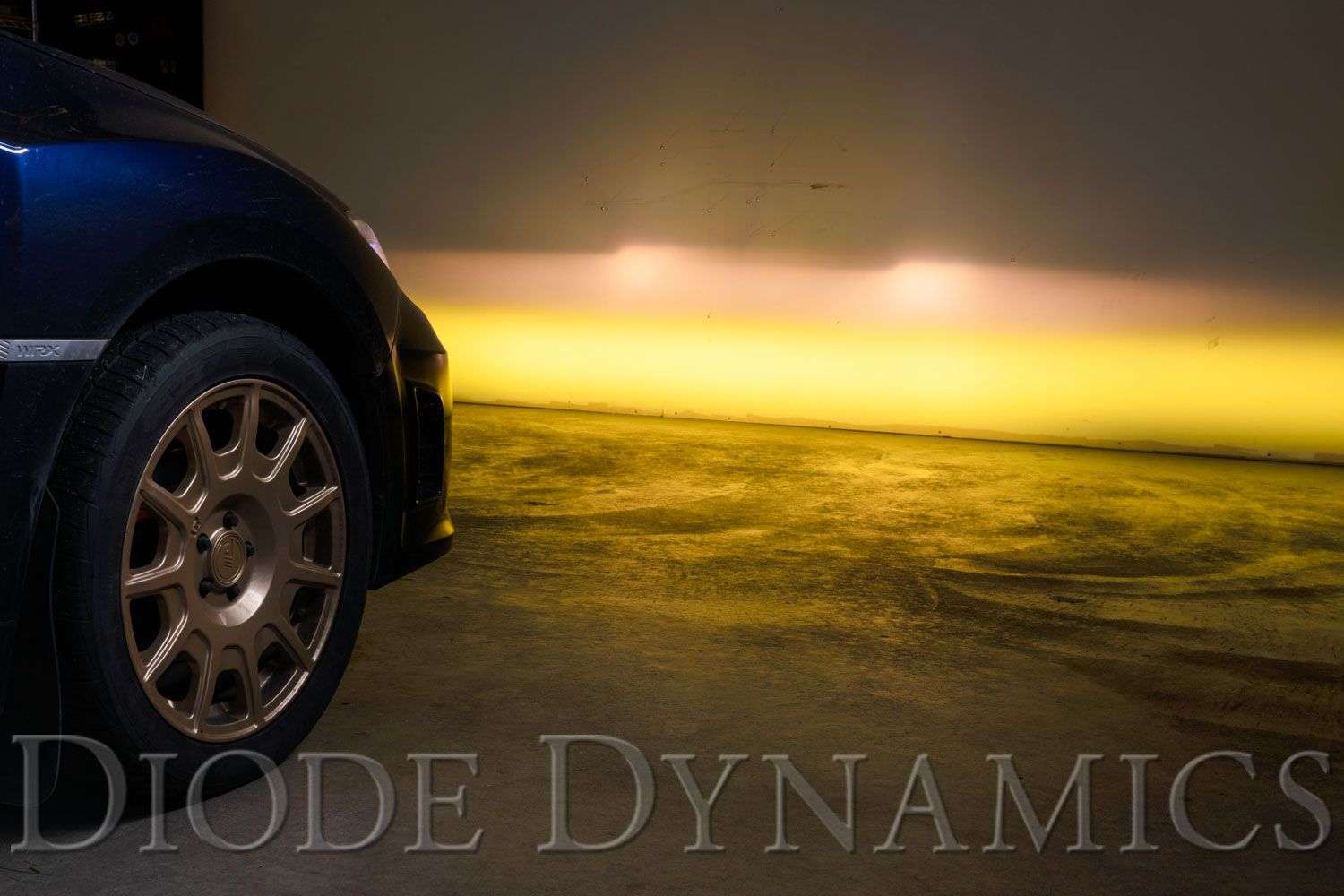

Focused, Efficient Output
Unlike traditional reflectors and lenses that scatter light and create glare, the SS3’s TIR optics collect and project every bit of light where it’s needed. This results in sharper focus, greater efficiency, and more usable light output. By combining the optic and outer lens into a single unit, light loss is minimized — delivering higher intensity than competing fog light systems.
SAE-Compliant Beam Patterns
Engineered using optical simulation modeling, the SS3 kit provides highly functional, road-legal beam patterns:
-
SAE Fog (FineLine Optic): Extremely wide 80° beam spread with high-intensity output — the perfect upgrade for factory fog lamps. Available in Cool White (6000K) for a crisp OEM look, or Selective Yellow (3000K) for better visibility in rain, fog, and snow.
-
SAE Driving: Designed to supplement high beams with an 18×8° spread, delivering long-range visibility at high speeds.
When properly aimed, the SS3 meets SAE J583 (Fog) and SAE J581 (Driving/Auxiliary High Beam) standards for on-road use.
Backlight Functionality
Each SS3 pod features a brilliant amber backlight, fully illuminating the optic for a unique accent light when desired. The included harness makes it easy to wire into your preferred vehicle function.
Power Levels
Choose the SS3 kit that best suits your needs:
-
Sport: High-intensity LEDs, best value option
-
Pro: Double the output power of Sport
-
Max: Cutting-edge automotive emitters delivering extreme intensity and unmatched performance
Proven Reliability
SS3 pods are tested to SAE standards for durability against:
-
Extreme temperatures (-40° to 185°F)
-
Vibration
-
Moisture intrusion
-
Corrosion
Backed by racers and enthusiasts, the SS3 is built for reliable performance on and off the road.
What’s Included
-
Two (2) SS3 3” Standard LED Pods
-
Two (2) 9006 DT Adapters
-
Two (2) Type X Brackets with Bezels
-
Mounting Hardware
-
Mounting Guide
Quantity: Pair (Left & Right Side)
Warranty: Lifetime Warranty
Return Policy: 30-Day Returns, No Restocking Fee, 100% Satisfaction Guarantee
Fitment
-
Application: Fog Light
-
Make: Subaru
-
Model: WRX/STi
-
Years: 2011, 2012, 2013, 2014
-
Notes: Fits both sedan and wagon models. Direct OEM replacement — additional hardware may be required if your vehicle did not originally come equipped with fog lamps.
Choose the correct Diode Dynamics configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD7130 | SS3 Sport Type X Kit ABL White SAE Fog |
| DD7131 | SS3 Sport Type X Kit ABL Yellow SAE Fog |
| DD7133 | SS3 Pro Type X Kit ABL White SAE Fog |
| DD7134 | SS3 Pro Type X Kit ABL Yellow SAE Fog |
| DD7135 | SS3 Max Type X Kit ABL White SAE Fog |
| DD7136 | SS3 Max Type X Kit ABL Yellow SAE Fog |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD7130, DD7131, DD7133, DD7134, DD7135, DD7136; each row is a real product configuration.
What is included?
Two (2) SS3 3” Standard LED Pods; Two (2) Type X brackets; Two (2) 9006 DT 4-Pin backlight tap wire kit; Mounting hardware; Mounting guide
What vehicle details must match?
Match the stated model years, model and any bumper, trim or factory-equipment requirements. A kit for one bumper or fog-light opening is not automatically compatible with another configuration of the same vehicle.
Explore pod lights, vehicle-specific lighting kits and matching wiring harnesses.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
