United Pacific · 31396 / 31397
Choose the low or high beam
A 4×6 LED lamp with a die-cast aluminium housing and polycarbonate lens, available in separate low- and high-beam versions. Choose the beam your truck needs; each option is one lamp.
Separate beam choices
The low-beam and high-beam options are different lamps. One selection does not include both.
Sold individually
Order the quantity needed for the matching positions on your truck.
12–24V operation
Match the beam circuit, connections, retaining hardware and rear clearance.

Selection & fitment
Match the beam position

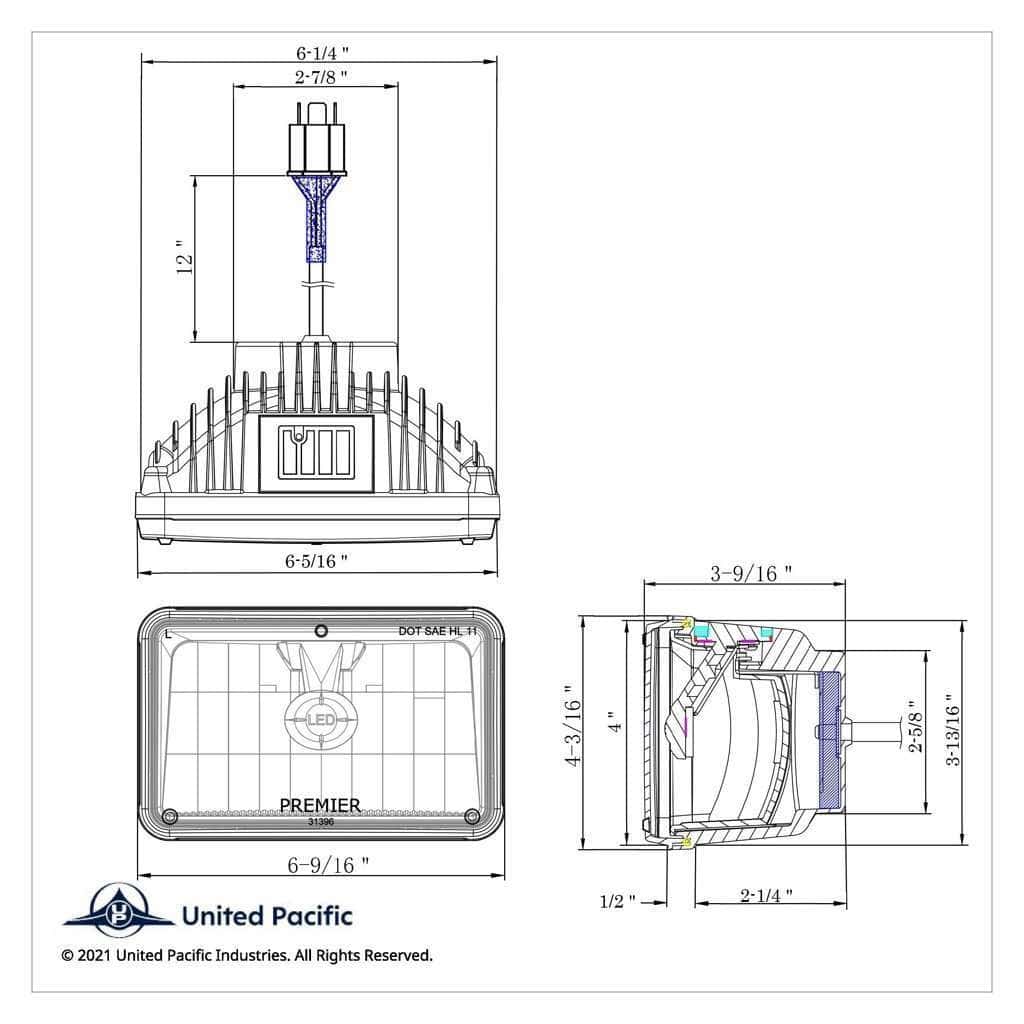

Compare the original lamp number and beam function, mounting bucket, retaining hardware, rear clearance and connector functions. A 4×6 size match alone does not establish fit. Keep the vehicle’s required lighting arrangement and check headlight aim after installation.
| Low-beam option | UP 31396 · 400 lumens · 0.80A at 12.8V |
|---|---|
| High-beam option | UP 31397 · 550 lumens · 1.10A at 12.8V |
| Operating range | 12–24V |
| Package | One selected-beam lamp |
| Construction | Die-cast aluminium housing · polycarbonate lens |
Installation
Check the circuit and final aim
Match the original connector functions and beam circuit, secure the lamp in the correct retaining hardware and check final headlight aim. United Pacific notes that a 34205 load resistor may be required. It is a separate part, not an included component of this lamp offer.
United Pacific lists DOT/SAE and FMVSS108 for these lamps. Use the correct application and installed lighting arrangement.
Product questions
Before you order
Does one option include low and high beam?
No. Select the separate low- or high-beam lamp required.
Is it sold as a pair?
No. Each selected option is one lamp.
Will every 4×6 mounting bucket work?
Confirm the retaining arrangement, rear clearance and electrical connections; the nominal size alone does not establish fit.
Warranty & alternatives
Three-year manufacturer warranty
United Pacific lists a three-year warranty for these lamps. Keep your purchase information and contact BTS Lighting for help with a product issue.
