FORM LIGHTING · FL0015
Three projectors. One striking Ram upgrade.
Bring full LED function and a crisp white daytime signature to the 2019–2024 Ram 1500. The black housings combine three bi-LED projectors, sequential amber signals and a two-stage welcome sequence.
- Left + rightComplete headlight pair
- White DRLIntegrated daytime signature
- 2-year warrantyLimited manufacturer coverage

A COMPLETE LIGHTING UPGRADE
Output, style and everyday function
Integrated LED optics
All three projectors are bi-LED units, providing both low and high beams with a sharp, aimable cutoff.
Daytime signature
White daytime lights and a two-stage chasing welcome sequence create a clean modern outline.
Amber turn signals
Amber LEDs in the lower section sequence from inside to outside when the turn signal is activated.

ORIGINAL MANUFACTURER PHOTOGRAPHY
See the beam comparison
Unchanged FORM photographs show the pictured lamps in the manufacturer’s test setup. These are not independent BTS measurements or a guarantee of identical results on every vehicle.


Final aiming, vehicle load and suspension height affect the beam on your truck.
THE DAYTIME SIGNATURE
A closer look at the lighting functions
White daytime lights and a two-stage chasing welcome sequence create a clean modern outline.

MATCH THE TRUCK AND ORIGINAL LIGHTS
Exact fitment before you order
| Check | This application |
|---|---|
| Vehicle | 2019–2024 Ram 1500, newer body style |
| Original lighting | Supported factory halogen or LED models; use the supplied matching adapters |
| Excluded trims | Big Horn, Longhorn, Limited and TRX |
| Premium Lighting Group | Disable vehicle DRLs in the media-screen settings for proper low-beam function |
| Classic body | Choose the separate FL0016 application |
| Exact part | FL0015 |
| Package | Complete left and right headlight assemblies |
THE STANDARD PACKAGE
What comes with the pair

- Left and right headlamp assemblies
- DRL harness
- Two DRL flicker adapters
- Two LED-headlamp adapters
Match the adapters to the original lamp connectors. The guide distinguishes the purple lead used with factory LEDs from the red DRL connections used on halogen trucks.
Other lighting, bodywork and accessories in vehicle photographs are separate products.
PLAN ACCESS, WIRING AND AIM
Installation details worth knowing
Allow access behind the grille and corner panels. Transfer the original lower mounting brackets, and reconnect a front camera if equipped. Follow the separate factory-LED and halogen adapter steps; halogen trucks use the included fuse-box DRL harness, while factory-LED trucks skip that harness step. Secure the wiring, test every function and aim the low beams.
Read the official FL0015 installation guide
Use the instructions supplied with your exact set. Secure wiring away from heat and moving parts, reconnect all original sensors and test every lighting function before final reassembly.

EXACT PART · FL0015
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Optics | Three bi-LED projectors per lamp |
| Functions | LED low/high beam, white DRL, sequential amber turn and startup animation |
| Supply | 9–16V |
| Lens | UV-coated polycarbonate |
| Ingress rating | IP67 |
| Operating temperature | −40°C to 85°C |
| Warranty | Two-year limited manufacturer warranty |
FORM states that this set meets applicable SAE, DOT, FMVSS and CMVSS requirements for road use in the US and Canada when installed and aimed correctly.
FORM Lighting provides a 2-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
See the exact design and the installation process in FORM’s own videos. Match the written adapter and fitment notes above to your original lights.
Official FORM product overview

Official FORM installation guide

Choose a video to load it. No autoplay. Watch the overview or installation guide when you are ready; the videos load only after you choose them.
CLEAR ANSWERS BEFORE CHECKOUT
Your Ram 1500 questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this set fit?
2019–2024 Ram 1500 newer body style, subject to the trim and original-light exclusions above. Match your original lighting to the fitment and adapter notes above.
How do I choose the daytime lighting?
White daytime lights and a two-stage chasing welcome sequence create a clean modern outline.
Does this require replacing separate bulbs?
These are complete integrated LED assemblies, rather than replacement bulbs for the original housings.
Should the lights be aimed after installation?
Yes. Test all functions, then aim the low-beam cutoff on the actual vehicle. Load and suspension height can change the aim.
What warranty applies?
FORM Lighting provides a two-year limited manufacturer warranty. Coverage and exclusions follow its current terms. Retain proof of purchase and contact BTS for assistance.
What changes on Premium Lighting Group trucks?
FORM specifies turning off the factory DRL setting in the vehicle media screen so the low beams operate correctly. Follow the current guide for your original lamps.

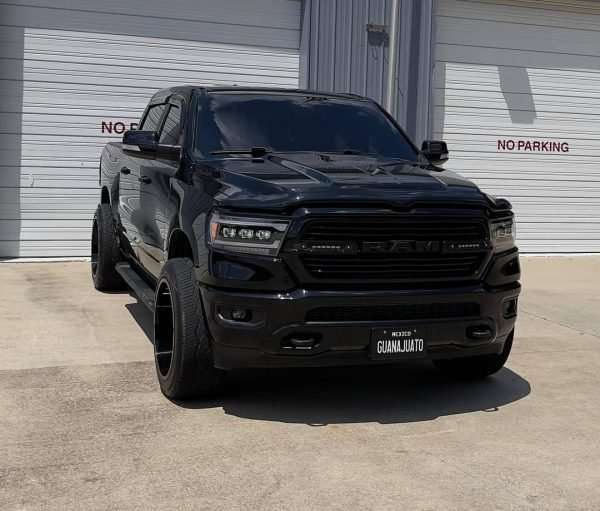

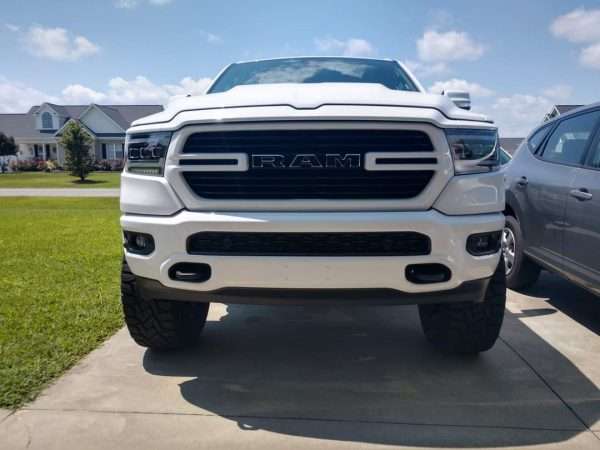

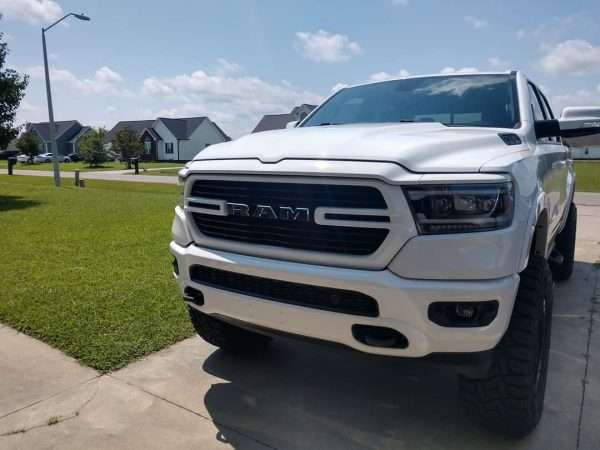

THE FINISHED LOOK
See the design on the truck
Original manufacturer photography; other vehicle equipment is separate.
