MORIMOTO XB LED · LF520-A-ASM
An amber signature for your Ram.

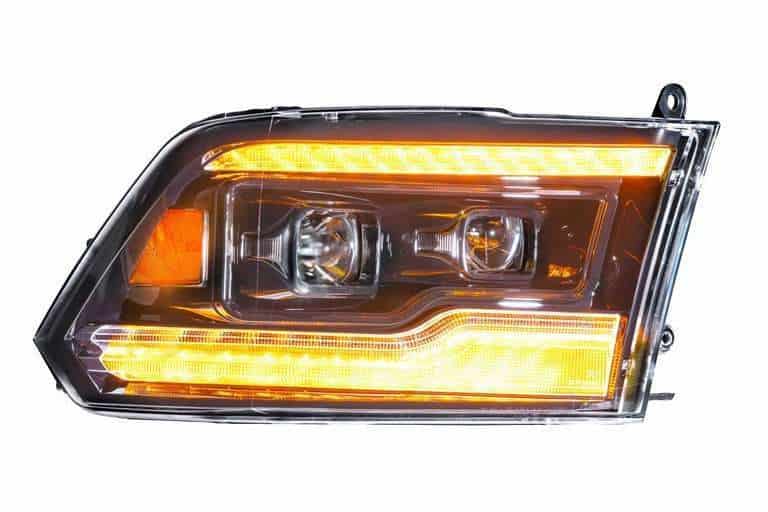

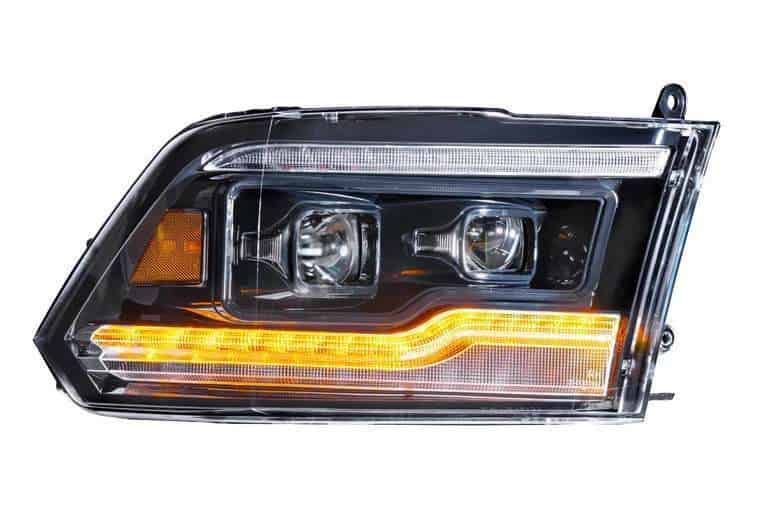

A complete Morimoto XB LED headlight pair for the 2009–2018 Ram 1500 / HD, subject to the original-equipment checks below. This exact LF520-A-ASM combines amber daytime running lights, amber turn signals and integrated LED low/high-beam optics in replacement housings.
- Left + rightOne complete headlight pair
- Amber DRLsAmber turn signals
- Integrated LEDLow- and high-beam optics

LIGHTING THAT WORKS AS A SYSTEM
More than a replacement bulb
Integrated projector optics
Two integrated projectors in each housing deliver the low- and high-beam functions without installing replacement bulbs into the original lamps.
Your daytime signature
The fixed amber DRL outlines the housing. The amber turn signal can run sequentially or with a conventional flashing pattern.
Built as a complete assembly
An ABS housing, UV-resistant polycarbonate lens and integrated LED optics replace the complete original lamp. This is a headlight assembly upgrade, not a bulb conversion.

MATCH THE TRUCK BEFORE THE LOOK
Exact vehicle and equipment fitment
| Check | This exact application |
|---|---|
| Vehicle | 2009–2018 Ram 1500 / HD, subject to the original-equipment checks below |
| Original equipment | Original reflector or projector headlights; model-year checks apply |
| DRL colour for this SKU | Amber |
| Traffic pattern | Left-hand-drive vehicles used in right-hand traffic |
| Package | Left and right complete headlight assemblies |
Morimoto developed and tested these housings on US-spec vehicles. Canadian-market equipment can differ. Contact BTS with the model year, trim, original headlight type and clear connector photos if you are unsure.
SMALL YEAR DETAILS. IMPORTANT DIFFERENCES.
The Ram ordering checks
| Truck detail | What to confirm |
|---|---|
| 2013–2014 model years | Morimoto notes possible reprogramming to OE-projector settings to avoid error codes |
| 2015 model year | Optional resistor package required; arrange it with BTS |
| Original reflector or projector lights | Use the corresponding harness configuration in the installation guide |
| Other aftermarket turn-signal equipment | Tell BTS before installation; changed electrical load can affect signal operation |
The 2015 resistor requirement is specific to that model year. Do not apply it automatically to every later truck.
ONE ORDER. BOTH SIDES.
What is supplied

- Two complete Morimoto XB LED headlight assemblies: left and right.
- Model-specific headlight wiring and DRL fuse-tap harness.
Any required 2015 resistor package is a separate accessory.
Vehicle photography may show separate fog lights, custom grilles, wheels and other accessories. Those are not included with the headlight pair.
PLAN THE ACCESS. FINISH WITH AIM.
Installation details worth knowing
The guide separates original reflector and projector wiring, including conversion of the supplied harness for an OEM-projector truck. It covers grille removal, the headlight release through the wheel well and DRL-harness routing. On 2009–2012 trucks, vertical aiming may require removing the lamp; the guide also describes an optional access hole. Do not assume every installation is modification-free.
Download the official LF520-A-ASM installation guide

EXACT PART · LF520-A-ASM
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD Only |
| Input | Mopar Multi-Pin OEM |
| Functions | DRL (Amber), Turn, Parking, Low, High |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Optic | Kuria Optic Bi-LED |
| UV Coating | Momentive UVHC3000 |
Original-equipment replacement references
55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
Match these with the exact year, body and original-equipment requirements above.
Morimoto identifies the supplied configuration as meeting its stated DOT/SAE requirements when installed and aimed correctly. That does not establish compatibility or compliance for unverified drivers, altered applications or other vehicle equipment.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Official supplier-linked Morimoto Lighting model-family overview. The exact SKU, DRL colour and original-equipment requirements on this page govern your order.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB headlight questions
Is this one headlight or a pair?
One order supplies the complete left and right headlight assemblies with the listed standard wiring.
What vehicle does this exact part fit?
2009–2018 Ram 1500 / HD, subject to the original-equipment checks below. Match the original lights and the detailed equipment requirements before ordering.
What is different about a 2015 Ram?
The supplier specifies the optional resistor package for 2015. Some 2013–2014 trucks may instead need OE-projector reprogramming. Send BTS the model year and original-lamp details to arrange the correct setup.
Can I change the DRL colour?
This exact LF520-A-ASM has fixed amber daytime running lights. Amber turn signals do not make a white-DRL set an amber-DRL version.
Can the turn signals flash normally?
Yes. Morimoto provides sequential and conventional flashing settings. Configure both sides consistently using the instructions.
Does this replace the whole headlight?
Yes. The complete housings and their integrated LED optics replace the original lamps. This is not a replacement-bulb kit.
Are Supercharged drivers or heated lenses included?
No. Neither a heated-lens feature nor compatible Supercharged drivers have been established for this exact older XB part. Do not assume newer Evo features or accessories apply.
What does LHD mean?
It describes the beam pattern for left-hand-drive vehicles used on the right-hand side of the road. Both headlights are included.
What must be checked after installation?
Test low beams, high beams, DRLs and turn signals. Secure the harness, check aim and retest after a ride-height or load change.
What warranty applies?
Morimoto lists a five-year limited manufacturer warranty. Terms and exclusions apply. Keep your purchase record and contact BTS if you suspect a warranty issue.
THE FINISHED LOOK
See it on the truck

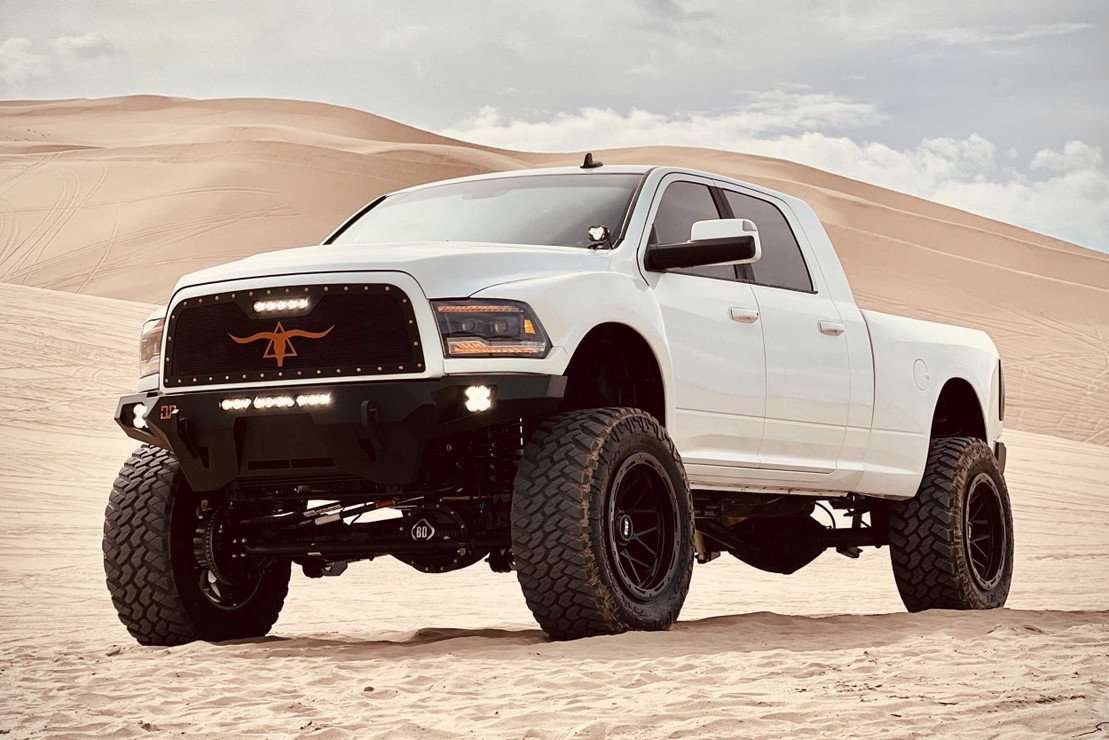

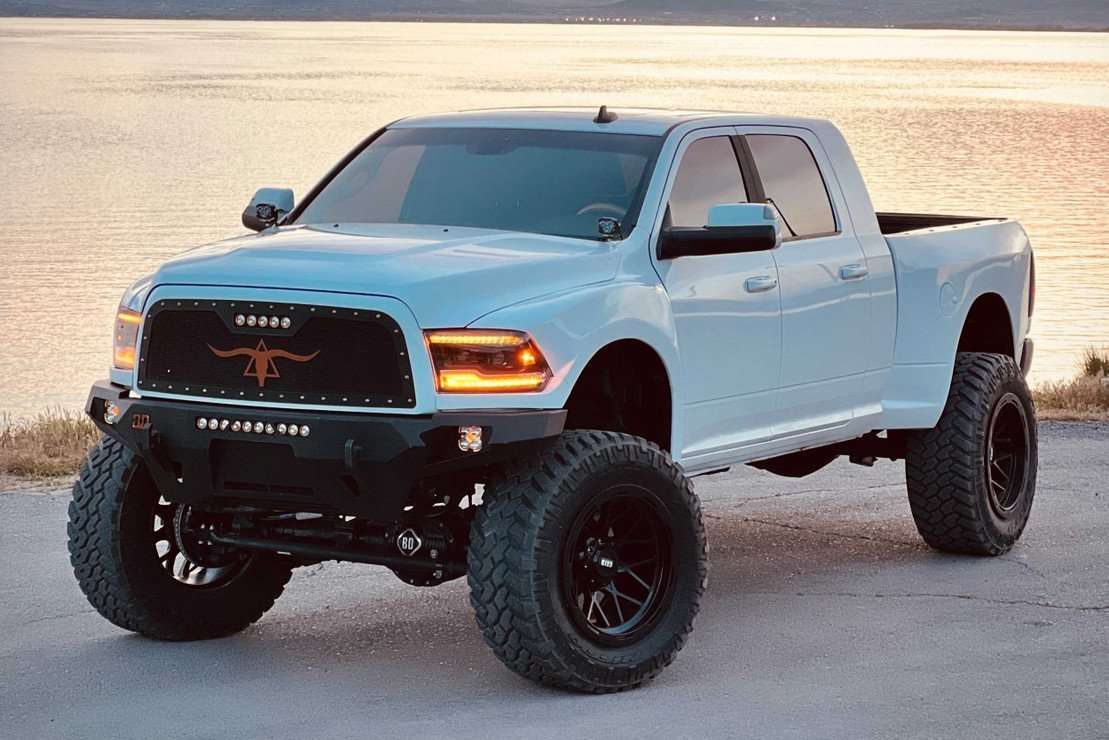

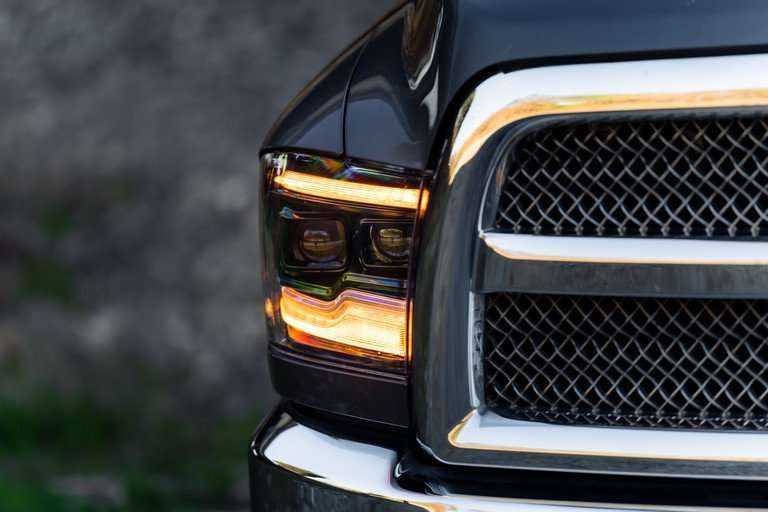

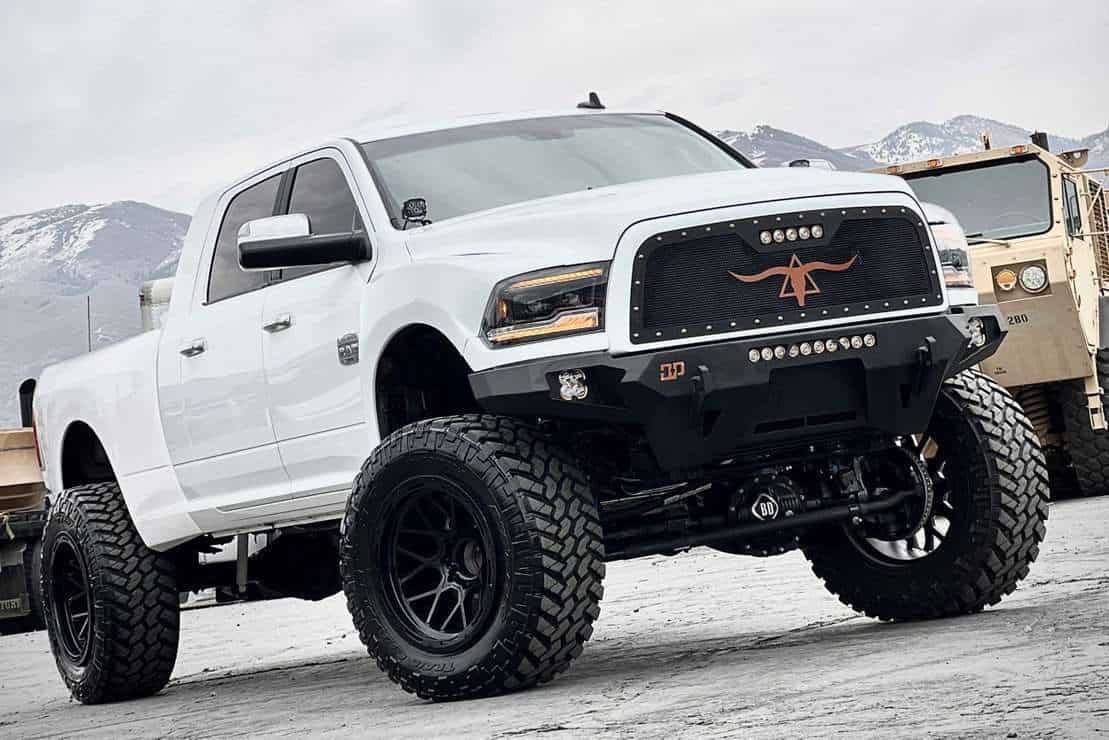

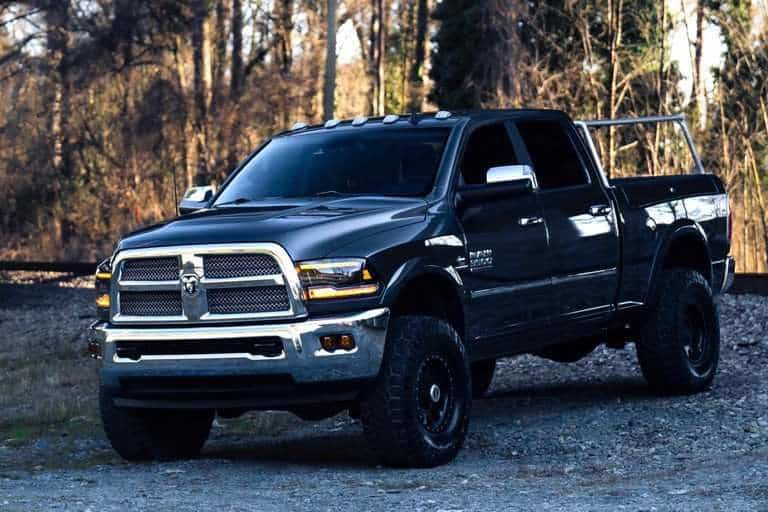

Exact supplier photography. Other lighting, grilles, wheels and vehicle accessories are not included.
