FORM LIGHTING · FL0016

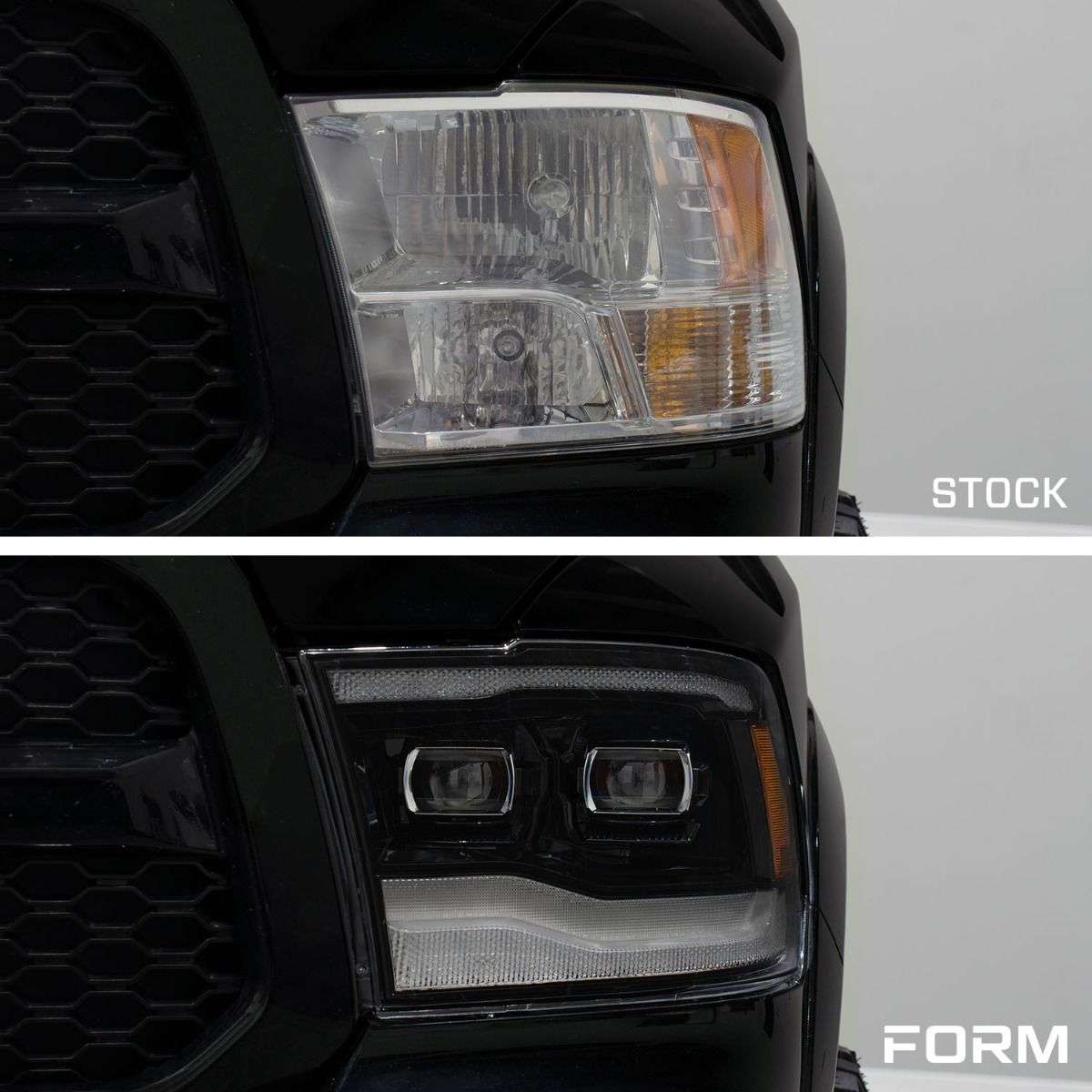

A modern signature for the classic Ram shape.
Dual bi-LED projectors, bright white running lights and a blacked-out housing give the earlier Ram a complete lighting refresh. The same FL0016 pair also has a manufacturer-listed 1500 Classic application.
- Left + rightComplete headlight pair
- White DRLIntegrated daytime signature
- 2-year warrantyLimited manufacturer coverage

A COMPLETE LIGHTING UPGRADE
Output, style and everyday function
Integrated LED optics
Two bi-LED projectors per lamp provide both low- and high-beam illumination.
Daytime signature
White daytime lights sweep across the top and bottom during the startup sequence, then stay illuminated as the DRL.
Amber turn signals
The lower amber turn-signal section sweeps from inside to outside.

ORIGINAL MANUFACTURER PHOTOGRAPHY

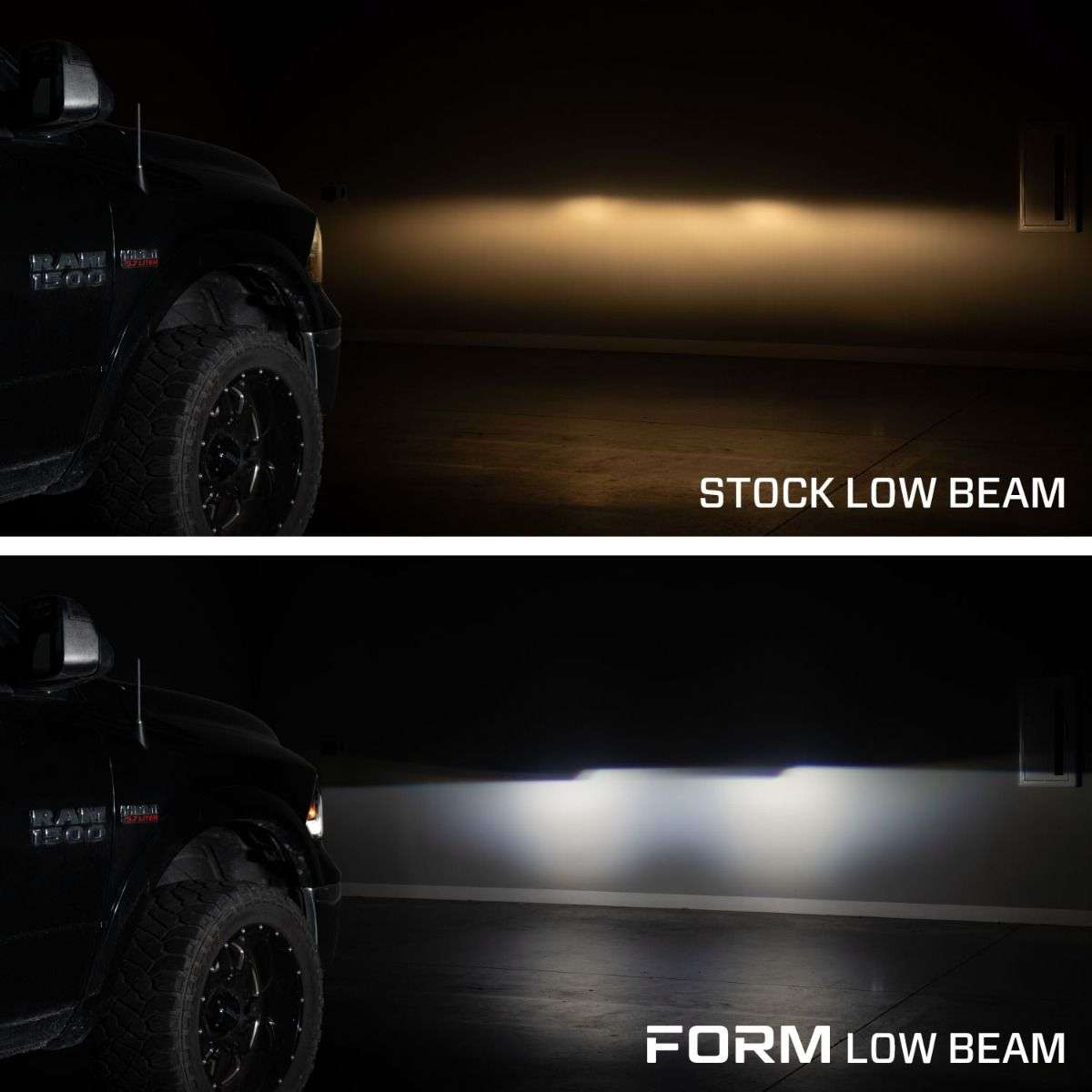

See the beam comparison
Unchanged FORM photographs show the pictured lamps in the manufacturer’s test setup. These are not independent BTS measurements or a guarantee of identical results on every vehicle.

Final aiming, vehicle load and suspension height affect the beam on your truck.
THE DAYTIME SIGNATURE
A closer look at the lighting functions
White daytime lights sweep across the top and bottom during the startup sequence, then stay illuminated as the DRL.


MATCH THE TRUCK AND ORIGINAL LIGHTS
Exact fitment before you order
| Check | This application |
|---|---|
| Earlier body | 2009–2018 Ram 1500/2500/3500 as listed by FORM |
| Classic body | 2019–2024 Ram 1500 Classic |
| Excluded trim | Big Horn |
| Original lighting | Use the included halogen adapters where required; match factory connectors |
| Not this application | 2019+ newer-body Ram 1500 or newer HD generation |
| Exact part | FL0016 |
| Package | Complete left and right headlight assemblies |
THE STANDARD PACKAGE
What comes with the pair

- Left and right headlamp assemblies
- DRL power harness
- Two halogen-headlamp adapters
The included fuse-box harness supplies the daytime lights on trucks without factory DRLs. Use the adapters appropriate to the original connectors.
Other lighting, bodywork and accessories in vehicle photographs are separate products.
PLAN ACCESS, WIRING AND AIM
Installation details worth knowing
Remove the grille and release the headlight retaining tabs through the wheel-well access panels. Where factory DRLs are absent, fit the included add-a-fuse DRL harness using the fuse position in the exact guide. Connect the required lamp adapters, reseat the retaining tabs, test all functions and aim the beams with the integrated adjusters.
Read the official FL0016 installation guide
Use the instructions supplied with your exact set. Secure wiring away from heat and moving parts, reconnect all original sensors and test every lighting function before final reassembly.

EXACT PART · FL0016
Technical specifications
| Detail | Manufacturer specification |
|---|---|
| Optics | Two bi-LED projectors per lamp |
| Functions | LED low/high beam, white DRL, sequential amber turn and startup animation |
| Supply | 9–16V |
| Lens | UV-coated polycarbonate |
| Ingress rating | IP67 |
| Operating temperature | −40°C to 85°C |
| Warranty | Two-year limited manufacturer warranty |
FORM states that this set meets applicable SAE, DOT, FMVSS and CMVSS requirements for road use in the US and Canada when installed and aimed correctly.
FORM Lighting provides a 2-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official product videos
See the exact design and the installation process in FORM’s own videos. Match the written adapter and fitment notes above to your original lights.
Official FORM product overview

Official FORM installation guide

Choose a video to load it. No autoplay. Watch the overview or installation guide when you are ready; the videos load only after you choose them.
CLEAR ANSWERS BEFORE CHECKOUT
Your Ram and Ram Classic questions
Is this one lamp or a pair?
One order supplies complete left and right headlight assemblies with the listed standard installation parts.
Which vehicle does this set fit?
2009–2018 Ram 1500/2500/3500 and 2019–2024 Ram 1500 Classic, excluding Big Horn. Match your original lighting to the fitment and adapter notes above.
How do I choose the daytime lighting?
White daytime lights sweep across the top and bottom during the startup sequence, then stay illuminated as the DRL.
Does this require replacing separate bulbs?
These are complete integrated LED assemblies, rather than replacement bulbs for the original housings.
Should the lights be aimed after installation?
Yes. Test all functions, then aim the low-beam cutoff on the actual vehicle. Load and suspension height can change the aim.
What warranty applies?
FORM Lighting provides a two-year limited manufacturer warranty. Coverage and exclusions follow its current terms. Retain proof of purchase and contact BTS for assistance.
Will these fit a 2019 or newer Ram 1500?
They fit the 2019–2024 Ram 1500 Classic listed by FORM. The newer-body Ram 1500 uses a different headlight set. Match the body style before ordering.
THE FINISHED LOOK
See the design on the truck
Original manufacturer photography; other vehicle equipment is separate.
