MORIMOTO XB EVO · LF2-520
A sharper Ram signature, ready for cold-weather driving.
A complete left/right XB Evo headlight pair for your 2009–2018 Ram / 2019–2024 Ram 1500 Classic. Configurable white or amber DRLs, a startup welcome sequence and driver-requested Frost-Free heating combine styling with cold-weather function.
- Left + rightOne complete headlight pair
- White / amber DRLsConfigurable signals
- Dual Bi-LED opticsIn each headlight
Canadian-spec Ram: the exact installation guide requires separately sold LF2-520HCA adapters at both headlight inputs. Confirm the correct adapter package before ordering.

LIGHT WITH A PURPOSE
Dual Bi-LED optics, built into a matched pair.
Optics for the application
Two Bi-LED projectors in each housing provide low and high beam. A separate D-Optic high-beam assist supplements the main projectors when high beam is selected.
A complete assembly upgrade
Both housings and the listed installation hardware are supplied. This is a headlight-pair replacement, not a bulb conversion.
Aim is part of installation
Set the beam aim after fitting the lamps. Factory mounting points do not guarantee correct aim, especially when the truck’s ride height has changed.

LOOK AT THE STATED COMPARISON
Low and high beam, side by side
Morimoto’s Ram-family graphics compare the stated original lamps and Evo configurations. These are manufacturer comparisons, not an independent BTS test. Driver labels describe the test configuration; they do not establish overall XRGB road compliance.


YOUR FRONT-END SIGNATURE
Choose the signature that suits your Ram.
Use the supplied selector keys to choose white or amber daytime running lights and sequential or fade-off turn signals. Follow the exact key positions in the installation guide.
The startup welcome sequence adds an animated signature. Frost-Free lens heating is separate and must be requested when the system’s operating conditions allow.

FROST-FREE LENS HEATING
Request it when cold-weather conditions call for it
The logic-controlled 50W ceramic heating element and circulation fans warm the housing to help mitigate lens frost, snow and ice buildup during driving.
- With the vehicle running, wait until the welcome sequence completes.
- Flash the high beams four times within four seconds. The ambient sensor must read at or below 5°C / 41°F, and the other operating conditions must be satisfied.
- Two return flashes indicate active heating and fans. One acknowledges the request with conditional standby.
The system monitors lens and heater temperatures and battery voltage. It starts off at every ignition cycle; request it again when needed. The same four flashes within four seconds manually disable it.
This is an aid during inclement driving, not a system intended to melt heavy overnight snow accumulation.
CHOOSE THE FEATURES YOU WANT
Compare the matching Evo family
This listing is the LF2-520 XB Evo. Other versions are separate products, with different lighting functions and compliance details. On smaller screens, swipe across the table to compare every column.
| Feature | XB Evo | XRGB Evo | XB Evo Hybrid |
|---|---|---|---|
| Daytime running lights | White / amber selectable | RGB app + white / amber modes | Fixed white |
| Turn signals | Sequential or fade-off selectable | Sequential or fade-off selectable | Fade-off |
| Lens heating | Frost-Free; driver-requested | Not included | Not included |
| Standard welcome sequence | Included | Included | Not included |
| Main optics | Dual Bi-LED + D-Optic assist | Dual Bi-LED + D-Optic assist | Dual Bi-LED; no D-Optic assist |
| Manufacturer compliance | Standard-driver DOT/FMVSS108 configuration | Not DOT compliant | Standard-driver DOT/FMVSS108 configuration |
Supercharged drivers are optional and off-road only in Canada and the United States. Choosing white or amber DRLs does not make an XRGB assembly DOT compliant.
Compare LF2-520R XRGB Evo · Compare LF2-520Y Evo Hybrid

BEFORE YOU ORDER
Match the year, model and original lamps
| Vehicle | Manufacturer-listed application |
|---|---|
| Dodge Ram 1500 | 2009-2018 |
| Dodge Ram HD | 2009-2018 |
| Ram 1500 Classic | 2019-2024 |
Developed for North American left-hand-drive vehicles using right-hand traffic. Morimoto does not guarantee fitment outside North America.
The guide has separate original-reflector and original-projector wiring branches. Match your factory headlight connectors, not just the year on the registration.
This application includes the listed 2019–2024 Ram 1500 Classic; it is not a blanket fitment claim for the newer-body Ram 1500.
BOTH SIDES. THE MATCHED HARDWARE.
What is supplied

- Headlights: One Pair (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)
- Accessories: 1x Mini Fuse Tap, 1x Micro Fuse Tap, 1x DRL Harness, 2x Magnet-Mount Resistors, 2x OE Reflector Headlight Harnesses, 2x OE Projector Headlight Harnesses, 8x (4 Pairs) DRL / Signal Mode Selectors
Use the adapters and signal components appropriate to the truck’s original lighting. Optional Supercharged drivers and other accessories are separate selections; they are not required to complete the standard headlight pair.
LF2-520HCA is not included. Canadian-spec applications require that separate adapter.
FACTORY MOUNTING. CAREFUL WIRING.
Plan the installation, then set the aim
- Identify the truck’s original lighting equipment and follow the matching branch in the official guide.
- Mount both housings at the original locations and connect the specified input harnesses, resistors and DRL components.
- For Canadian-spec Rams, fit the separately sold LF2-520HCA adapter at each headlight input. Route the DRL wire and close the fuse-box cover as the Ram guide shows.
- Secure wires away from heat and moving parts, test every lighting function, then adjust beam aim.
The manufacturer also warns that non-OEM, non-Morimoto exterior lights can affect turn-signal behavior or cause hyperflash. Diagnose other lighting changes before assuming the new headlights are faulty.
Download the official LF2-520 model-family installation guide
Follow the heater-request sequence and temperature/voltage conditions in the guide; the feature resets after each ignition cycle.
AN OPTIONAL OFF-ROAD CONFIGURATION
Choose the matching Supercharged pair

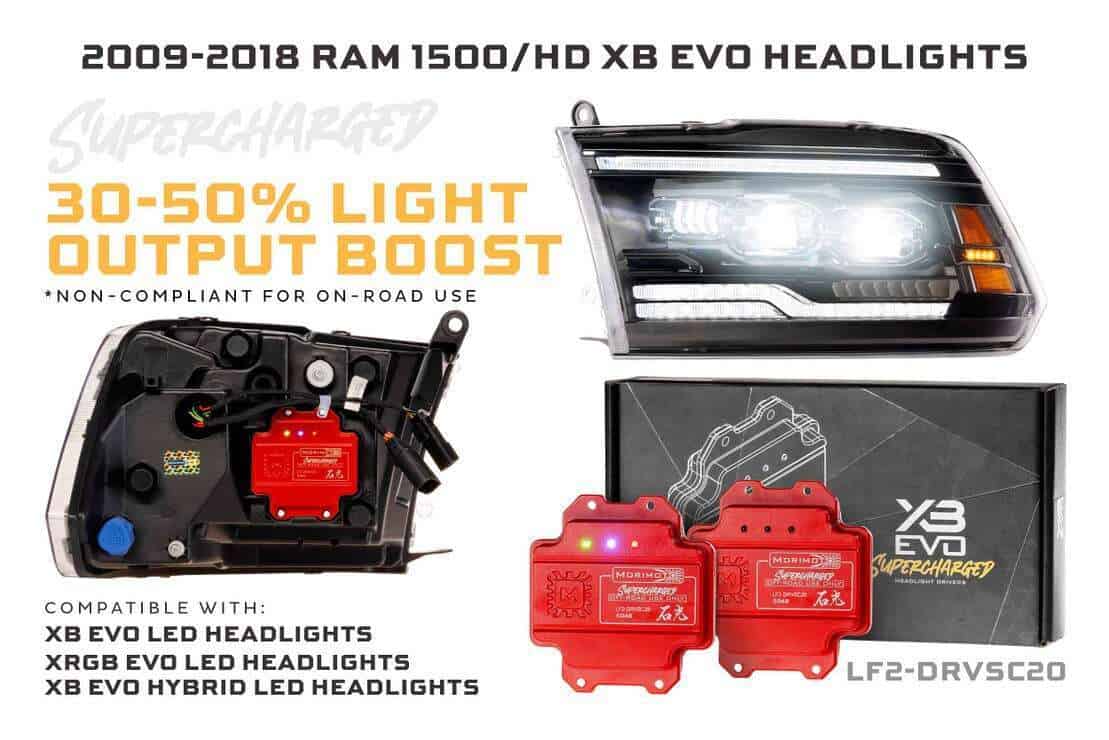

The matching optional accessory is LF2-DRVSC20. Standard LED drivers are already included. The optional pair replaces them when you select the Supercharged configuration.
For this exact application, Morimoto describes approximately 30–50% greater low/high-beam intensity. That is the manufacturer’s comparison, not a BTS measurement or a guarantee in every condition.

THE EXACT LF2-520 CONFIGURATION
Specifications and replacement references
| Detail | Manufacturer specification |
|---|---|
| Traffic Pattern | LHD / Right Hand Traffic Only |
| Output with standard drivers | Manufacturer DOT/FMVSS108-compliant configuration |
| Output with Supercharged drivers | Off-road use only |
| Main Optics | 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA) |
| High Beam Assist | 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA) |
| Functions | Low, High, Park, Turn, DRL, Welcome, and Lens Heating |
| Turn Signal Modes | Sequential or Fade Off (Configurable) |
| DRL Color | White or Amber (Configurable) |
| Frost-Free System | Logic-controlled 50w ceramic w/ circulation fans |
| Internal Finish | Two-Tone Piano Black and Titanium w/ contrasting textures |
| Side marker | Amber side reflex reflector (DOT compliant) |
Original-equipment replacement references
55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
Cross-check the references against the year, model and original lamp equipment above.
Morimoto provides a 5-year limited manufacturer warranty. Coverage, exclusions and return authorization follow the manufacturer’s current policy. Keep your proof of purchase and contact BTS before removing a lamp for a suspected warranty issue.
SEE THE DESIGN
Watch the official overview
Morimoto’s official Ram model-family presentation. Other versions may appear; use the exact package and specifications on this page for your selection.

The video loads only when you choose it. No autoplay. Product-family demonstrations may include other options; the exact package and compatibility notes on this page govern your selection.
CLEAR ANSWERS BEFORE CHECKOUT
Your XB Evo questions
Is this one lamp or a complete pair?
One order supplies both driver-side and passenger-side headlight assemblies with the listed accessories.
Which trucks does this exact part fit?
2009–2018 Ram / 2019–2024 Ram 1500 Classic. Match the exact factory headlight type and the equipment-specific branch in the official guide.
What do I need for a Canadian-spec Ram?
The exact family installation guide requires LF2-520HCA at both headlight inputs, sold separately. Confirm the correct adapter package and your truck’s original reflector/projector equipment before ordering.
Does 2019–2024 fitment include every Ram 1500?
No. The listed application is the Ram 1500 Classic. Do not use that year range as a fitment claim for the newer-body Ram 1500.
Can I choose the DRL colour?
Yes. The supplied selector keys configure white or amber DRLs and sequential or fade-off turn-signal operation.
Does this exact version have heated lenses?
Yes. Request Frost-Free after startup using the exact high-beam sequence. Heating activates only when its temperature and operating checks allow.
Are the Supercharged drivers included?
No. Standard drivers are included. LF2-DRVSC20 is the exact optional Supercharged pair, for off-road use only in Canada and the United States.
Is this assembly DOT compliant?
Morimoto identifies the standard-driver configuration as DOT/FMVSS108 compliant for the listed North American application. Supercharged drivers are for off-road use only in Canada and the United States.
Will Frost-Free clear heavy overnight snow?
It helps mitigate lens buildup during cold-weather driving. It is not a heavy overnight-snow defroster and defaults off after each ignition cycle.
What warranty is included?
Morimoto lists a five-year limited manufacturer warranty. Keep proof of purchase and contact BTS for installation help or a suspected warranty issue.
