Diode Dynamics 5202/PSX24W HP48 LED Bulbs

Diode Dynamics 5202 / PSX24W HP48 LED Bulbs – Sleek 6000K LED Upgrade for Fog Lights & DRLs

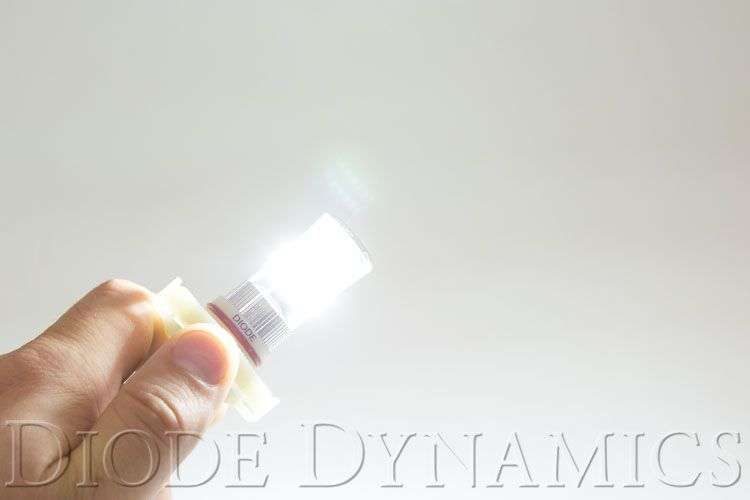

Give your vehicle a modern lighting upgrade with the Diode Dynamics HP48 LED Bulbs, designed to fit 5202 / PSX24W / H16-EU sockets. With 48 high-output Epistar 3014 LED chips, these bulbs emit a crisp 6000K cool white light that enhances your vehicle’s appearance without altering brightness. Ideal for fog lights and daytime running lights (DRLs), the HP48 is a plug-and-play replacement that installs in minutes and adds instant style.

🔧 Key Features:

✔ Modern LED Appearance

• Replaces dull, yellow factory incandescent bulbs with a clean 6000K white light.

• Creates a sharp, OEM-plus look for fog lights or DRLs.

✔ Uniform Light Output

• 48 surface-mounted LEDs with a top cap design deliver 270° omnidirectional light, eliminating harsh spots and improving reflector fill.

• Output is directed away from the bulb tip to ensure smooth, consistent illumination.

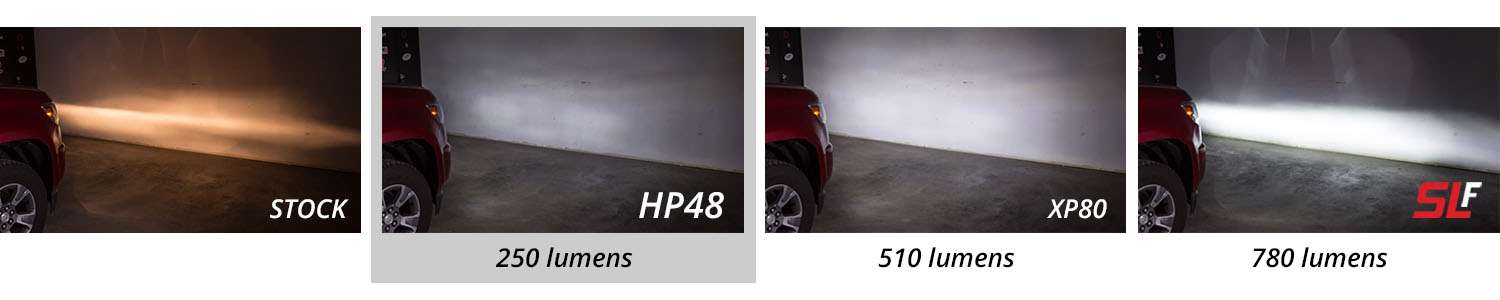

✔ Cosmetic Upgrade – Same Brightness as Halogen

• Produces 250 lumens (measured), matching stock halogen brightness.

• Want more output? Check out the XP80 or SL2 series for high-performance upgrades.

✔ Simple Plug-and-Play Fitment

• Directly replaces 5202, PSX24W, 2504, 5201, H16-EU, and other tab-lock style bulbs.

• OEM-style connectors allow for quick, no-mod installation.

✔ Durable, Reliable Design

• Built with constant-current regulation and transient suppression for long-term reliability.

• Constructed with a machined aluminum heatsink for passive cooling and durability.

• Non-polarity design ensures compatibility in most applications.

✔ Trusted Engineering by Diode Dynamics

• Designed, tested, and assembled in the USA.

• Backed by a 3-Year Worry-Free Warranty and 30-Day Satisfaction Guarantee.

📦 Specifications:

• Bulb Size: 5202 / PSX24W / H16-EU

• Measured Lumens: 250

• Color Temperature: 6000K Cool White

• Beam Angle: 270° Omnidirectional

• Power Draw: 4.0W

• Operating Voltage: 9–16V

• Current Draw: 0.312A @ 13.2V

• Polarity: Non-polar

• Operating Temperature: -40°C to 85°C (-40°F to 185°F)

• Connector: OEM Plug-and-Play

• Materials: Aluminum heatsink

• Quantity: Pair (2 bulbs)

• Warranty: 3-Year Limited Warranty

⚠️ Note on Fitment:

This bulb fits European-style H16/5202 sockets, not H11-style Japanese H16 fog light bulbs. For Japanese H16 (H11 base), check out the H11 HP48 bulb instead.

Not intended for headlight use. This is a cosmetic lighting upgrade for fog lights or DRLs.
