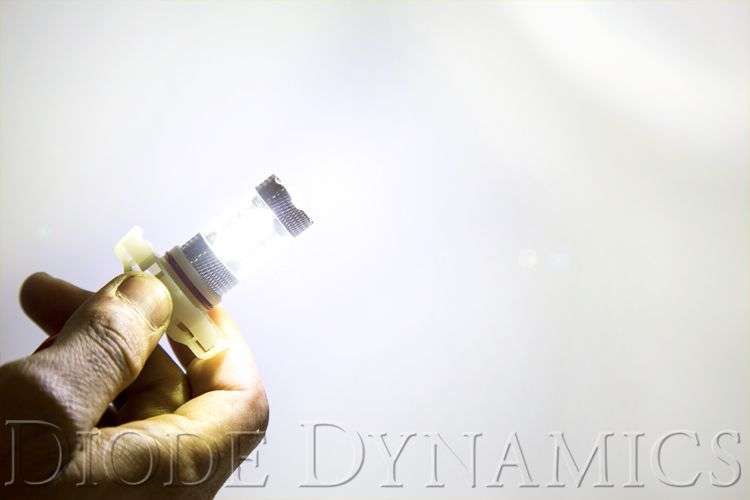

Diode Dynamics 5202 / PSX24W XP80 LED Bulbs – High-Output LED Upgrade for Fog Lights & DRLs
Upgrade your vehicle’s lighting with the Diode Dynamics XP80 LED Bulbs, with a compact LED design and OEM-style connector. Designed to fit 5202, PSX24W, and H16-EU sockets, Diode Dynamics lists the XP80 at 510 measured lumens, with 6000K cool white light. Confirm the original bulb, housing and electrical requirements before installation.
🔧 Key Features:
✔ Manufacturer-Rated LED Output
-
Powered by 16 high-intensity 5W-rated LEDs (12 side-firing + 4 forward-facing). The chip ratings do not represent an 80W operating draw; the listed bulb power is 5.58W.
-
The manufacturer lists 510 measured lumens; installed light distribution depends on the lamp housing.
✔ Clean, OEM-Plus Look
-
Emits a crisp 6000K cool white light for a modern, high-end appearance.
-
Great for fog lights and daytime running lights (DRLs).
✔ Light Distribution
-
270° omnidirectional light is the manufacturer-listed beam angle, not a guarantee of the installed beam pattern.
-
Check the resulting beam and aim in the intended lamp housing.
✔ Socket and Installation Checks
-
The manufacturer lists these tab-lock aliases: PSX24W, H16-EU, 5202, 2504, PS24W, 5201, 9009.
-
OEM-style connectors are intended for a matching socket; check clearance and vehicle electrical requirements.
✔ Built to Last
-
Constructed with a durable aluminum casing and textured finish for heat dissipation.
-
Constant-current circuitry and transient suppression regulate power to the LEDs.
-
Nonpolar electrical design; not CK-compatible.
✔ Manufacturer Information
-
The manufacturer specifies 5.58W power and 0.423A at 13.2V for this bulb.
-
Diode Dynamics lists a 3-year limited replacement warranty; manufacturer terms apply.
📦 Specifications:
-
Bulb Size: 5202 / PSX24W / H16-EU
-
Measured Lumens: 510 (manufacturer-listed rating)
-
Color Temperature: 6000K Cool White
-
Beam Angle: 270° Omnidirectional
-
Power Draw: 5.58W
-
Voltage Range: 9–16V
-
Current Draw: 0.423A @ 13.2V
-
Polarity: Non-polar
-
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
-
Connector: OEM Plug-and-Play
-
Materials: Aluminum Casing with Textured Finish
-
Quantity: Pair (2 bulbs)
-
Manufacturer Warranty: Diode Dynamics lists a 3-year limited replacement warranty; manufacturer terms apply
⚠️ Fitment & Compatibility Note:
This bulb fits tab-lock style sockets with manufacturer-listed aliases PSX24W, H16-EU, 5202, 2504, PS24W, 5201, 9009. It does not fit Japanese H16 bulbs (which use an H11-style base).
Not CK compatible.
Not intended for headlight use.
