DIODE DYNAMICS · 2019–2025 TOYOTA RAV4
Compact pods. Useful light at the trail’s edges.
A matched pair of C2 2.0 pods, RAV4 brackets and a wired control harness bring auxiliary light above the hood. Choose Sport or Pro output and a fixed White or Yellow main beam, with a separate Amber backlight.
- TWO PODSC2 2.0 matched pair
- FOUR CHOICESSport/Pro · White/Yellow
- AMBER BACKLIGHTSeparate accent function
- VEHICLE BRACKETSFactory hood-hinge mounts
PURPOSEFUL LIGHTING
A kit built around the job
Aim for the trail ahead
The hood-corner position lets you aim auxiliary light along the sides and forward of the vehicle. Choose the appropriate pattern and avoid illuminating the hood or dazzling other road users.

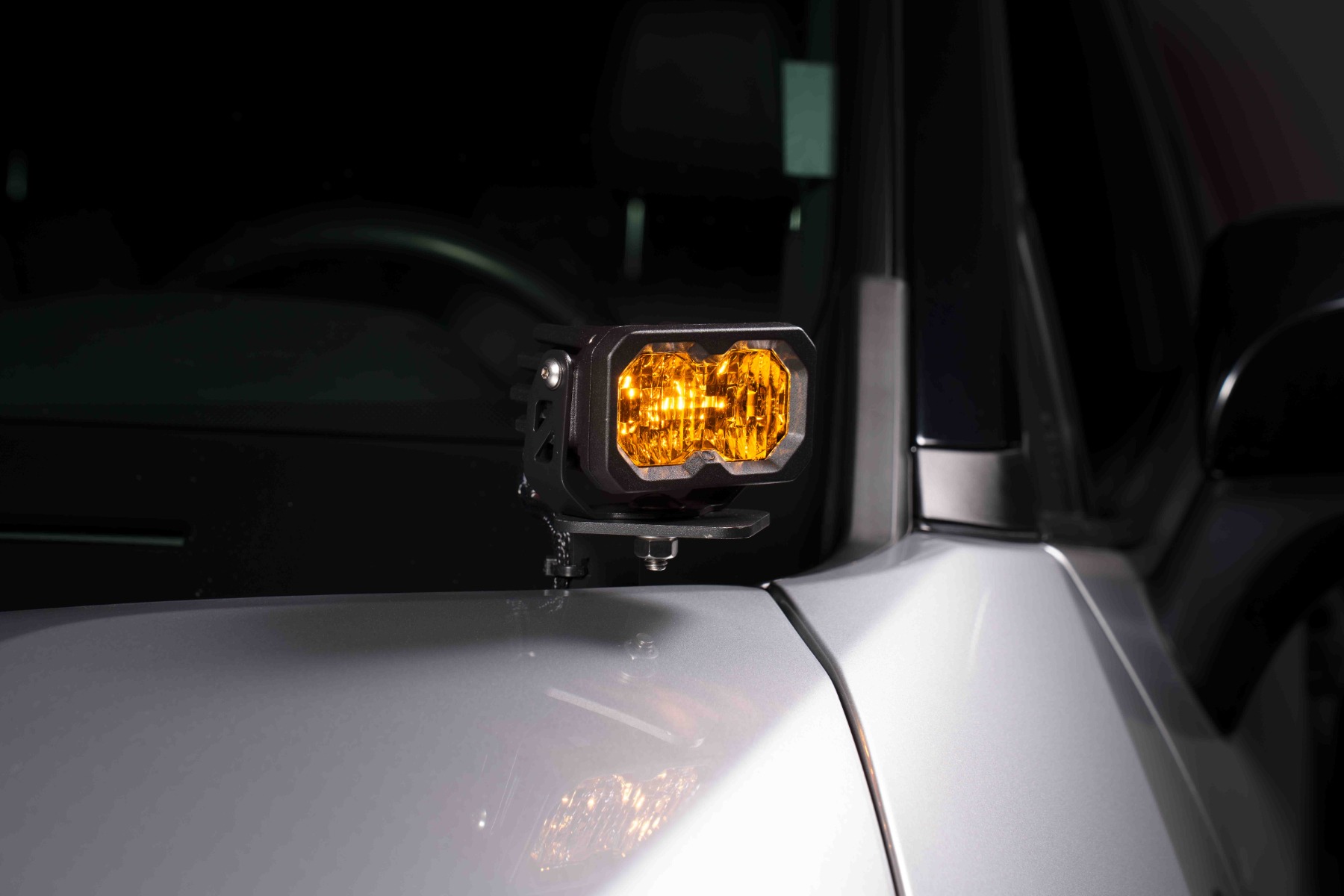

Separate accent and main lighting

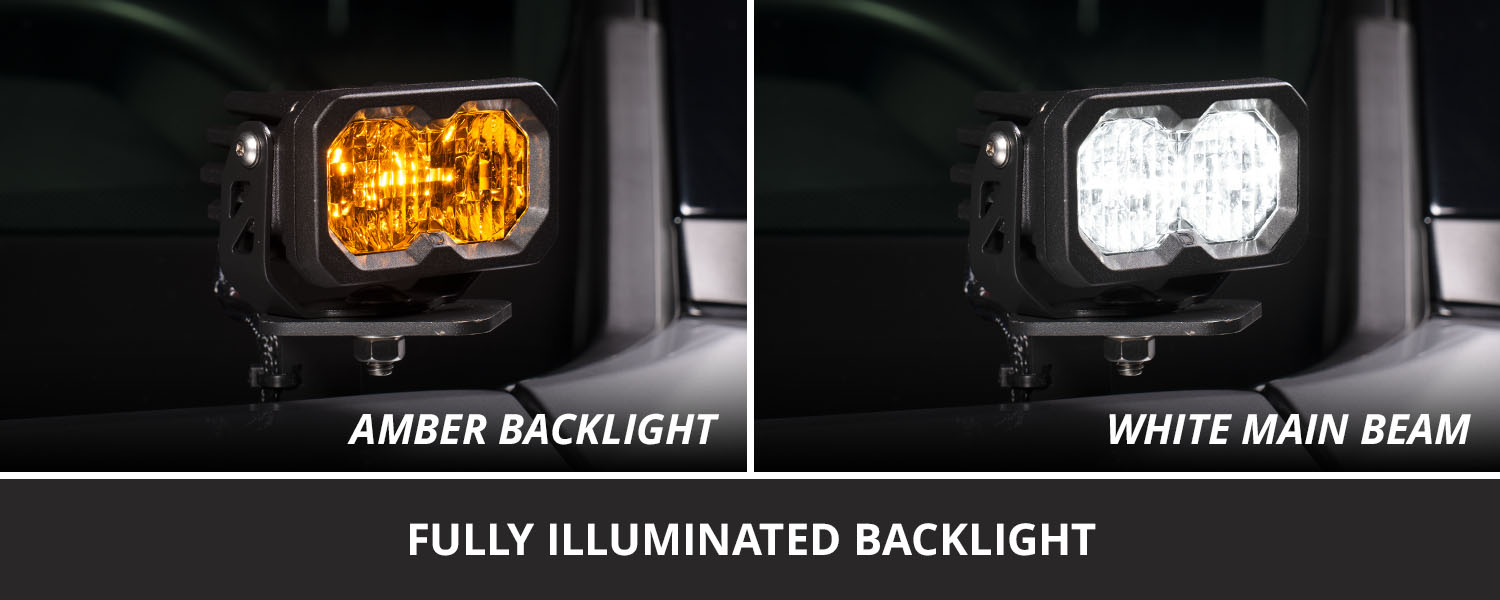

The main beam stays White or Yellow as ordered. The separate Amber backlight offers an accent function; it does not turn a single-colour main beam into a dual-colour lamp.
A matched mounting and wiring set
RAV4 brackets use the existing hood-hinge locations. The supplied relay harness and extension support a complete wired installation, with careful hood alignment and cable routing.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | 2019–2025 Toyota RAV4. |
| Mounting | Two DD8802 vehicle brackets at the factory hood hinges. |

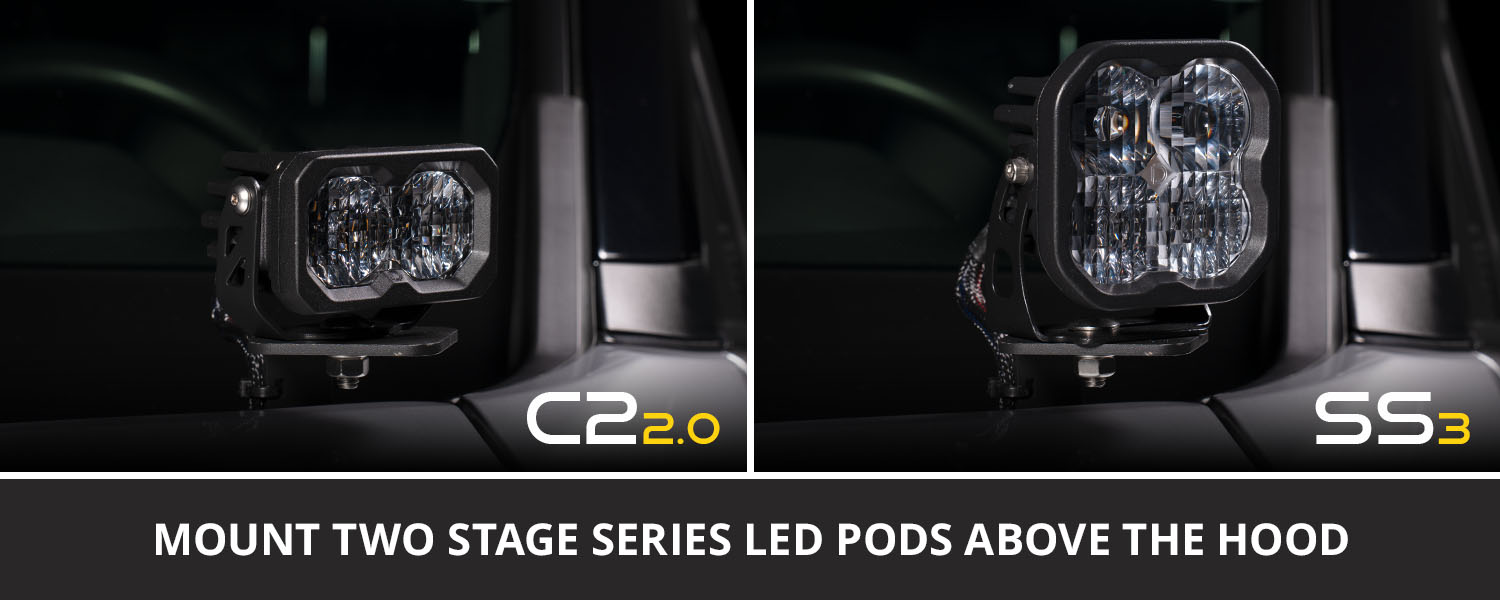

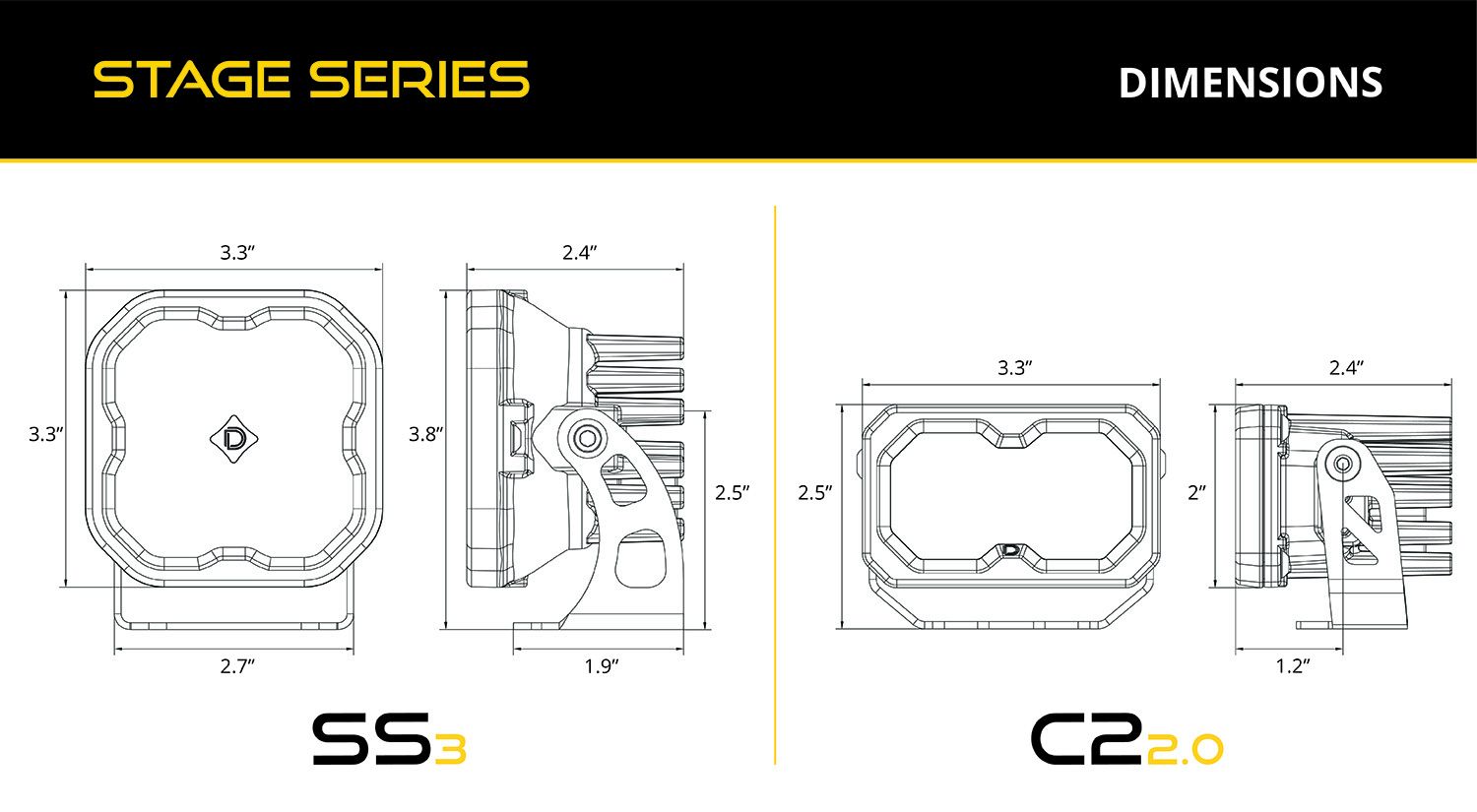

| Pod family | C2 2.0 only. Size comparisons show other separately sold families. |
| Installation clearance | Check hood opening, wipers, washer-fluid line and aftermarket accessories. |
| Wiring | Fused power harness; route the control wiring through the factory firewall grommet as instructed. |
| Care | No automatic car washes with ditch lights fitted. |
MATCH THE SKU TO YOUR SELECTION
Four exact C2 2.0 combinations
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD8803 | Sport | White | Combo/Driving |
| DD8804 | Sport | Yellow | Combo |
| DD8805 | Pro | White | Combo/Driving |
| DD8806 | Pro | Yellow | Combo |
Choose Sport or Pro and White or Yellow using the options above. Kit photographs represent both Sport and Pro. Your selected output level and SKU identify the kit supplied.
WHAT THE KIT SUPPLIES

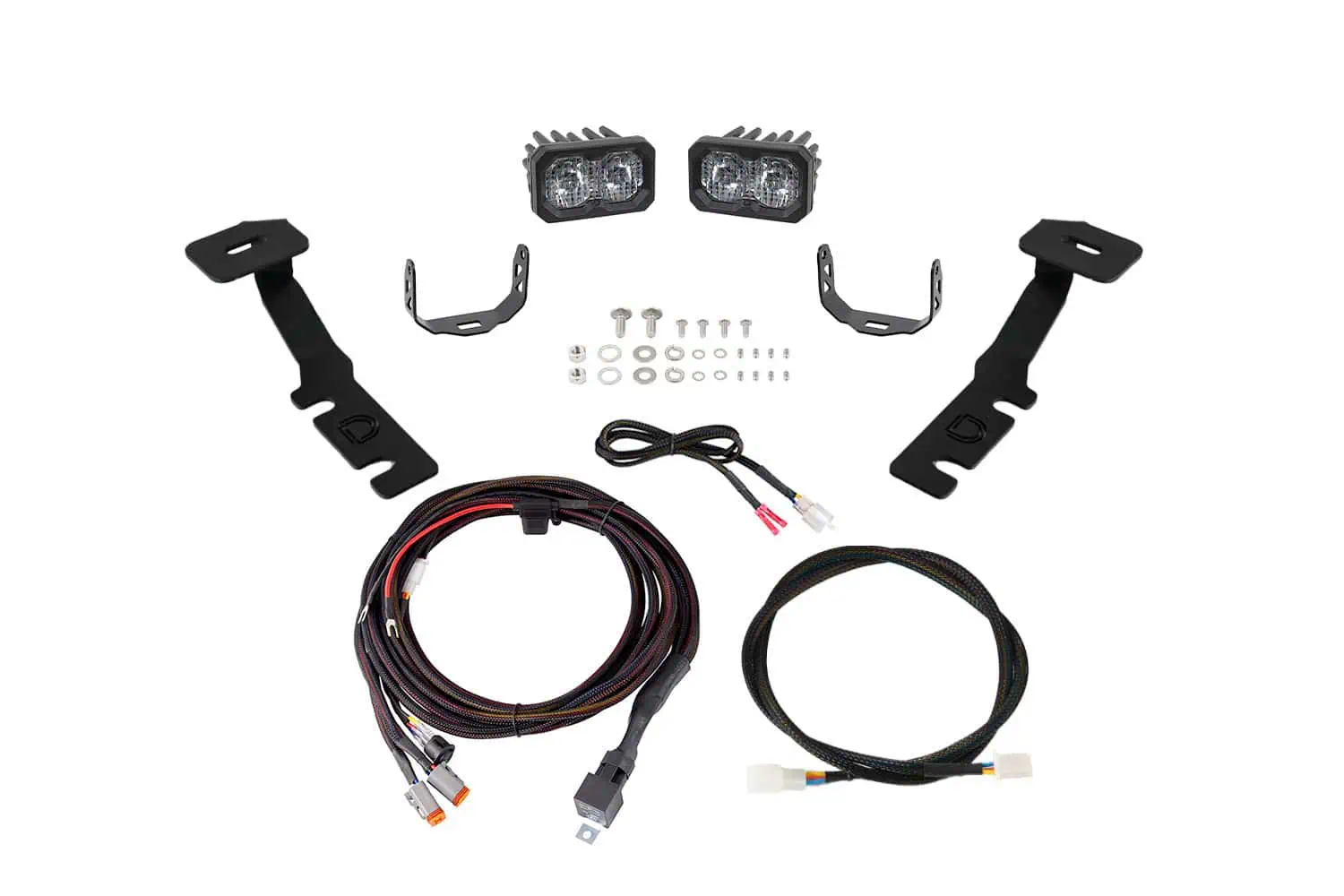

The parts belong together
- Two C2 2.0 pods in the selected output and fixed main-beam colour
- Two DD8802 RAV4 ditch-light brackets
- Two pod U-brackets
- One DD4093 heavy-duty dual-output 4-pin power harness
- One DD4218 one-metre 3-position extension
- Mounting hardware and installation guide

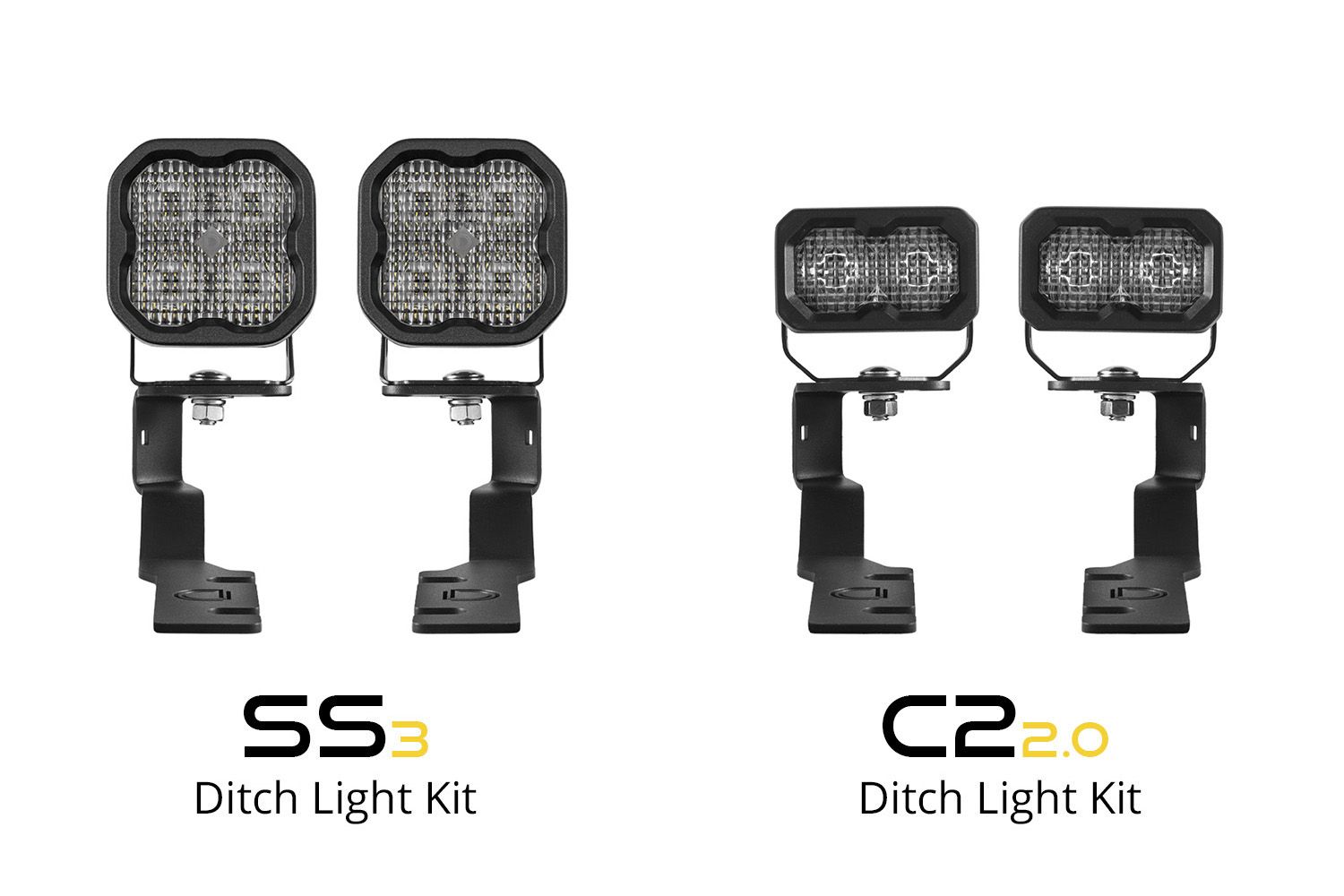

One matched pair is included. Other lamps, roof racks and vehicle accessories pictured are separate. The family comparison photograph does not mean both C2 and SS3 kits are supplied.
MOUNT · WIRE · AIM
Plan the installation before you begin
Support and mark the hood-hinge positions before fitting the brackets. Protect the paint, maintain hood alignment and make sure the passenger-side washer-fluid line is not pinched. Mount and aim the pods, then secure the harness away from heat and moving parts. The guide routes the switch wiring through the factory firewall grommet and a cabin switch blank; this is a wired installation.
Follow the illustrated RAV4 installation guide
The guide has a separate hybrid-vehicle power connection at the fuse-box post. Follow that instruction for the applicable vehicle and confirm full hood travel before completing the job.
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Quantity | Two C2 2.0 lamps. |
| Main beam | 6000K White or 3000K Yellow; fixed colour as selected. |
| Backlight | Separate Amber accent. |
| Power per lamp | Sport 15 W; Pro 23 W. |
| Current per lamp | Sport 1.17 A; Pro 1.8 A at 12.8 V. |
| Connector | Deutsch DT-style sealed connection. |
| Lamp intrusion rating | IP69K; maintain sealed connections. |
| Operating temperature | −40°C to +85°C. |
| Eligible-lamp warranty | Manufacturer limited lifetime warranty on eligible lamps; commercial, industrial and fleet use limited to 8 years. Bundled wiring and accessories have separate terms. |
Output by option
| Option | Peak intensity per lamp | Lux at 10 m | Raw lumens per lamp |
|---|---|---|---|
| White Sport | 11,500 cd | 115 | 1,190 lm |
| Yellow Sport | 8,100 cd | 81 | 1,190 lm |
| White Pro | 20,000 cd | 200 | 3,140 lm |
| Yellow Pro | 15,000 cd | 150 | 3,140 lm |
Manufacturer figures are per lamp, not per pair. Raw LED lumens and measured lamp lumens are different quantities. Candela measures peak intensity; lux values shown are at 10 metres. Beam photographs are illustrative rather than a controlled comparison of your vehicle or every available tier.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
NEW Bolt-On 2019+ Toyota RAV4 Ditch Lights | Diode Dynamics
Follow the current written kit instructions. Other lamps, vehicle accessories and demonstrated configurations are not automatically included; the video does not expand supported years.
TIR Optics | Stage Series by Diode Dynamics
General TIR optics education; use the exact kit specifications.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General output terminology; not an exact-kit performance test.
CLEAR ANSWERS
Before you order
Is this wireless or a no-firewall-wiring kit?
No. The brackets use existing hood-hinge locations, but the supplied harness needs power and switch wiring. Follow the factory-grommet and cabin-switch routing in the installation guide.
Do I get both White and Yellow from one lamp?
No. These four selections have a fixed White or Yellow main beam. Amber is a separate accent backlight.
Does the kit fit a 2026 RAV4?
No. This kit is for the 2019–2025 RAV4.
Can it go through an automatic car wash?
No. Diode Dynamics specifically advises against automatic car washes with this ditch-light kit fitted.
What warranty applies?
Eligible Diode Dynamics lamps have a limited lifetime manufacturer warranty; commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own terms. Proof of purchase and the manufacturer’s claim requirements apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
