The Diode Dynamics HitchMount LED Pod 10-Pin Reverse Kit is built for drivers who want more rear visibility without drilling, custom wiring, or permanently mounting lights to the bumper. It installs directly into a 2″ or 2.5″ trailer hitch receiver and connects to the factory 10-pin trailer wiring harness for simple everyday operation.
Depending on the selected pod option, the kit can add a high-power reverse light, red running light, and C1R-based 4th brake light function with optional SafetyStrobe braking. It is a clean upgrade for trucks, SUVs, overland builds, tow rigs, and daily drivers that need more light when backing up at night.
Key Features & Benefits
Hitch-Mounted Reverse Lighting
This kit adds a bright rear-facing LED pod directly in the trailer hitch receiver.
Features include:
- Mounts in 2″ trailer hitch receivers
- Includes 2.5″ receiver adapter
- Adds a powerful reverse light
- Clean centered rear lighting position
- No bumper drilling required
- No custom bracket fabrication needed
This is a strong option for drivers who want more reverse visibility without permanently modifying the vehicle.
10-Pin Plug-and-Play Wiring
The included harness connects to factory 10-pin trailer wiring.
Features include:
- 10-pin trailer single output harness included
- Plugs into factory trailer hitch wiring
- No custom wire routing required for standard install
- Automatic reverse light activation
- Red running light operation with tail lights
The kit is designed for quick installation and everyday use through the factory trailer connector.

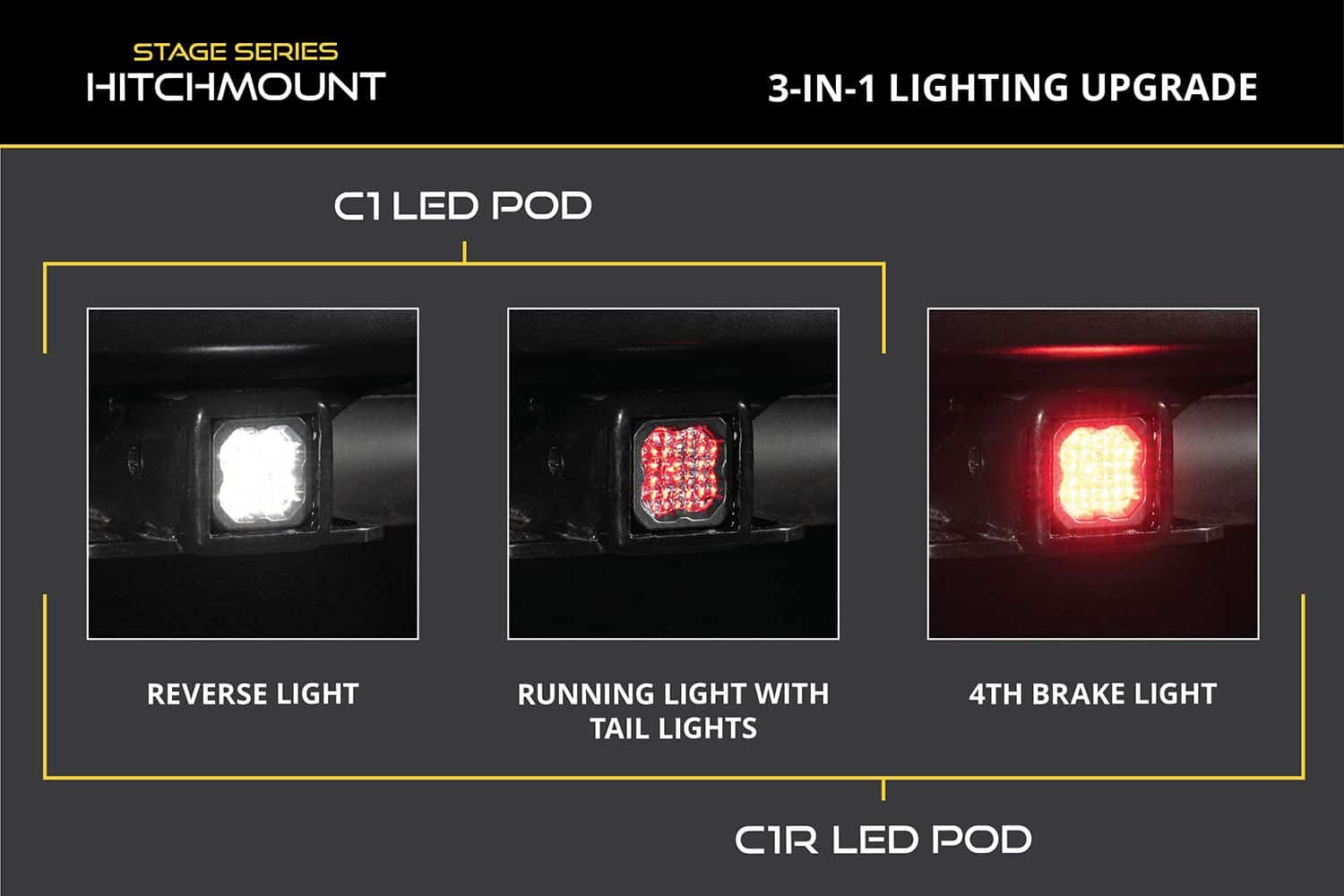

Reverse, Running & Brake Light Functions
The HitchMount kit adds multiple rear lighting functions depending on the pod selected.
Lighting functions may include:
- High-power white reverse light
- Red running light
- High-power red 4th brake light with C1R option
- Optional SafetyStrobe brake light strobing with C1R option
The C1R option adds the most functionality, including high-power red brake output and low-power red running light output.
Optional SafetyStrobe Brake Function
The C1R option includes optional brake light strobing for added visibility.
Features include:
- Triple-flash SafetyStrobe brake activation by default
- 15-second interval strobe capability
- Can be disabled if desired
- Designed to increase visibility when braking
Check local laws before using brake strobe functions on public roads.
Snap-Fit HitchMount Installation
The patent-pending snap-fit design makes installation quick and simple.
Installation benefits include:
- Installs in under 5 minutes
- No drilling required
- No hitch pin required for standard installation
- Snap-fit side mounts lock into place
- Quick removal when towing is needed
If you tow often, the HitchMount can be unplugged and removed quickly, then reinstalled when the hitch is open again.
Performance, Compatibility & Use Case

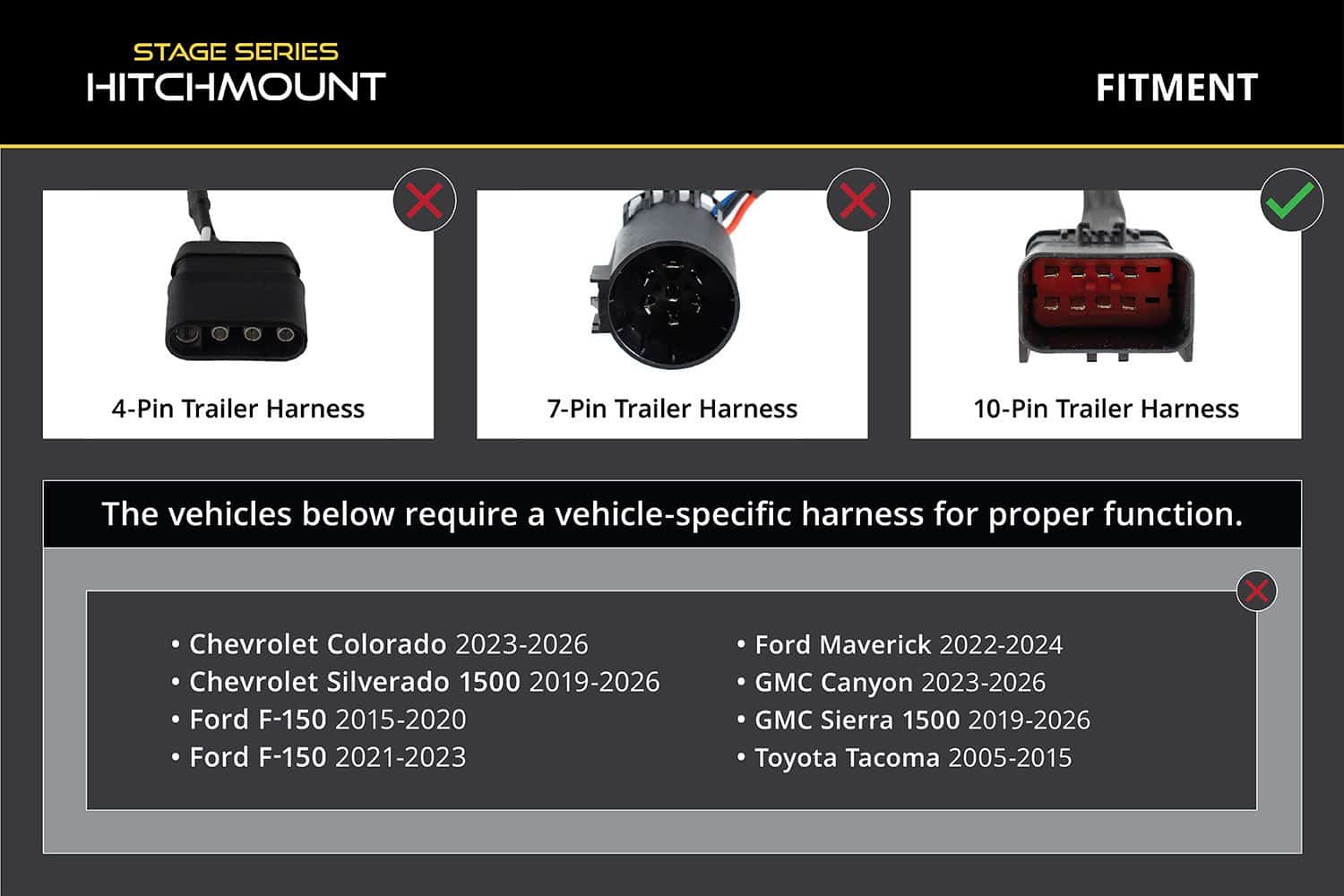

Trailer Hitch Compatibility
This kit is designed for 2″ and 2.5″ trailer hitch receivers.
Included fitment support:
- Fits 2″ receiver applications
- Includes snap-in 2.5″ receiver adapter
- Designed for vehicles with 10-pin trailer wiring
Important note: Due to variations in trailer packages, the HitchMount may not sit completely flush when installed.
Application & Use Case
Designed for:
- Truck reverse light upgrades
- SUV backup lighting
- Overland and off-road builds
- Tow rigs
- Work trucks
- Camp lighting support
- Additional rear visibility
- 4th brake light functionality with C1R option
- Running light accent functionality
This kit is especially useful for drivers who back up at night, hook up trailers, reverse into dark driveways, work around job sites, or want a clean rear lighting upgrade without permanent bumper modification.
Installation & Technical Details
Installation Overview
The HitchMount kit is designed for quick installation using the trailer hitch receiver and factory 10-pin trailer wiring.
Installation details:
- Product type: Hitch-mounted LED pod reverse kit
- Receiver fitment: 2″ and 2.5″
- Wiring type: 10-pin trailer harness
- Installation style: Snap-fit receiver mount
- Drilling required: No
- Hitch pin required: No, for standard snap-fit install
- Reverse activation: Automatic through vehicle reverse signal
- Running light activation: Through tail light circuit
- Optional brake function: C1R option
- Warranty: Lifetime warranty
Professional installation is recommended if trailer wiring, brake function, or override wiring is uncertain.
Manual Override Note
The kit automatically activates the reverse light when the vehicle is placed in reverse.
If you want manual override functionality to turn the reverse light on any time, the universal backup harness is required and sold separately.
Build Quality, Materials & Warranty

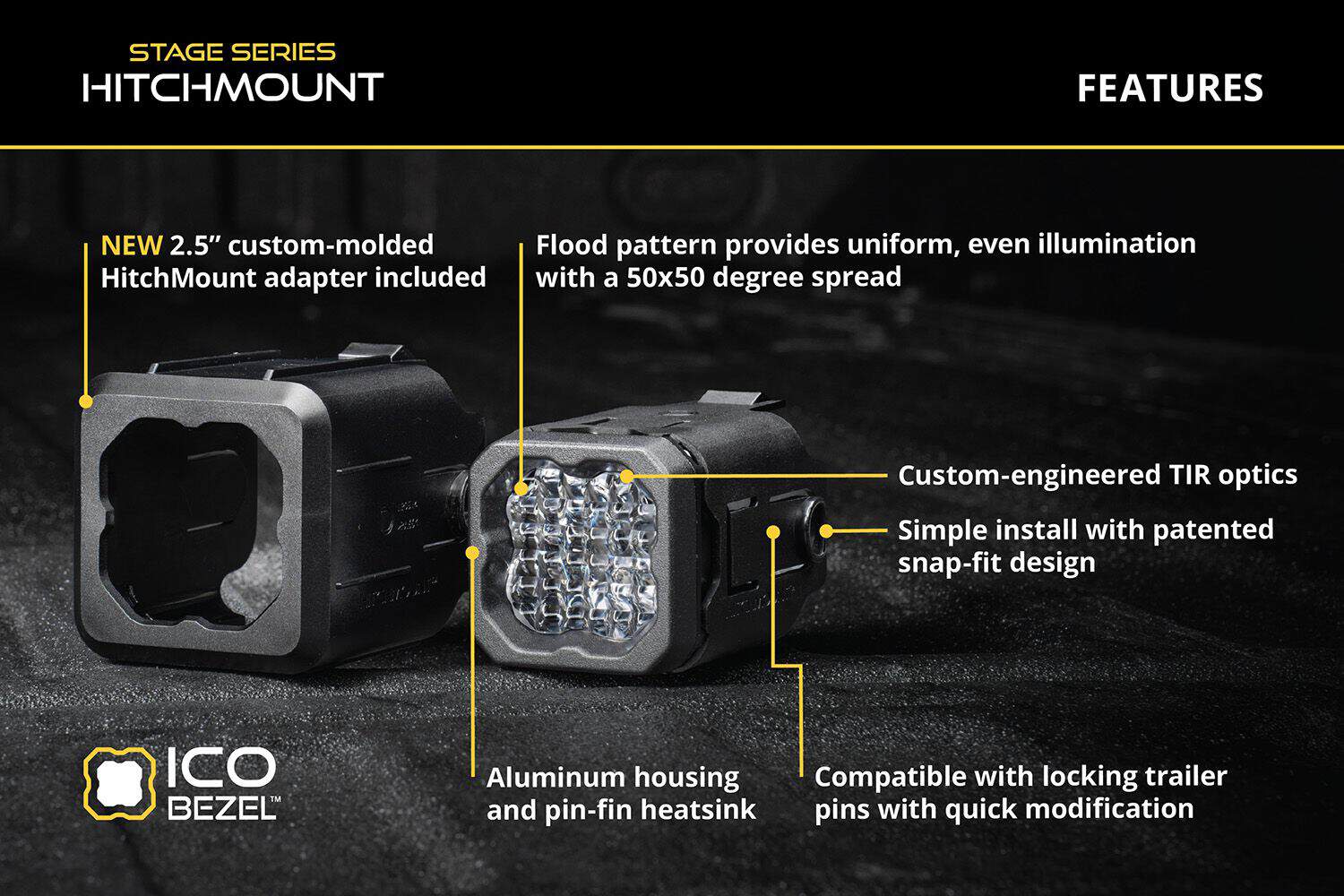

Proven Stage Series Performance
The included SSC1 or C1R pod uses Diode Dynamics Stage Series optical technology for controlled and efficient output.
Build and performance details include:
- Patented TIR optics
- High-power LEDs
- Flood beam pattern
- 50 x 50 degree light spread
- Custom-molded TIR optic
- Efficient light control
- Tested from -40°F to 185°F
- Vibration testing
- Moisture intrusion testing
- Corrosion testing
- Designed and assembled in the USA
The flood pattern is designed to provide uniform, even illumination behind the vehicle.
Warranty & Return Policy
This product includes:
- Lifetime warranty
- 30-day return policy with no restocking fee
- 100% satisfaction guarantee
Warranty and return coverage apply according to Diode Dynamics terms.

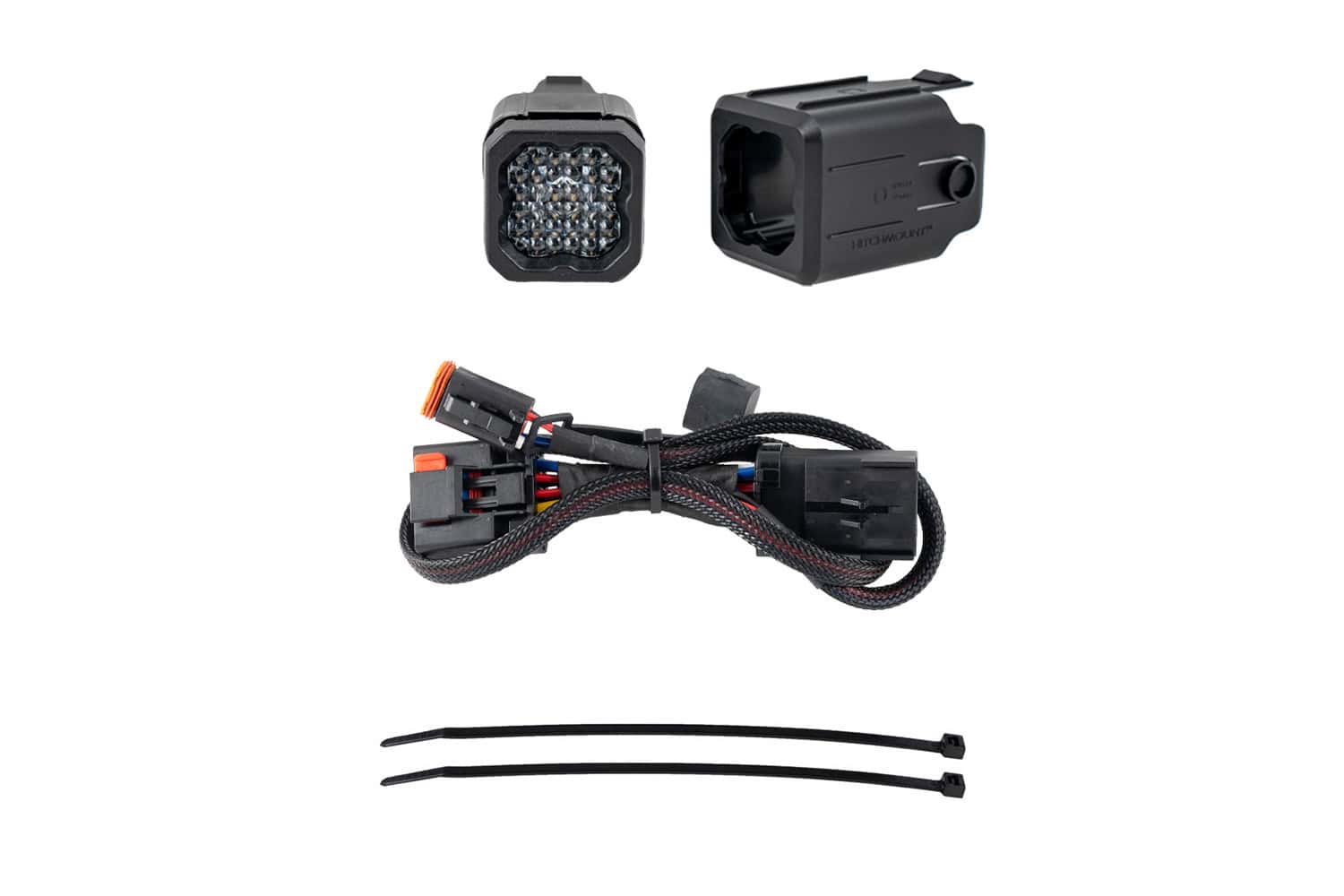

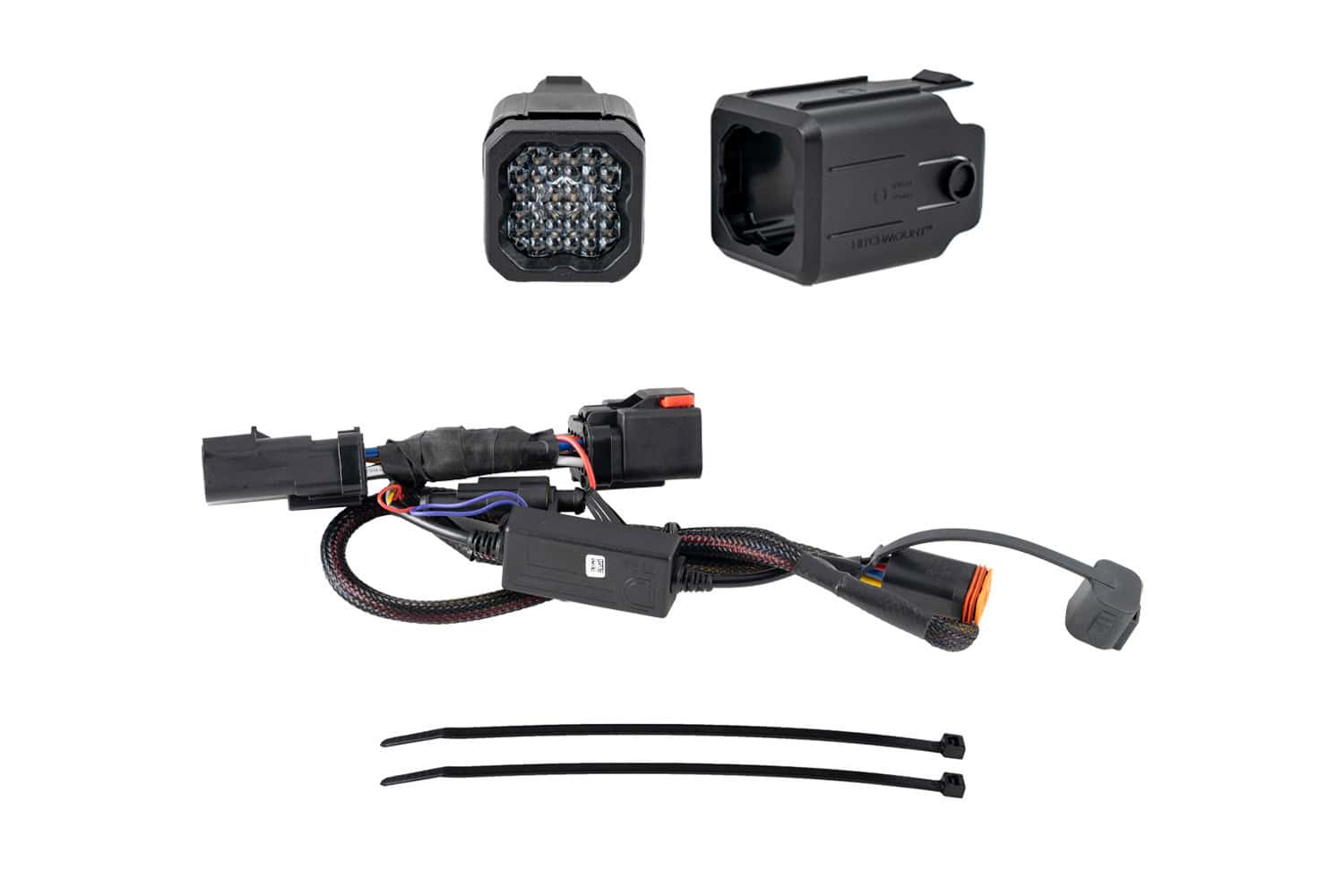

What’s Included
Included in the box:
- 1 × SSC1 Sport or C1R HitchMount LED Pod
- 1 × Snap-In 2.5″ Receiver Adapter
- 1 × 10-Pin Trailer Single Output Harness
- 2 × Zip Ties
- Installation Guide
Quantity:
- One HitchMount LED Pod Kit
Frequently Asked Questions About Diode Dynamics HitchMount LED Pod Kits
What does the Diode Dynamics HitchMount kit do?
The HitchMount kit adds a rear-facing LED pod to your trailer hitch receiver.
It provides a powerful reverse light, red running light, and optional 4th brake light functionality depending on the selected pod.
Does this fit a 2″ receiver?
Yes. This kit is designed to mount in a 2″ trailer hitch receiver.
It also includes an adapter for 2.5″ hitch receivers.
Does this fit a 2.5″ receiver?
Yes. The kit includes a snap-in 2.5″ receiver adapter.
This allows the HitchMount to fit compatible 2.5″ trailer hitch receivers.
Is this plug-and-play?
Yes. This version uses a 10-pin trailer single output harness.
It plugs into the vehicle’s factory 10-pin trailer hitch wiring for simple operation.
Does the reverse light turn on automatically?
Yes. The reverse light automatically activates when the vehicle is shifted into reverse.
Manual override requires the universal backup harness, which is sold separately.
Does this work as a running light?
Yes. The Stage Series pod includes a red backlight that can function as an additional running light with your tail lights.
This gives the rear of the vehicle a modern accent light when the reverse light is not active.
Does this add a 4th brake light?
The C1R option adds a high-power red 4th brake light function.
The brake light activates when the brakes are applied.
What is SafetyStrobe?
SafetyStrobe is an optional brake light strobing feature available with the C1R option.
By default, the C1R flashes three times when the brake lights are initially applied. The feature can be disabled if desired.
How long does installation take?
The supplied product information lists installation at under five minutes.
Actual install time may vary depending on trailer wiring access and hitch setup.
Do I need to drill into the hitch?
No. The snap-fit design installs without drilling.
It also installs without a hitch pin for the standard snap-fit setup.
Can I still tow with this installed?
The HitchMount occupies the trailer hitch receiver, so it must be removed before using that receiver for towing.
Removal is quick: unplug the harness, press the snap-fit pins, and remove the mount.
Will it sit flush in every hitch?
Not always. Due to variations in trailer packages, the HitchMount may not sit completely flush when installed.
Confirm fitment and appearance after installation.
What warranty is included?
This product includes a lifetime warranty.
