Diode Dynamics SSC1 White Pro Standard LED Pod (Pair)
Maximum Light Output in a Compact Form Factor
The SSC1 White Pro Standard LED Pod is the most powerful and compact single-LED lighting solution in the Diode Dynamics Stage Series lineup. Designed for high-performance applications, the Pro version features a 20-watt high-intensity LED chip and proprietary TIR optics that deliver unmatched beam control and brightness in a lightweight, ultra-compact design. Whether you’re outfitting a truck, UTV, motorcycle, or utility trailer, the SSC1 Pro provides the lighting power you need—without compromising on size or quality.
Key Features
-
High-output 20W Pro-level LED chip for superior brightness
-
Compact single-LED pod fits in tight spaces where other lights won’t
-
TIR (Total Internal Reflection) optics for maximum optical efficiency
-
Backlight options available in amber or red
-
Pin-fin heatsink design for advanced thermal management
-
Deutsch-style connector for secure and weather-resistant installation
-
Designed, engineered, and assembled in the USA
-
Backed by a lifetime warranty and 30-day satisfaction guarantee
Engineered for Optical Performance

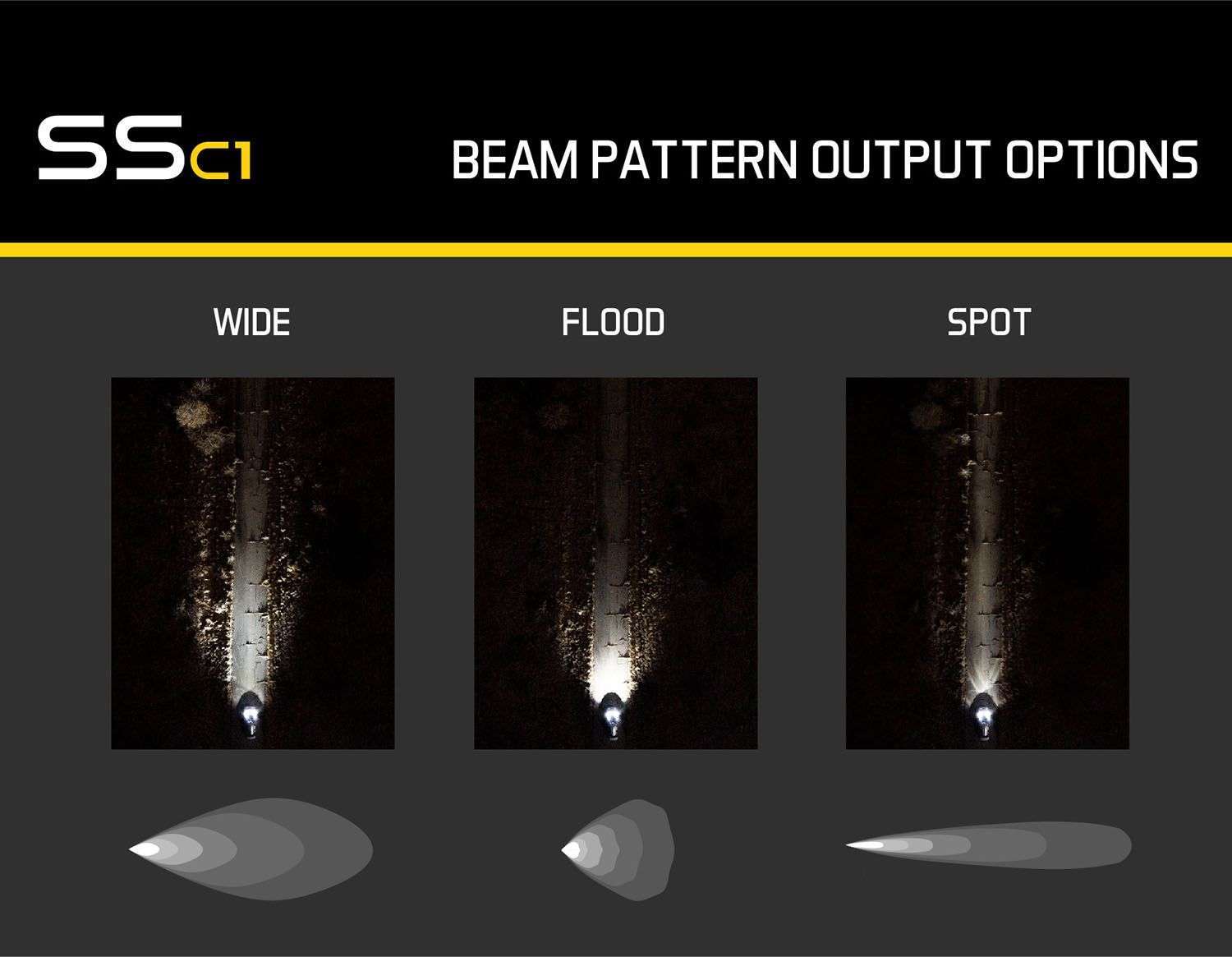

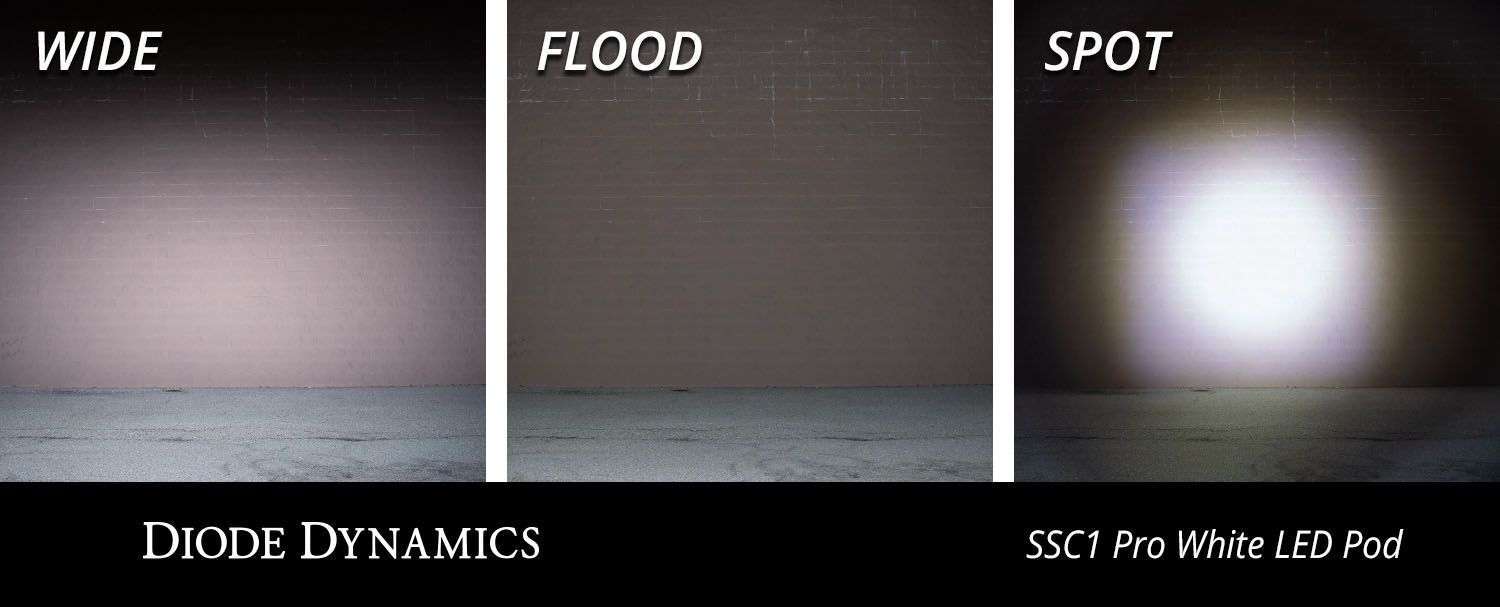

Every SSC1 Pro Pod utilizes Diode Dynamics’ custom-engineered TIR optics, precisely modeled to create high-function beam patterns:
-
Flood – 50° x 50° uniform light spread using pillow optics; perfect for reverse, scene, or work lighting
-
Wide – A broad 50° horizontal beam with a controlled 20° vertical spread; great for general-purpose illumination
-

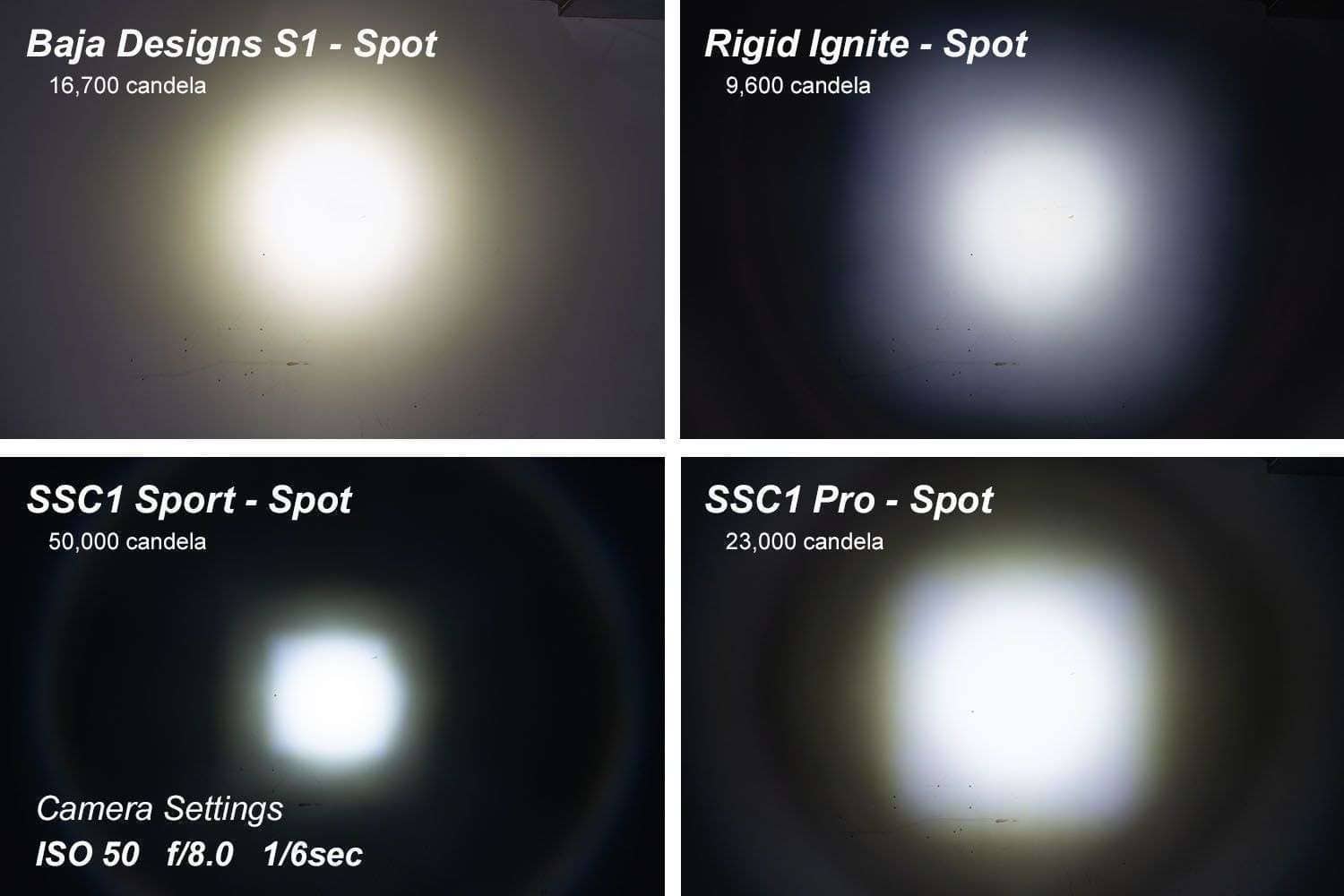

Spot – Focused 7° beam for long-range visibility. The Pro’s higher output delivers a farther-reaching beam, though the larger emitter produces a slightly wider focus than the Sport model
White or Yellow Output Options
Choose between two beam colors to match your driving conditions and vehicle style:
-
6000K Cool White – Crisp white light with a clean, modern appearance
-
3000K Selective Yellow – Improved visibility in fog, snow, and rain, with reduced glare and eye strain
Built to Perform in Any Environment
-
IP67 waterproof and dustproof for all-weather operation
-
Pin-fin aluminum heatsink for superior heat dissipation and sustained brightness
-
Shock-resistant housing ensures reliable performance over rough terrain
-
Instant-on output with no warm-up time
Vehicle Compatibility
Thanks to its ultra-compact size and universal bracket system, the SSC1 Pro LED Pod is compatible with a wide range of applications:
-
Front bumpers and grilles
-
Rear bumpers for reverse or auxiliary lighting
-
Roof racks, trailers, and scene lighting setups
-
Side lighting on UTVs, ATVs, or motorcycles
-
Backup lighting for commercial or fleet vehicles
Technical Specifications
-
LED Chip Power: 20 watts (Pro version)
-
Operating Voltage: 9–16V
-
Input Connector: Deutsch DT-style
-
Color Temperature: 6000K (White) / 3000K (Yellow)
-
Beam Patterns: Spot, Wide, Flood
-
Waterproof Rating: IP67
-
Material: Aluminum housing with pin-fin heatsink
-
Dimensions: 1.3″ x 1.3″ x 1.6″
-
Lifespan: Over 40,000 hours
What’s Included
-
Two (2) Stage Series C1 White Pro LED Pods
-
Two (2) Deutsch-style wire pigtails
-
Two (2) Mounting brackets and hardware
-
Installation Instructions
-
Lifetime Warranty
-
30-Day Satisfaction Guarantee
Experience Compact Power with the SSC1 Pro LED Pod
When space is limited but performance is essential, the Diode Dynamics SSC1 White Pro delivers professional-grade output in one of the smallest LED pod formats available. Built for extreme durability, engineered with advanced optics, and designed for flexible mounting options, the SSC1 Pro is the ideal choice for serious off-roaders, fleet operators, and lighting professionals alike.
Get the power of Pro—upgrade your lighting with SSC1 today.
